COWL TOP

EI-23

C

D

E

F

G

H

J

K

L

M

A

B

EI

COWL TOP

PFP:66100

Removal and Installation

NIS0011C

REMOVAL

1.

Remove both right/left wiper arms from vehicle. Refer to

WW-30, "Removal and Installation of Front Wiper

Arms, Adjustment of Front Wiper Arms Stop Location"

 .

2.

Remove clips of both cowl top seal.

3.

Remove cowl top cover clips, and remove cowl top cover assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, perform adjustment of wiper arm. Refer to

WW-30, "Removal and Installation of Front

Wiper Arms, Adjustment of Front Wiper Arms Stop Location"

 .

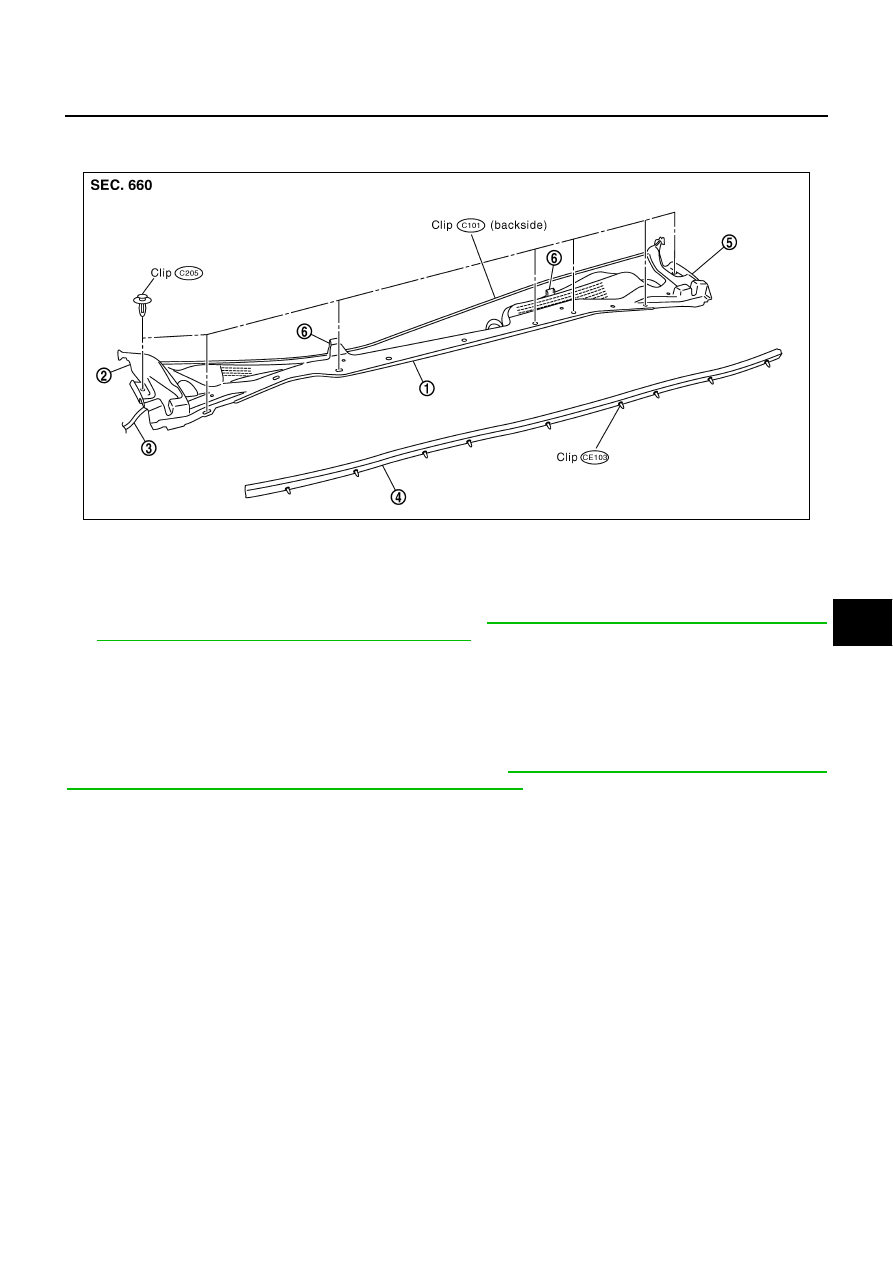

PIIB1693E

1.

Cowl top cover

2.

Rubber (RH)

3.

Washer tube

4.

Cowl top seal

5.

Rubber (LH)

6.

Washer nozzle

EI-24

FENDER PROTECTOR

FENDER PROTECTOR

PFP:63840

Removal and Installation

NIS0011D

REMOVAL AND INSTALLATION OF FENDER PROTECTOR
REMOVAL

1.

Remove bolts and screws of fender protector.

2.

Remove clips of fender protector.

3.

Remove fender protector (front/rear).

INSTALLATION

Install in the reverse order of removal.

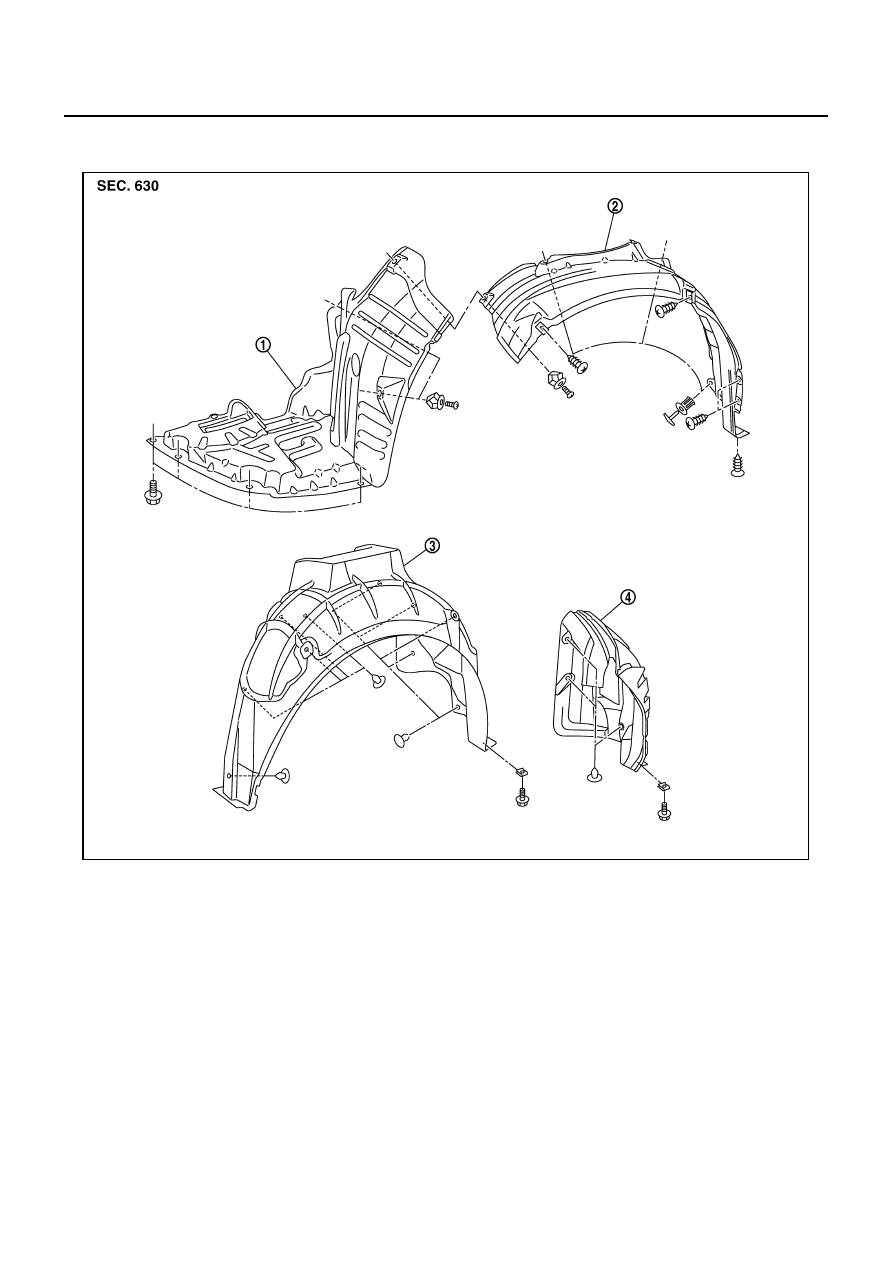

PIIB7384E

1.

Fender protector (front)

2.

Fender protector (rear)

3.

Rear wheel house protector
(19 in sport models only)

4.

Rear wheel house protector

FENDER PROTECTOR

EI-25

C

D

E

F

G

H

J

K

L

M

A

B

EI

REMOVAL AND INSTALLATION OF REAR WHEEL HOUSE PROTECTOR
REMOVAL

1.

Remove bolts of rear wheel house protector.

2.

Remove clips of rear wheel house protector.

3.

Remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

EI-26

CENTER MUD GUARD

CENTER MUD GUARD

PFP:76850

Removal and Installation

NIS0011E

REMOVAL

1.

Remove mudguard finisher (front and rear). Refer to

EI-43, "Removal and Installation"

 .

2.

Remove screws on front/rear and lower side of center mudguard.

3.

Remove clips on front and rear end of center mudguard.

4.

Remove center mudguard.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

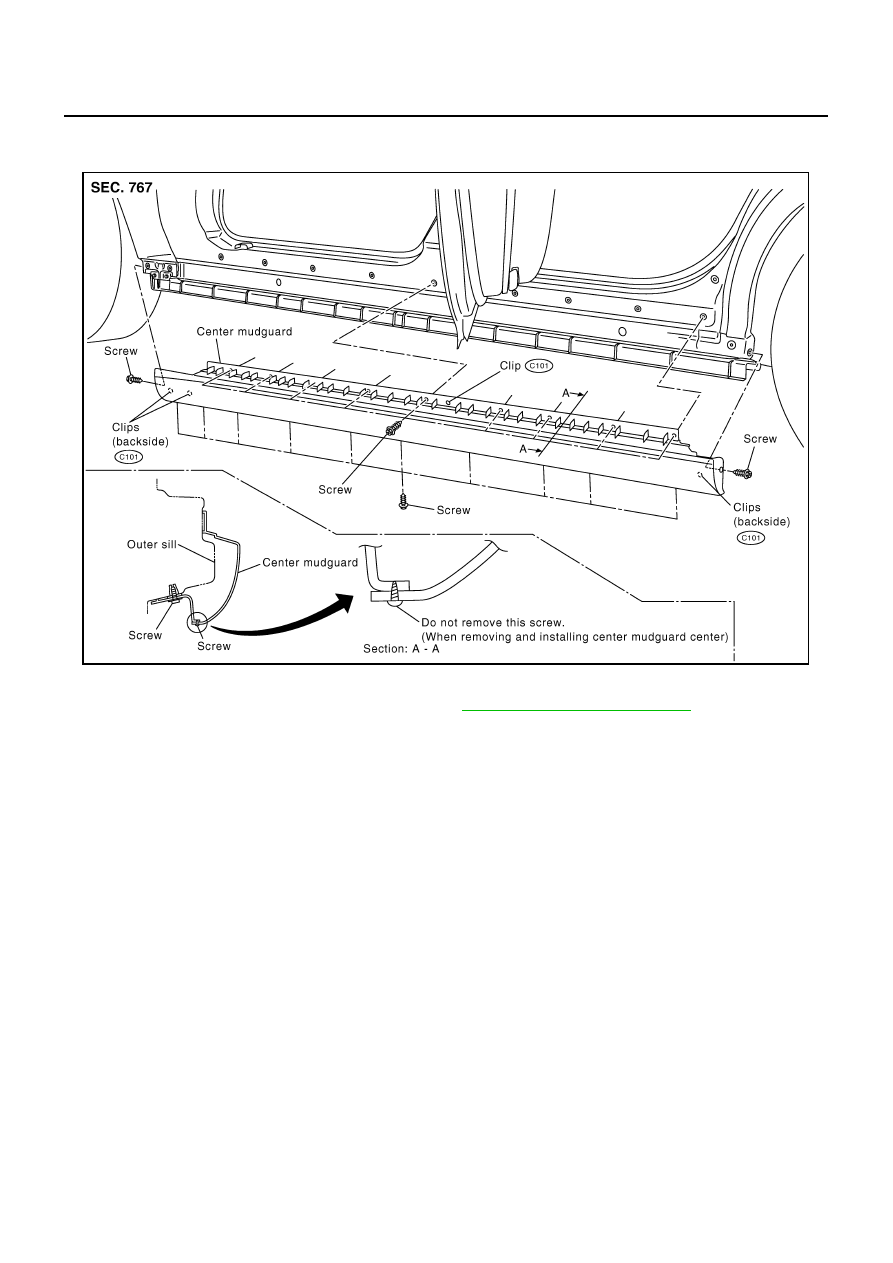

PIIA0039E
