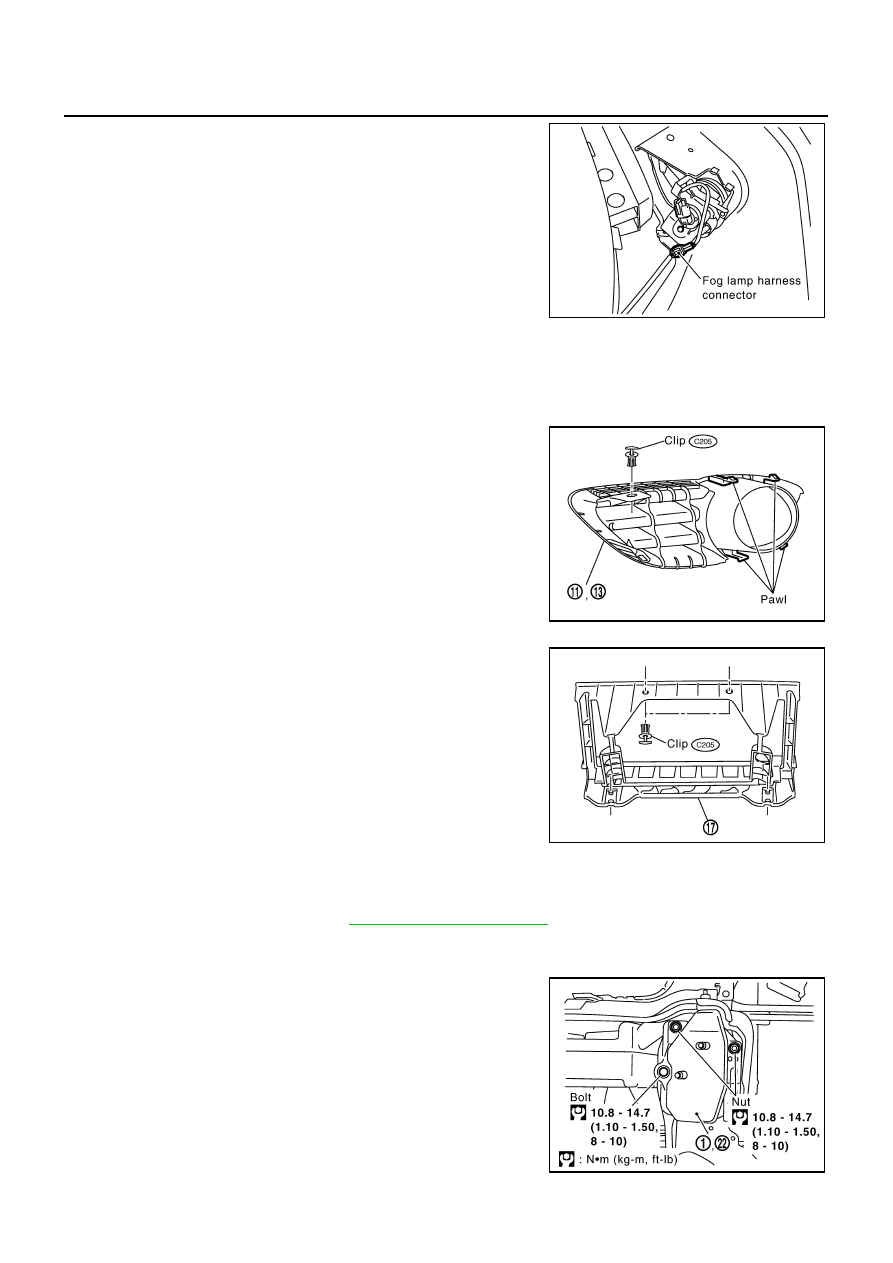

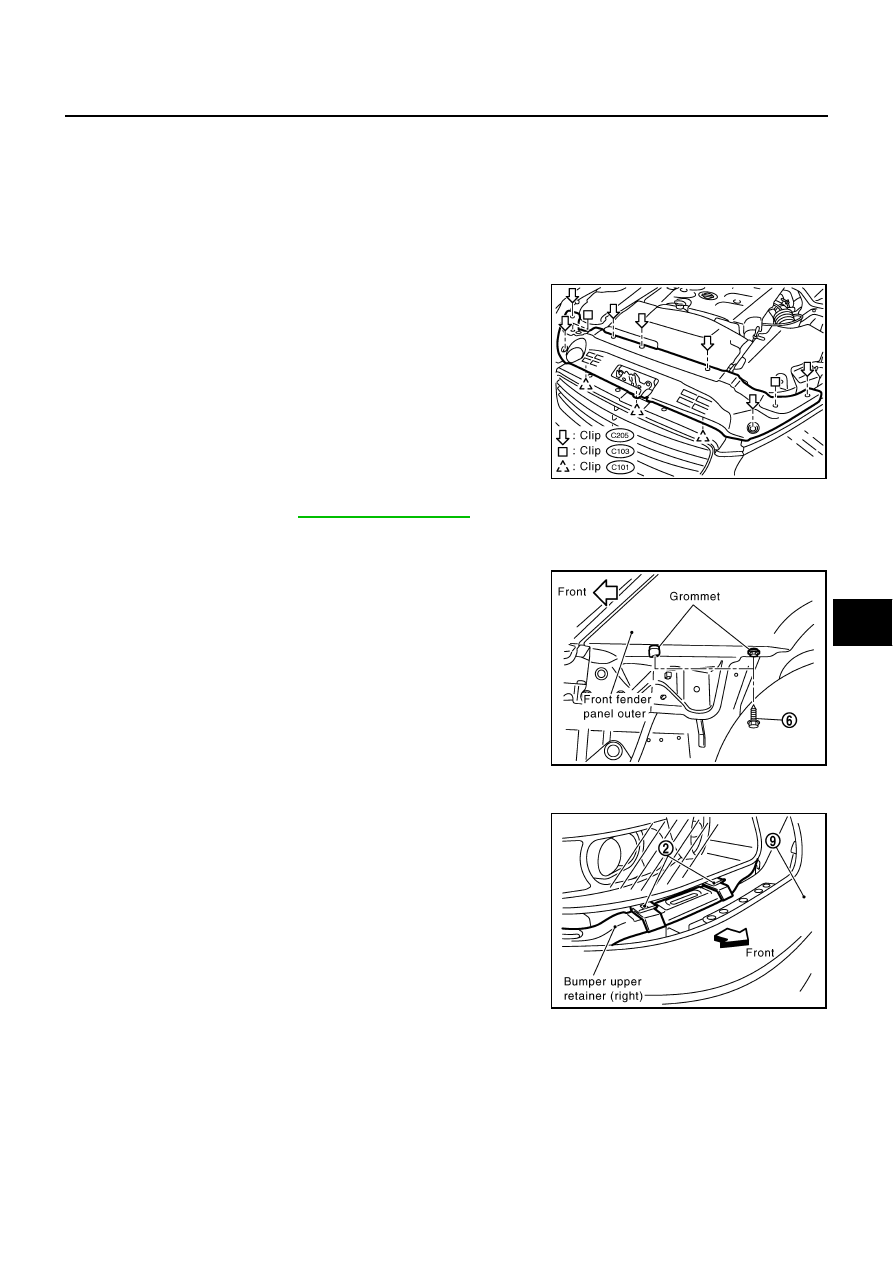

FRONT BUMPER EI-15 C D E F G H J K L M A B EI REMOVAL 1. Release front air cover clips, and remove front air guide. 2. Remove front grille. Refer to 3. Remove bolts at the edge of engine undercover. 4. Remove bolts and clips of both front fender protectors (LH/RH). (on front side) 5. Remove screws from both front fenders (LH/RH). 6. Remove clips from upper bracket assembly. 7. Disconnect bumper fascia from bumper clips. 7. Clip (C103) 8. Bumper molding (RH) 9. Bumper fascia 10. Fog lamp (RH) 11. Bumper grille (RH) 12. License plate bracket 13. Bumper grille (left) 14. Fog lamp (LH) 15. Bumper molding (LH) 16. U nut 17. ACC finisher 18. Clip (C205) 19. Nut 20. Bolt 21. ACC 22. Bumper stay (LH) 23. Bumper fin (RH) 24. Bumper fin (LH) PIIA9401E PIIB1681E PIIB1682E |
