Infiniti Q45. Manual - part 199

REMOTE KEYLESS ENTRY SYSTEM

BL-65

C

D

E

F

G

H

J

K

L

M

A

B

BL

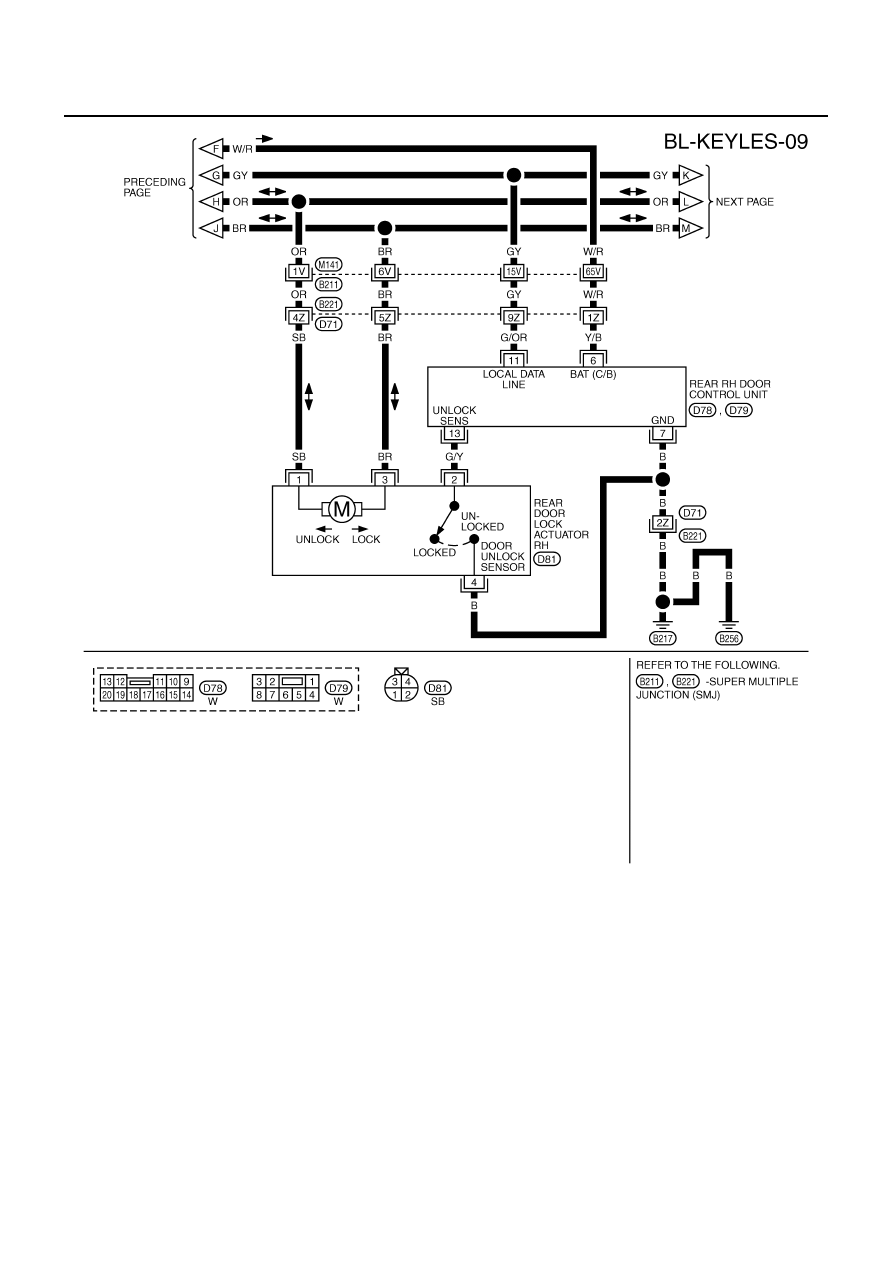

TIWM1551E

BL-66

REMOTE KEYLESS ENTRY SYSTEM

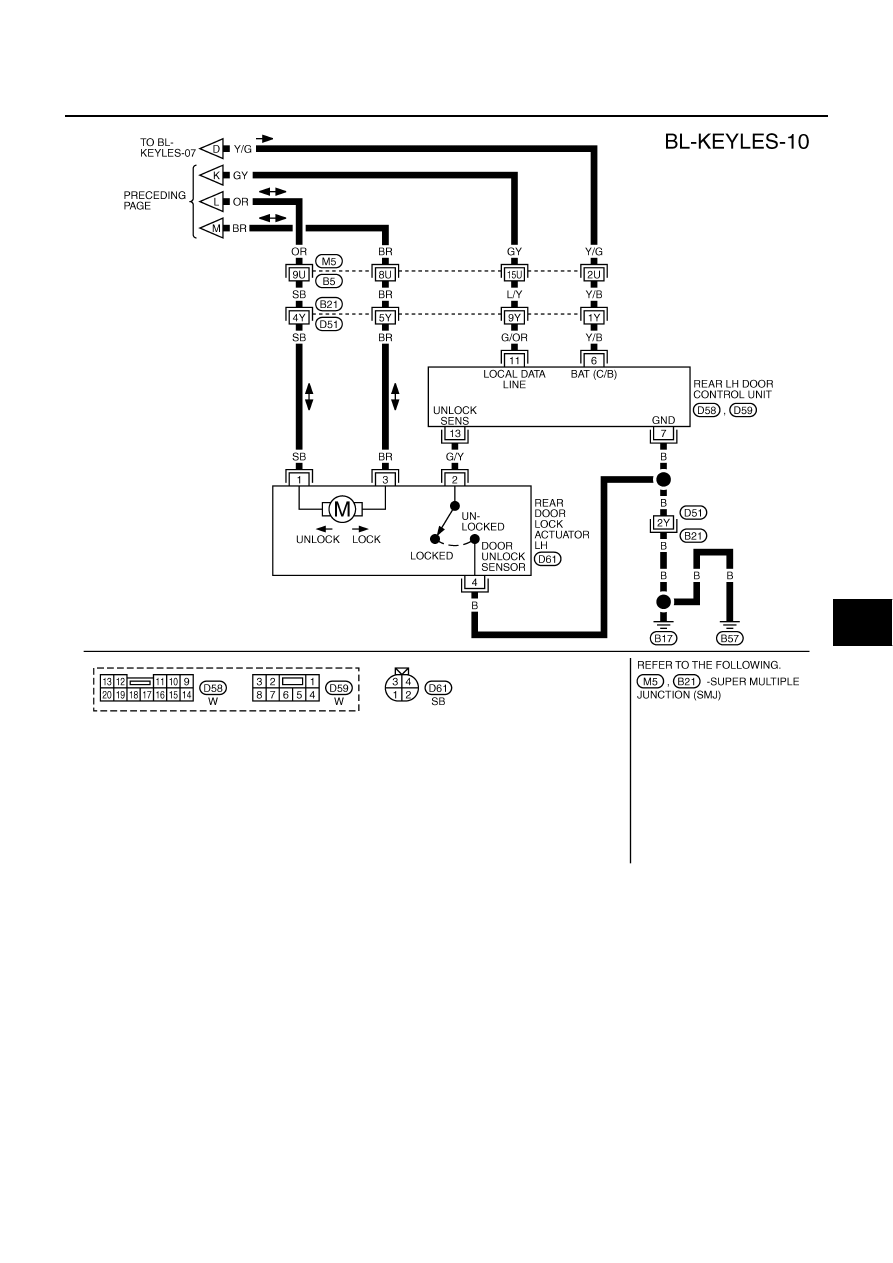

TIWM1552E

REMOTE KEYLESS ENTRY SYSTEM

BL-67

C

D

E

F

G

H

J

K

L

M

A

B

BL

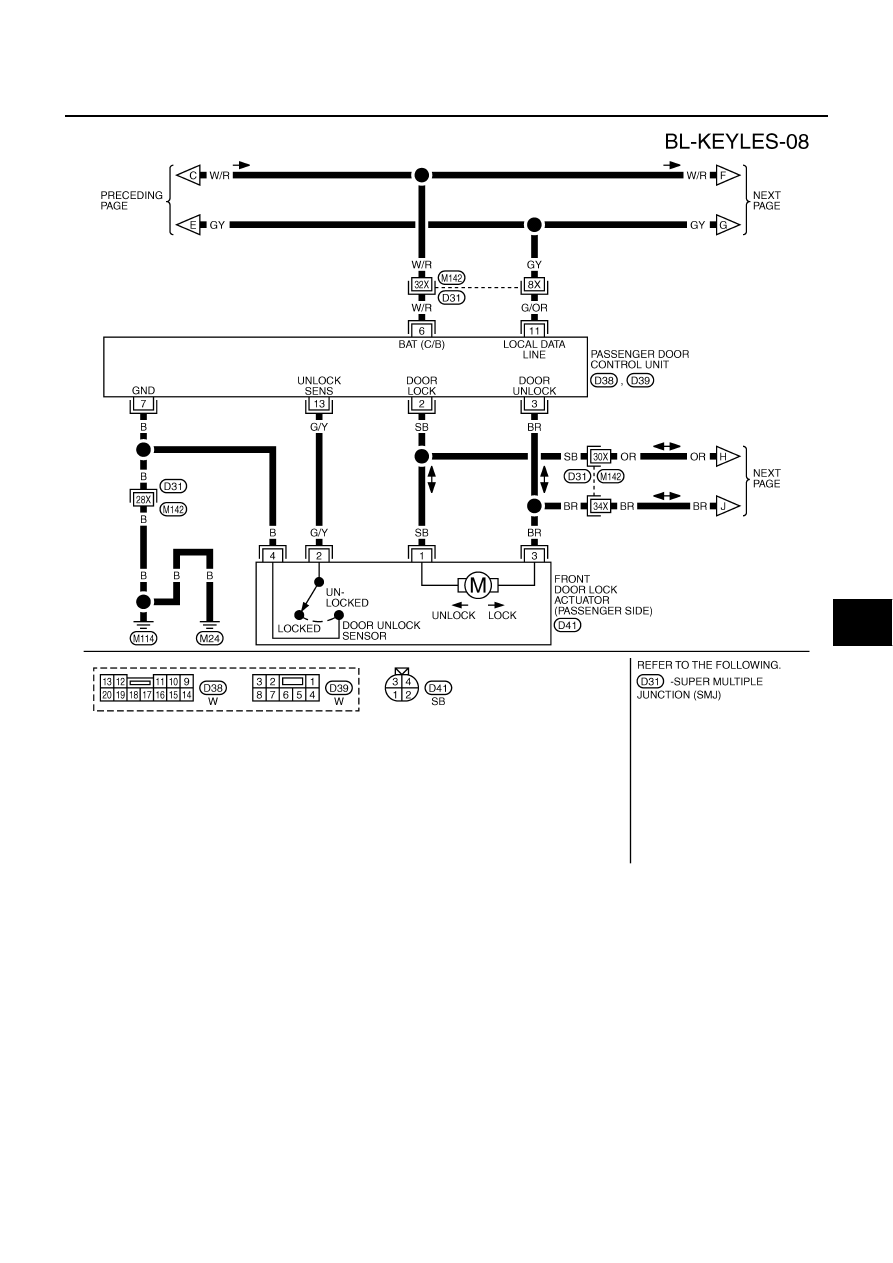

TIWM1553E

BL-68

REMOTE KEYLESS ENTRY SYSTEM

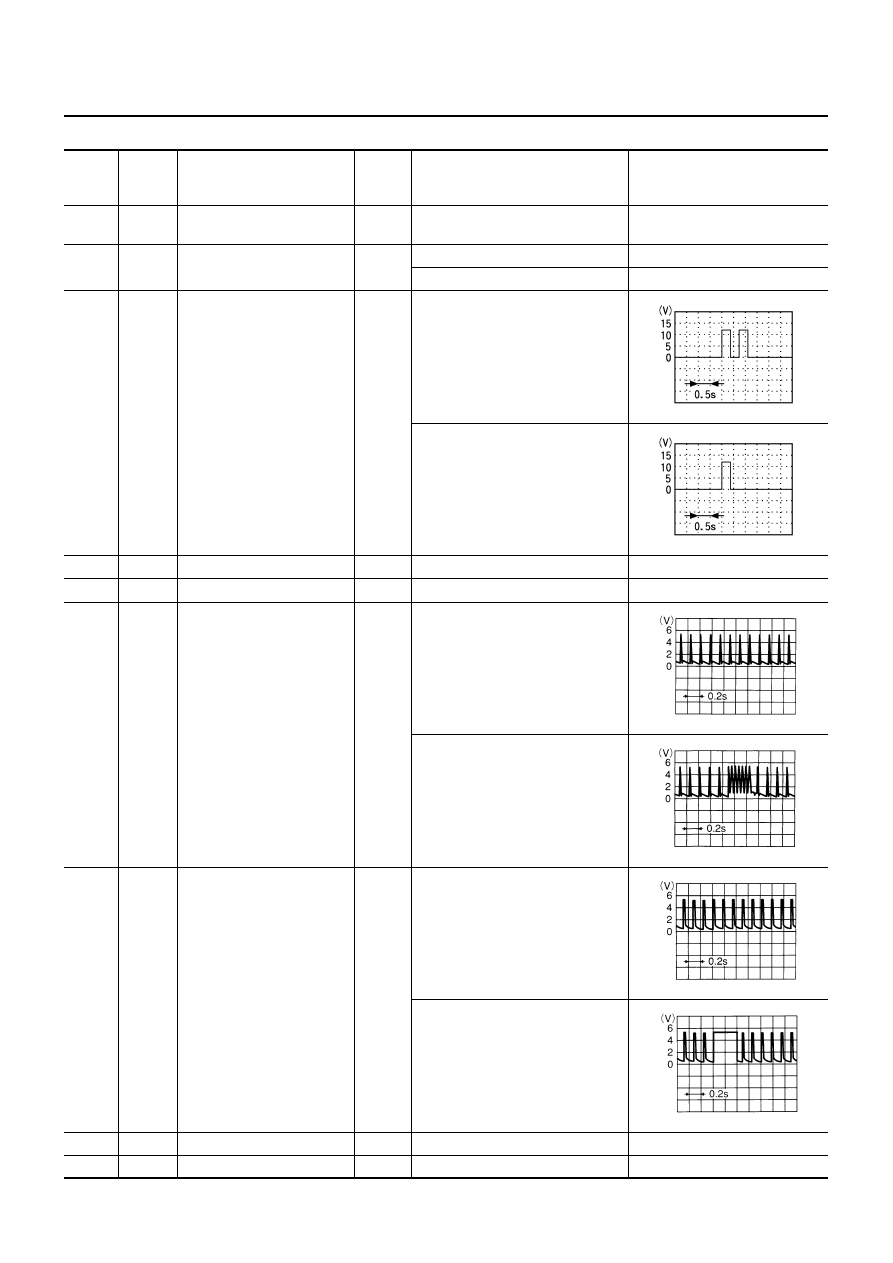

Terminal and Reference Value for BCM

NIS000UH

TER-

MINAL

WIRE

COLOR

ITEM

Signal

input/

output

CONDITION

VOLTAGE (V)

(Approx.)

1

G/Y

Auto trunk control unit

Output

When trunk opener is operated
using electronic key. (OFF

→

 ON)

5

→

 0

5

R/Y

Headlamp relay

Input

Lighting switch is turned to OFF

Battery voltage

Lighting switch is turned to ON

0

7

W/L

Combination flasher unit

Input/

output

Door locking with electronic key
(Twice)

Door unlocking with electronic key
(Once)

17

BR/Y

Data line RX

Input

—

—

18

G/B

Data line TX

Output

—

—

27

BR/W

Remote key less entry
receiver
(Pulse)

Input/

output

Stand-by

Press any of electronic key switches

28

L

Remote keyless entry
receiver
(Power supply)

Input/

output

Stand-by

Press any of electronic key switches

30

PU

IIU TX

Output

—

—

31

LG

IIU RX

Input

—

—

PIIA2487J

PIIA2486J

OCC3879D

OCC3880D

OCC3881D

OCC3882D
