REMOTE KEYLESS ENTRY SYSTEM

BL-57

C

D

E

F

G

H

J

K

L

M

A

B

BL

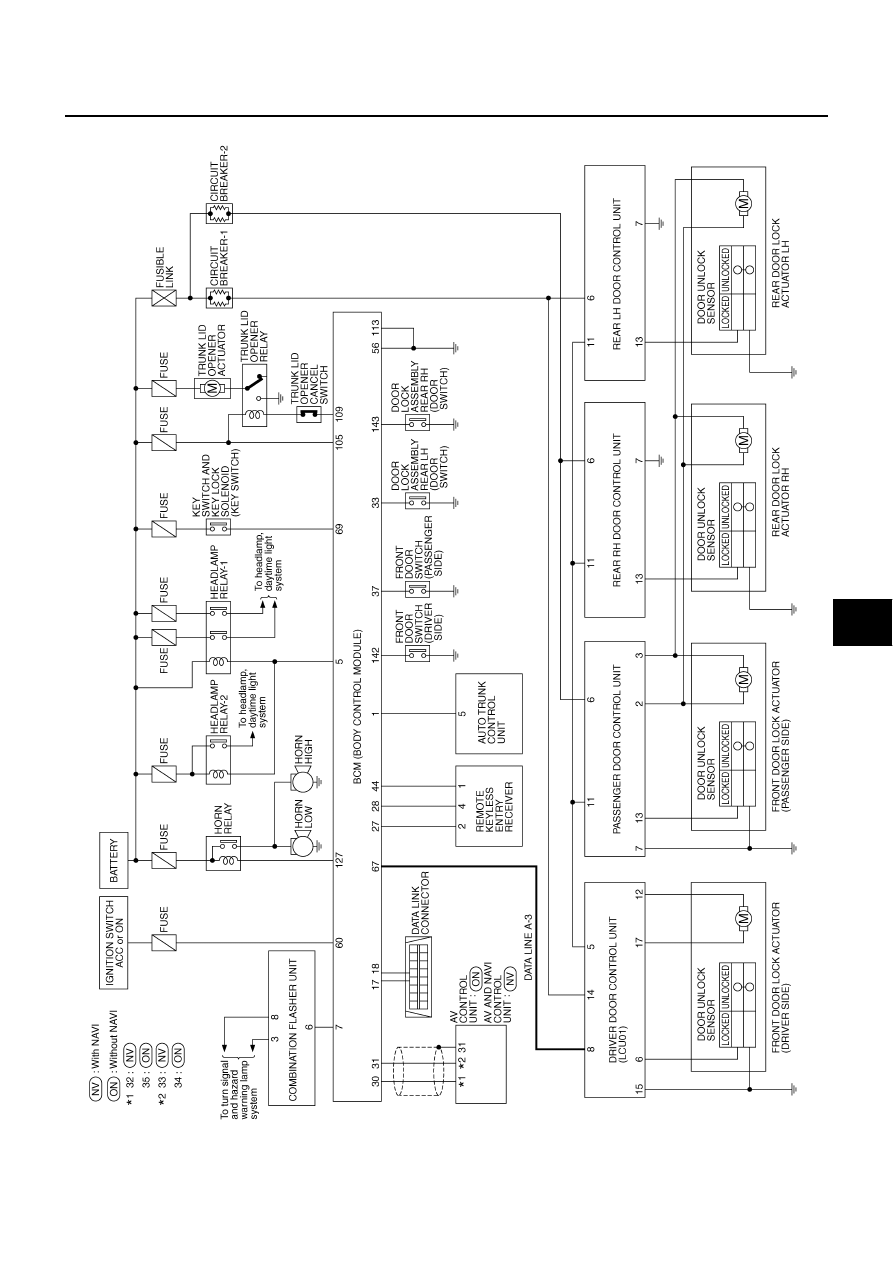

Schematic

NIS000UF

TIWM0668E

BL-58

REMOTE KEYLESS ENTRY SYSTEM

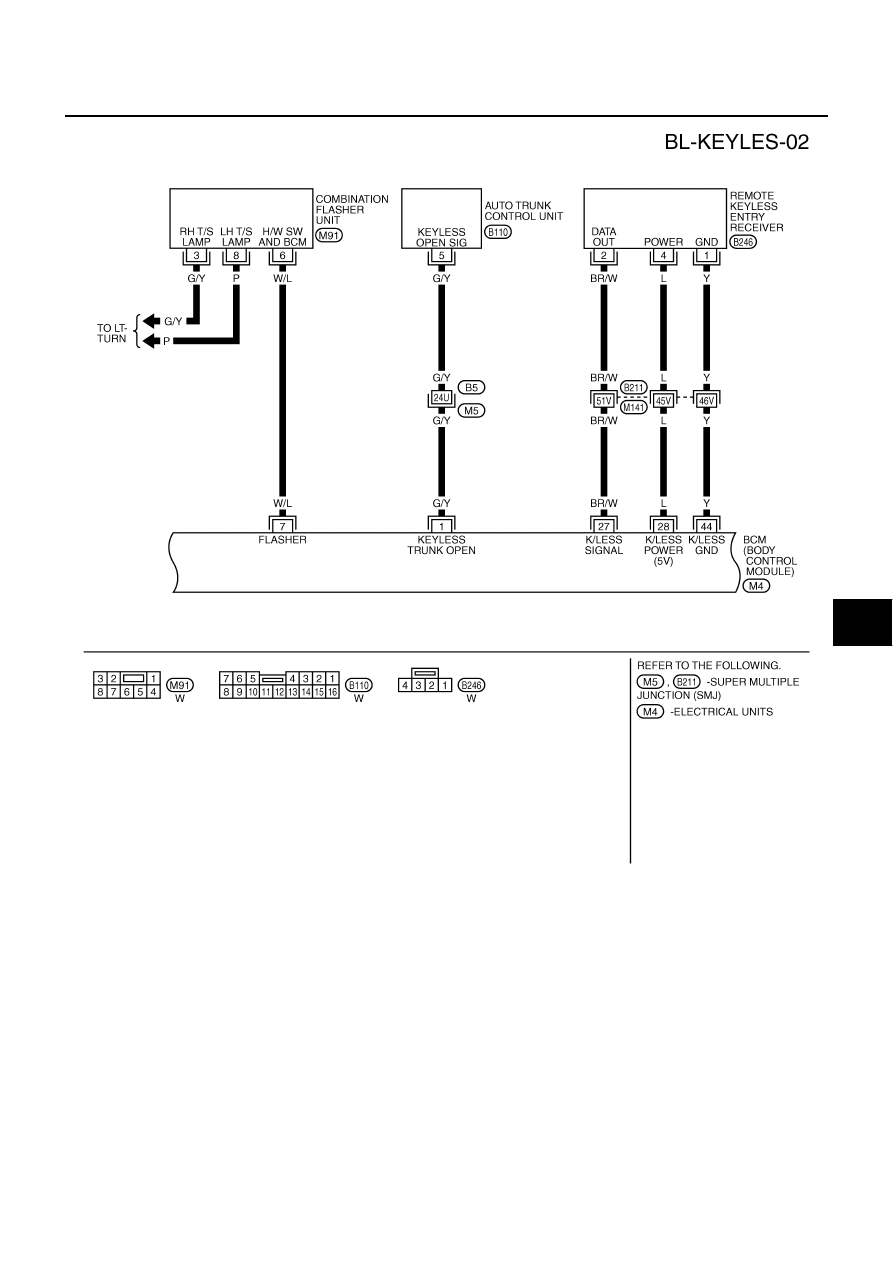

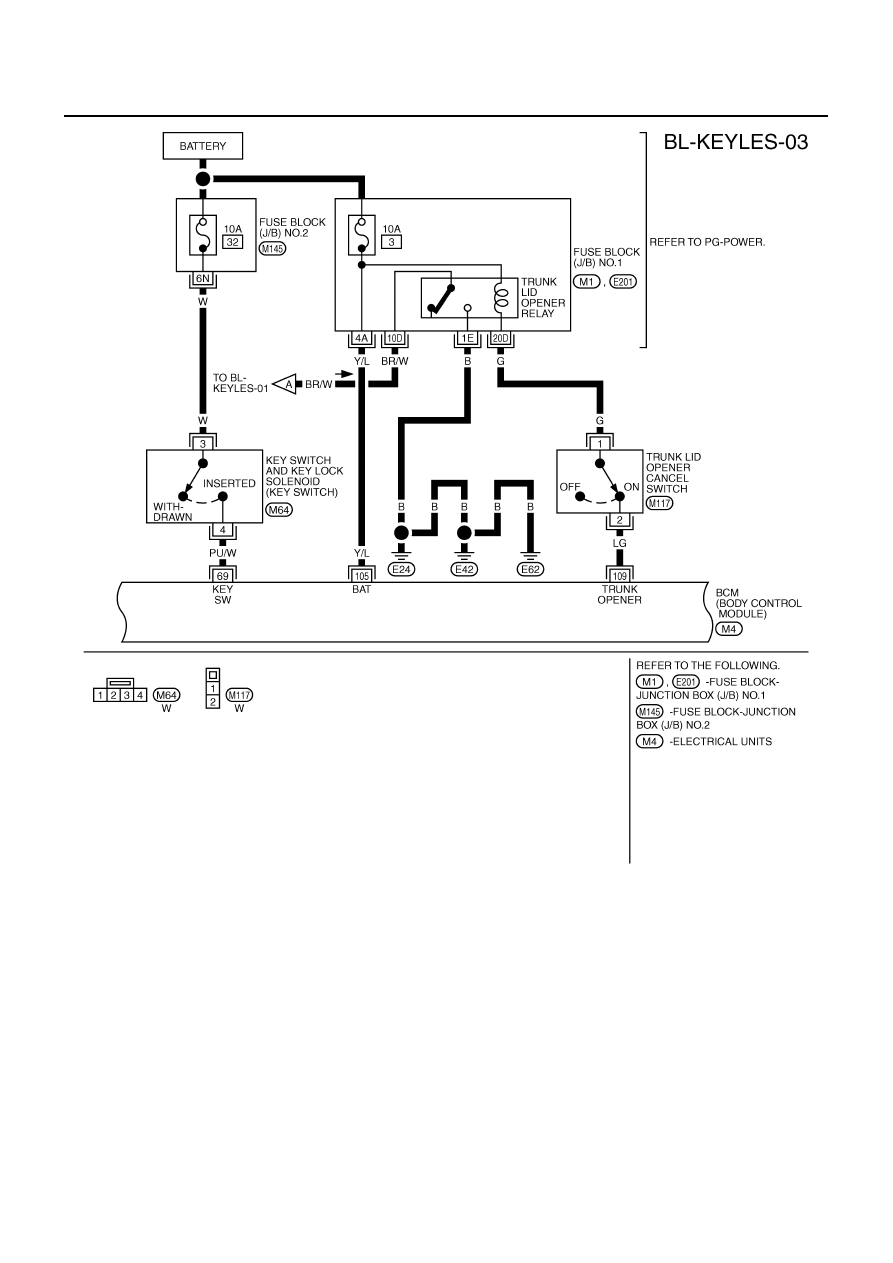

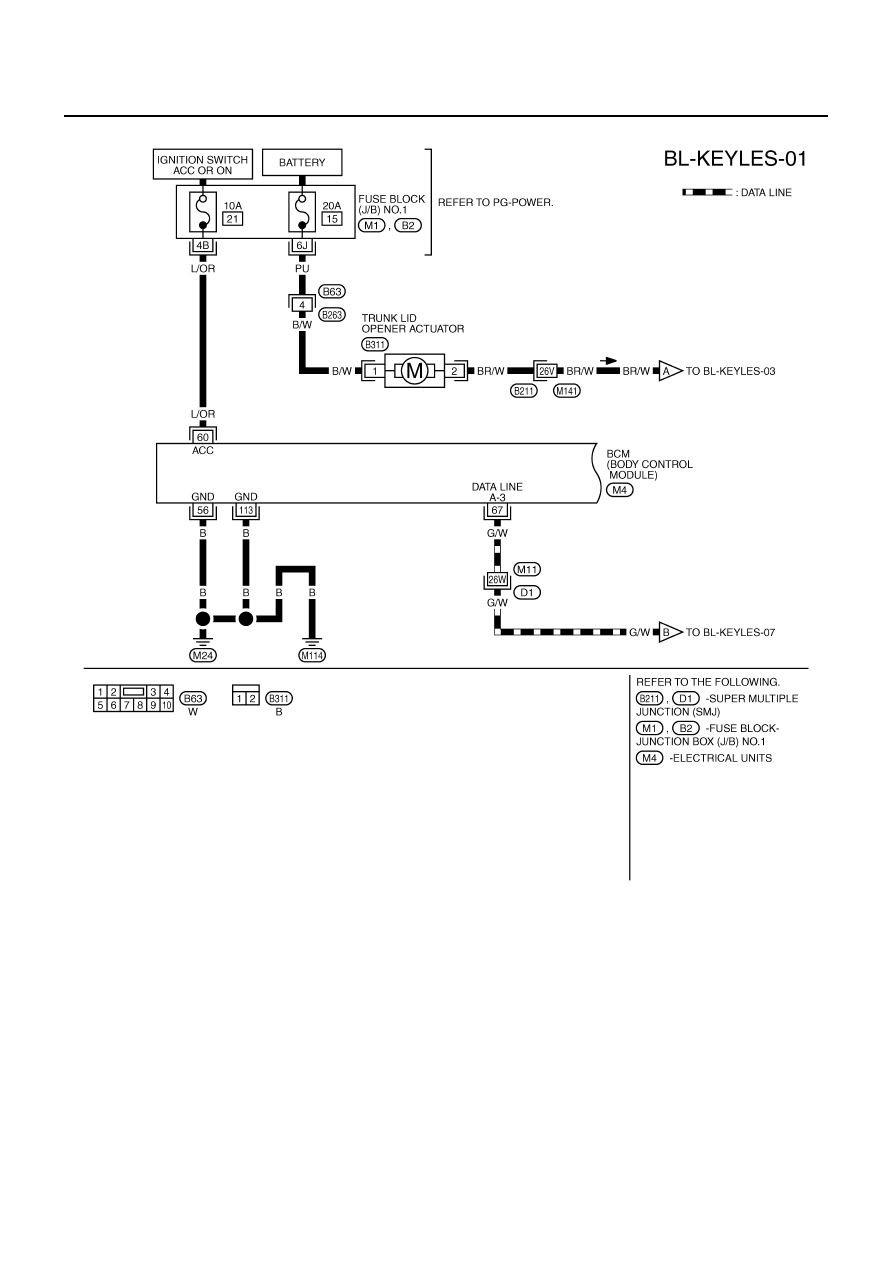

Wiring Diagram — KEYLES —

NIS000UG

TIWM1387E

REMOTE KEYLESS ENTRY SYSTEM

BL-59

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWM0670E

BL-60

REMOTE KEYLESS ENTRY SYSTEM

TIWM0671E
