Infiniti Q45. Manual - part 97





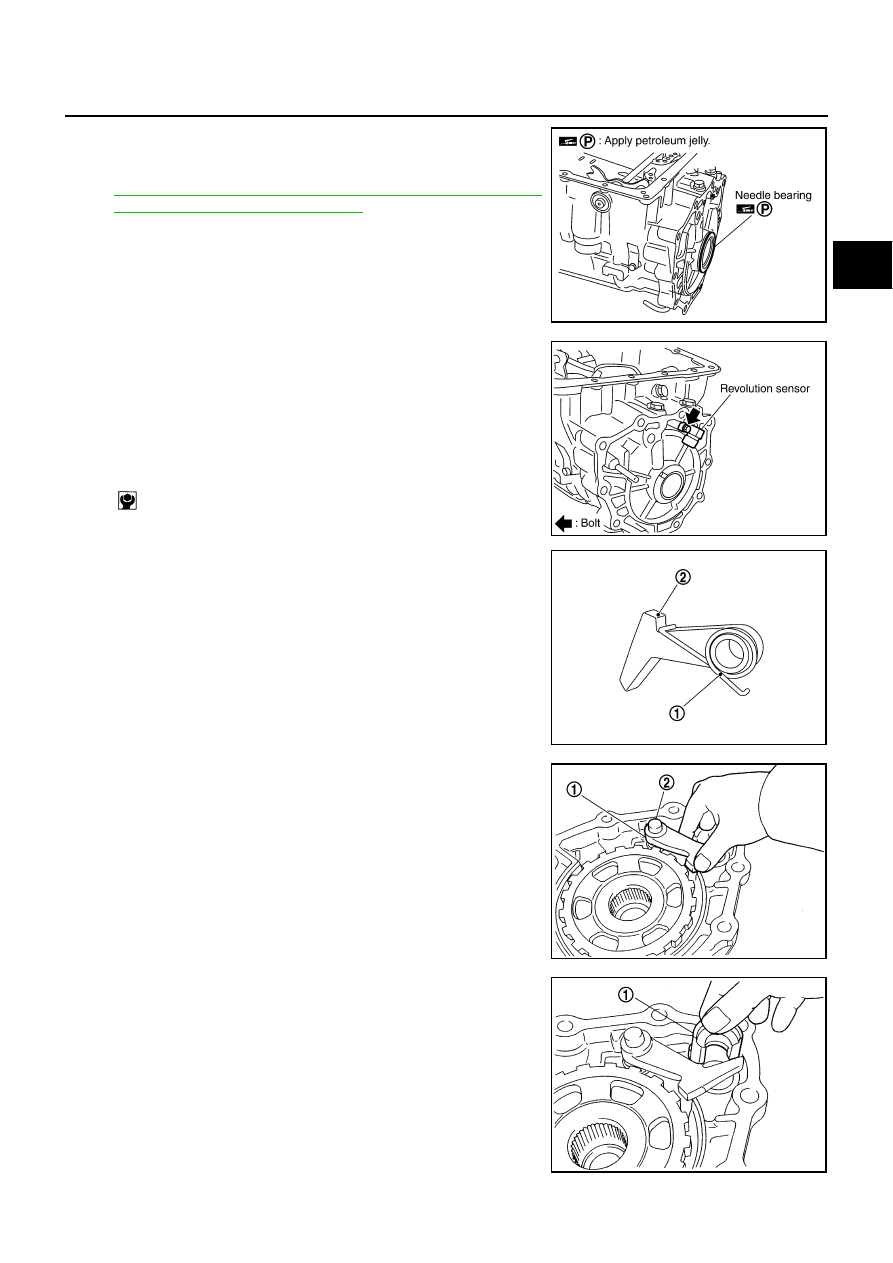

ASSEMBLY

AT-301

D

E

F

G

H

I

J

K

L

M

A

B

AT

23. Install needle bearing to transmission case.

CAUTION:

Take care with the direction of needle bearing. Refer to

AT-260, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

Apply petroleum jelly to needle bearing.

24. Install revolution sensor to transmission case.

CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.

25. Install return spring (1) to parking pawl (2).

26. Install parking pawl (with return spring) (1) and pawl shaft (2) to

output shaft & companion flange complement.

27. Install parking actuator support (1) in output shaft & companion

flange complement.

SCIA5031E

: 5.8 N·m (0.59 kg-m, 51 in-lb)

SCIA2320E

SCIA6180J

SCIA7066E

SCIA7065E

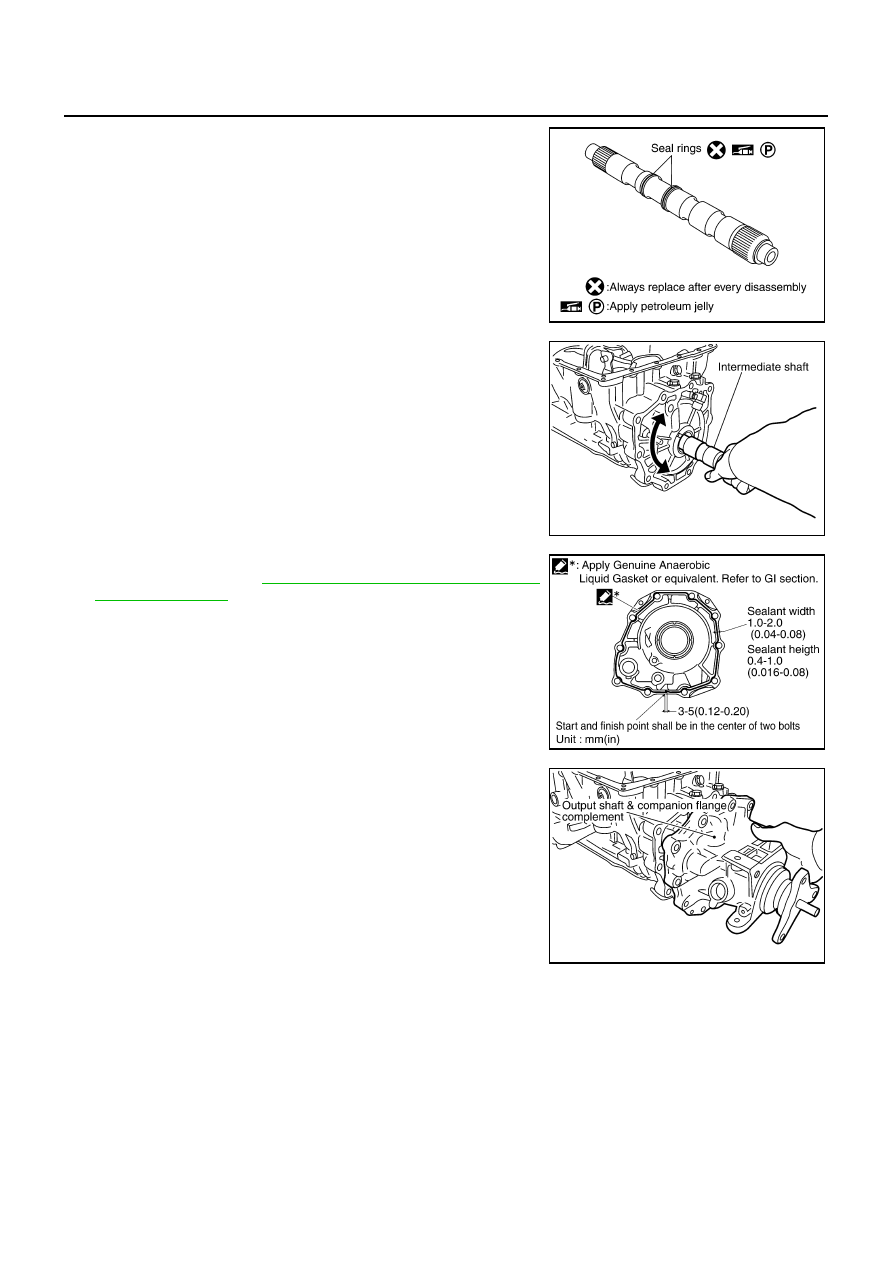

AT-302

ASSEMBLY

28. Install seal rings to intermediate shaft.

CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.

29. Install intermediate shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

30. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-45, "Recommended Chemical Prod-

ucts and Sealants"

 .) to output shaft & companion flange com-

plement as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and output shaft & companion
flange complement mounting surfaces.

31. Install output shaft & companion flange complement in transmis-

sion case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the output
shaft & companion flange complement.

SCIA5714E

SCIA5713E

SCIA5212E

SCIA5712E

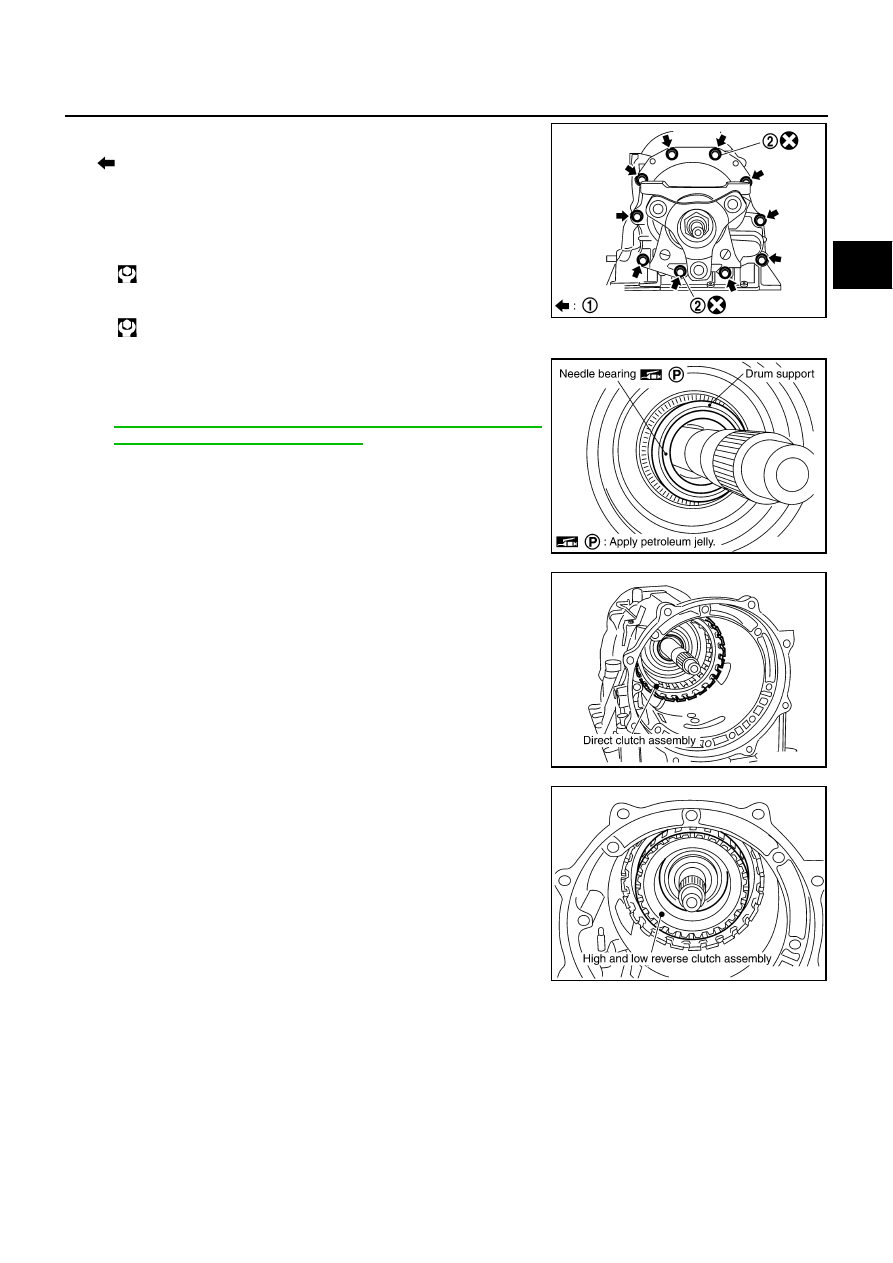

ASSEMBLY

AT-303

D

E

F

G

H

I

J

K

L

M

A

B

AT

32. Tighten output shaft & companion flange complement mounting

bolts (1) to specified torque.

: Bolt (10)

CAUTION:

Do not reuse self-sealing bolts (2).

33. Install needle bearing in drum support.

CAUTION:

Take care with the direction of needle bearing. Refer to

AT-260, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

Apply petroleum jelly to needle bearing.

34. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

35. Install high and low reverse clutch assembly in direct clutch.

Output shaft & companion flange complement
mounting bolt:

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA6943E

SCIA5198E

SCIA5019E

SCIA2306E

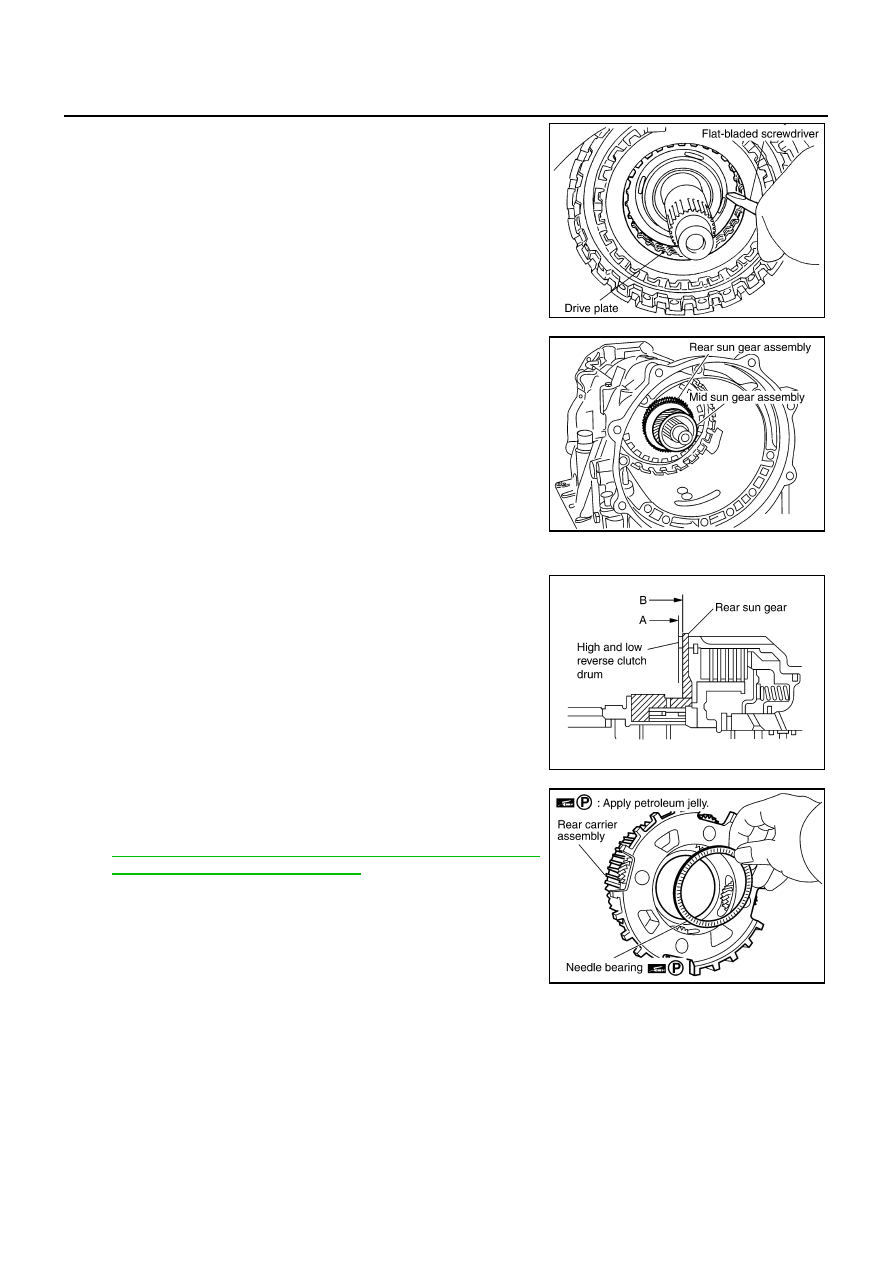

AT-304

ASSEMBLY

36. Using a flat-bladed screwdriver, align the drive plate.

37. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

CAUTION:

Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.

38. Install needle bearing in rear carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

AT-260, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

Apply petroleum jelly to needle bearing.

SCIA3169E

SCIA5018E

SCIA3130E

SCIA2803E
