ASSEMBLY

AT-297

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

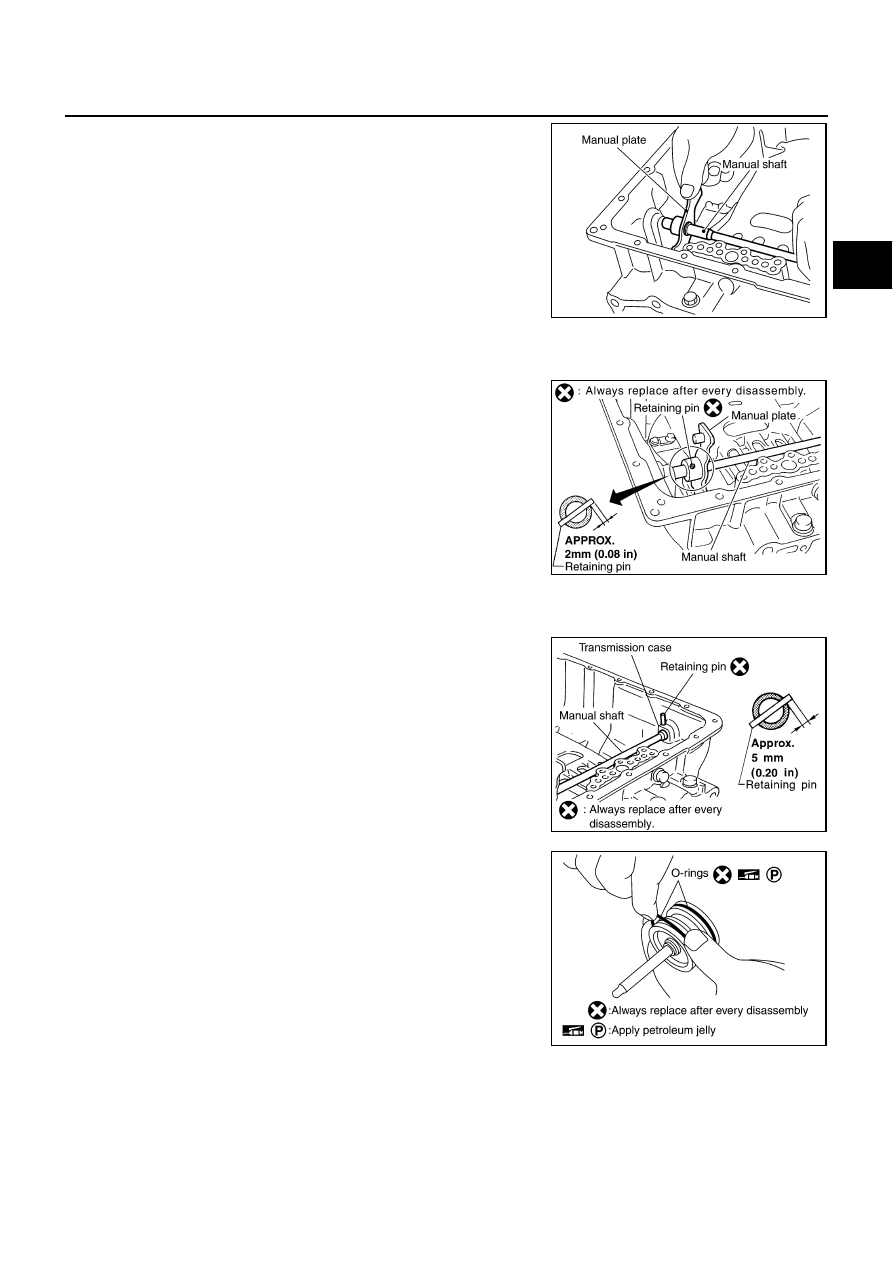

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

●

Do not reuse retaining pin.

●

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

●

Do not reuse retaining pin.

●

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the

transmission case.

8.

Install O-rings to servo assembly.

CAUTION:

●

Do not reuse O-rings.

●

Apply petroleum jelly to O-rings.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E

AT-298

ASSEMBLY

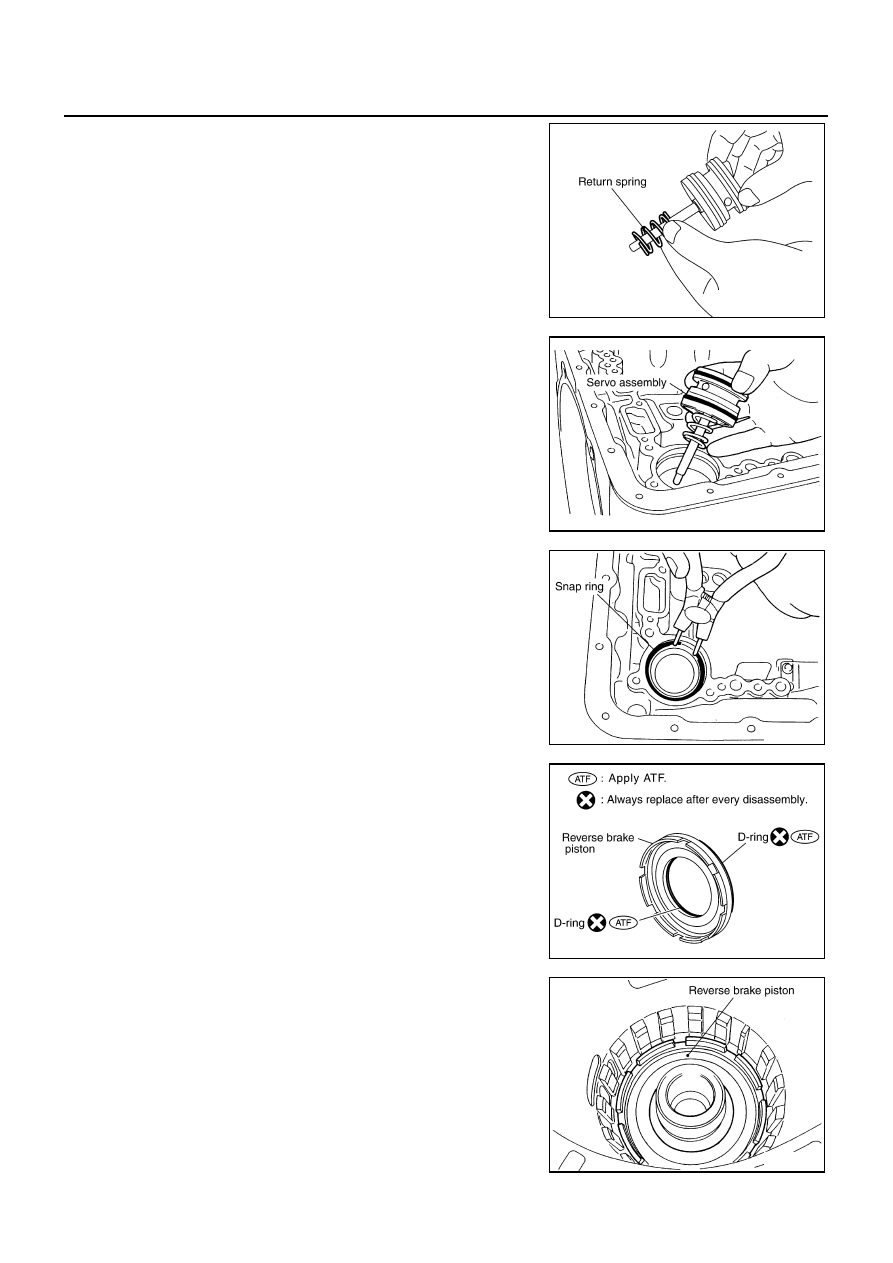

9.

Install return spring to servo assembly.

10. Install servo assembly in transmission case.

11. Using a pair of snap ring pliers, install snap ring to transmission

case.

12. Install D-rings in reverse brake piston.

CAUTION:

●

Do not reuse D-rings.

●

Apply ATF to D-rings.

13. Install reverse brake piston in transmission case.

SCIA5717E

SCIA5679E

SCIA2333E

SCIA6330E

SCIA2325E

ASSEMBLY

AT-299

D

E

F

G

H

I

J

K

L

M

A

B

AT

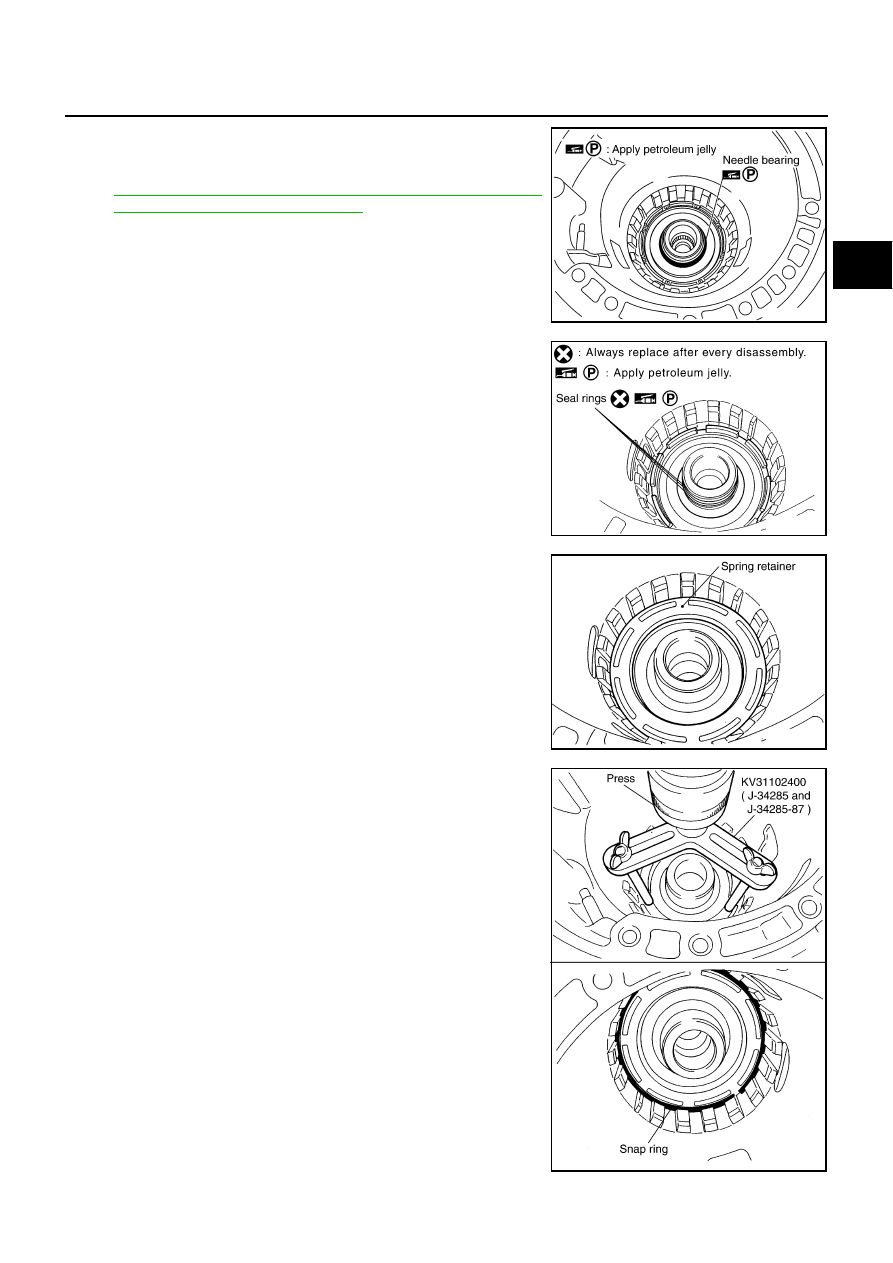

14. Install needle bearing to drum support edge surface.

CAUTION:

●

Take care with the direction of needle bearing. Refer to

AT-260, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

●

Apply petroleum jelly to needle bearing.

15. Install seal rings to drum support.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

16. Install spring retainer and return spring in transmission case.

17. Set the SST on spring retainer and install snap ring (fixing spring

retainer) in transmission case while compressing return spring.

CAUTION:

Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.

SCIA2796E

SCIA3333E

SCIA2324E

SCIA5877E

AT-300

ASSEMBLY

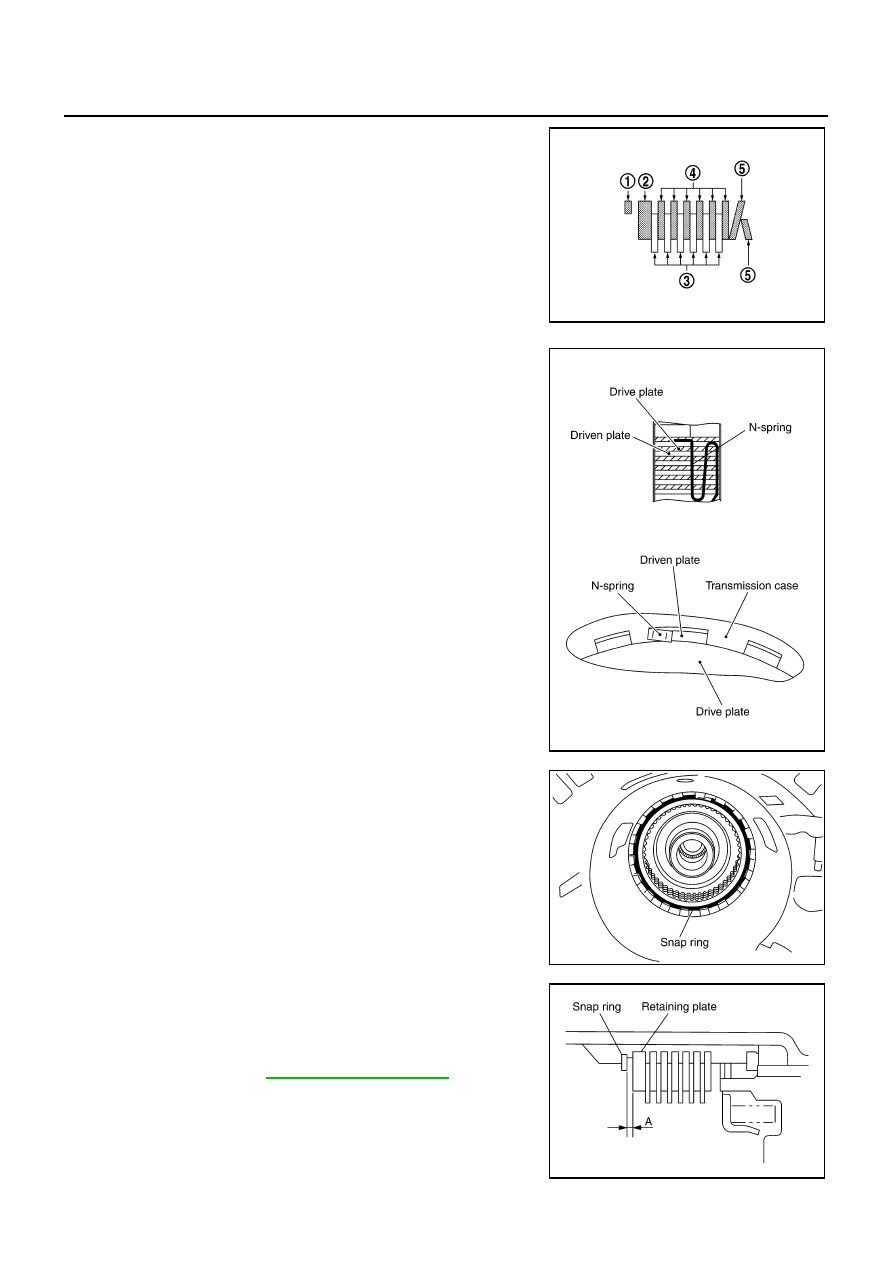

18. Install reverse brake drive plates, driven plates and dish plates

in transmission case.

CAUTION:

Take care with order of plates.

●

Snap ring (1)

●

Retaining plate (2)

●

Drive plate (3)

●

Driven plate (4)

●

Dish plate (5)

●

Drive plate/Driven plate: 6/6

19. Assemble N-spring.

20. Install reverse brake retaining plate in transmission case.

21. Install snap ring in transmission case.

22. Measure clearance between retaining plate and snap ring. If not

within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate selection.

SCIA6949E

SCIA5249E

SCIA2439E

Specified clearance “A”:

Standard: Refer to

AT-318, "Reverse Brake"

 .

SCIA3129E
