REPAIR FOR COMPONENT PARTS

AT-293

D

E

F

G

H

I

J

K

L

M

A

B

AT

INSPECTION

Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

ASSEMBLY

1.

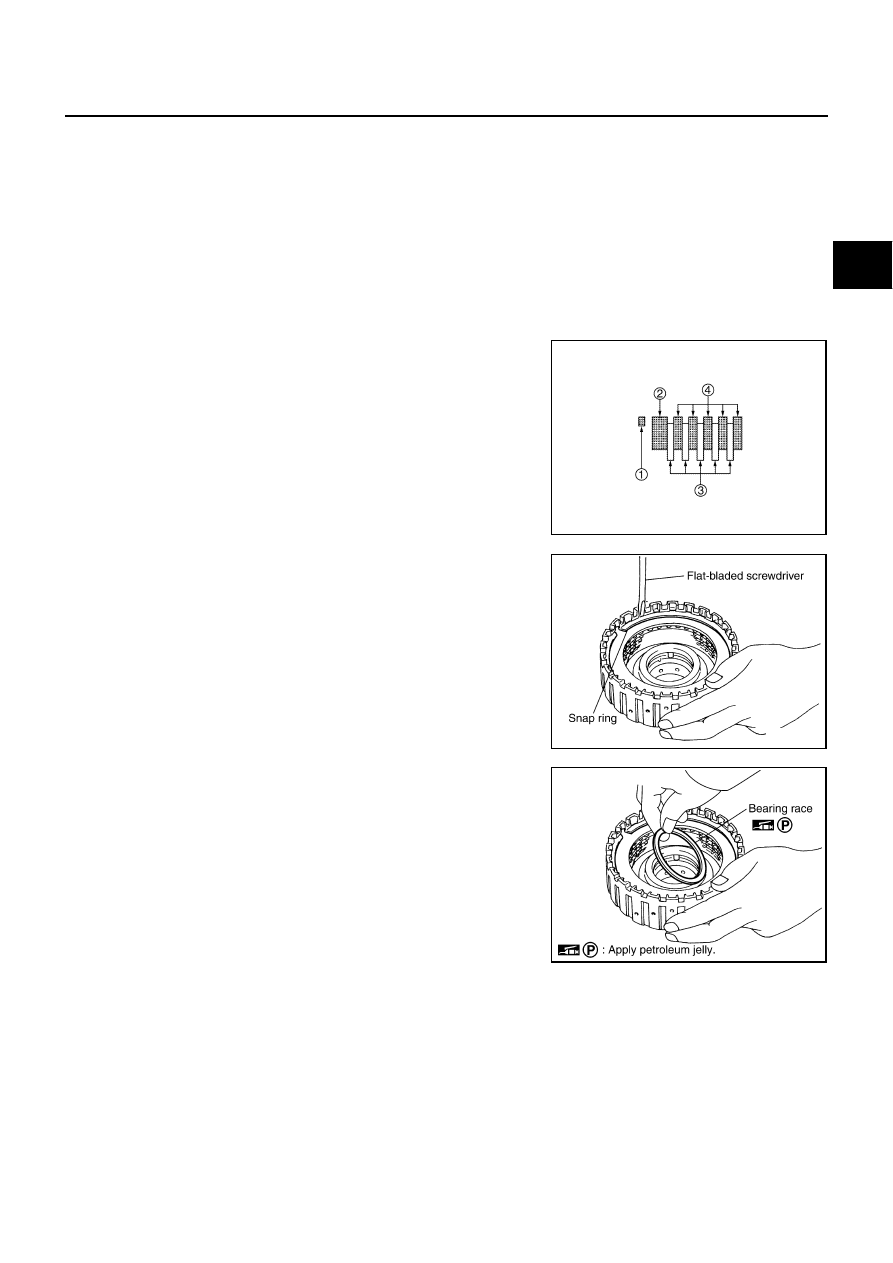

Install drive plates, driven plates and retaining plate in high and
low reverse clutch drum.

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Drive plate/Driven plate: 5/5

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA7134E

SCIA2868E

SCIA5215E

AT-294

REPAIR FOR COMPONENT PARTS

Direct Clutch

NCS0011N

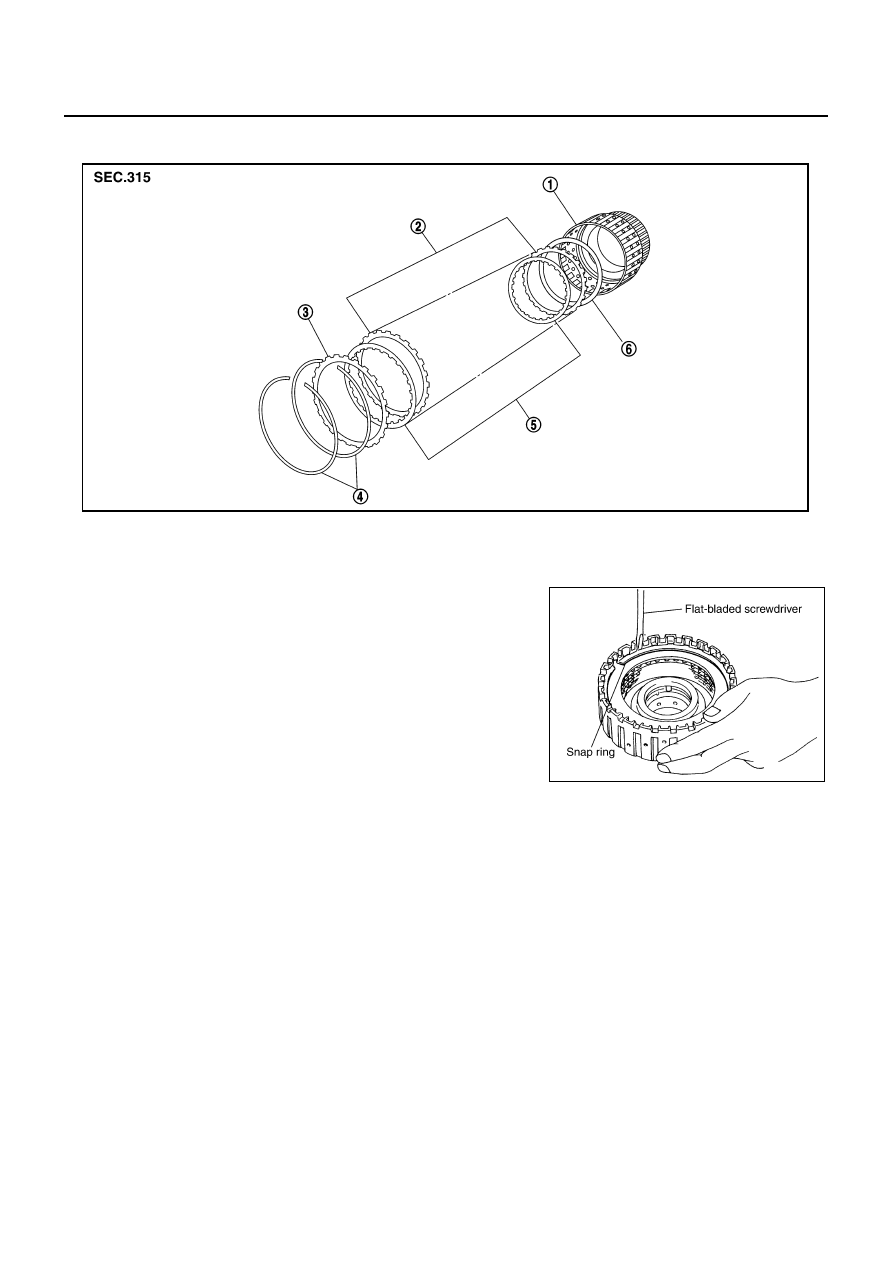

COMPONENTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap rings from direct
clutch drum.

2.

Remove drive plates, driven plates, dish plate and retaining
plate from direct clutch drum.

INSPECTION

Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

Check for deformation, fatigue or damage.

Direct Clutch Drive Plates and Driven Plates

Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Dish Plate

Check facing for burns, cracks or damage.

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Dish plate

SCIA6983E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-295

D

E

F

G

H

I

J

K

L

M

A

B

AT

ASSEMBLY

1.

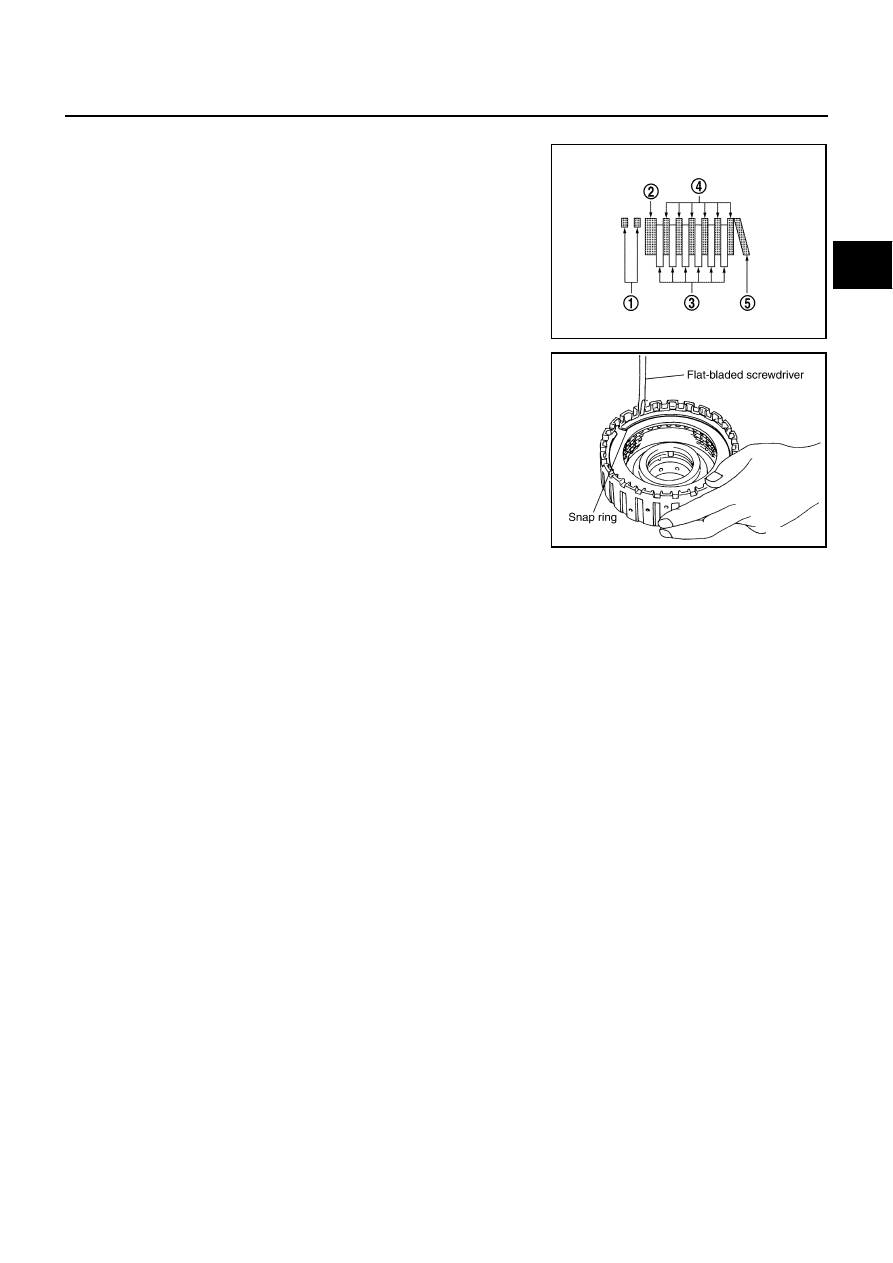

Install drive plates, driven plates, dish plate and retaining plate
in direct clutch drum.

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Dish plate (5)

Drive plate/Driven plate: 6/6

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap rings in direct clutch
drum.

SCIA6951E

SCIA2868E

AT-296

ASSEMBLY

ASSEMBLY

PFP:00000

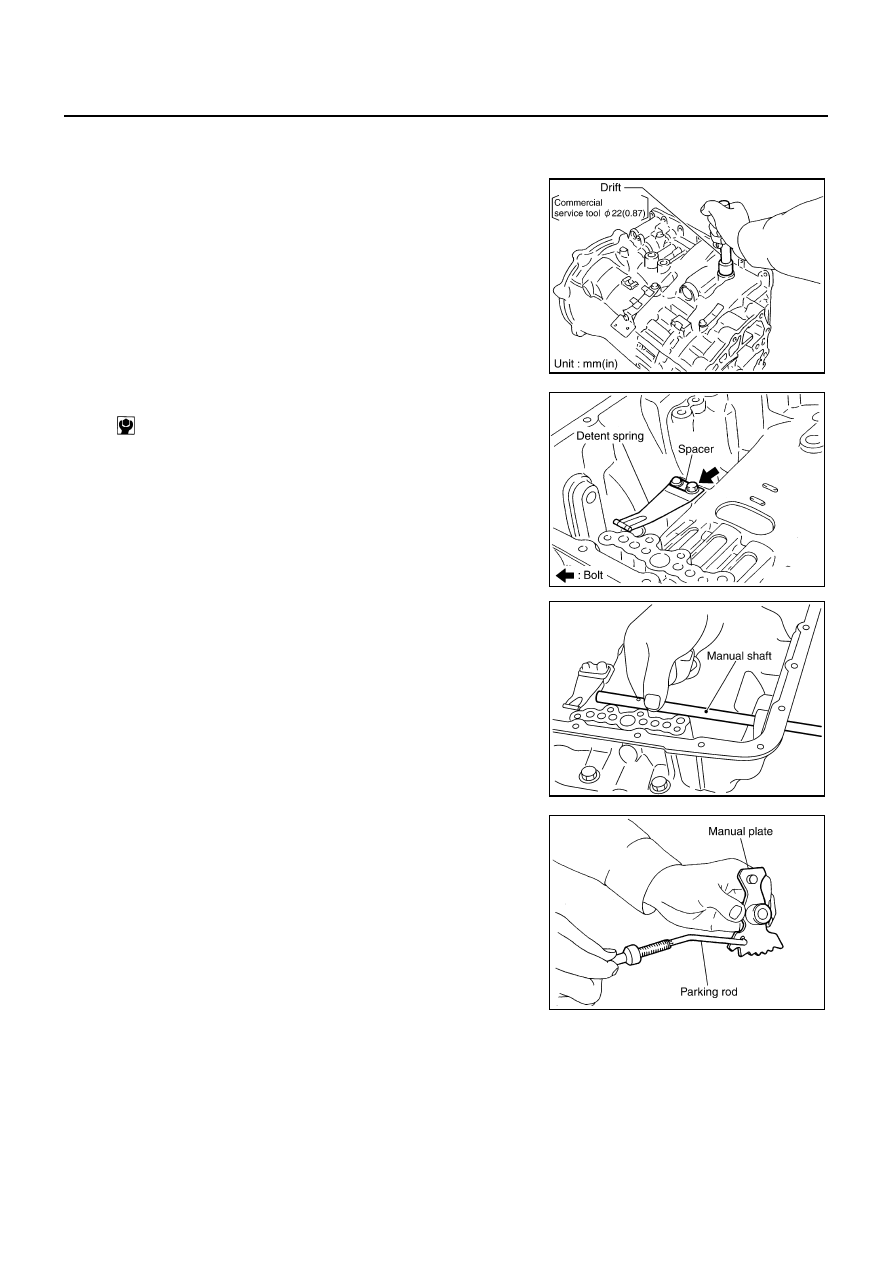

Assembly (1)

NCS0011O

1.

As shown in the figure, use a drift [commercial service tool: 22
mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.

CAUTION:

Do not reuse manual shaft oil seals.

Apply ATF to manual shaft oil seals.

2.

Install detent spring and spacer in transmission case.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E
