Infiniti M45 (Y34). Manual - part 443

DTC P1140, P1145 IVT CONTROL POSITION SENSOR

EC-461

C

D

E

F

G

H

I

J

K

L

M

A

EC

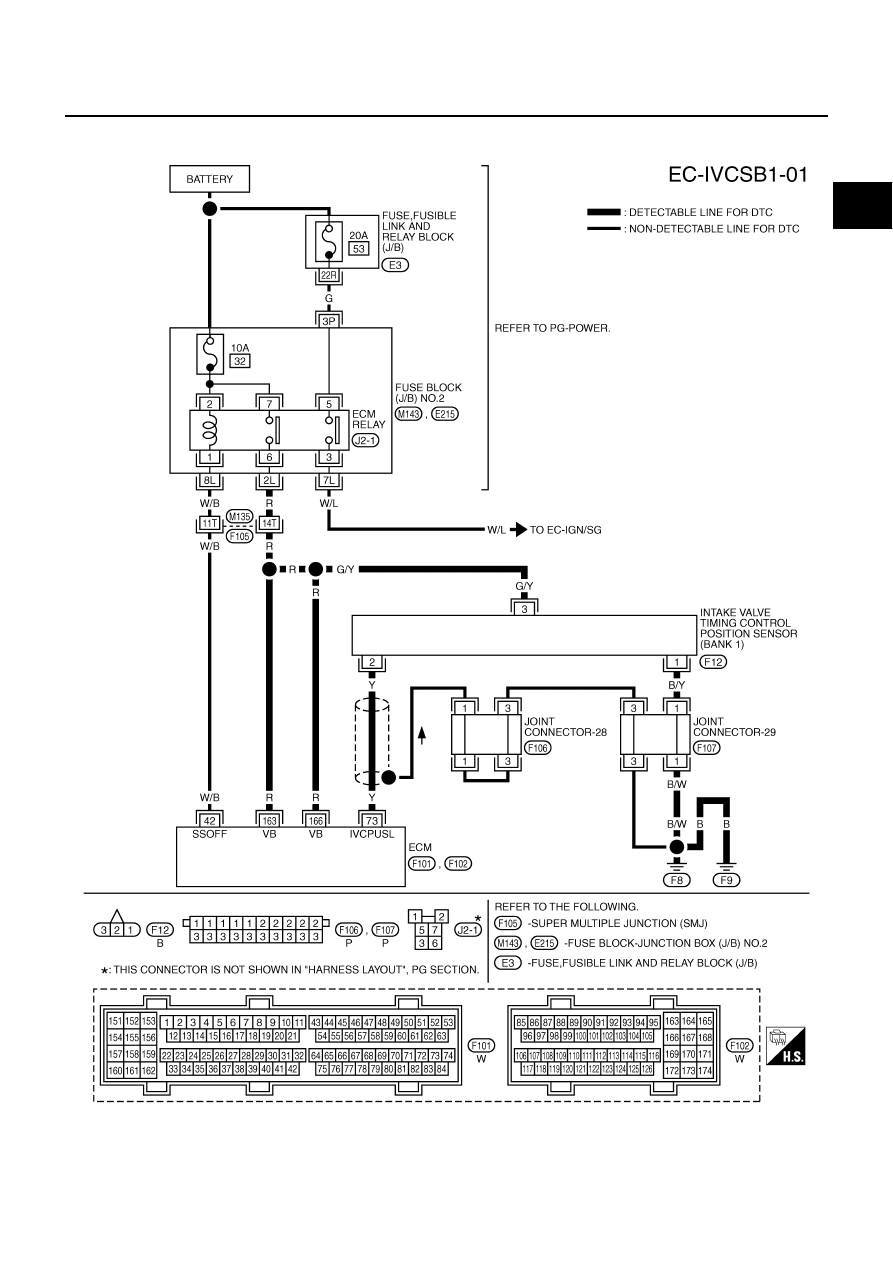

Wiring Diagram

ABS002O5

BANK 1

TBWA0265E

EC-462

DTC P1140, P1145 IVT CONTROL POSITION SENSOR

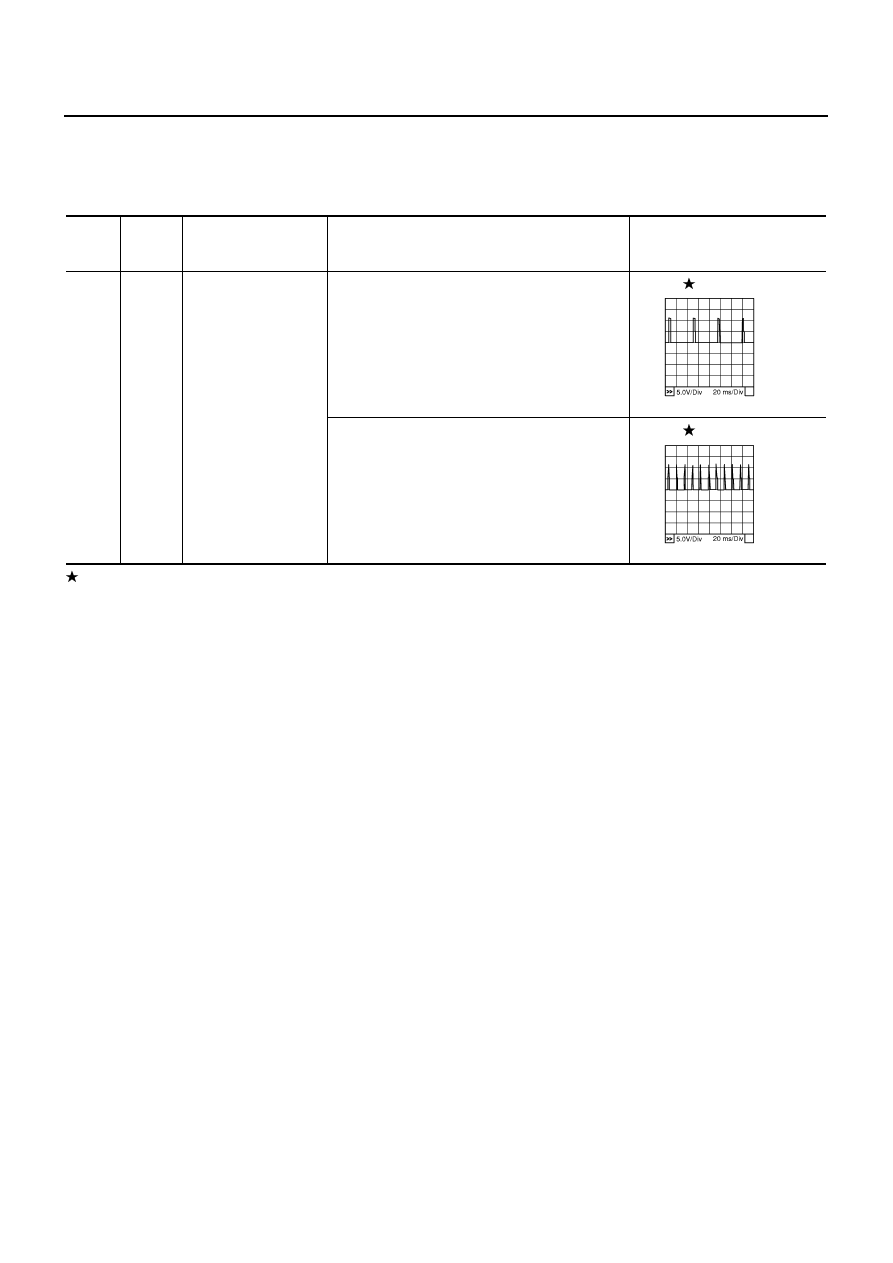

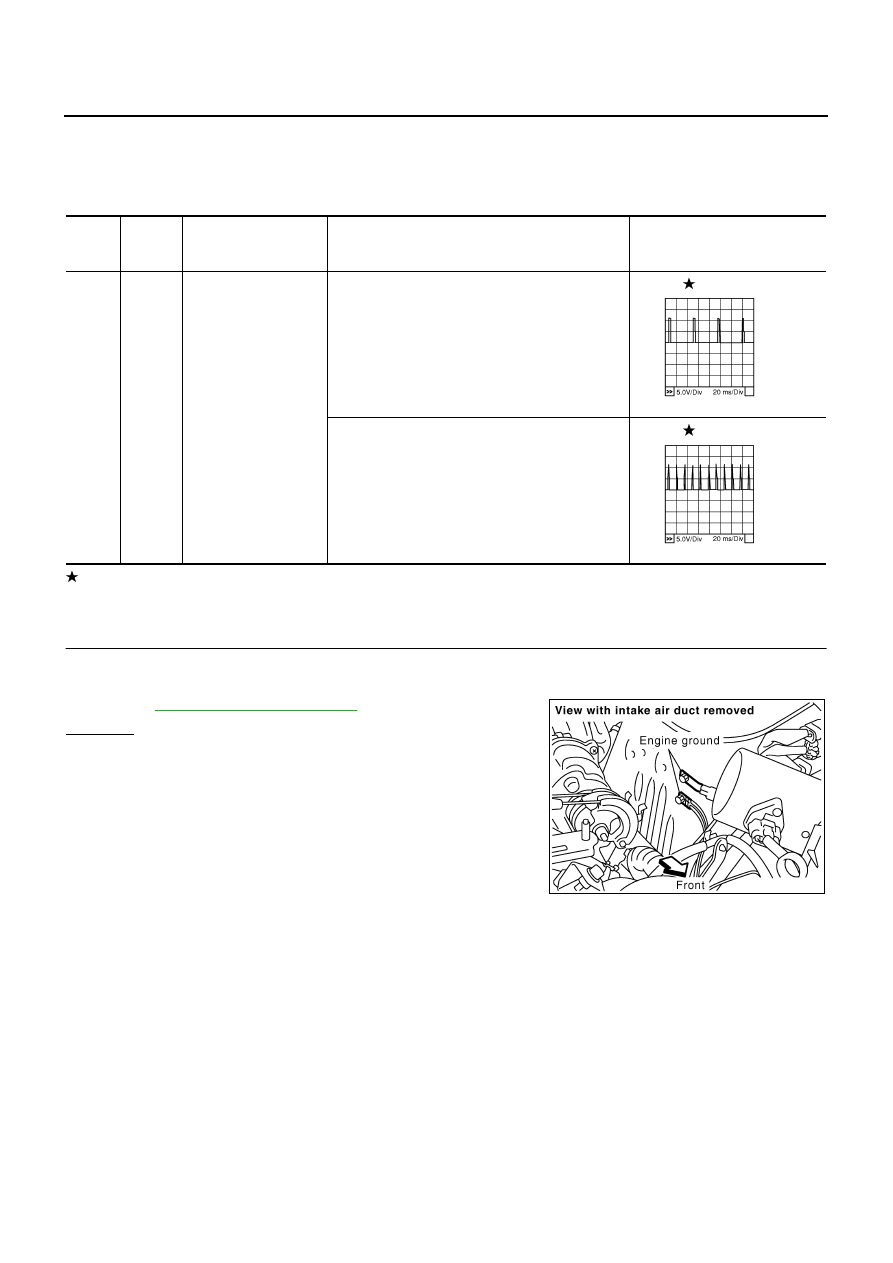

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

73

Y

Intake valve timing
control position sensor
(bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

0 - 1.0V

[Engine is running]

●

Engine speed: 2,000 rpm.

0 - 1.0V

PBIB0054E

PBIB0055E

DTC P1140, P1145 IVT CONTROL POSITION SENSOR

EC-463

C

D

E

F

G

H

I

J

K

L

M

A

EC

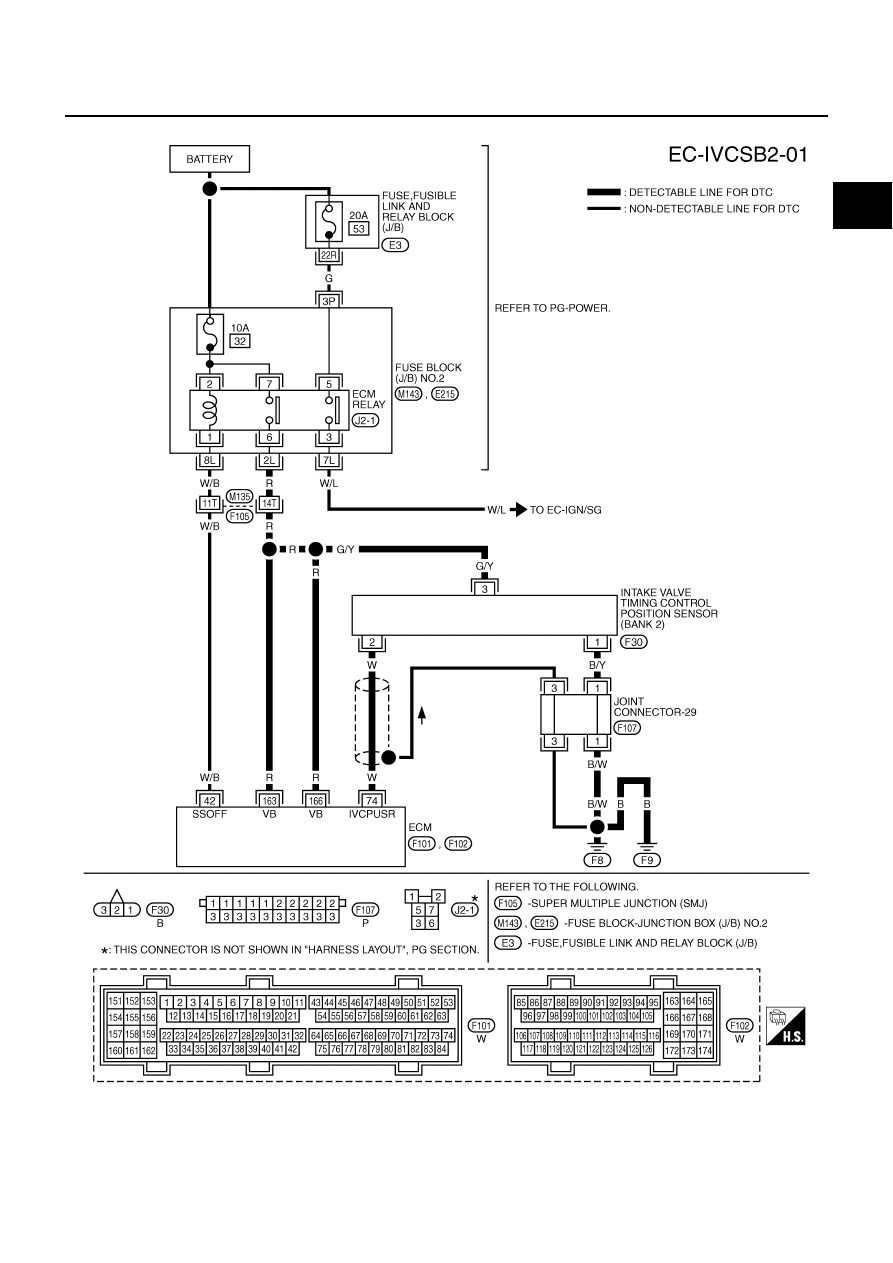

BANK 2

TBWA0266E

EC-464

DTC P1140, P1145 IVT CONTROL POSITION SENSOR

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

ABS002O6

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws.
Refer to

EC-141, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

74

W

Intake valve timing
control position sensor
(bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

0 - 1.0V

[Engine is running]

●

Engine speed: 2,000 rpm.

0 - 1.0V

PBIB0054E

PBIB0055E

PBIB1118E
