DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-369

C

D

E

F

G

H

I

J

K

L

M

A

EC

18.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

ABS002L1

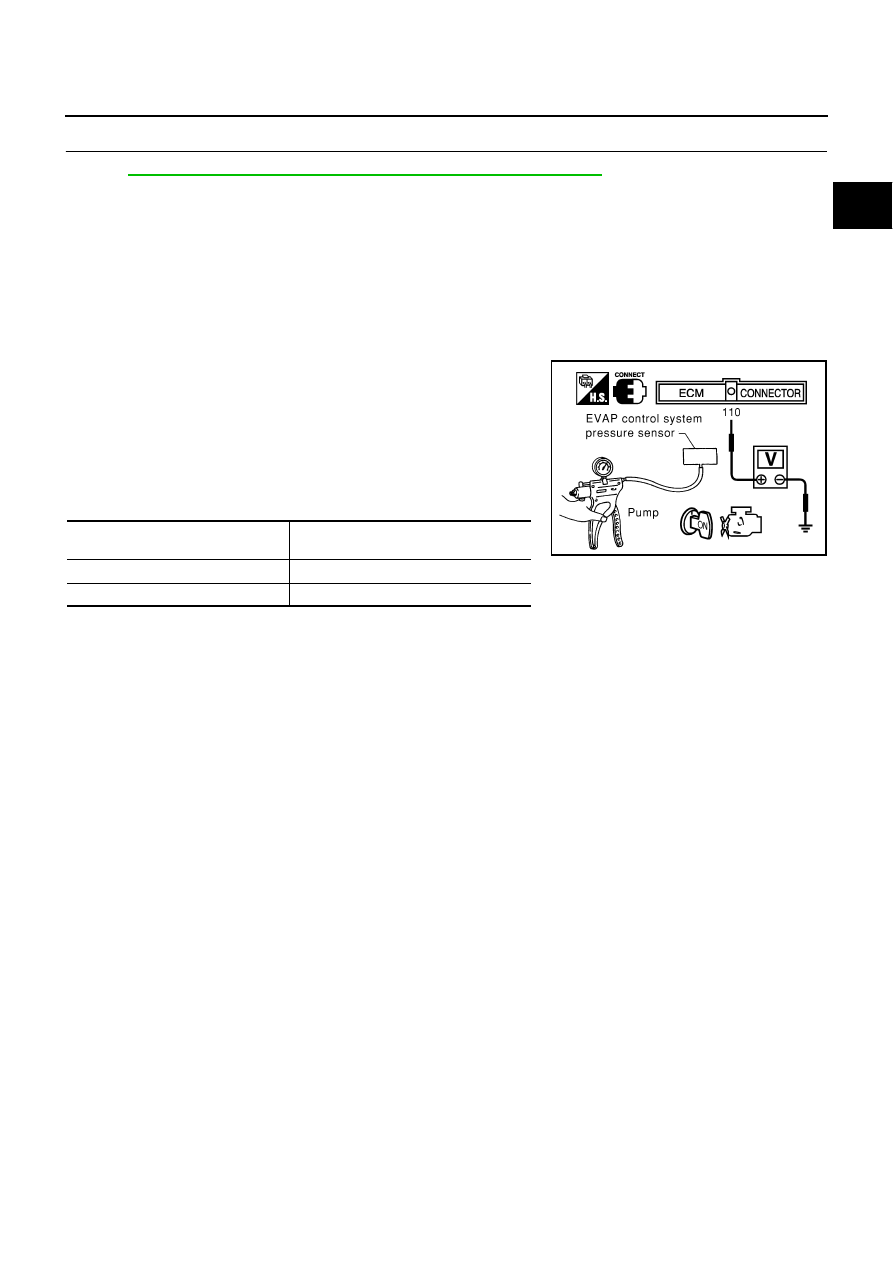

EVAP CONTROL SYSTEM PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness connector connected.

2.

Remove hose from EVAP control system pressure sensor.

3.

Install a vacuum pump to EVAP control system pressure sensor.

4.

Turn ignition switch ON.

5.

Use pump to apply vacuum and pressure to EVAP control sys-
tem pressure sensor as shown in figure.

CAUTION:

Always calibrate the vacuum pump gauge when using it.

Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).

6.

Check voltage between ECM terminal 110 and ground with
CONSULT-II or tester.

CAUTION:

Discard any EVAP control system pressure sensor which has dropped from a height of more than
0.5 m (19.7 in) onto a hard surface such a concrete floor; use a new one.

7.

If NG, replace EVAP control system pressure sensor.

Applied vacuum kPa

(mmHg, inHg)

Voltage V

Not applied

1.8 - 4.8

-26.7 (-200 mmHg, -7.87)

2.1 to 2.5V lower than above value

PBIB0156E

EC-370

DTC P0455 EVAP CONTROL SYSTEM

DTC P0455 EVAP CONTROL SYSTEM

PFP:14950

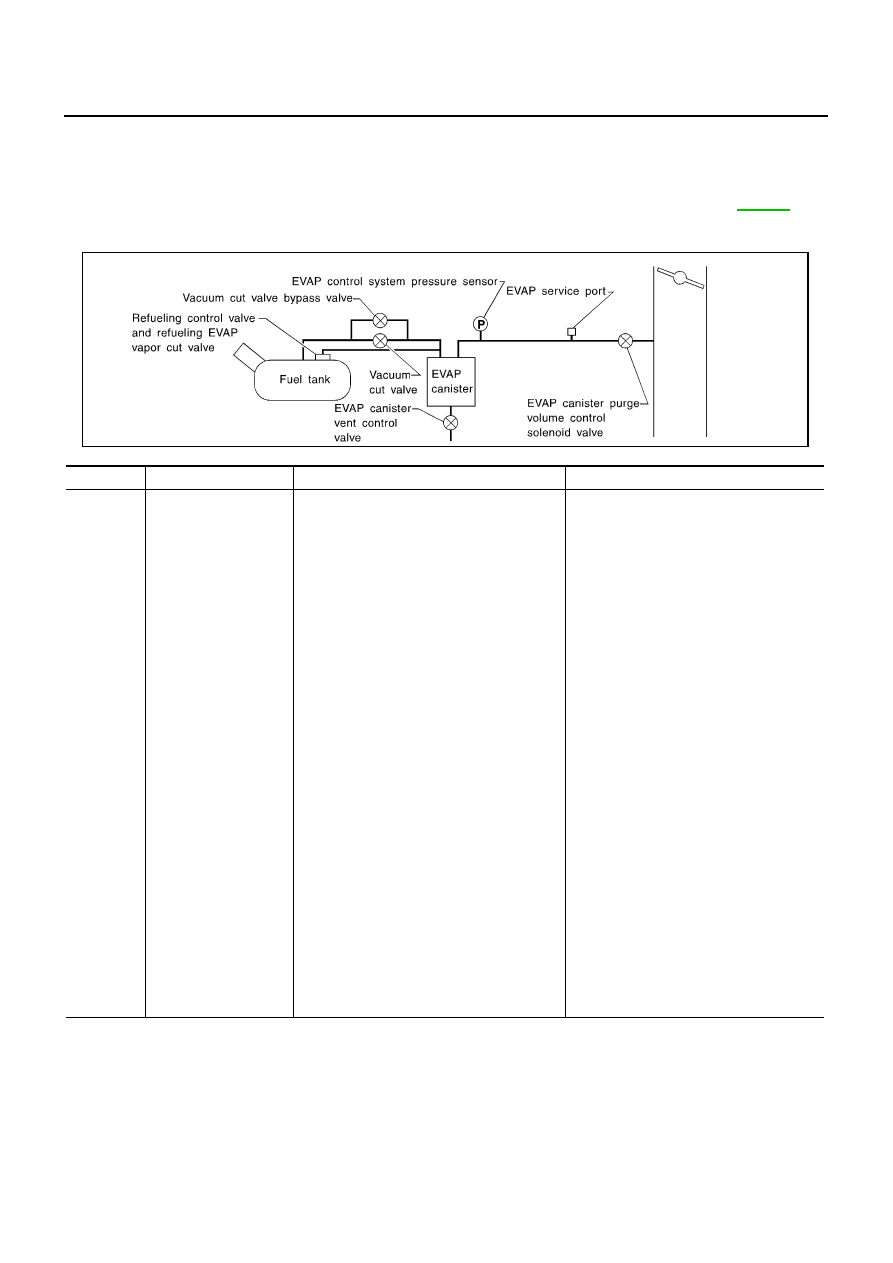

On Board Diagnosis Logic

ABS002L2

NOTE:
If DTC P0455 is displayed with P1448, first perform trouble diagnosis for DTC P1448. (See

EC-558

 .)

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and
EVAP canister purge volume control solenoid valve.

CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.

If the fuel filler cap is not tightened properly, the MIL may come on.

Use only a genuine NISSAN rubber tube as a replacement.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0455
0455

EVAP control system
gross leak detected

EVAP control system has a very large leak
such as fuel filler cap fell off, EVAP control
system does not operate properly.

Fuel filler cap remains open or fails to
close.

Incorrect fuel tank vacuum relief valve

Incorrect fuel filler cap used

Foreign matter caught in fuel filler cap.

Leak is in line between intake manifold
and EVAP canister purge volume control
solenoid valve.

Foreign matter caught in EVAP canister
vent control valve.

EVAP canister or fuel tank leaks

EVAP purge line (pipe and rubber tube)
leaks

EVAP purge line rubber tube bent.

Blocked or bent rubber tube to EVAP
control system pressure sensor

Loose or disconnected rubber tube

EVAP canister vent control valve and the
circuit

EVAP canister purge volume control sole-
noid valve and the circuit

Fuel tank temperature sensor

O-ring of EVAP canister vent control
valve is missing or damaged.

EVAP control system pressure sensor

Refueling control valve

ORVR system leaks

SEF323U

DTC P0455 EVAP CONTROL SYSTEM

EC-371

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

ABS002L3

CAUTION:

Never remove fuel filler cap during the DTC Confirmation Procedure.
NOTE:

If DTC P0455 is displayed with P1448, first perform trouble diagnosis for DTC P1448. (See

EC-558

.)

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.

TESTING CONDITION:

Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is
placed on flat level surface.

Open engine hood before conducting the following procedures.

 WITH CONSULT-II

1.

Tighten fuel filler cap securely until ratcheting sound is heard.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

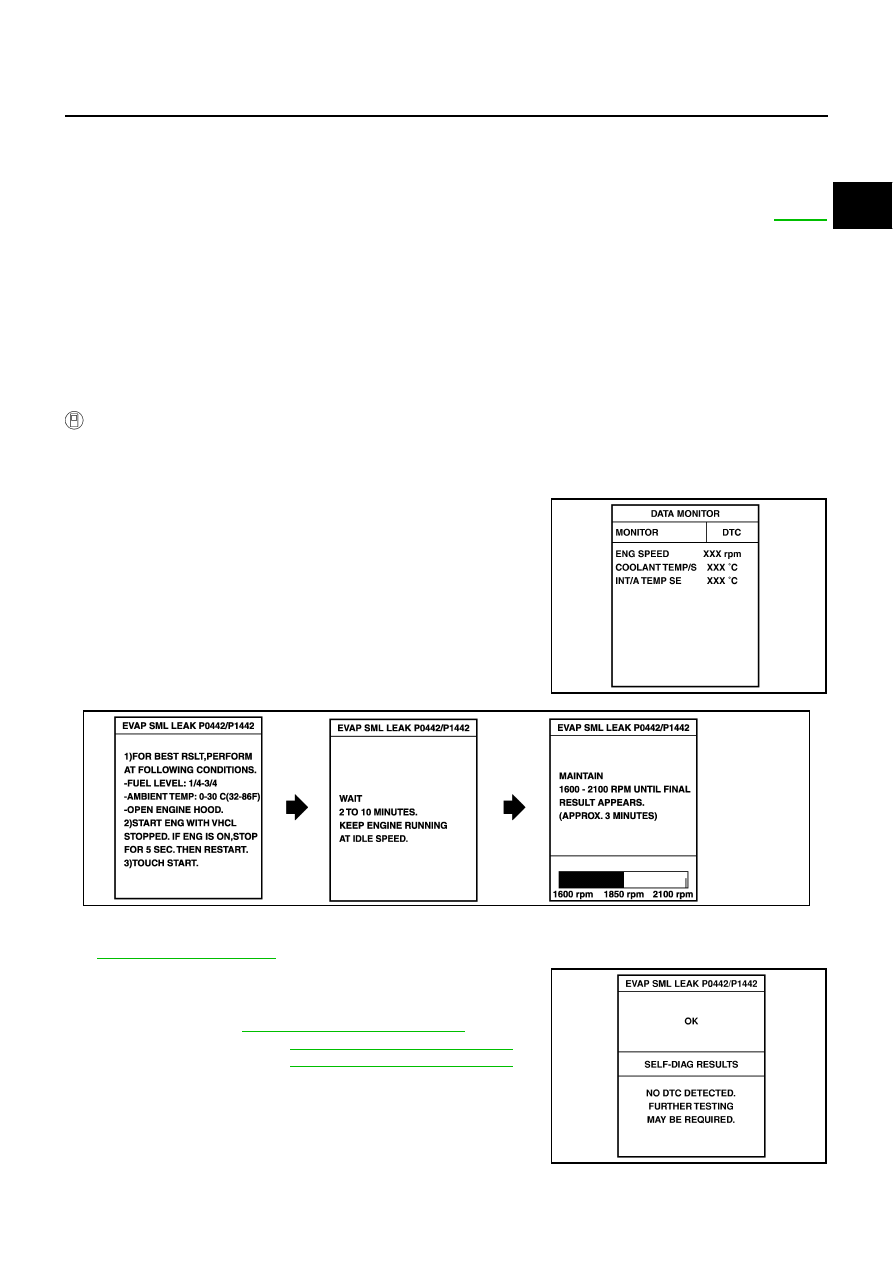

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

5.

Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70

°

C (32 - 158

°

F)

INT/A TEMP SE: 0 - 60

°

C (32 - 140

°

F)

6.

Select “EVAP SML LEAK P0442/P1442” of “EVAPORATIVE
SYSTEM” in “DTC WORK SUPPORT” mode with CONSULT-II.
Follow the instruction displayed.

NOTE:
If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to

EC-81, "Basic Inspection"

 .

7.

Make sure that “OK” is displayed.
If “NG” is displayed, select “SELF-DIAG RESULTS” mode and
make sure that “EVAP GROSS LEAK [P0455]” is displayed. If it
is displayed, refer to

EC-372, "Diagnostic Procedure"

 .

If P0442 is displayed, go to

EC-335, "Diagnostic Procedure"

 .

If P1442 is displayed, go to

EC-537, "Diagnostic Procedure"

 .

PBIB2643E

PBIB0829E

SEC763C

EC-372

DTC P0455 EVAP CONTROL SYSTEM

 WITH GST

NOTE:
Be sure to read the explanation of

EC-60, "Driving Pattern"

  before driving vehicle.

1.

Start engine.

2.

Drive vehicle according to

EC-60, "Driving Pattern"

 .

3.

Stop vehicle.

4.

Select “MODE 1” with GST.

If SRT of EVAP system is not set yet, go to the following step.

If SRT of EVAP system is set, the result will be OK.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Start engine.
It is not necessary to cool engine down before driving.

7.

Drive vehicle again according to th

EC-60, "Driving Pattern"

 .

8.

Stop vehicle.

9.

Select “MODE 3” with GST.

If P0455 is displayed on the screen, go to

EC-372, "Diagnostic Procedure"

 .

If P0442 is displayed on the screen, go to

EC-335, "Diagnostic Procedure"

 .

If P0441 is displayed on the screen, go to

EC-329, "Diagnostic Procedure"

 .

If P1442 is displayed on the screen, go to

EC-537, "Diagnostic Procedure"

 .

If P0455, P0441, P0442 and P1442 are not displayed on the screen, go to the following step.

10. Select “MODE 1” with GST.

If SRT of EVAP system is set, the result will be OK.

If SRT of EVAP system is not set, go to step 5.

Diagnostic Procedure

ABS002L4

1.

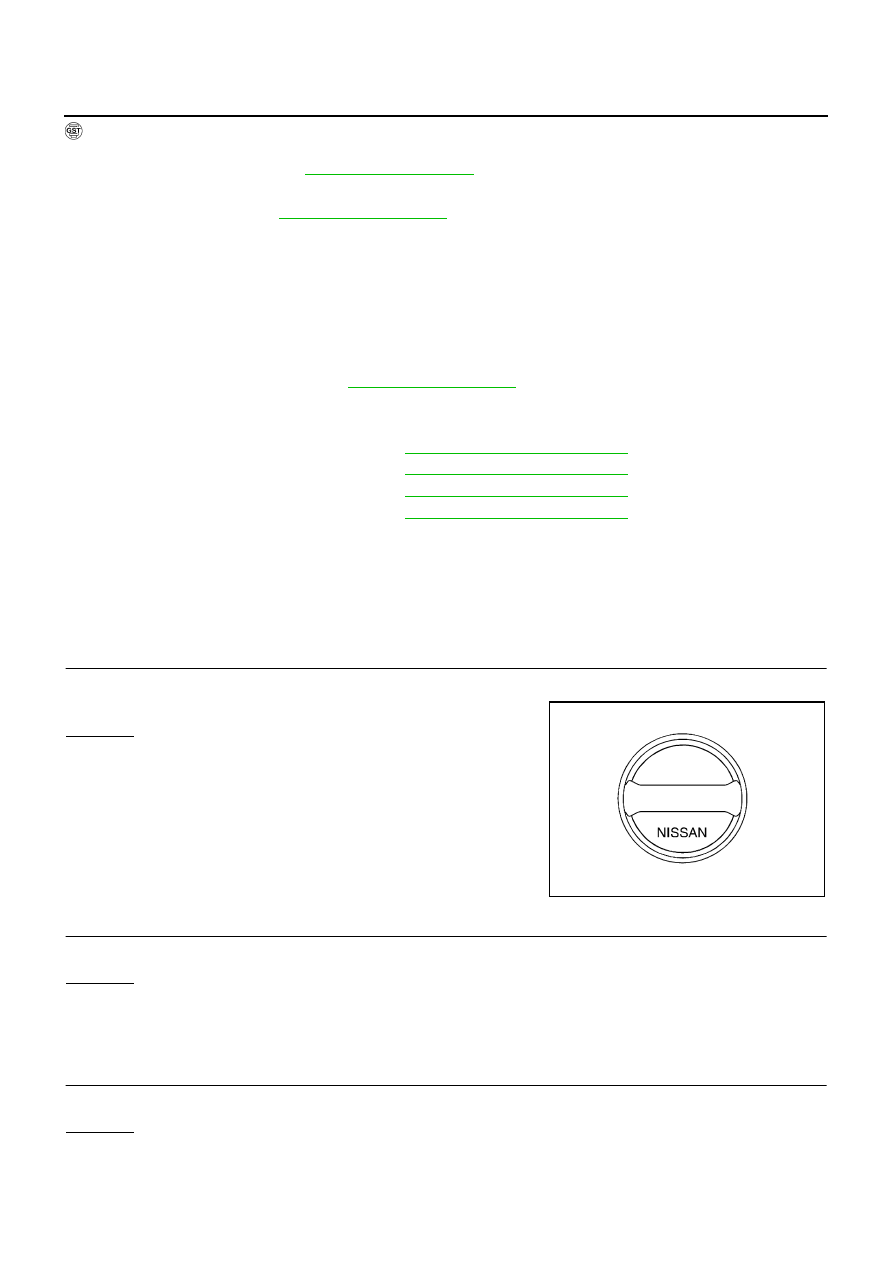

CHECK FUEL FILLER CAP DESIGN

1.

Turn ignition switch OFF.

2.

Check for genuine NISSAN fuel filler cap design.

OK or NG

OK

>> GO TO 2.

NG

>> Replace with genuine NISSAN fuel filler cap.

2.

CHECK FUEL FILLER CAP INSTALLATION

Check that the cap is tightened properly by rotating the cap clockwise.

OK or NG

OK

>> GO TO 3.

NG

>> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.

2. Retighten until ratcheting sound is heard.

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

SEF915U
