VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-105

C

D

E

F

G

H

I

J

L

M

A

B

DI

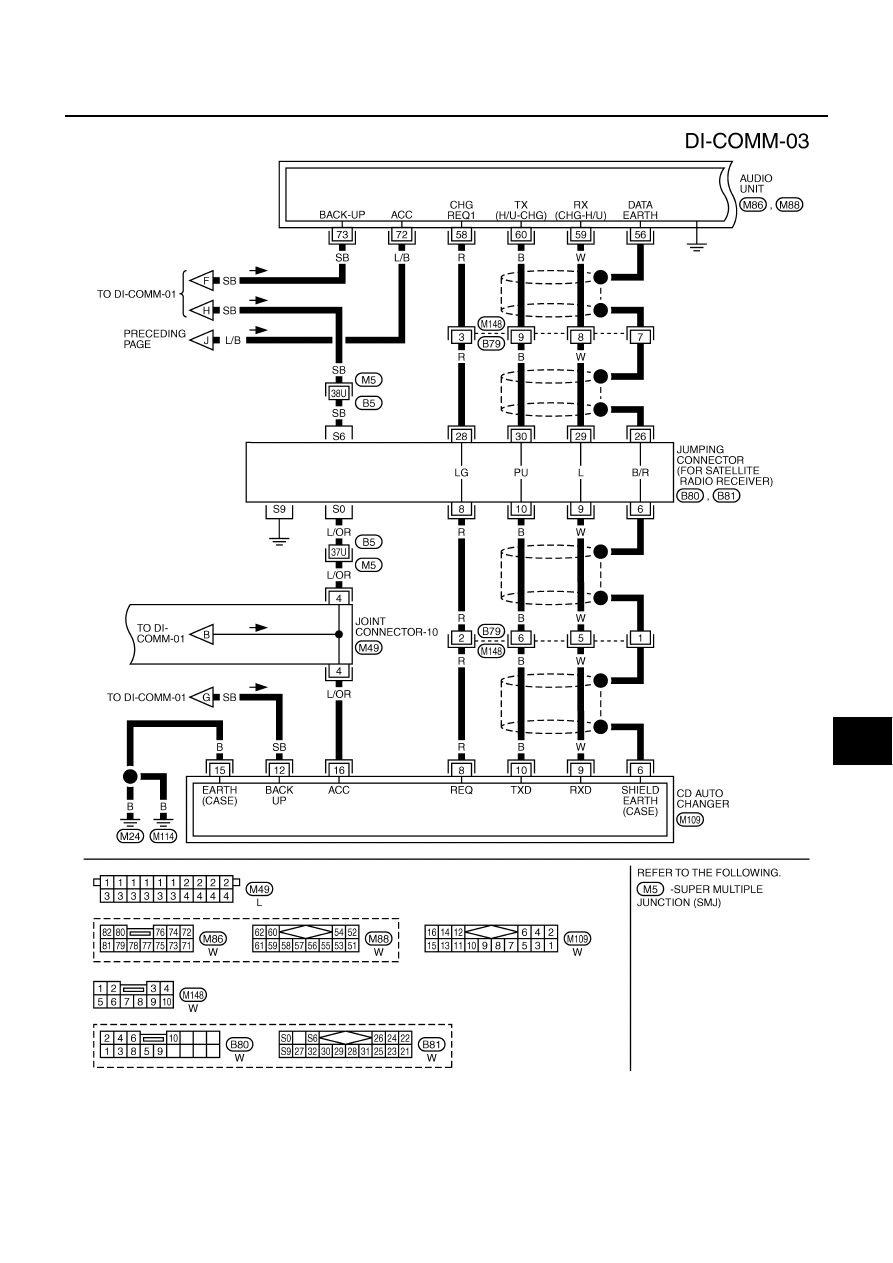

TKWA1237E

DI-106

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

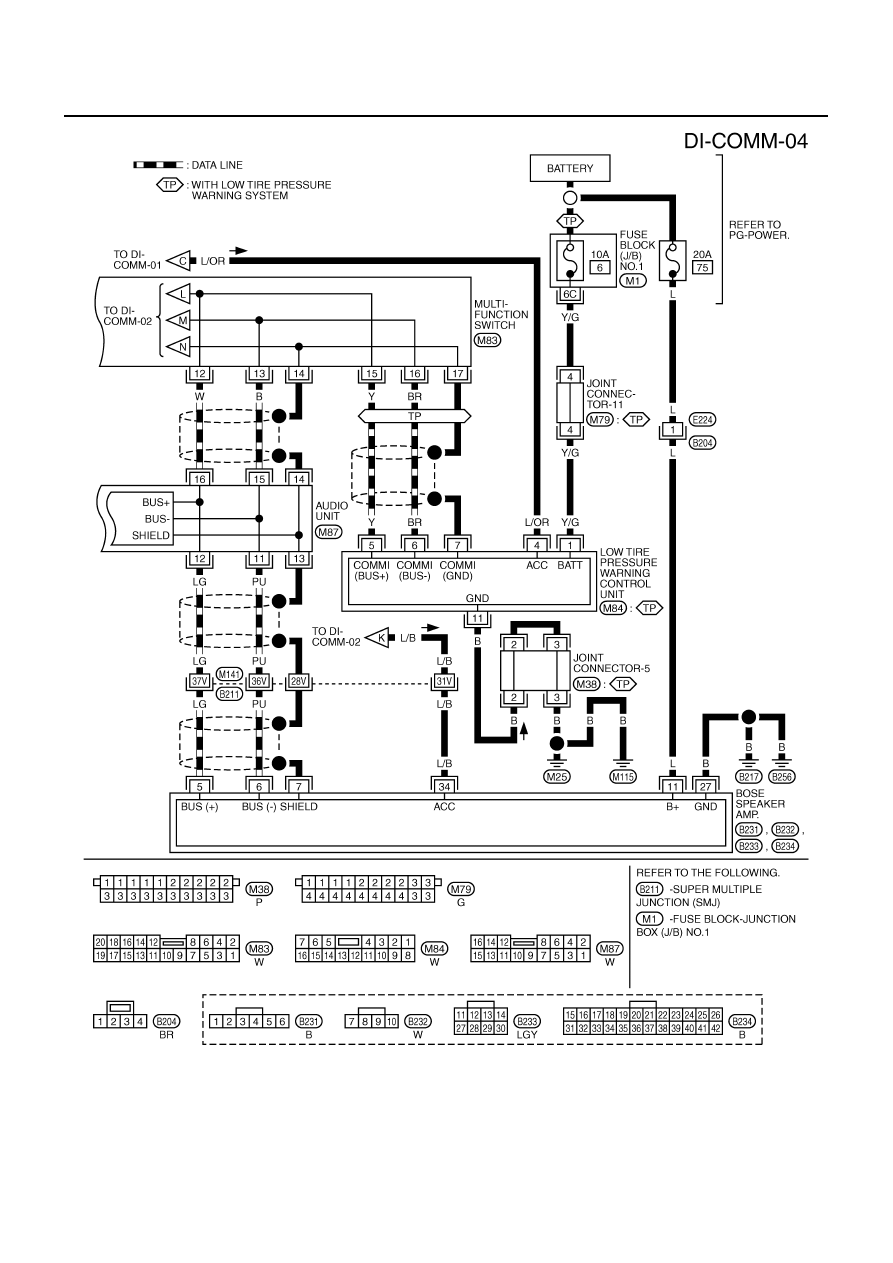

TKWA1238E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-107

C

D

E

F

G

H

I

J

L

M

A

B

DI

Terminals and Reference Value for AV Control Unit

AKS003ZX

Terminals

Signal

Signal

input/

output

Condition

Reference value

(+)

(–)

Terminal

No.

Wire

color

Ignition

switch

Operation

1 B

Ground

Ground

—

ON

—

Approx.

0V

2

SB

Ground

Battery

Input

OFF

—

Battery voltage

3

4

B

Ground

Ground

—

ON

—

Approx. 0V

6

L/B

Ground

Ignition switch (ACC)

Input

ACC

—

Battery voltage

10

—

—

Shield ground

—

—

—

—

11

R

10

Vertical synchroniz-
ing (VP) signal

Input

ON

—

12

B

10

RGB area (YS) signal

Output

ON

Press the “info”switch.

13

W

10

Horizontal synchro-
nizing (HP) signal

Input

ON

Adjust sound volume
while rear view screen
is shown.

14

—

Ground

RGB ground

—

—

—

—

15

G

10

RGB synchronizing
signal

Output

ON

Press the “MAP”
switch.

18

R/L

14

RGB signal (R: red)

Output

ON

Select “SCREEN
ADJUSTMENT” of
CONFIRMATION/
ADJUSTMENT func-
tion.

SKIA0161E

SKIA0162E

SKIA0163E

SKIA0164E

SKIA0165E

DI-108

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

21

R/W

14

RGB signal (G: green)

Output

ON

Select “SCREEN
ADJUSTMENT” of
CONFIRMATION/
ADJUSTMENT func-
tion.

24

B

14

RGB signal (B: blue)

Output

ON

Select “SCREEN
ADJUSTMENT” of
CONFIRMATION/
ADJUSTMENT func-
tion.

25

R/L

Ground

Illumination control
signal

Input

ON

Lighting switch ON
(1st position)

Approx. 12V

Lighting switch OFF

Approx. 0V

27

BR/W

Ground

Ignition switch (ON)

Input

ON

—

Battery voltage

31

—

—

Shield ground

—

—

—

—

33

OR/L

Ground

Vehicle speed signal
(8-pulse)

Input

ON

When vehicle speed is
approx. 40 km/h (25
MPH)

34

LG

Ground

Communication
 signal (AV - ME)

Output

ON

Display the vehicle
information screen.

35

PU

Ground

Communication
 signal (ME - AV)

Input

ON

Perform various set-
tings on the vehicle
information screen.

40

—

—

Shield ground

—

—

—

—

41

P

Ground

CONSULT-II commu-
nication
signal (AV - CN)

Output

ON

Perform CONSULT-II.

Terminals

Signal

Signal

input/

output

Condition

Reference value

(+)

(–)

Terminal

No.

Wire

color

Ignition

switch

Operation

SKIA0166E

SKIA0167E

SKIA0168E

SKIA0169E

SKIA0170E

SKIA0169E
