Infiniti M45 (Y34). Manual - part 314

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-101

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWA0609E

DI-102

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

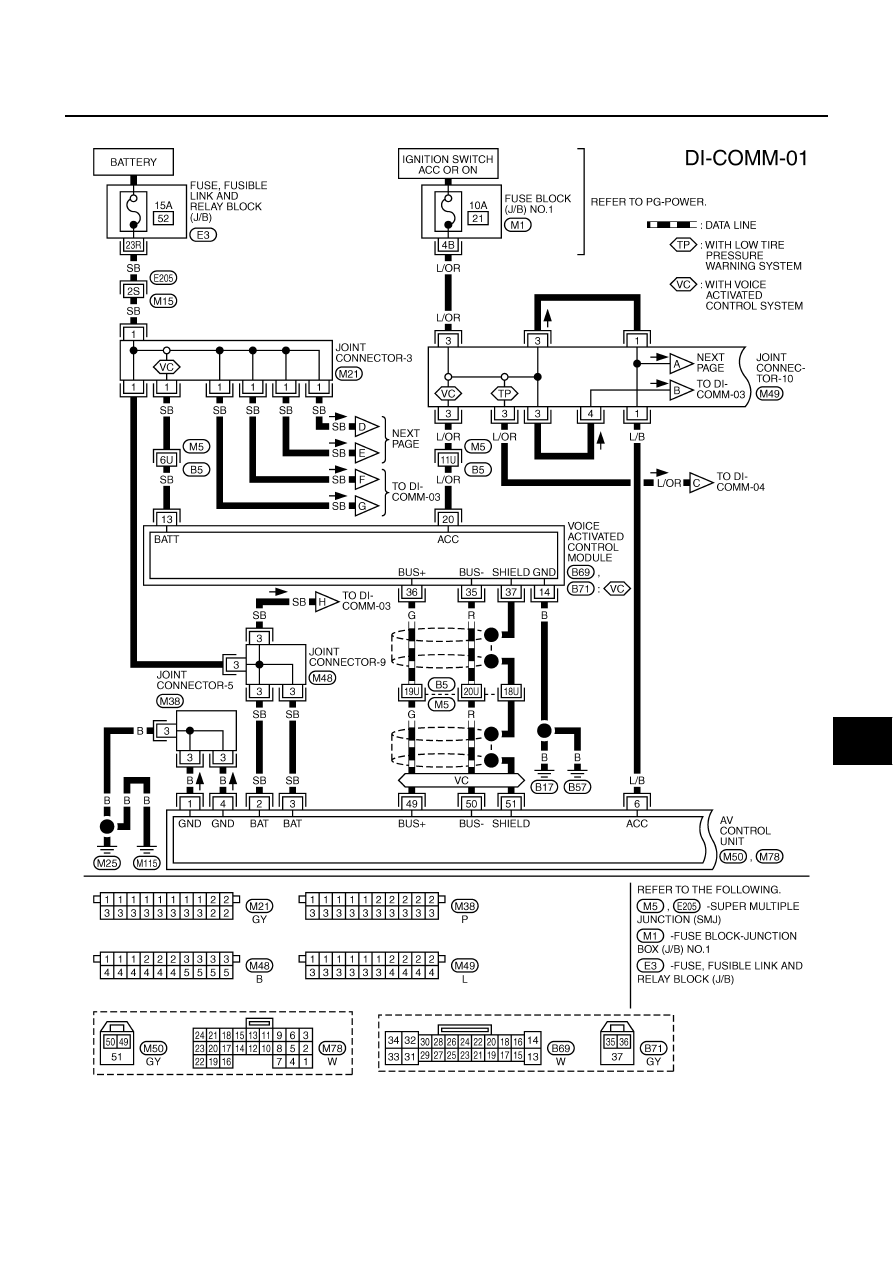

Schematic

AKS003ZV

TKWA1234E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-103

C

D

E

F

G

H

I

J

L

M

A

B

DI

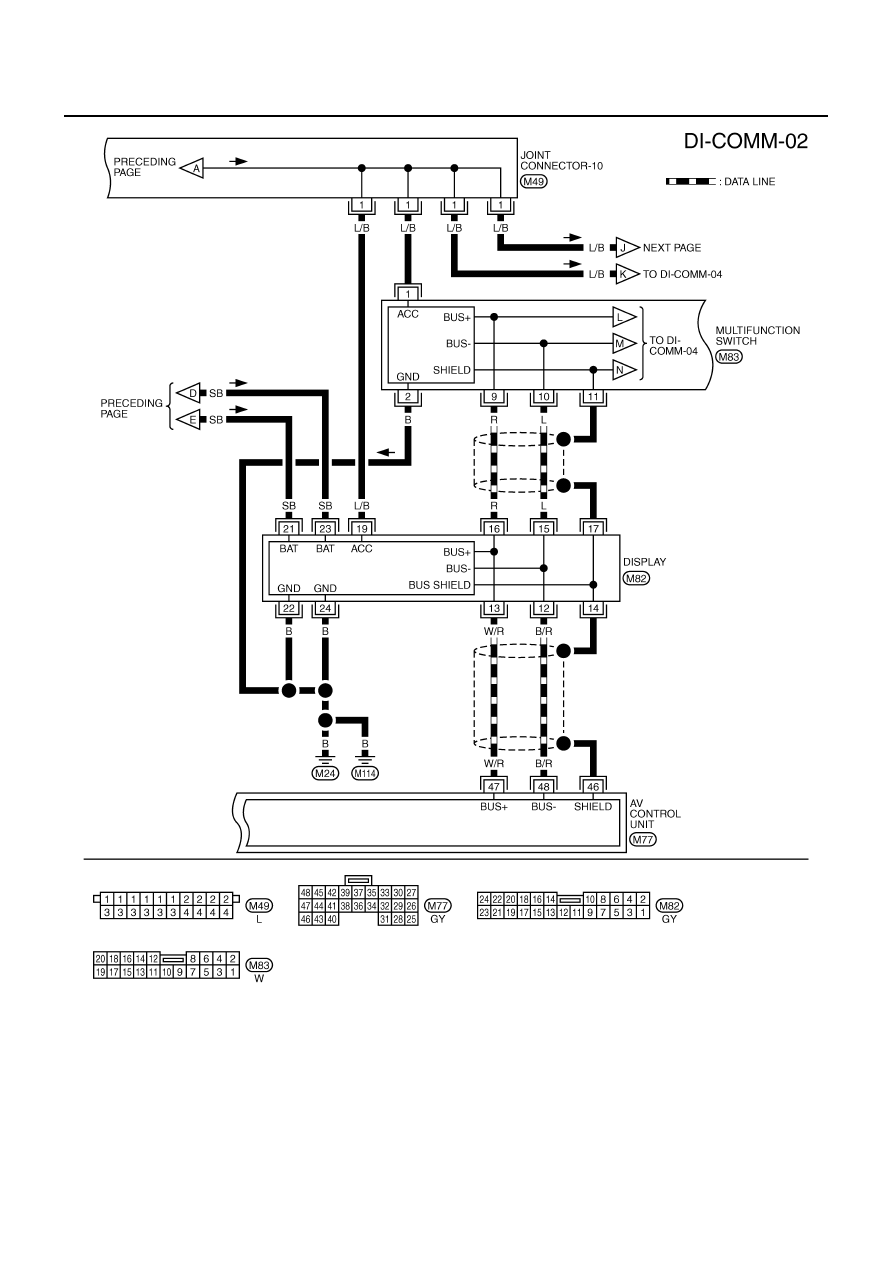

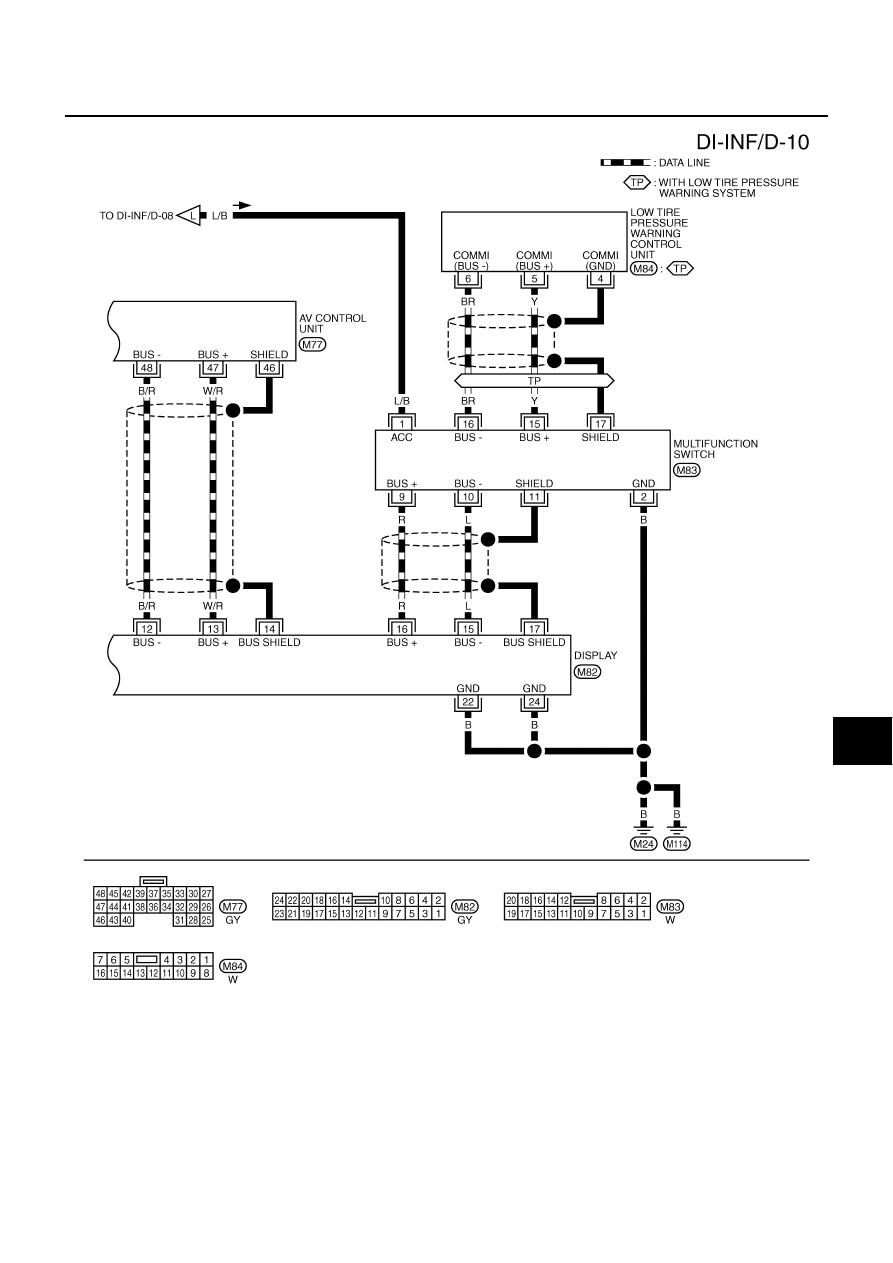

Wiring Diagram — COMM —

AKS003ZW

TKWA1235E

DI-104

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

TKWA1236E
