REPAIR FOR COMPONENT PARTS

AT-373

D

E

F

G

H

I

J

K

L

M

A

B

AT

INSPECTION

●

Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

●

Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

●

Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

●

Check facing for burns, cracks or damage.

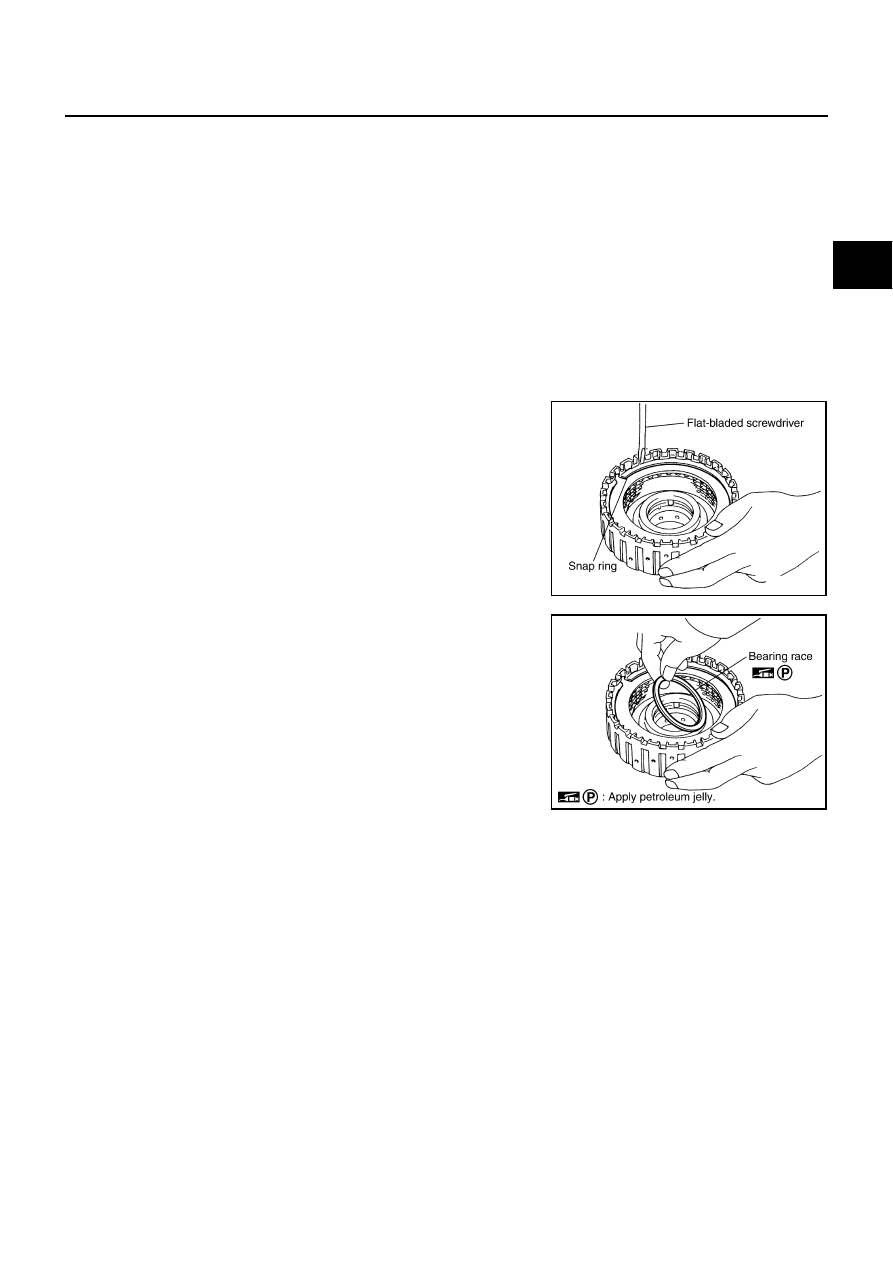

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA2868E

SCIA5215E

AT-374

REPAIR FOR COMPONENT PARTS

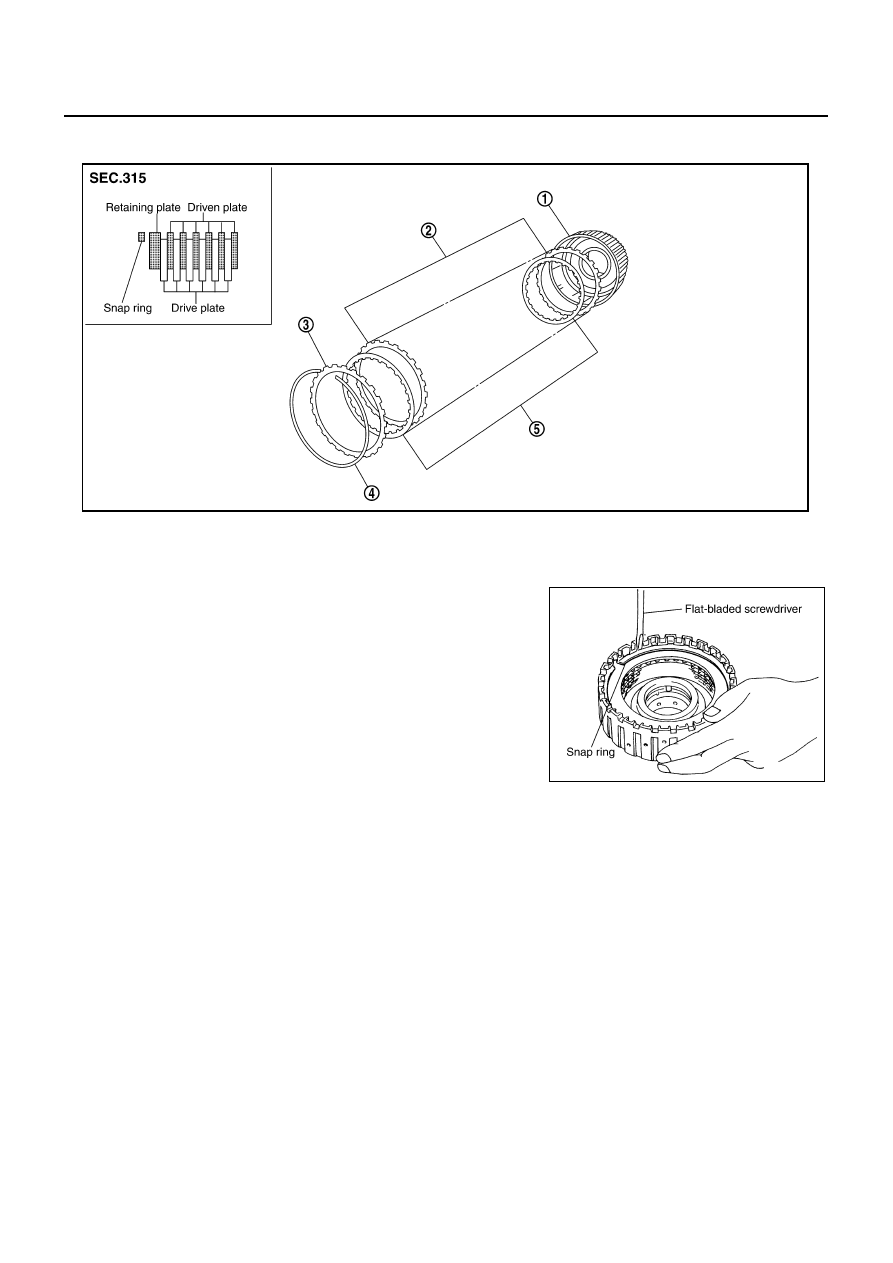

Direct Clutch

ACS004HH

COMPONENTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.

2.

Remove drive plates, driven plates and retaining plate from
direct clutch drum.

INSPECTION

●

Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

●

Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

●

Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

●

Check facing for burns, cracks or damage.

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

SCIA5226E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-375

D

E

F

G

H

I

J

K

L

M

A

B

AT

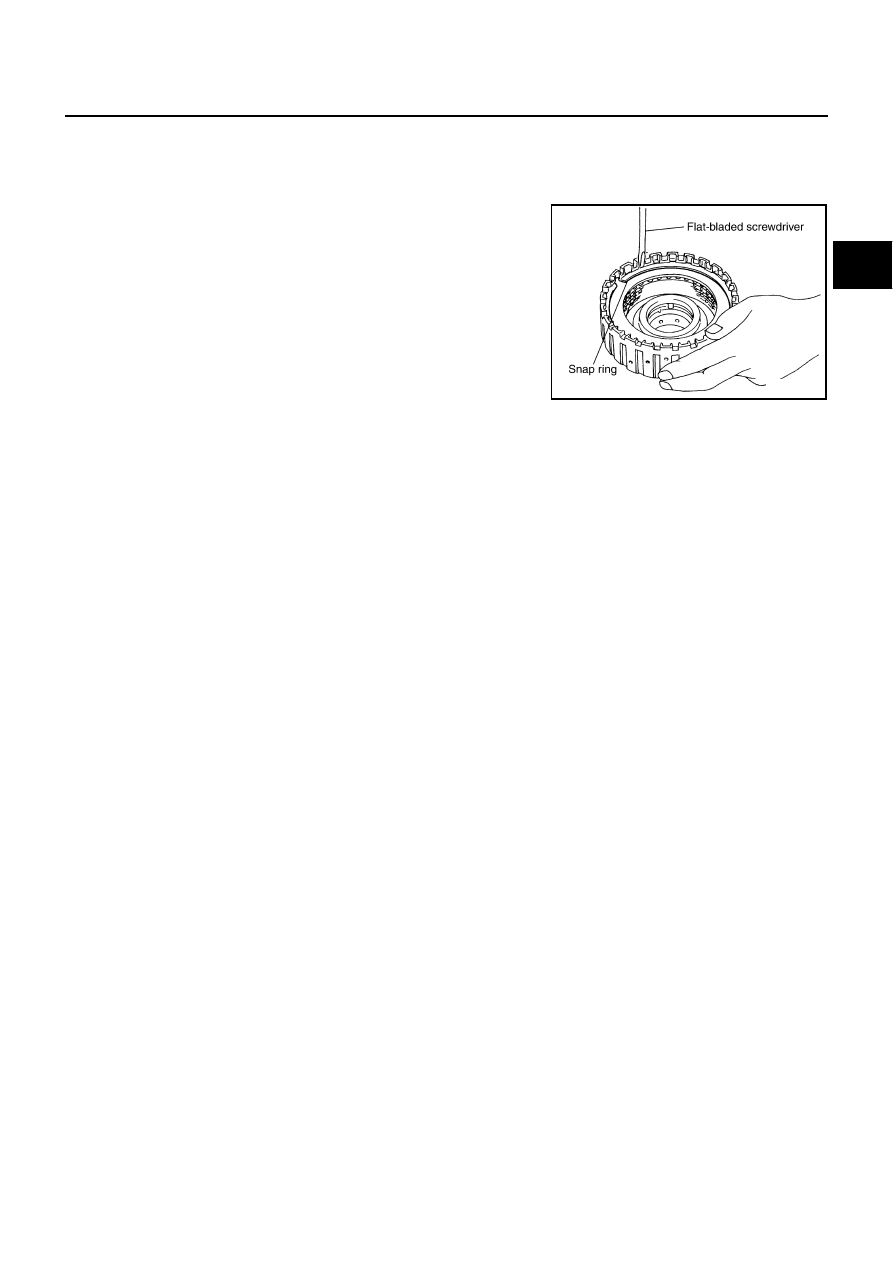

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in direct clutch drum.

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

SCIA2868E

AT-376

ASSEMBLY

ASSEMBLY

PFP:00000

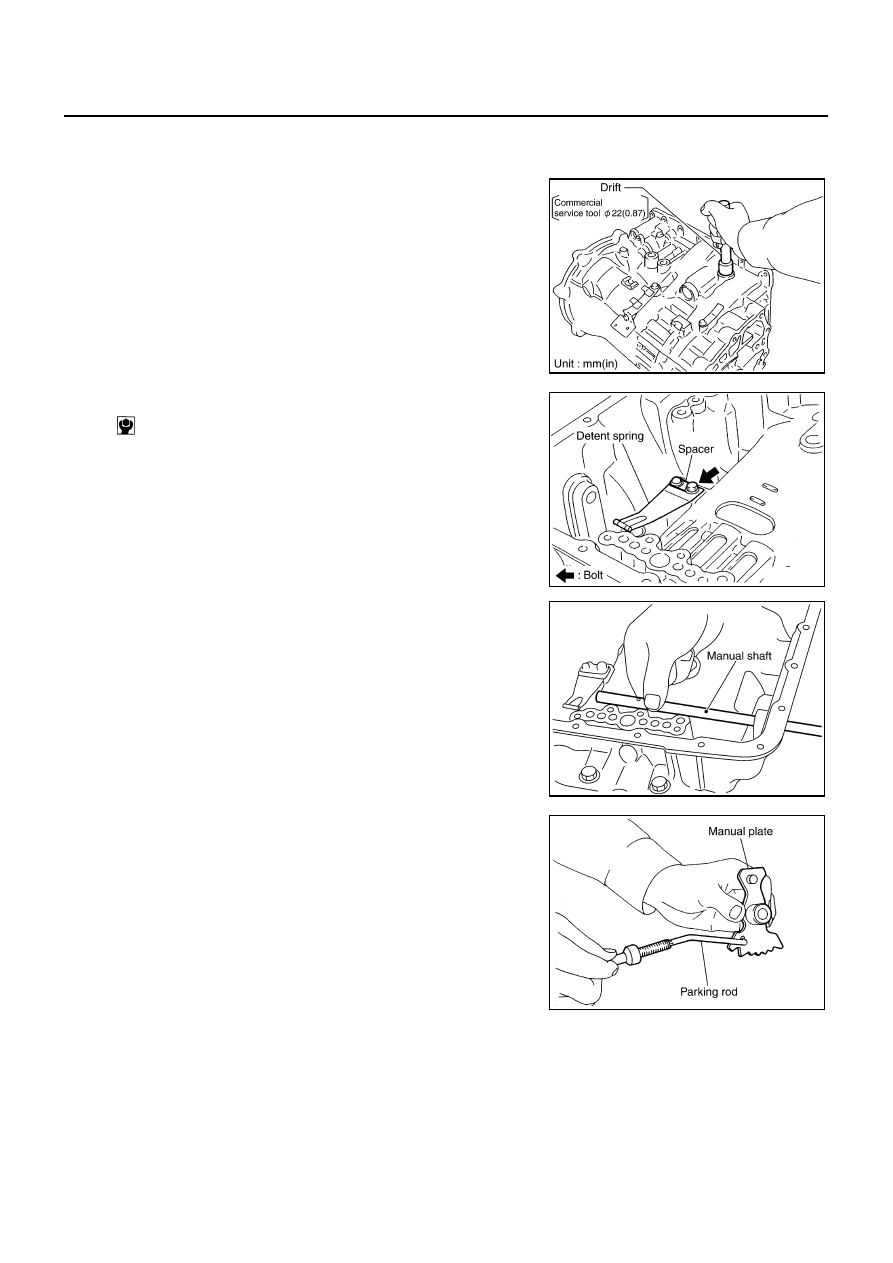

Assembly (1)

ACS004HI

1.

As shown in the right figure, use a drift [commercial service tool

φ

22 mm (0.87 in)] to drive manual shaft oil seals into the trans-

mission case until it is flush.

CAUTION:

●

Apply ATF to manual shaft oil seals.

●

Do not reuse manual shaft oil seals.

2.

Install detent spring and spacer in transmission case.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E
