REPAIR FOR COMPONENT PARTS

AT-365

D

E

F

G

H

I

J

K

L

M

A

B

AT

ASSEMBLY

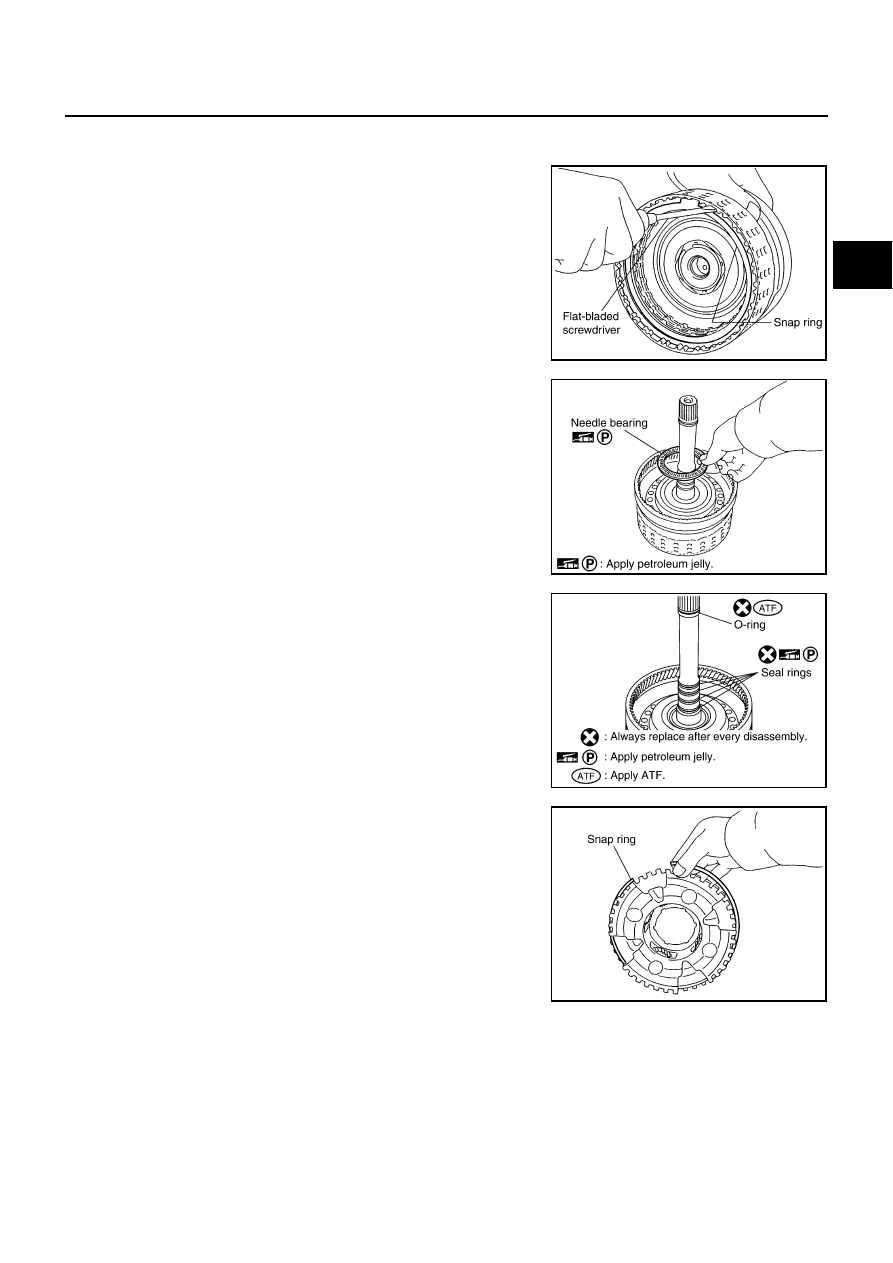

1.

Install input clutch.

a.

Install drive plates, driven plates and retaining plate in input
clutch drum.

CAUTION:

Take care with order of plates.

b.

Using a flat-bladed screwdriver, install snap ring in input clutch
drum.

c.

Install needle bearing in input clutch assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

d.

Install O-ring and seal rings in input clutch assembly.

CAUTION:

●

Do not reuse O-ring and seal rings.

●

Apply ATF to O-ring.

●

Apply petroleum jelly to seal rings.

2.

Install front carrier assembly.

a.

Install snap ring to front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

SCIA2864E

SCIA2853E

SCIA5235E

SCIA5476E

AT-366

REPAIR FOR COMPONENT PARTS

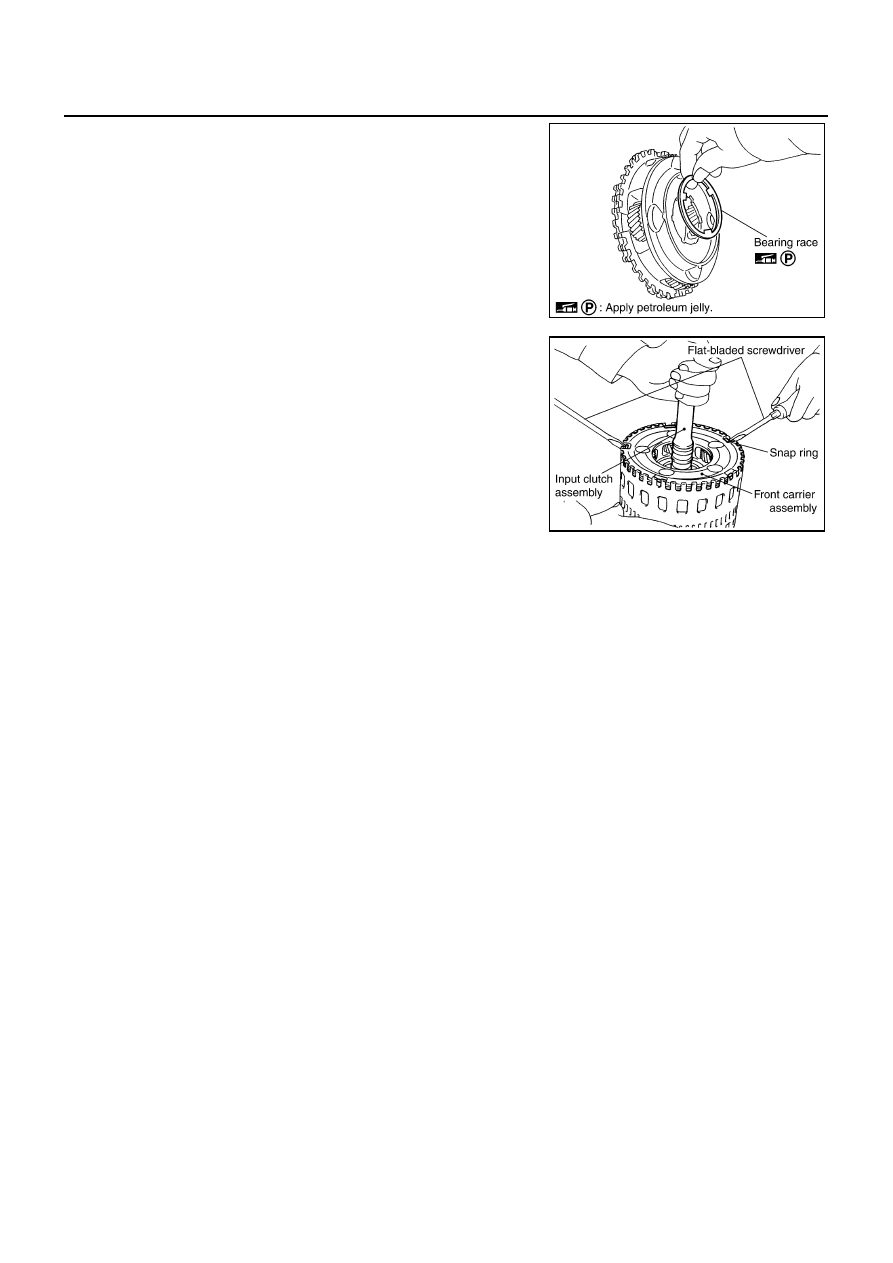

b.

Install bearing race in front carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

c.

Install front carrier assembly to input clutch assembly.

3.

Compress snap ring using 2 flat-bladed screwdrivers.

4.

Install front carrier assembly and input clutch assembly to rear
internal gear.

SCIA2847E

SCIA5339E

REPAIR FOR COMPONENT PARTS

AT-367

D

E

F

G

H

I

J

K

L

M

A

B

AT

Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch Hub

ACS004HF

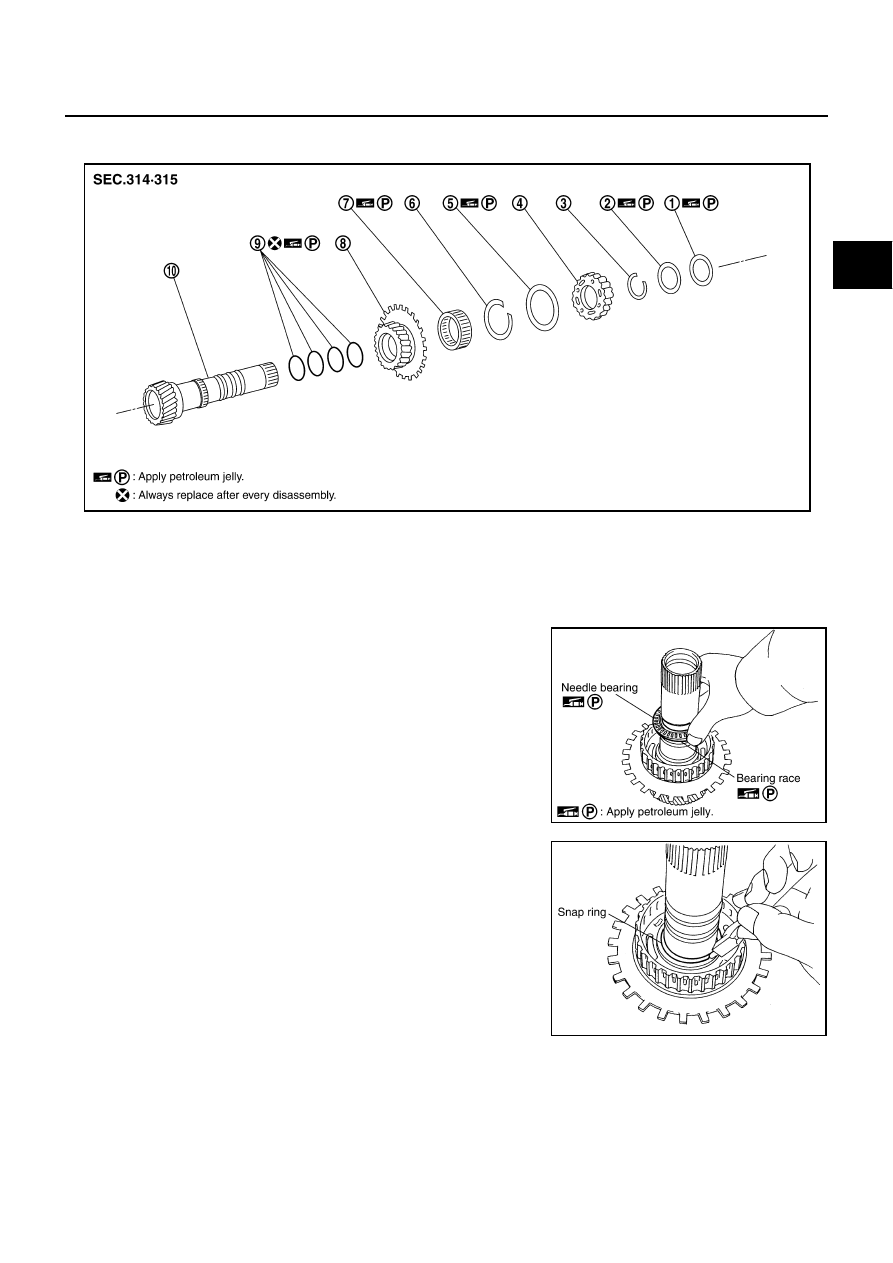

COMPONENTS

DISASSEMBLY

1.

Remove needle bearing and bearing race.

2.

Using a pair of snap ring pliers, remove snap ring from high and
low reverse clutch hub.

CAUTION:

Do not expand snap ring excessively.

1.

Needle bearing

2.

Bearing race

3.

Snap ring

4.

High and low reverse clutch hub

5.

Needle bearing

6.

Snap ring

7.

1st one-way clutch

8.

Rear sun gear

9.

Seal ring

10. Mid sun gear

SCIA2851E

SCIA2854E

SCIA2855E

AT-368

REPAIR FOR COMPONENT PARTS

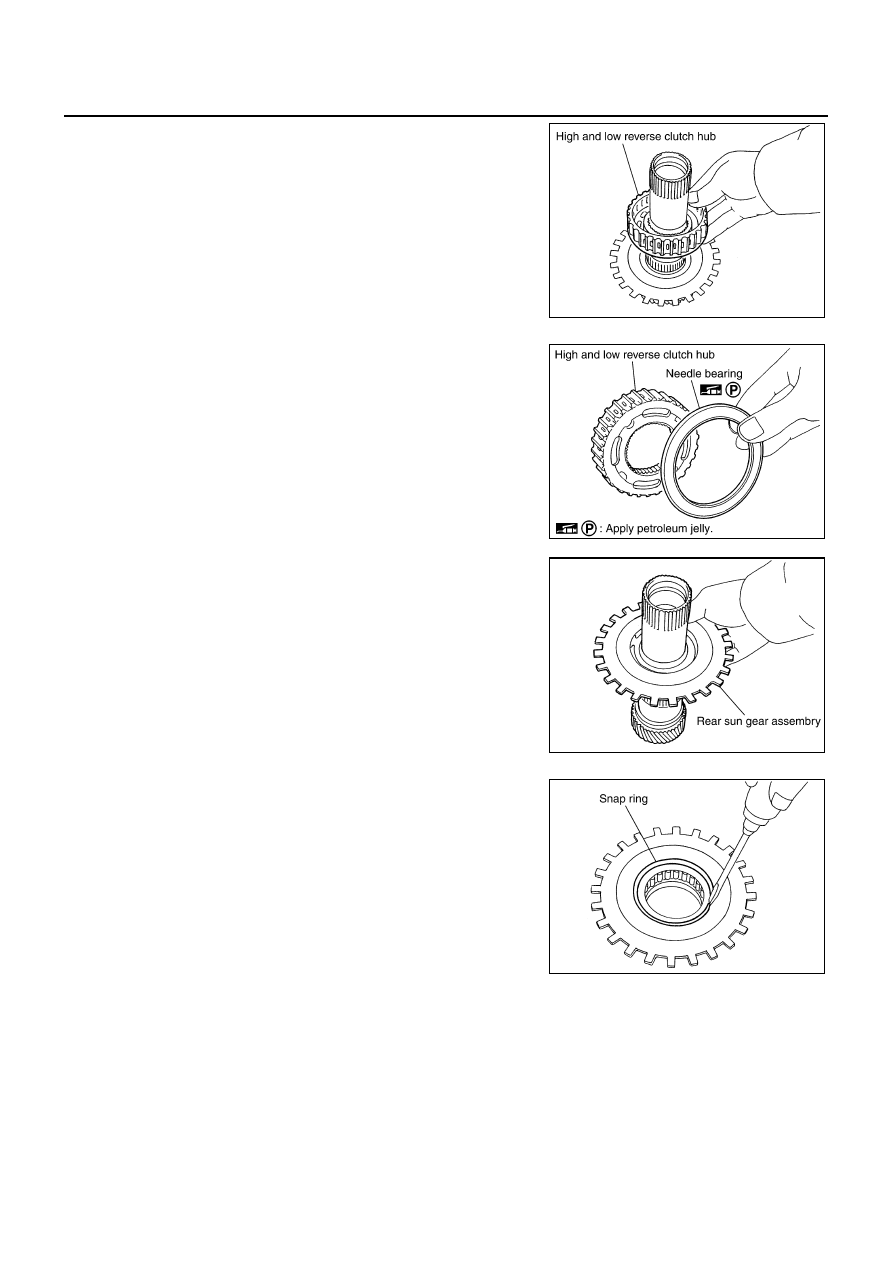

3.

Remove high and low reverse clutch hub from mid sun gear
assembly.

a.

Remove needle bearing from high and low reverse clutch hub.

4.

Remove rear sun gear assembly from mid sun gear assembly.

a.

Using a flat-bladed screwdriver, remove snap ring from rear sun
gear.

SCIA2856E

SCIA2857E

SCIA2858E

SCIA2859E
