Infiniti M45 (Y34). Manual - part 119





REPAIR FOR COMPONENT PARTS

AT-361

D

E

F

G

H

I

J

K

L

M

A

B

AT

CAUTION:

If necessary, replace the snap ring.

Front Sun Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

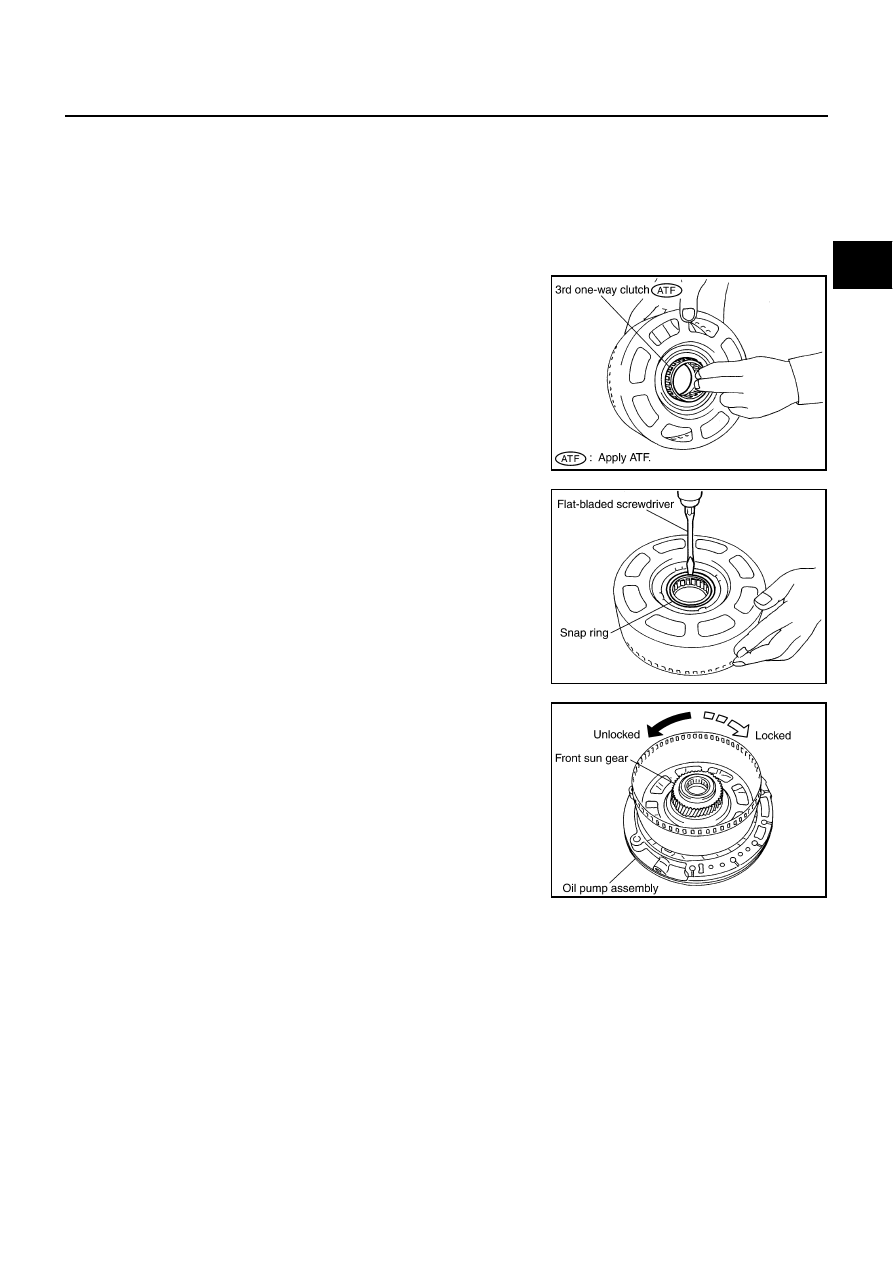

ASSEMBLY

1.

Install 3rd one-way clutch in front sun gear.

CAUTION:

Apply ATF to 3rd one-way clutch.

2.

Using a flat-bladed screwdriver, install snap ring in front sun
gear.

3.

Check operation of 3rd one-way clutch.

a.

Hold oil pump assembly and turn front sun gear.

b.

Check 3rd one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in the figure, check installation direction of
3rd one-way clutch.

SCIA3111E

SCIA3110E

SCIA3131E

AT-362

REPAIR FOR COMPONENT PARTS

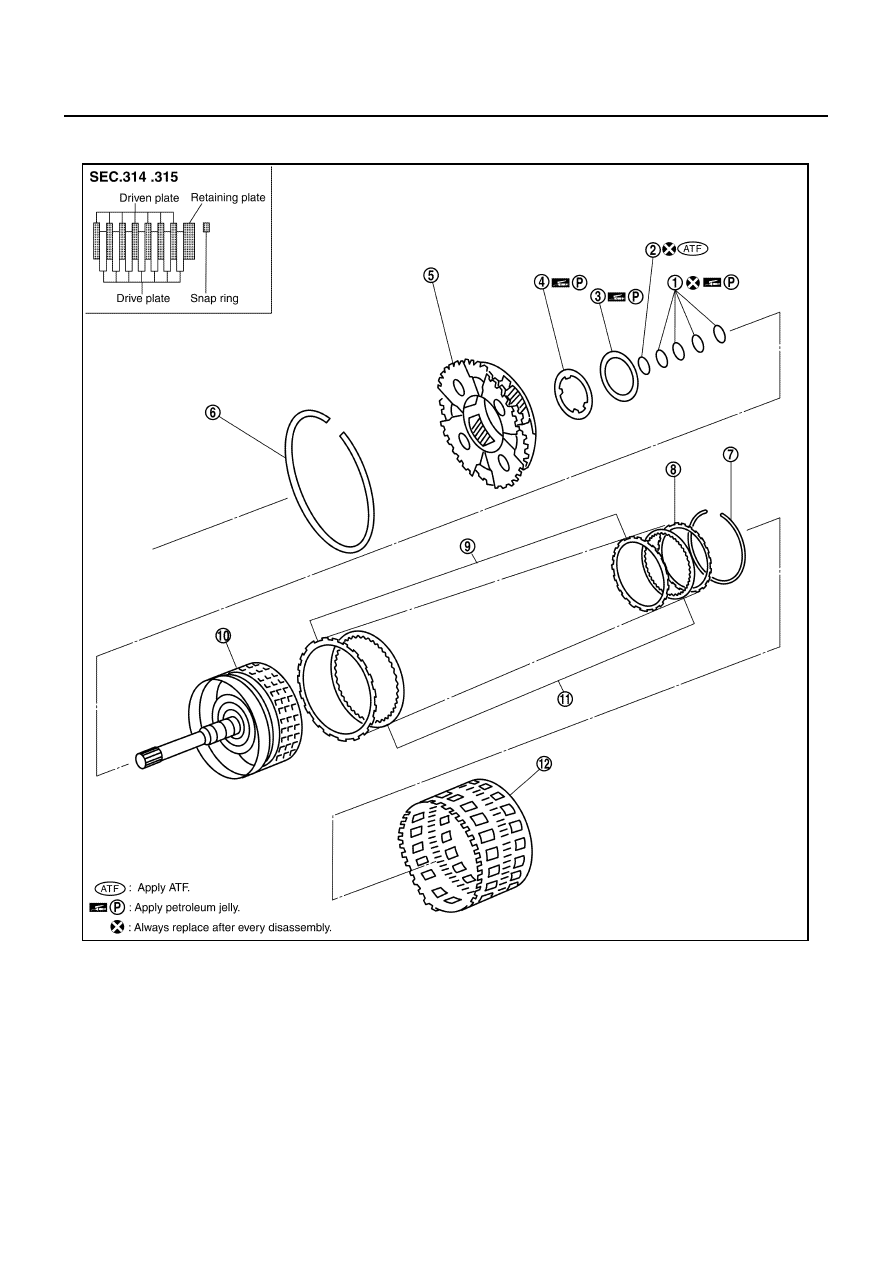

Front Carrier, Input Clutch, Rear Internal Gear

ACS004HE

COMPONENTS

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Snap ring

7.

Snap ring

8.

Retaining plate

9.

Driven plate

10. Input clutch drum

11.

Drive plate

12. Rear internal gear

SCIA5426E

REPAIR FOR COMPONENT PARTS

AT-363

D

E

F

G

H

I

J

K

L

M

A

B

AT

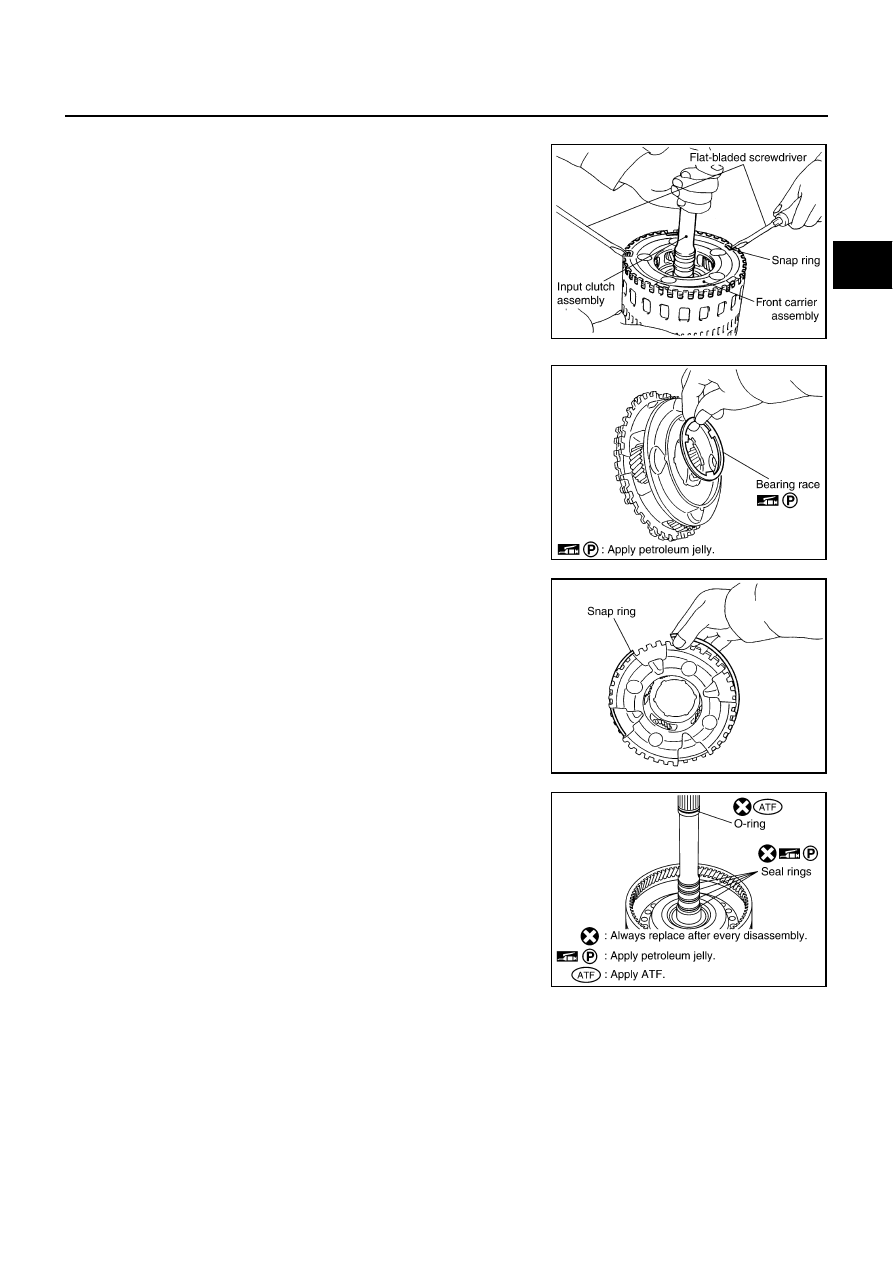

DISASSEMBLY

1.

Compress snap ring using 2 flat-bladed screwdrivers.

2.

Remove front carrier assembly and input clutch assembly from
rear internal gear.

3.

Remove front carrier assembly from input clutch assembly.

a.

Remove bearing race from front carrier assembly.

b.

Remove snap ring from front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

4.

Disassemble input clutch assembly.

a.

Remove O-ring and seal rings from input clutch assembly.

SCIA5339E

SCIA2847E

SCIA5476E

SCIA5235E

AT-364

REPAIR FOR COMPONENT PARTS

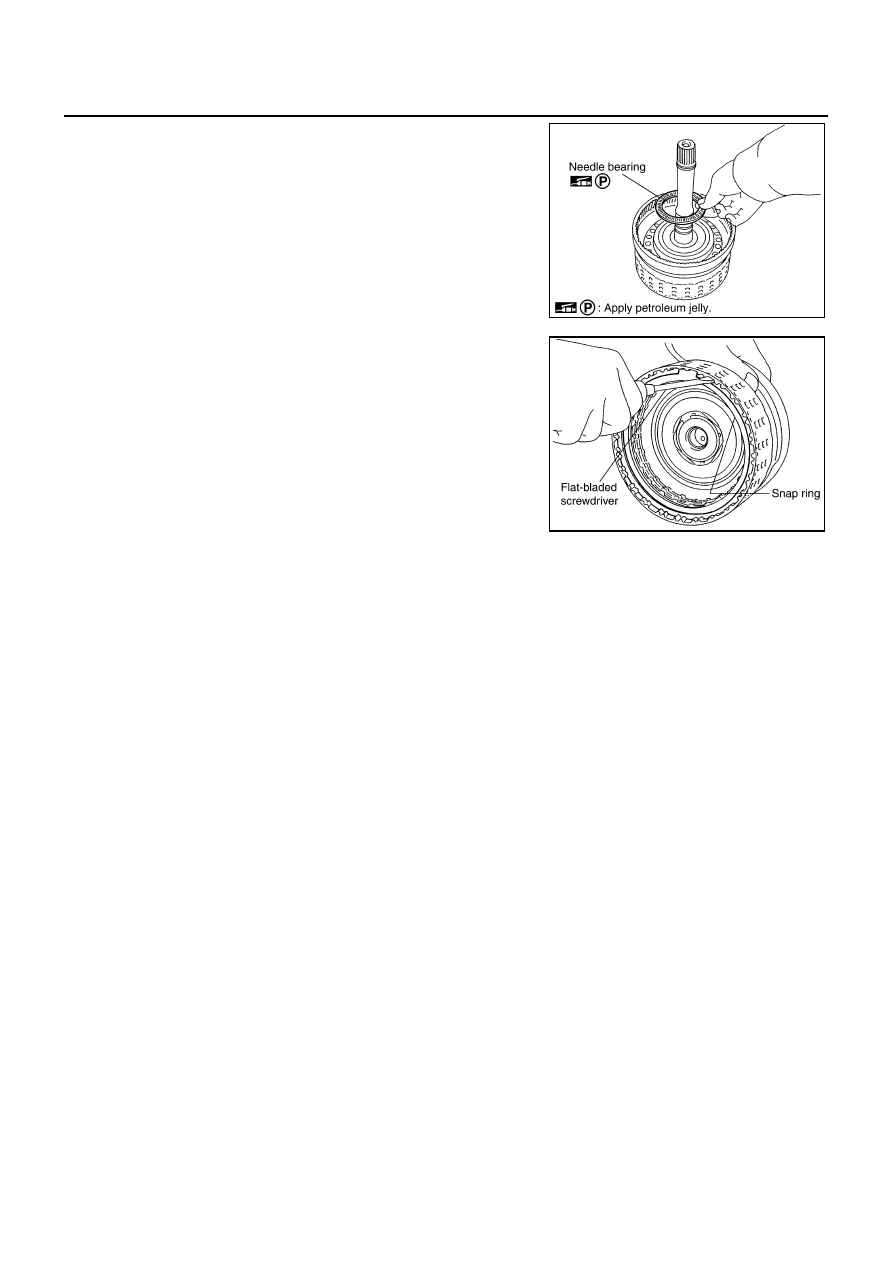

b.

Remove needle bearing from input clutch assembly.

c.

Using a flat-bladed screwdriver, remove snap ring from input
clutch drum.

d.

Remove drive plates, driven plates and retaining plate from input
clutch drum.

INSPECTION
Front Carrier Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Input Clutch Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the input clutch assembly.

Input Clutch Drum

Check for deformation, fatigue or damage or burns.

CAUTION:

If necessary, replace the input clutch assembly.

Input Clutch Drive Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

Input Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

Front Carrier

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front carrier assembly.

Rear Internal Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the rear internal gear assembly.

SCIA2853E

SCIA2864E
