DTC P1841 ATF PRESSURE SWITCH 1

AT-237

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

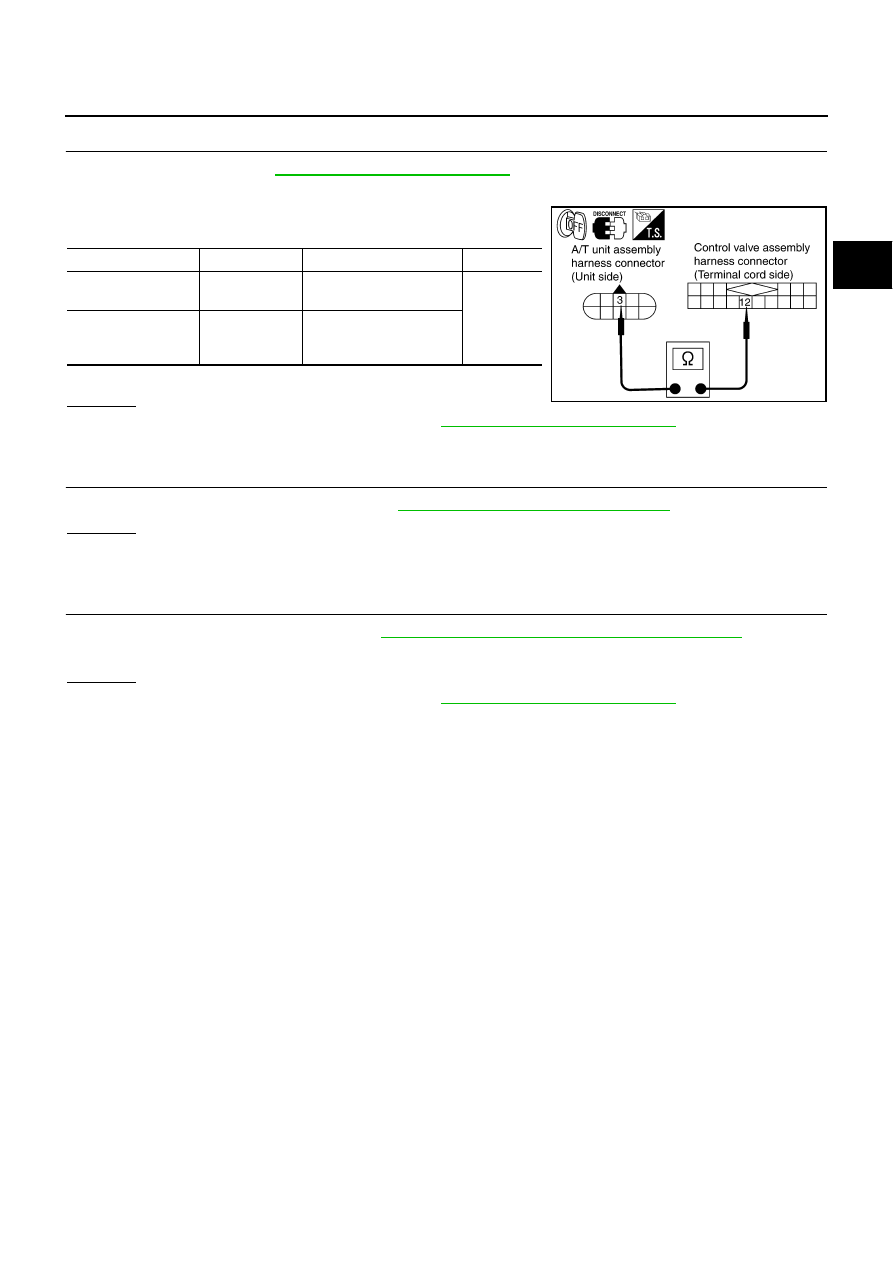

CHECK TERMINAL CORD ASSEMBLY

1.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

3.

Check continuity between A/T unit assembly harness connector
and control valve assembly harness connector.

4.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> Replace control valve assembly. Refer to

AT-312, "Control Valve Assembly"

 .

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK DTC

Perform DTC confirmation procedure. Refer to

AT-189, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> Replace control valve assembly. Refer to

AT-312, "Control Valve Assembly"

 .

NG

>> Repair or replace damaged parts.

Item

Connector No.

Terminal No. (Wire color)

Continuity

A/T unit assembly
harness connector

F26

3 (G)

Yes

Control valve assem-
bly harness connec-
tor

F302

12 (G)

SCIA3098E

AT-238

DTC P1843 ATF PRESSURE SWITCH 3

DTC P1843 ATF PRESSURE SWITCH 3

PFP:25240

Description

ACS004AY

Fail-safe function to detect input clutch solenoid valve condition.

CONSULT-II Reference Value

ACS004PS

On Board Diagnosis Logic

ACS004AZ

●

This is not an OBD-II self-diagnostic item.

●

Diagnostic trouble code “ATF PRES SW 3/CIRC” with CONSULT-II is detected, when TCM detects that
actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 3 is
irregular during depressing accelerator pedal. (Other than during shift change)

Possible Cause

ACS004B0

●

ATF pressure switch 3

●

Harness or connectors
(The switch circuit is open or shorted.)

DTC Confirmation Procedure

ACS004B1

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following condition.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 3rd

Þ

 4th Gear (I/C ON/OFF)

3.

Perform step “2” again.

4.

Turn ignition switch OFF, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1843) is detected, go to

AT-240, "Diagnostic Proce-

dure"

 .

If DTC (P1752) is detected, go to

AT-181, "Diagnostic Procedure"

 .

Item name

Condition

Display value

ATF PRES SW 3

Input clutch solenoid valve operates.

OFF

Other conditions

ON

SAT014K

DTC P1843 ATF PRESSURE SWITCH 3

AT-239

D

E

F

G

H

I

J

K

L

M

A

B

AT

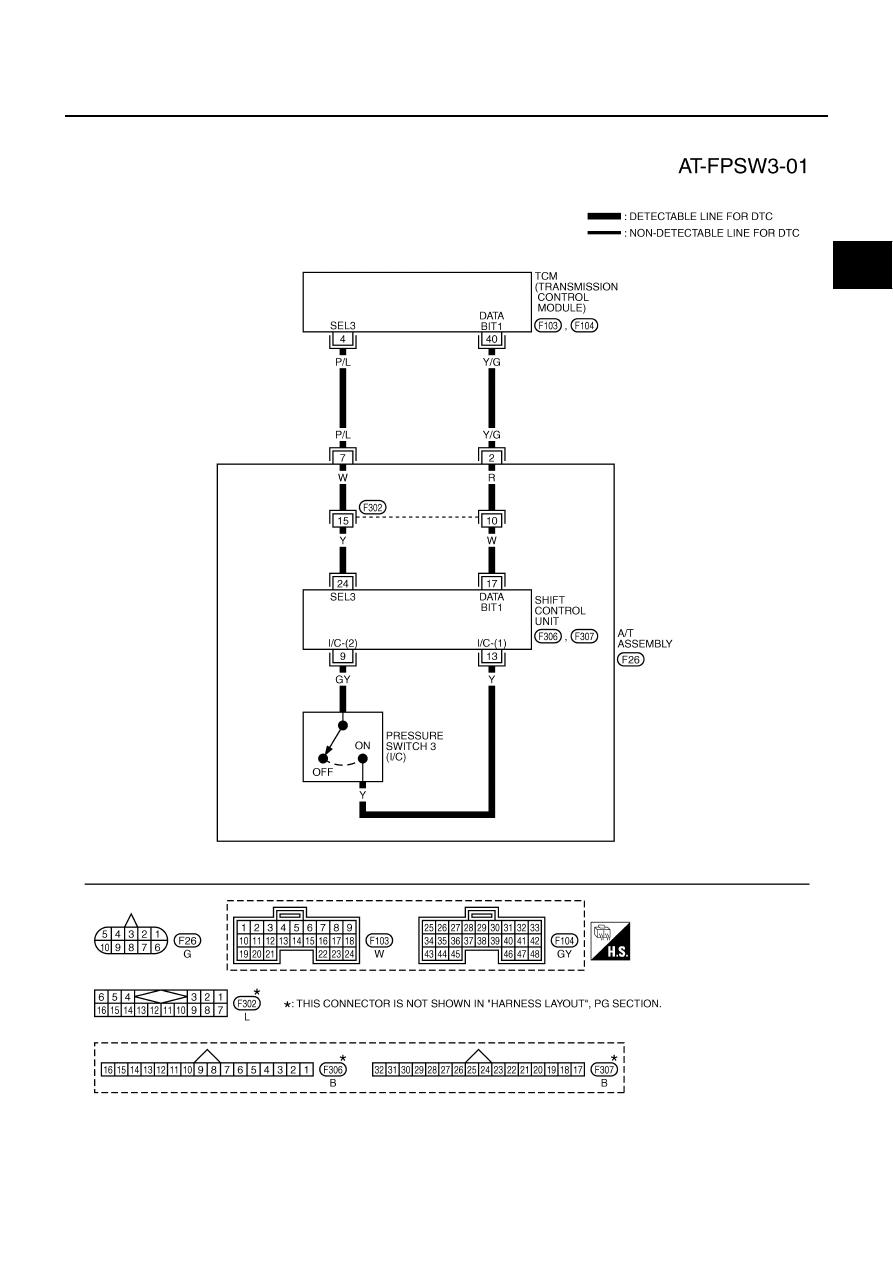

Wiring Diagram — AT — FPSW3

ACS004B2

TCWA0137E

AT-240

DTC P1843 ATF PRESSURE SWITCH 3

TCM terminals and data are reference value.

Diagnostic Procedure

ACS004B3

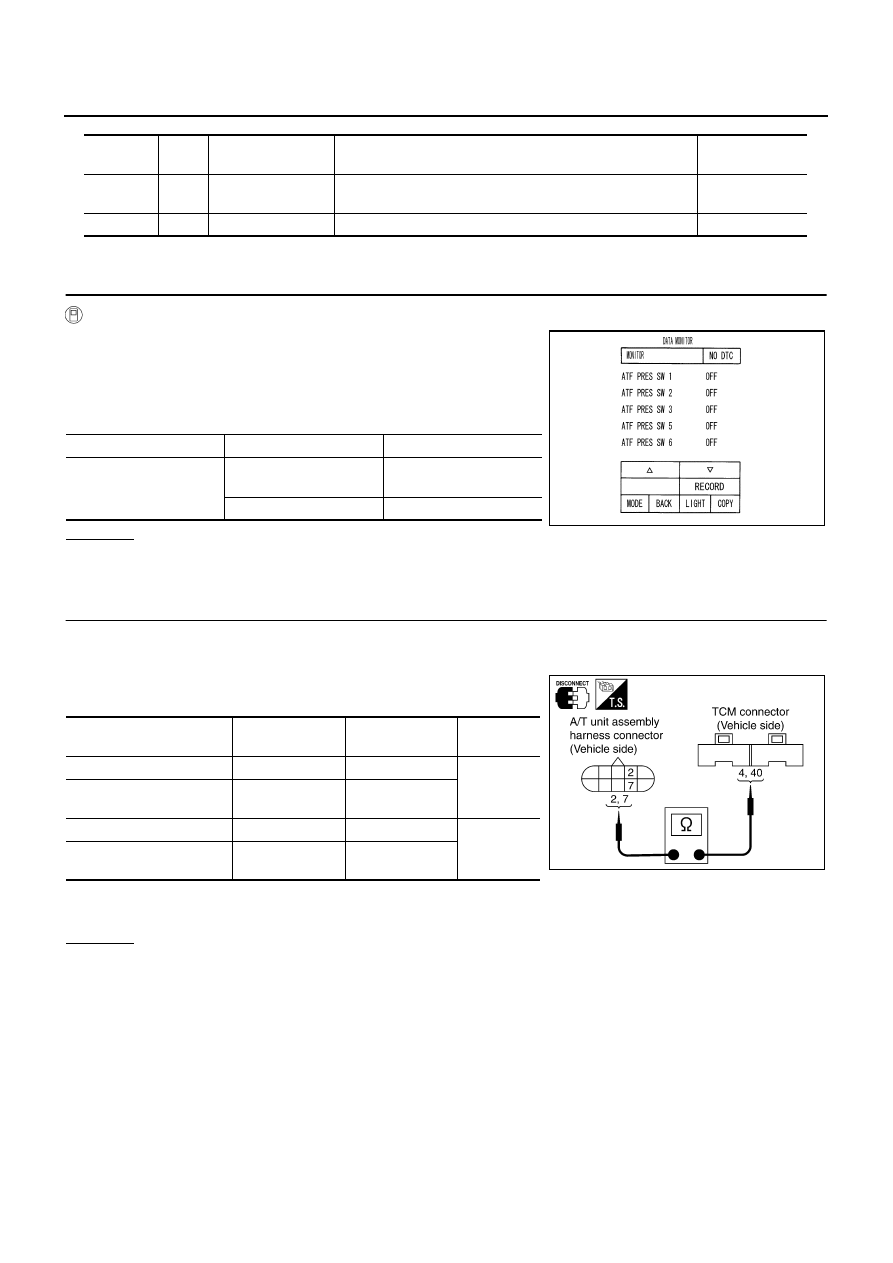

1.

CHECK INPUT SIGNALS

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.

3.

Accelerate vehicle in “D” position (3rd

Þ

 4th gear), and confirm

the ON/OFF actuation of the “ATF PRES SW 3”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TCM AND A/T UNIT ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check continuity between A/T unit assembly harness connector
and TCM connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

Terminal

No.

Wire

color

Item

Condition

Data (Approx.)

4

P/L

SEL3 (ATF pres-
sure switch 3)

–

–

40

Y/G

DATA BIT1

–

–

Item name

Condition

Display value

ATF PRES SW 3

Input clutch solenoid
valve operates.

OFF

Other conditions

ON

PCIA0067E

Item

Connector No.

Terminal No.

(Wire color)

Continuity

TCM

F103

4 (P/L)

Yes

A/T unit assembly harness
connector

F26

7 (P/L)

TCM

F104

40 (Y/G)

Yes

A/T unit assembly harness
connector

F26

2 (Y/G)

SCIA3099E
