Infiniti F50. Manual - part 681





CHASSIS AND BODY MAINTENANCE

MA-29

C

D

E

F

G

H

I

J

K

M

A

B

MA

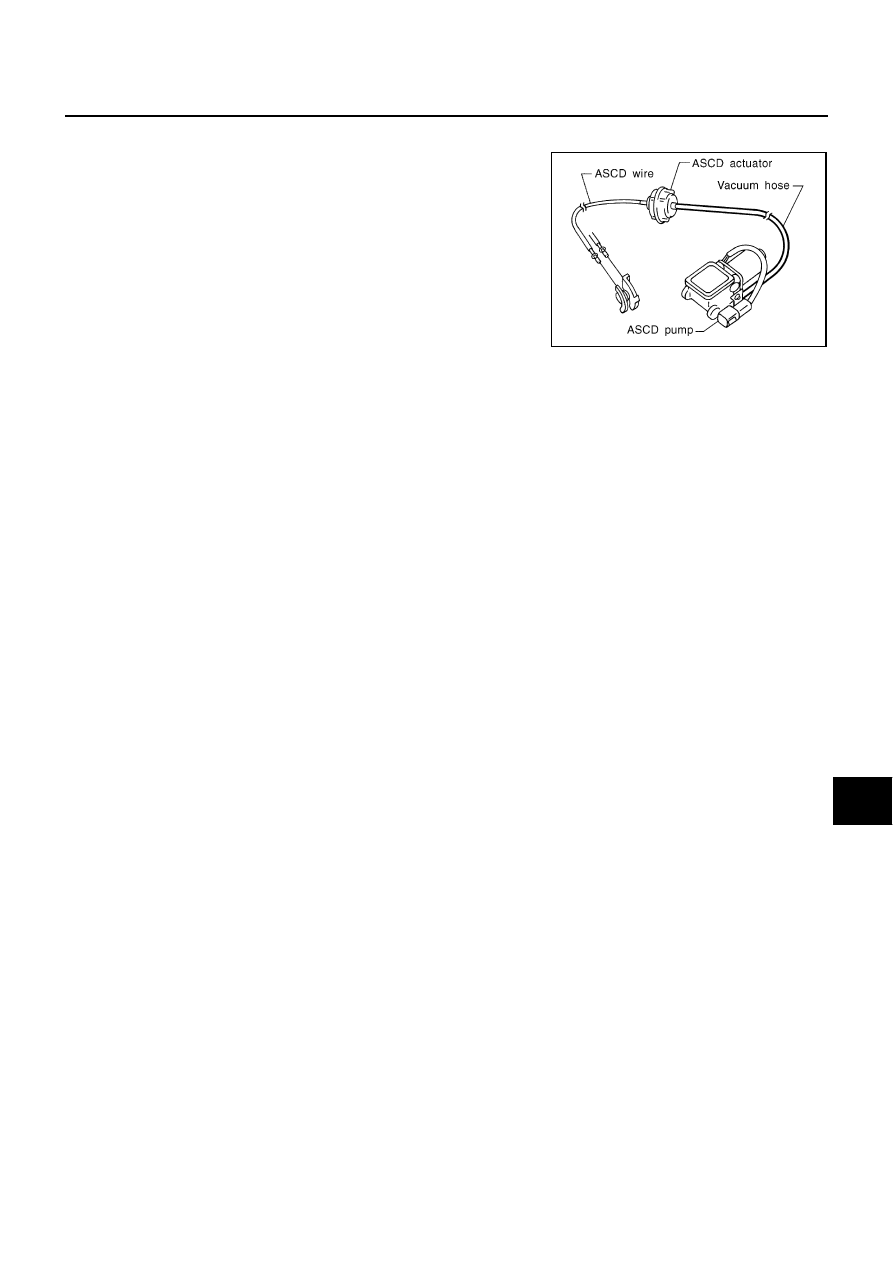

ASCD Vacuum Hose

ELS00027

Check vacuum hose (between ASCD actuator and ASCD pump) for
breakage, cracks or fracture.

MEL402G

MA-30

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Standard and Limit

ELS0003S

BELT DEFLECTION AND TENSION

ENGINE COOLANT CAPACITY

Unit:

 (US qt, Imp qt)

RADIATOR

Unit: kPa (kg/cm

2

  , psi)

ENGINE OIL CAPACITY

Unit:

 (US qt, Imp qt)

SPARK PLUG (PLATINUM-TIPPED TYPE)

WHEEL BALANCE

Unit: g (oz)

Tightening Torque

ELS000JK

Unit: N·m (kg-m, ft-lb)

Unit: N·m (kg-m, in-lb)*

Tensions of drive belts

                         Auto-adjustment by auto tensioner

Engine coolant capacity [With reservoir tank (MAX level)]

Approximately 9.8 (10-3/8, 8-5/8)

Reservoir tank

0.8  (7/8, 3/4)

Cap relief pressure

Standard

78 - 98 (0.8 - 1.0, 11 - 14)

Limit

59 (0.6, 9)

Leakage test pressure

157 (1.6, 23)

With oil filter change

Approximately 5.6 (5-7/8, 4-7/8)

Without oil filter change

Approximately 5.0 (5-1/4, 4-3/8)

Dry engine (engine overhaul)

Approximately 6.7 (7-1/8, 5-7/8)

Make

NGK

Type

Standard

PLFR5A-11

Hot

PLFR4A-11

Cold

PLFR6A-11

Plug gap (Nominal)

1.1 mm (0.043 in)

Maximum allowable unbalance

Dynamic (At rim flange)

10 (0.35) (one side)

Static

20  (0.71)

Cylinder block drain plug

14.7 - 24.5 (1.5 - 2.5, 11 - 18)

Radiator drain plug

0.78 - 1.56 (0.08 - 0.15, 7 - 14)*

Oil pan drain plug

29.4 - 39.2 (3.0 - 4.0, 22 - 28)

Oil filter

14.7 - 20.6 (1.5 - 2.1, 11 - 15)

Spark plug

24.6 (2.5, 18)

PB-1

PARKING BRAKE SYSTEM

F  BRAKES

CONTENTS

C

D

E

G

H

I

J

K

L

M

SECTION

A

B

PB

PARKING BRAKE SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2

PARKING BRAKE SYSTEM  ...................................... 3

On-Vehicle Service ................................................... 3

INSPECTION ........................................................ 3
ADJUSTMENT ...................................................... 3

PARKING BRAKE CONTROL  ................................... 4

Components ............................................................. 4
Removal and Installation  .......................................... 4

REMOVAL ............................................................. 4

INSTALLATION ..................................................... 5

Inspection ................................................................. 5

PARKING BRAKE SHOE  ........................................... 6

Components ............................................................. 6
Removal and Installation  .......................................... 6

REMOVAL ............................................................. 6
INSTALLATION ..................................................... 7
BREAKING IN DRUM AND LINING  ...................... 8

Inspection ................................................................. 8

SERVICE DATA AND SPECIFICATIONS (SDS)  ........ 9

Parking Drum Brake  ................................................. 9
Parking Brake Control  .............................................. 9

PB-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EFS00282

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
