Infiniti F50. Manual - part 606





REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-95

C

D

E

F

G

H

J

K

L

M

A

B

GW

Display Item List

DATA MONITOR
Display Item List

Malfunctioning system

Malfunction detecting condition

SEAT SLIDE

While the sliding motor moves the seat backward for 2.5 seconds, and then forward for 2.5
seconds, when  the sliding sensor pulse change less than 2 times.

SEAT RECLINING

While the reclining motor moves the seat forward for 2.5 seconds, and then backward for 2.5
seconds, when  the reclining sensor pulse change less than 2 times.

SEAT LIFTER–FR

While the lifter motor (front end) moves the seat downward for 2.5 seconds, and then upward
for 2.5 seconds, when  the lifter sensor (front end) pulse change less than 2 times.

SEAT LIFTER–RR

While the lifter motor (rear end) moves the seat downward for 2.5 seconds, and then upward
for 2.5 seconds, when  the lifter sensor (rear end) pulse change less than 2 times.

STEERING TILT

While the tilt motor moves the steering wheel upward for 1 second, and then downward for 1
second, when the tilt sensor output voltage is 0.2V or less.

STEERING TELESCO

While the telescoping motor moves the steering wheel forward for 1 second, and then back-
ward for 1 second, if the telescoping sensor output voltage is 0.2V or less.

DOOR MIRROR
– LH · UP – DOWN

While LH door mirror sensor detects 0.2V or lower, or 4.5V or higher, for 0.5 seconds or more.

DOOR MIRROR
– LH · L – R

DOOR MIRROR
– RH · UP – DOWN

While RH door mirror sensor detects 0.2V or lower, or 4.5V or higher, for 0.5 seconds or more.

DOOR MIRROR
– RH · L – R

VEHICLE SPEED SENSOR

While the vehicle speed is less than 7 km/h (4 MPH) for 15 seconds after the diagnosis for the
seat and steering wheel is completed.

Monitor item [OPERATION or UNIT]

Contents

SLIDE SW–FR

"ON/OFF"

ON / OFF status judged from
the sliding switch (FR) signal is displayed.

SLIDE SW–RR

"ON/OFF"

ON / OFF status judged from
 the sliding switch (RR) signal is displayed.

RECLIN SW–FR

"ON/OFF"

ON / OFF status judged from
 the reclining switch (FR) signal is displayed.

RECLIN SW–RR

"ON/OFF"

ON / OFF status judged from
the reclining switch (RR) signal is displayed.

LIFT FR SW–UP

"ON/OFF"

ON / OFF status judged from
 the FR lifter switch (UP) signal is displayed.

LIFT FR SW–DN

"ON/OFF"

ON / OFF status judged from
the FR lifter switch (DOWN) signal is displayed.

LIFT RR SW–UP

"ON/OFF"

ON / OFF status judged from
the RR lifter switch (UP) signal is displayed.

LIFT RR SW–DN

"ON/OFF"

ON / OFF status judged from
the RR lifter switch (DOWN) signal is displayed.

MIR CON SW–UP

"ON/OFF"

ON / OFF status judged from
 the door mirror remote control switch (UP) signal is displayed.

MIR CON SW–DN

"ON/OFF"

ON / OFF status judged from
 the door mirror remote control switch (DOWN) signal is displayed.

MIR CON SW–RH

"ON/OFF"

ON / OFF status judged from
the door mirror remote control switch (RIGHT) signal is displayed.

MIR CON SW–LH

"ON/OFF"

ON / OFF status judged from
the door mirror remote control switch (LEFT) signal s displayed.

MIR CHNG SW–R

"ON/OFF"

ON / OFF status judged from
 the door mirror remote control switch (switching to RIGHT) signal is displayed.

GW-96

REVERSE INTERLOCK DOOR MIRROR SYSTEM

*: Abnormal value indicates that the sensor output voltage is 0.2V or lower, or 4.5V or higher.

MIR CHNG SW–L

"ON/OFF"

ON/ OFF status judged from
 the door mirror remote control switch (switching to LEFT) signal is displayed.

SET SW

"ON/OFF"

ON / OFF status judged from
the setting switch signal is displayed.

TELESCO SW–FR

"ON/OFF"

ON / OFF status judged from
 the telescoping switch (FR) signal is displayed.

TELESCO SW–RR

"ON/OFF"

ON / OFF status judged from
the telescoping switch (RR) signal is displayed.

TILT SW–UP

"ON/OFF"

ON / OFF status judged from
 the tilt switch (UP) signal is displayed.

TILT SW–DOWN

"ON/OFF"

ON / OFF status judged from
 the tilt switch (DOWN) signal is displayed.

MEMORY SW1

"ON/OFF"

ON / OFF status judged from
the seat memory switch 1 signal is displayed.

MEMORY SW2

"ON/OFF"

ON / OFF status judged from
 the seat memory switch 2 signal is displayed.

CANCEL SW

"ON/OFF"

Setting status is displayed with the display unit: "Active (ON) / inactive (OFF) "

DOOR SW DR

"ON/OFF"

Door open (ON) / door closed (OFF) status judged from
 the driver door switch is displayed.

VHCL SPEED SE

"<7km/

>7km"

The present vehicle speed (less than 7 km/h (4 MPH), or 7 km/h (4MPH) or higher)
is displayed.

DETENT SW

"ON/OFF"

The selector lever position "P position (ON) / other than P position (OFF)" judged
from the detent switch signal is displayed.

IGN ON SW

"ON/OFF"

ON / START, ACC, or OFF status judged from the ignition switch signal is dis-
played.

IGN ACC SW

"ON/OFF"

ACC or ON / START, or OFF status judged from the ignition switch signal is dis-
played.

IGN START SW

"ON/OFF"

START, ON /  ACC, or OFF status judged from the ignition switch signal is dis-
played.

IGN KEY SW

"ON/OFF"

Key inserted (ON) / key removed (OFF) status judged from the key detection switch
is displayed.

R POSITION SW

"ON/OFF"

R position (ON) / Other than R position OFF of shift position signal from back–
up lamp relay is displayed.

TILT SEN

"V"

The tilt position (voltage) judged from the tilt sensor signal is displayed.

TELESCO SEN

"V"

The telescoping position (voltage) judged from the telescoping sensor signal is dis-
played.

MIR/SE RH R–L

"ON/OFF"

ON (normal value  ) / OFF (abnormal value) *of voltage value judged from RH door
mirror sensor output voltage (LH/RH) is displayed.

MIR/SE RH U–D

"ON/OFF"

ON (normal value) / OFF (abnormal value) *of voltage value judged from RH door
mirror sensor output voltage (UP/ DOWN) is displayed.

MIR/SE LH R–L

"ON/OFF"

ON (normal value) / OFF (abnormal value) *of voltage value judged from LH door
mirror sensor output voltage (LH / RH) is displayed.

MIR/SE LH U–D

"ON/OFF"

ON (normal value) / OFF (abnormal value) *of voltage value judged from LH door
mirror sensor output voltage (UP/ DOWN) is displayed.

Voltage

"V"

Displays measured values by voltage probe.

Frequency

"ms,Hz,%"

Displays value measured with pulse probe.

Monitor item [OPERATION or UNIT]

Contents

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-97

C

D

E

F

G

H

J

K

L

M

A

B

GW

ACTIVE TEST
Display Item List

Test item

Description

TILT MOTOR

The tilt motor is activated by receiving the drive signal.

TELESCO MOTOR

The telescoping motor is activated by receiving the drive signal.

SEAT SLIDE

The sliding motor is activated by receiving the drive signal.

SEAT RECLINING

The reclining motor is activated by receiving the drive signal.

SEAT LIFTER FR

The front end lifter motor is activated by receiving the drive signal.

SEAT LIFTER RR

The rear end lifter motor is activated by receiving the drive signal.

MEMORY SW INDCTR

The memory switch indicator is lit by receiving the drive signal.

MIRROR MOTOR RH

The passenger side door mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by
receiving the drive signal.

MIRROR MOTOR LH

The driver side door mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiv-
ing the drive signal.

GW-98

REVERSE INTERLOCK DOOR MIRROR SYSTEM

On Board Diagnosis

EIS0011G

BCM can check each local unit (LCU), switches, loads, and malfunctions in communication with the self-
diagnosis.

DIAGNOSIS ITEM

COMMUNICATION DIAGNOSIS

Check the communication between BCM and each local control unit (LCU).

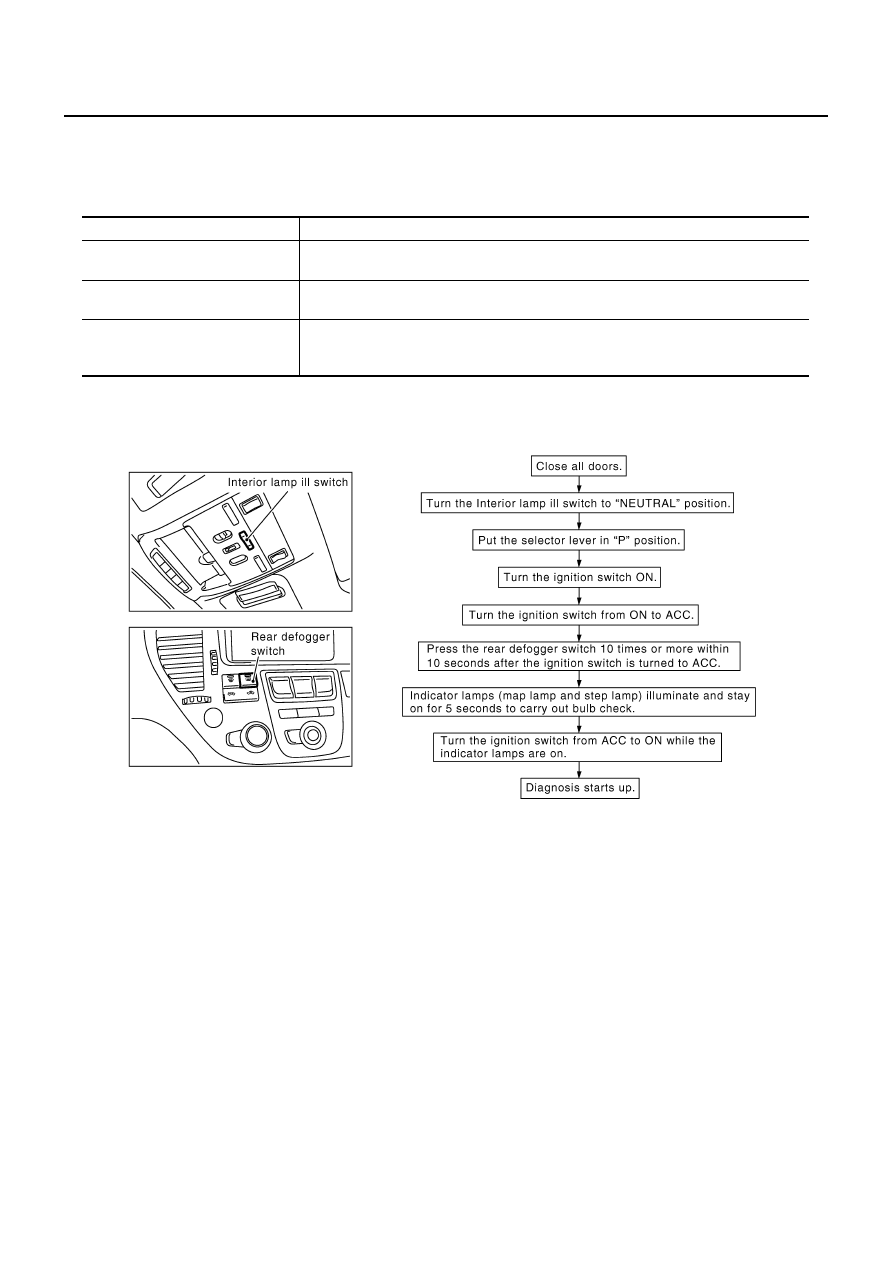

Operation Procedure

Diagnosis Result Display

The indicator lamps (the map lamp and step lamp) turn ON (illuminate) for 2 seconds and OFF (go off) for
2 seconds to indicate that the diagnosis has started, then indicate the diagnosis trouble code.

To indicate the self–diagnosis trouble code, the indicator lamps illuminate or flash.

At first, the lamps indicate the second place by ON/OFF with 0.5 second-interval, then OFF for 1.5 sec-
onds. Next, they indicate the first place by ON/OFF with 0.5 second interval.

If there are multiple malfunctioning parts, the lamps indicate them in sequence from the smallest diagno-
sis trouble code.

The diagnosis results repeat until the diagnosis is cancelled.

If a malfunction is indicated, carry out the communication diagnosis again to check that the same diagno-
sis trouble code is indicated.

Diagnosis item

Description

Communication diagnosis

It can check the communication line between BCM and each LCU, and also each LCU,
for a communication error and malfunction.

Switch monitor

It can check the switch systems which send data to BCM and each LCU for a malfunc-
tion.

Self-diagnosis for auto drive posi-
tioner

Diagnoses malfunctions in each motor and sensor in the electrical load parts of the
driver power seat system (sliding, reclining, and lifter [front/rear]), of the steering wheel
system (tilt, telescoping), and of door mirror.

PIIA3358E
