REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-91

C

D

E

F

G

H

J

K

L

M

A

B

GW

3.

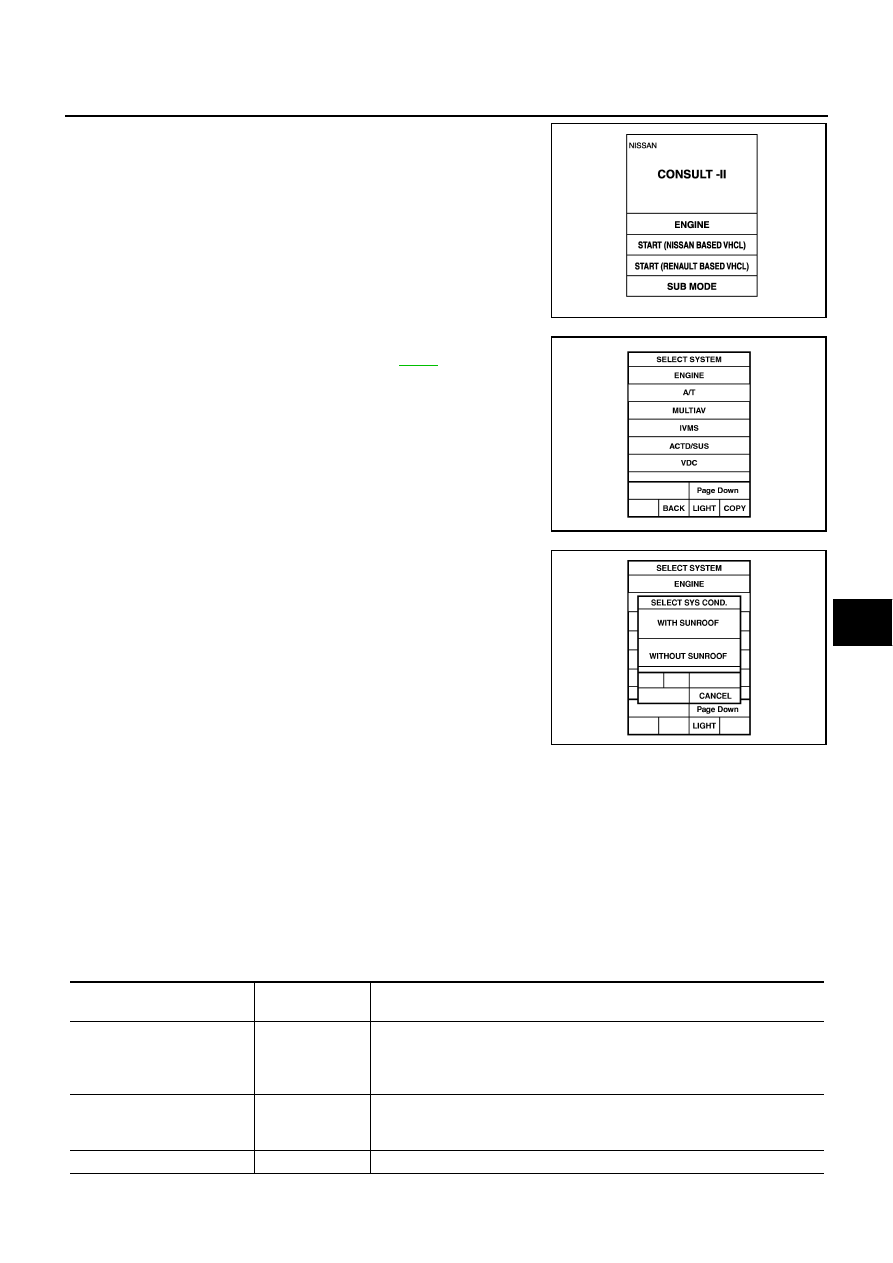

Turn ignition switch “ON”.

4.

Touch “START(NISSAN BASED VHCL)”.

5.

Touch “IVMS”on the “SELECT SYSTEM” screen.
If  “BCM” is not indicated, go to Refer to

GI-38

 ,“CONSULT-II

Date Link Connector (DLC) Circuit”.

6.

Check the model specification, and touch either “WITH SUN-
ROOF” or "WITHOUT SUNROOF” on the “SELECT SYS
COND" screen.

7.

Touch "OK". If the selection is wrong, touch “CANCEL”.

8.

Select the desired part to be diagnosed on the "SELECT TEST
ITEM" screen.

IVMS COMMUNICATION INSPECTION

●

IVMS contains the IVMS communication diagnosis and wake–up diagnosis.

IVMS Communication Diagnosis

●

The IVMS communication diagnosis consists of the communication diagnosis, sleep diagnosis, and inac-
tive communication diagnosis between BCM and each local unit (LCU), and display the results on the
CONSULT–II screen.
NOTE:
Sleep is a power saving function when a vehicle is stationary (all BCM related electrical equipment: OFF,
and the timer: OFF).

●

The function also stores the communication malfunction records and inactive communication records, and
displays the data on the CONSULT–II screen (Malfunction record diagnosis)

MBIB0233E

PIIA0183E

PIIA0184E

Malfunction description

CONSULT–II

display item

Description

Communication malfunction

COMM DATA

●

Communicating with each LCU is judged sound when the communication is
normally completed and the transmitted data and received data are identi-
cally the same. In other cases, it is judged malfunctioning. If the communica-
tion is inactive, no diagnosis result is displayed.

Inactive communication

NO RESPONSE

●

Communicating with each LCU is judged sound when at least one time com-
munication is normally completed within three trials. In other cases, it is
judged malfunctioning.

Sleep malfunction

SLEEP

●

Check that each LCU enters sleep mode.

GW-92

REVERSE INTERLOCK DOOR MIRROR SYSTEM

*: malfunctioning item record

Operation Procedure

1.

Touch "IVMS–COMM CHECK" on "SELECT TEST ITEM" screen.

2.

Touch "IVMS–COMM DIAGNOSIS" on "SELECT DIAG ITEM" screen.

3.

Touch "START" on "IVMS–COMM DIAGNOSIS" screen to start the diagnosis.

4.

After the diagnosis is completed, the malfunctioning system is displayed.

5.

When the malfunctioning items are displayed, touch "PRINT" to record.

6.

Touch "ERASE".

7.

Carry out the communication inspection again to check that any malfunctioning item is displayed.

8.

Check the displayed items.

Wake-Up Diagnosis

●

The wake-up diagnosis is carried out when BCM detects the wake-up signal from each local unit (LCU).
When the switch shown on the screen is operated as instructed, each local control unit(LCU) outputs the
wake-up signal. If BCM cannot detect a wake-up signal, it is judged malfunctioning. The malfunctioning
local control unit(LCU) is displayed on the screen.

Operation Procedure

1.

Touch "IVMS–COMM CHECK" on "SELECT TEST ITEM" screen.

2.

Touch "WAKE–UP DIAGNOSIS" on "SELECT DIAG ITEM" screen.

3.

Touch "START" on "WAKE–UP DIAGNOSIS" screen to start the diagnosis.

4.

Touch "NEXT" to select the local control unit (LCU) to be diagnosed.

5.

Check that any malfunction is displayed. If necessary, touch "PRINT" to record.

6.

Carry out the inspection to the malfunctioning item.

Trouble Diagnosis Chart

Communication malfunction *

PAST COMM
DATA

●

The records when communication signal malfunctions were continuously
detected while the communication was normal are displayed. Or the records
when a malfunction is detected during the past sleep mode are displayed.

Inactive communication*

PAST NO
RESPONSE

●

The records when inactive communications were continuously detected
while the communication was normal are displayed.

Malfunction description

CONSULT–II

display item

Description

Malfunctioning

item

Display unit

CONSULT–II IVMS communication

diagnosis content

Self-diagnosis trouble

code No.

Malfunctioning system and

reference

COMM DATA

One LCU
 is displayed.

POWER WINDOW  C/U–DR
"COMM DATA"

24

Replace the displayed
LCU.

DOOR MIRROR  C/U–RH
"COMM DATA"

27

DOOR MIRROR  C/U–LH
"COMM DATA"

37

POWER SEAT  C/U–DR
"COMM DATA"

47

Multiple LCUs
are displayed

BCM
"COMM FAIL1" ,"COMM FAIL2"

Displays in order of
24

→

27

→

37

→

47 and

cycles from 24.

Communication system A:
Refer to

GW-93, "COM-

MUNICATION SYSTEM A"



.

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-93

C

D

E

F

G

H

J

K

L

M

A

B

GW

NOTE:

●

For a specific local control unit (LCU), either "PAST COMM DATA" or "PAST NO RESPONSE" may be displayed instead of the
above results.The data record,  causes this, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
intermittent incident occurred.)

●

Follow the steps below to erase the memory.
Carry out either disconnect BCM battery power supply or erase memory with CONSULT-II.

●

With the battery connected, if the local control unit (LCU) connector is disconnected and left for approximately 1 minute, BCM
stores "NO RESPONSE" record.

COMMUNICATION SYSTEM A

1.

BCM INSPECTION

Replace BCM with a known-good one, and carry out the communication diagnosis. Refer to

GW-91, "IVMS

Communication Diagnosis"

 .

OK or NG?

OK

>> Replace BCM

NG

>> GO TO 2.

2.

LCU INSPECTION

1.

Replace with the previously installed BCM.

2.

Replace LCU with a known-good one, and carry out the communication diagnosis. Refer to

GW-91,

"IVMS Communication Diagnosis"

 .

OK or NG?

OK

>> Replace LCU

NG

>> Perform the following.

●

Repair or replace communication harness between LCU and BCM.

●

Replace with the previously installed LCU.

NO
RESPONSE

One LCU
is displayed.

POWER WINDOW C/U–DR
"NO RESPONSE"

25

Communication system B:
Refer to

GW-94, "COM-

MUNICATION SYSTEM B"



.

DOOR MIRROR C/U–RH
"NO RESPONSE"

28

DOOR MIRROR C/U–LH
"NO RESPONSE"

38

POWER SEAT C/U–DR
"NO RESPONSE"

48

Multiple LCUs
are displayed

BCM/HARNESS

Displays in order of
25

→

28

→

38

→

48 and

cycles from 25.

Communication system C:
Refer to

GW-94, "COM-

MUNICATION SYSTEM C"



.

SLEEP
malfunction

One LCU
is displayed.

POWER WINDOW C/U–DR
"SLEEP"

No self-diagnosis
function

Replace the displayed
LCU.

DOOR MIRROR C/U–RH
"SLEEP"

DOOR MIRROR C/U–LH
"SLEEP"

POWER SEAT C/U–DR
"SLEEP"

Multiple LCUs
are displayed

All the above control units are dis-
played.

No self-diagnosis
function

Communication system A:
Refer to

GW-93, "COM-

MUNICATION SYSTEM A"



.

Malfunctioning

item

Display unit

CONSULT–II IVMS communication

diagnosis content

Self-diagnosis trouble

code No.

Malfunctioning system and

reference

GW-94

REVERSE INTERLOCK DOOR MIRROR SYSTEM

COMMUNICATION SYSTEM B

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on the malfunctioning LCU for disconnection, bend,
loose connection, and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.

2.

LCU INSPECTION

Replace the malfunctioning LCU with a known-good one, and carry out the communication diagnosis. Refer to

GW-91, "IVMS Communication Diagnosis"

 .

OK or NG?

OK

>> Replace LCU

NG

>> Perform the following.

●

Repair or replace communication harness between LCU and BCM.

●

Replace with the previously installed LCU.

COMMUNICATION SYSTEM C

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on BCM and LCU for disconnection, bend, loose connc-
tion, and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.

2.

BCM INSPECTION

Replace the malfunctioning BCM with a known-good one, and carry out the communication diagnosis. Refer
to

GW-91, "IVMS Communication Diagnosis"

 .

OK or NG?

OK

>> Replace BCM

NG

>> Perform the following.

●

Repair the communication harness between LCU and BCM control.

●

Replace with the previously installed BCM.

SELF–DIAGNOSIS RESULTS
Operation Procedure

1.

Touch "AUTO DRIVE POSITIONER" on "SELECT TEST ITEM" screen.

2.

Touch "SELF–DIAG RESULTS" on "SELECT DIAG MODE" screen.

3.

Touch "START" on "SELF–DIAG RESULTS" screen.

4.

The seat and steering wheel automatically move, and the self-diagnosis for the seat , steering wheel and
door mirror start (door mirror does not operate).

5.

Within 15 seconds after the self-diagnosis for the seat, steering wheel and door mirror are completed,
drive the vehicle at a speed of 7 km/h(4 MPH) or higher for the vehicle speed sensor self-diagnosis.

6.

After the diagnosis is completed, the malfunctioning system is displayed.

7.

When the malfunctioning items are displayed, touch "COPY" to record.

8.

Touch "ERASE".

9.

Perform self-diagnosis results again to check that any malfunctioning item is displayed.

10. Check the displayed items.
