TRUNK ROOM TRIM & TRUNK LID FINISHER

EI-53

C

D

E

F

G

H

J

K

L

M

A

B

EI

Installation

Install in the reverse order of removal.

TRUNK LID FINISHER
Removal

1.

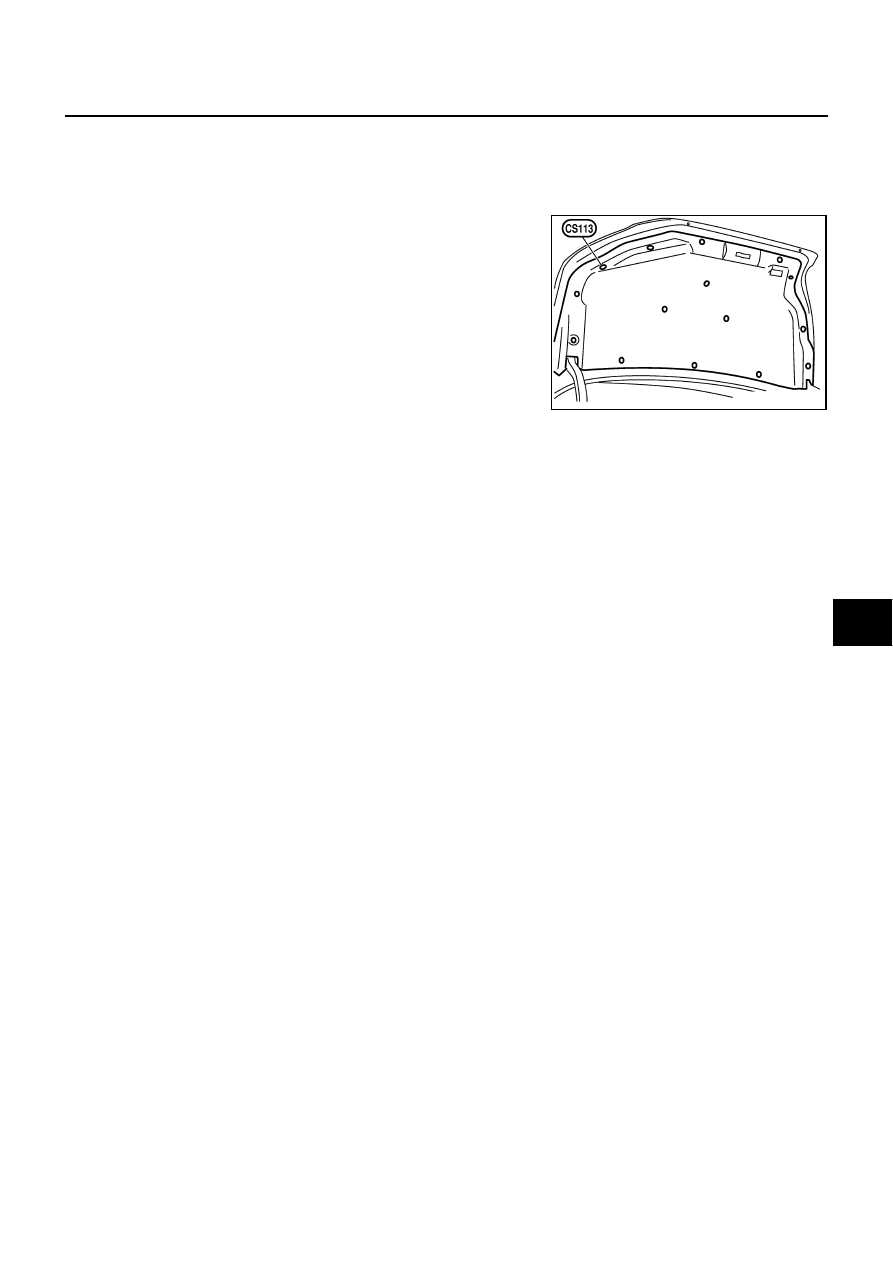

Remove clips(CS113) and bumper rubber then trunk lid finisher.

2.

Remove trunk lid finisher.

Installation

Install in the reverse order of removal.
