Infiniti I30 (A33). Manual - part 421





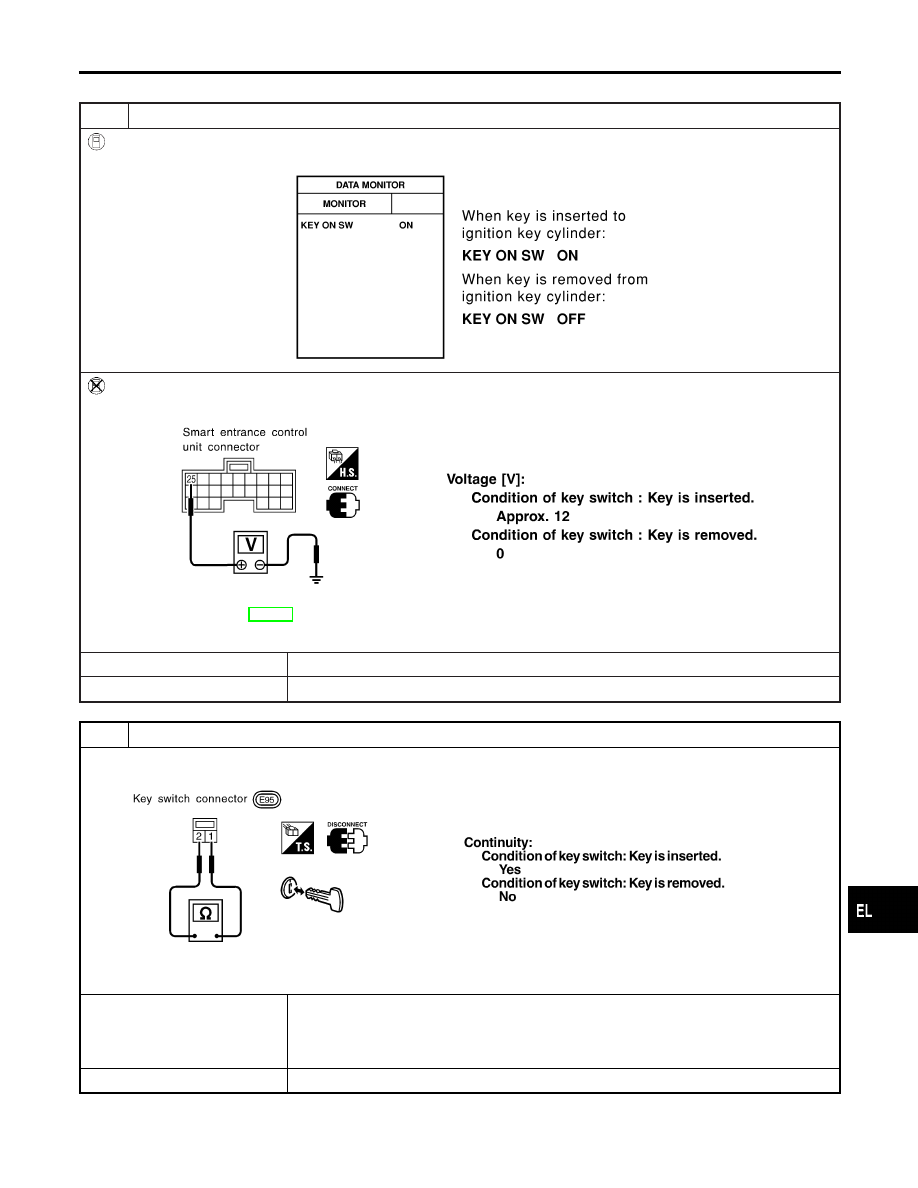

KEY SWITCH (INSERT) CHECK

=NHEL0195S05

1

CHECK KEY SWITCH INPUT SIGNAL

With CONSULT-II

Check key switch (“KEY ON SW”) in “DATA MONITOR” mode with CONSULT-II.

SEL315W

Without CONSULT-II

Check voltage between control unit harness connector M144 terminal 25 (B/R) and ground.

SEL022Y

Refer to wiring diagram in EL-341.

OK or NG

OK

©

Key switch is OK.

NG

©

GO TO 2.

2

CHECK KEY SWITCH (INSERT)

Check continuity between key switch terminals 1 and 2.

SEL194W

OK or NG

OK

©

Check the following.

I

10A fuse [No. 13, located in fuse block (J/B)]

I

Harness for open or short between key switch and fuse

I

Harness for open or short between smart entrance control unit and key switch

NG

©

Replace key switch.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-353

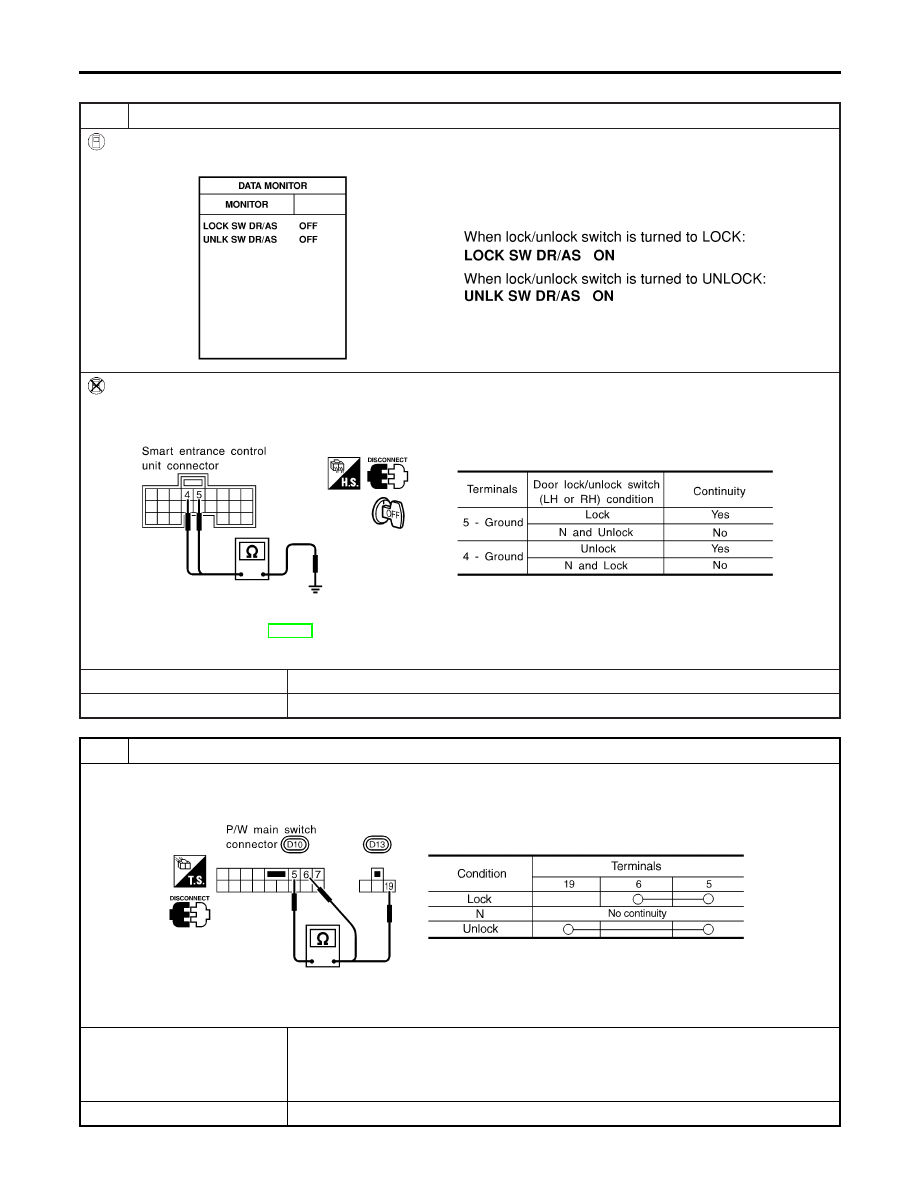

DOOR LOCK/UNLOCK SWITCH LH CHECK

=NHEL0195S06

1

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL

With CONSULT-II

Check door lock/unlock switch (“LOCK SW DR/AS”/“UNLK SW DR/AS”) in “DATA MONITOR” mode with CONSULT-II.

SEL341W

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Check continuity between smart entrance control unit harness connector M143 terminal 4 (BR/Y) or 5 (GY) and ground.

SEL025Y

Refer to wiring diagram in EL-341.

OK or NG

OK

©

Door lock/unlock switch is OK.

NG

©

GO TO 2.

2

CHECK DOOR LOCK/UNLOCK SWITCH

1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between door lock/unlock switch LH terminals.

SEL648W

OK or NG

OK

©

Check the following.

I

Ground circuit for door lock/unlock switch

I

Harness for open or short between door lock/unlock switch and smart entrance control
unit connector

NG

©

Replace door lock/unlock switch.

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-354

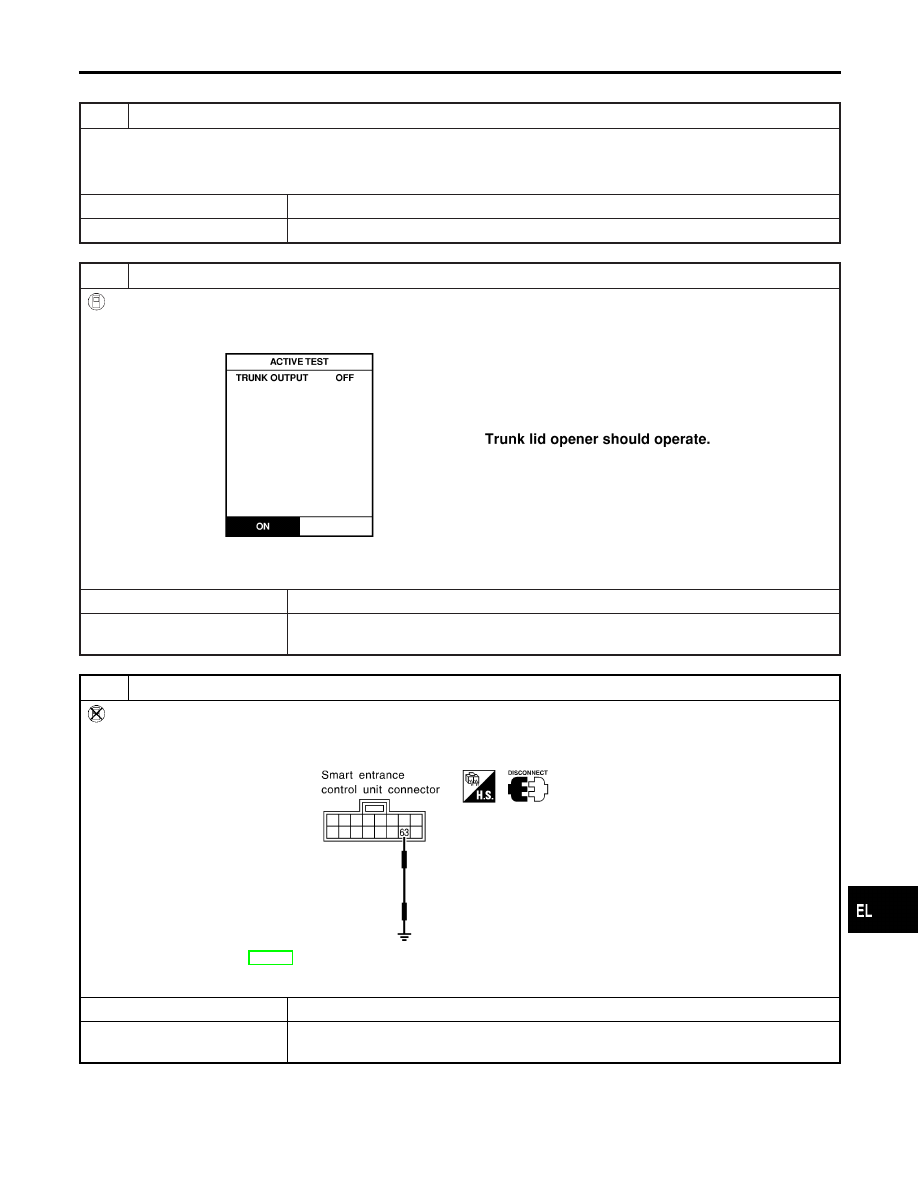

TRUNK LID OPENER ACTUATOR CHECK

=NHEL0195S12

1

CHECK TRUNK LID OPENER

Check trunk lid opener operation with trunk lid opener switch.
NOTE: First check trunk lid opener cancel lever position.

Does trunk lid open?

Yes

©

GO TO 2.

No

©

Check trunk lid opener actuator and the circuit.

2

CHECK TRUNK LID OPENER ACTUATOR OPERATION

With CONSULT-II

1. Select “ACTIVE TEST” in “MULTI REMOTE ENT” with CONSULT-II.
2. Select “TRUNK OUTPUT” and touch “ON”.

SEL345W

NOTE: If CONSULT-II is not available, skip this procedure and go to the next step.

OK or NG

OK

©

Trunk lid opener actuator circuit is OK.

NG

©

Check harness for open or short between smart entrance control unit and trunk lid
opener actuator.

3

CHECK TRUNK LID OPENER ACTUATOR CIRCUIT

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector M145 terminal 63 (L).

SEL026Y

Refer to wiring diagram in EL-343.

Does trunk lid open?

Yes

©

Replace smart entrance control unit.

No

©

Check harness for open or short between smart entrance control unit and trunk lid
opener actuator.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-355

HAZARD REMINDER CHECK

=NHEL0195S08

1

CHECK HAZARD INDICATOR

Check if hazard indicator flashes with hazard switch.

Does hazard indicator operate?

Yes

©

GO TO 2.

No

©

Check “hazard indicator” circuit.

2

CHECK HAZARD REMINDER OPERATION WITH CONSULT-II

With CONSULT-II

1. Select “ACTIVE TEST” in “MULTI REMOTE ENT” with CONSULT-II.
2. Select “HAZARD” and touch “ON”.

SEL347W

NOTE: If CONSULT-II is not available, skip this procedure and go to the next step.

OK or NG

OK

©

Hazard reminder operation is OK.

NG

©

Replace smart entrance control unit.

3

CHECK HAZARD REMINDER OPERATION WITHOUT CONSULT-II

Without CONSULT-II

1. Check voltage between smart entrance control unit harness connector M144 terminal 47 (G/B) or 48 (G/Y) and ground.

SEL027Y

Refer to wiring diagram in EL-343.

OK or NG

OK

©

System is OK.

NG

©

Replace smart entrance control unit.

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-356
