CONSULT-II Inspection Procedure

NHEL0241

“MULTI REMOTE ENT”

NHEL0241S01

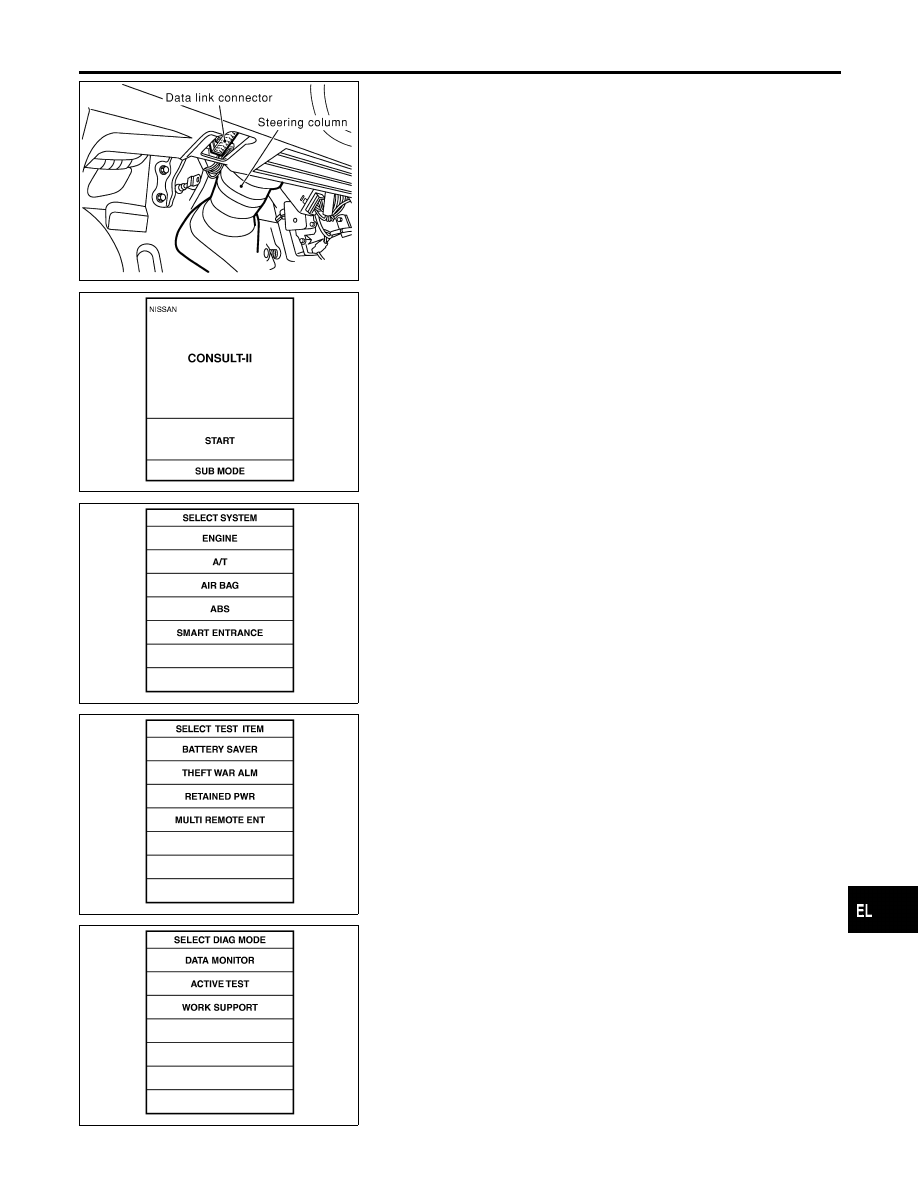

Turn ignition switch “OFF”.

Connect “CONSULT-II” to the data link connector.

PBR455D

Turn ignition switch “ON”.

Touch “START”.

SEL941W

Touch “SMART ENTRANCE”.

SEL273W

Touch “MULTI REMOTE ENT”.

SEL274W

Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.

IDX

MULTI-REMOTE CONTROL SYSTEM

CONSULT-II Inspection Procedure

EL-345

CONSULT-II Application Items

NHEL0242

“MULTI REMOTE ENT”

NHEL0242S01

Data Monitor

NHEL0242S0101

Monitored Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of door switch RH.

LOCK SW DR/AS

Indicates [ON/OFF] condition of lock signal from lock/unlock switch LH and RH.

UNLK SW DR/AS

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch LH and RH.

KEY CYL LK SW

Indicates [ON/OFF] condition of lock signal from key cylinder switch.

LK BUTTON/SIG

Indicates [ON/OFF] condition of lock signal from remote controller.

UN BUTTON/SIG

Indicates [ON/OFF] condition of unlock signal from remote controller.

TRUNK BTN/SIG

Indicates [ON/OFF] condition of trunk open signal from remote controller.

PANIC BTN

Indicates [ON/OFF] condition of panic signal from remote controller.

LK/UN BTN ON

Indicates [ON/OFF] condition of lock/unlock signal at the same time from remote controller.

Active Test

NHEL0242S0102

Test Item

Description

INT/IGN ILLUM

This test is able to check interior lamp and ignition key hole illumination operation. The interior
lamp and ignition key hole illumination are turned on when “ON” on CONSULT-II screen is
touched.

HAZARD

This test is able to check hazard reminder operation. The hazard lamp turns on when “ON” on
CONSULT-II screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5
seconds after “ON” on CONSULT-II screen is touched.

HEAD LAMP

This test is able to check headlamps panic alarm operation. The headlamp illuminates for 0.5
seconds after “ON” on CONSULT-II screen is touched.

TRUNK OUTPUT

This test is able to check trunk lid opener actuator operation. The trunk is unlocked when “ON”
on CONSULT-II screen is touched.

Work Support

NHEL0242S0103

Test Item

Description

REMO CONT ID CONFIR

It can be checked whether remote controller ID code is registered or not in this mode.

REMO CONT ID REGIST

Remote controller ID code can be registered.

REMO CONT ID ERASUE

Remote controller ID code can be erased.

HZRD REM SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be
changed when “MODE SET” on CONSULT-II screen is touched.

MULTI-REMOTE CONTROL SYSTEM

CONSULT-II Application Items

EL-346

Trouble Diagnoses

NHEL0195

SYMPTOM CHART

NHEL0195S01

NOTE:

Always check remote controller battery before replacing
remote controller.

The panic alarm operation and trunk lid opener operation of
multi-remote control system do not activate with the ignition
key inserted in the ignition key cylinder.

Symptom

Diagnoses/service procedure

Reference

page

(EL-

)

All function of multi-remote control system do not
operate.

1. Remote controller battery and function check

349

2. Power supply and ground circuit for smart entrance control
unit check

350

3. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

The new ID of remote controller cannot be
entered.

1. Remote controller battery and function check

349

2. Key switch (insert) check

353

3. Door switch check

352

4. Door lock/unlock switch LH check

354

5. Power supply and ground circuit for smart entrance control
unit check

350

6. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

Door lock or unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system. Refer to
EL-327.)

1. Remote controller battery and function check

349

2. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

Hazard and horn reminder does not activate prop-
erly when pressing lock or unlock button of remote
controller.

1. Remote controller battery and function check

349

2. Hazard reminder check

356

3. Horn reminder check*
*: Horn chirp can be activated or deactivated.
First check the horn chirp setting. Refer to “System
Description”, EL-337.

357

4. Door switch check

352

5. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

Interior lamp and key hole illumination operation
do not activate properly.

1. Interior lamp operation check

359

2. Key hole illumination operation check

360

3. Door switch check

352

IDX

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses

EL-347

Symptom

Diagnoses/service procedure

Reference

page

(EL-

)

Panic alarm (horn and headlamp) does not acti-
vate when panic alarm button is continuously
pressed.

1. Remote controller battery and function check

349

2. Theft warning operation check. Refer to “PRELIMINARY
CHECK” in “VEHICLE SECURITY SYSTEM”.

383

3. Key switch (insert) check

353

4. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

Trunk lid does not open when trunk opener button
is continuously pressed.

1. Remote controller battery and function check

349

2. Trunk lid opener actuator check

355

3. Key switch (insert) check

353

4. Replace remote controller. Refer to ID Code Entry Procedure.
NOTE: If the result of remote controller function check with
CONSULT-II is OK, remote controller is not malfunctioning.

361

MULTI-REMOTE CONTROL SYSTEM

Trouble Diagnoses (Cont’d)

EL-348
