Infiniti G37 Coupe. Manual - part 830





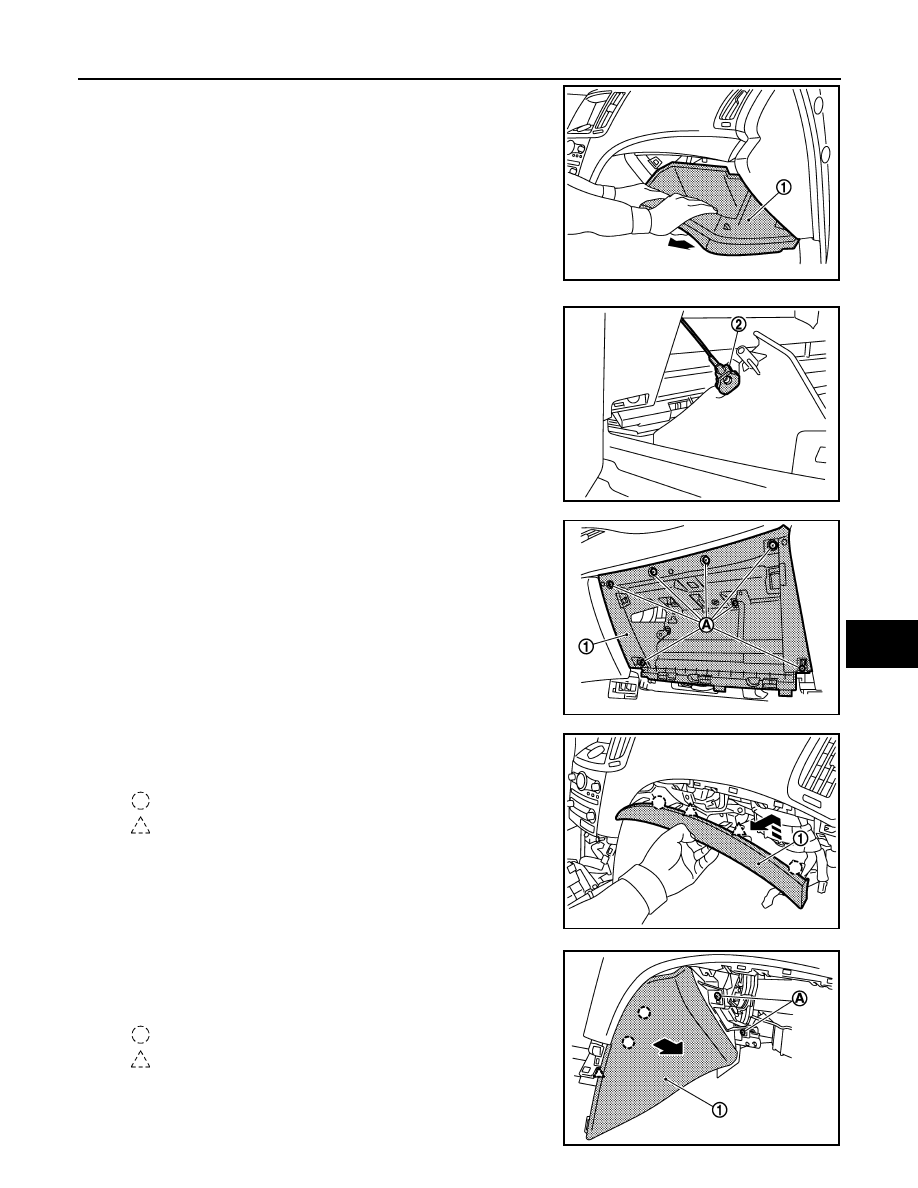

INSTRUMENT PANEL ASSEMBLY

IP-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Pull up glove box assembly (1).

• Remove damper pin (2) of left side.

43. Remove instrument lower assist panel.

• Remove instrument lower assist panel mounting screws (A)

with power tool.

• Pull back instrument lower assist panel (1).
• Disconnect harness connector.

44. Remove instrument finisher B.

Pull instrument finisher B (1) upward then disengage pawls.

45. Remove instrument side panel RH.

• Remove instrument side panel mounting screw (A).
• Pull the instrument side panel RH (1) crosswise.

JMJIA0056GB

JMJIA0057GB

JMJIA0058GB

: Clip

: Pawl

JMJIA0059GB

: Clip

: Pawl

JMJIA0060GB

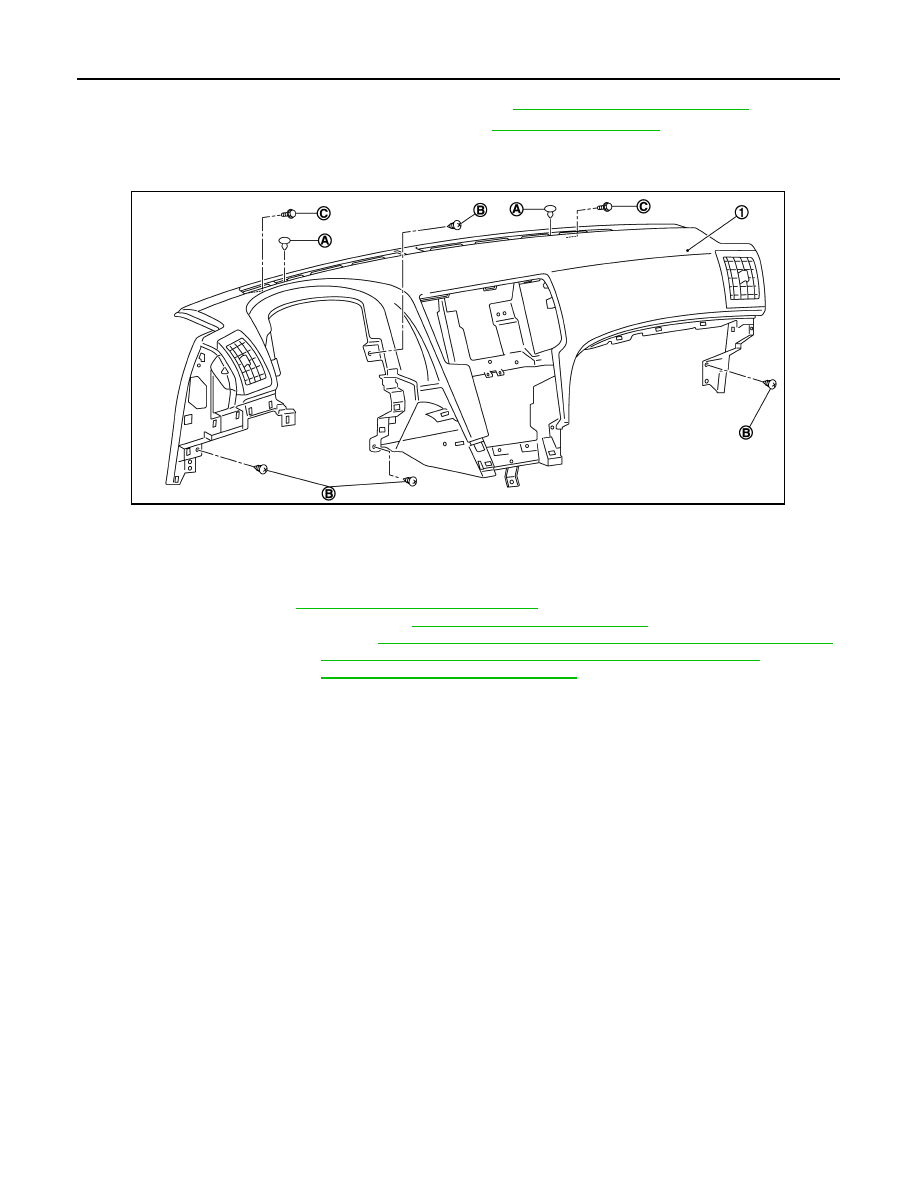

IP-22

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

46. Disconnect passenger air bag module connector. Refer to

SR-10, "Removal and Installation"

.

47. Remove passenger air bag module fixing bolt. Refer to

SR-10, "Exploded View"

.

48. Remove instrument panel assembly.

• Remove defroster nozzle mounting clips (A).
• Remove screws (B) and bolts (C) with power tool, and then remove instrument panel assembly (1).

CAUTION:

When removing instrument panel, 2 workers are required so as to prevent it from dropping.

49. Remove the following parts after removing instrument panel assembly.

• Antenna feeder
• Center speaker grille
• Center speaker. Refer to

AV-349, "Removal and Installation"

.

• Front passenger air bag module. Refer to

SR-10, "Removal and Installation"

.

• Side ventilator grille LH/RH. Refer to

VTL-45, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Inside key antenna. Refer to

DLK-239, "INSTRUMENT CENTER : Removal and Installation"

.

• Combination meter. Refer to

MWI-160, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

JMJIA0061GB

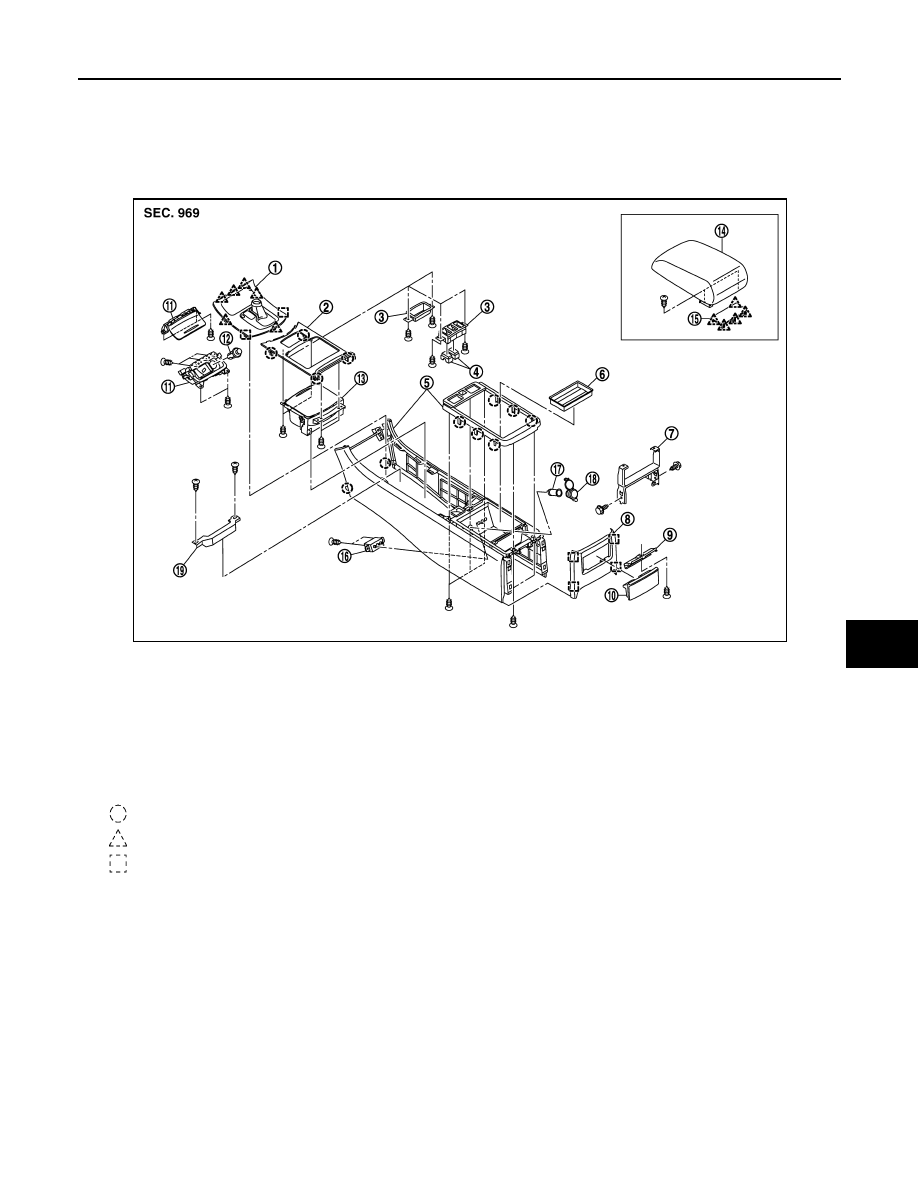

CENTER CONSOLE ASSEMBLY

IP-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000001722822

CENTER CONSOLE (A/T MODELS)

CENTER CONSOLE (M/T MODELS)

1.

Console finisher assembly

2.

Rear upper console assembly

3.

Switch panel

4.

Switch hole mask

5.

Center console assembly

6.

Console pocket

7.

Console rear bracket

8.

Console rear finisher

9.

Console ashtray bracket

10. Console ashtray

11. Ashtray (front)

12. Cigarette lighter

13. Cup holder assembly

14. Console lid

15. Console mask

16. Auxiliary input jacks

17. Cigarette lighter case

18. Socket knob

19. Console front bracket

: Clip

: Pawl

: Metal clip

JMJIA0946ZZ

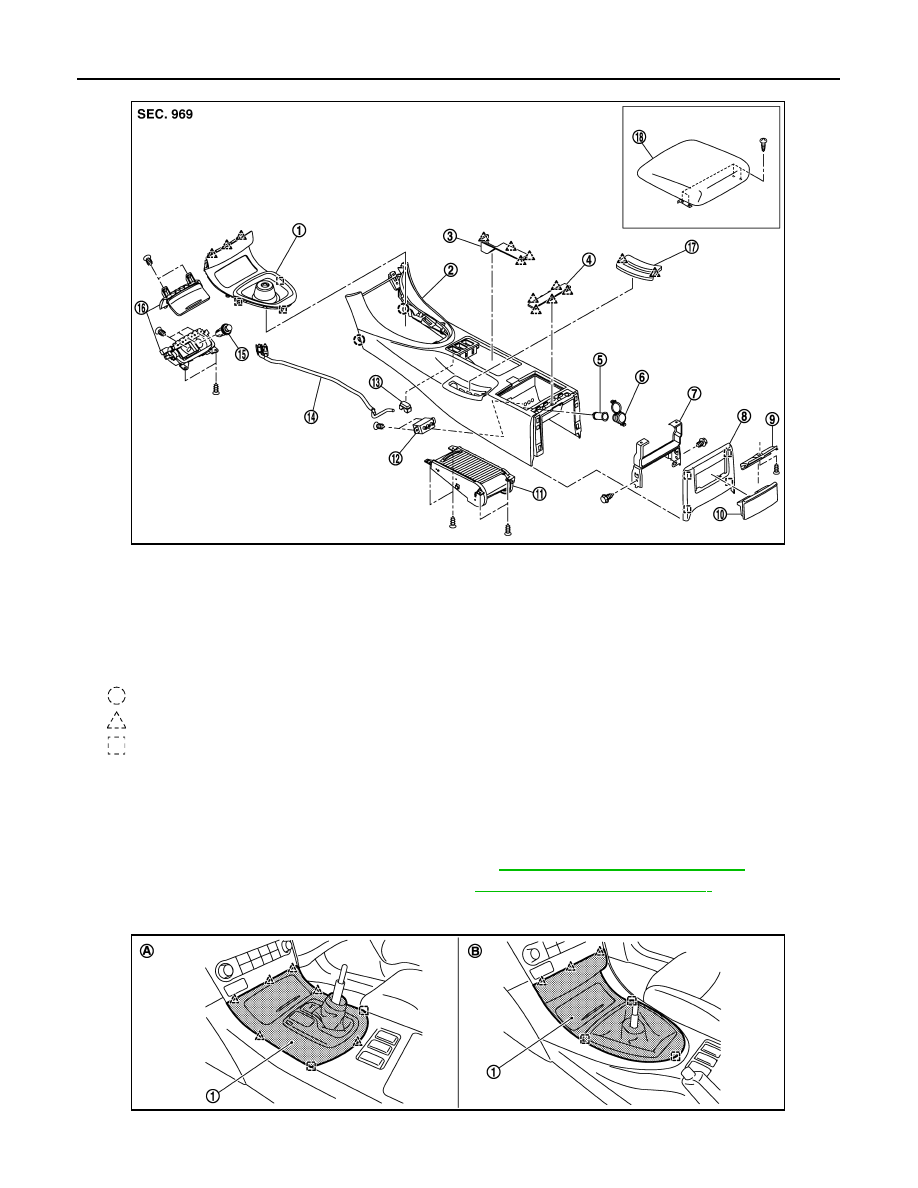

IP-24

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

Removal and Installation

INFOID:0000000001772103

REMOVAL

1.

Put selector lever in drive position (A/T models only).

2.

Remove selector lever knob (A/T models only). Refer to

TM-227, "Removal and Installation"

.

3.

Remove shift lever knob (M/T models only). Refer to

TM-18, "Removal and Installation"

.

4.

Remove console finisher.

1.

Console finisher assembly

2.

Center console assembly

3.

Coin pocket

4.

Console mask

5.

Cigarette lighter case

6.

Socket knob

7.

Console rear bracket

8.

Console rear finisher

9.

Console ashtray bracket

10. Console ashtray

11. Cup holder assembly

12. Auxiliary input jacks

13. Switch hole mask

14. Console sub harness

15. Cigarette lighter

16. Ashtray (front)

17. Parking brake lever finisher

18. Console lid

: Clip

: Pawl

: Metal clip

JMJIA0947ZZ

(A)

Console finisher (A/T models)

(B)

Console finisher (M/T models)

JMJIA0489ZZ
