INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

[ ]: Number indicates step in removal procedures.

REMOVAL

1.

Put selector lever in drive position (A/T models only).

2.

Remove selector lever knob (A/T models only). Refer to

TM-227, "Removal and Installation"

.

3.

Remove shift lever knob (M/T models only). Refer to

TM-18, "Removal and Installation"

.

4.

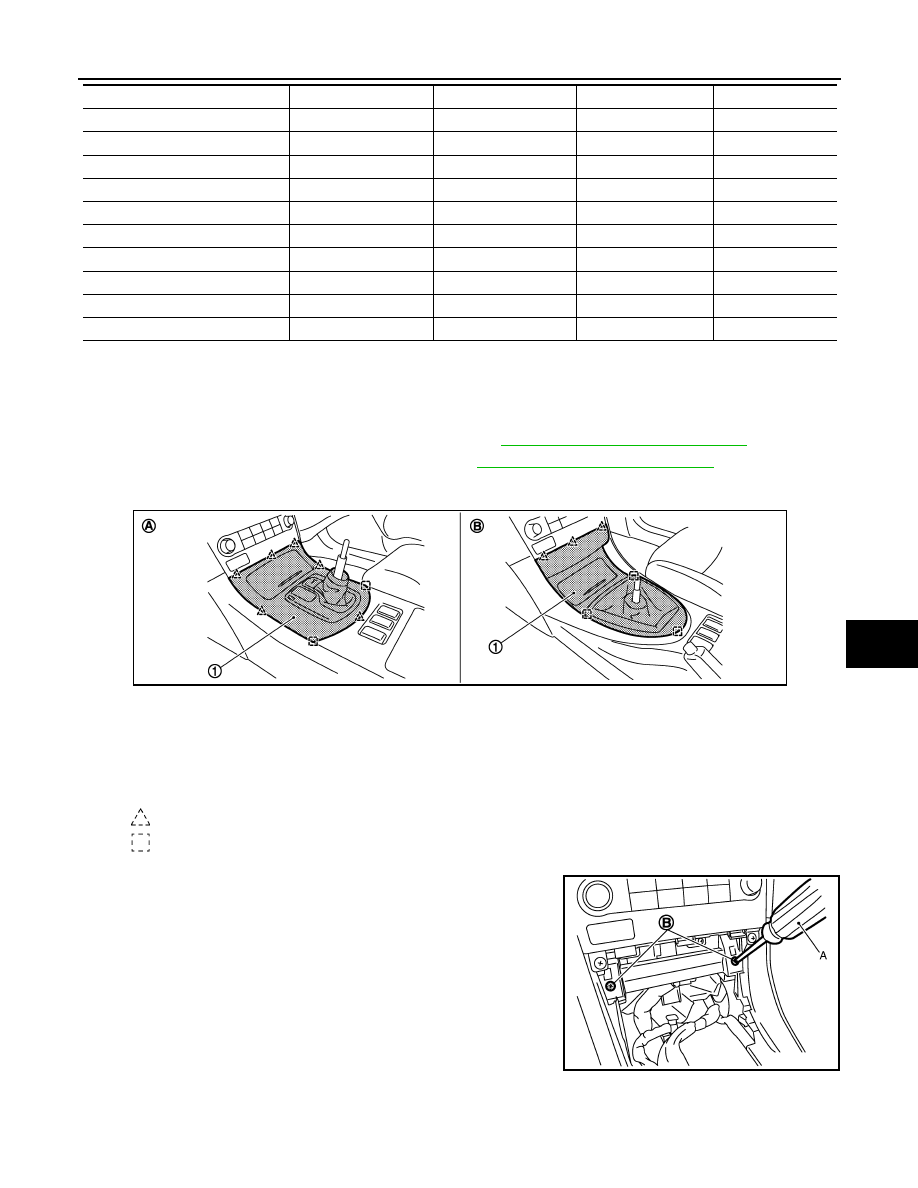

Remove console finisher.

• Remove clips from rear of console finisher (1), and then remove pawl of front.
• Pull console finisher (1) upward to disengage from center console.
• Disconnect harness connectors.

5.

Remove screws (B) of center console front side with screw
driver (A).

Body side welt RH

[26]

Front pillar garnish RH

[27]

Instrument side finisher RH

[28]

Instrument passenger lower cover

[29]

Glove box assembly

[30]

Instrument lower assist panel

[31]

Instrument finisher RH

[32]

Instrument driver lower panel

[33]

Instrument side finisher RH

[34]

Instrument side panel RH

[35]

Instrument panel assembly

[36]

(A)

Console finisher (A/T models)

(B)

Console finisher (M/T models)

: Pawl

: Metal clip

JMJIA0489ZZ

JMJIA0032GB

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

6.

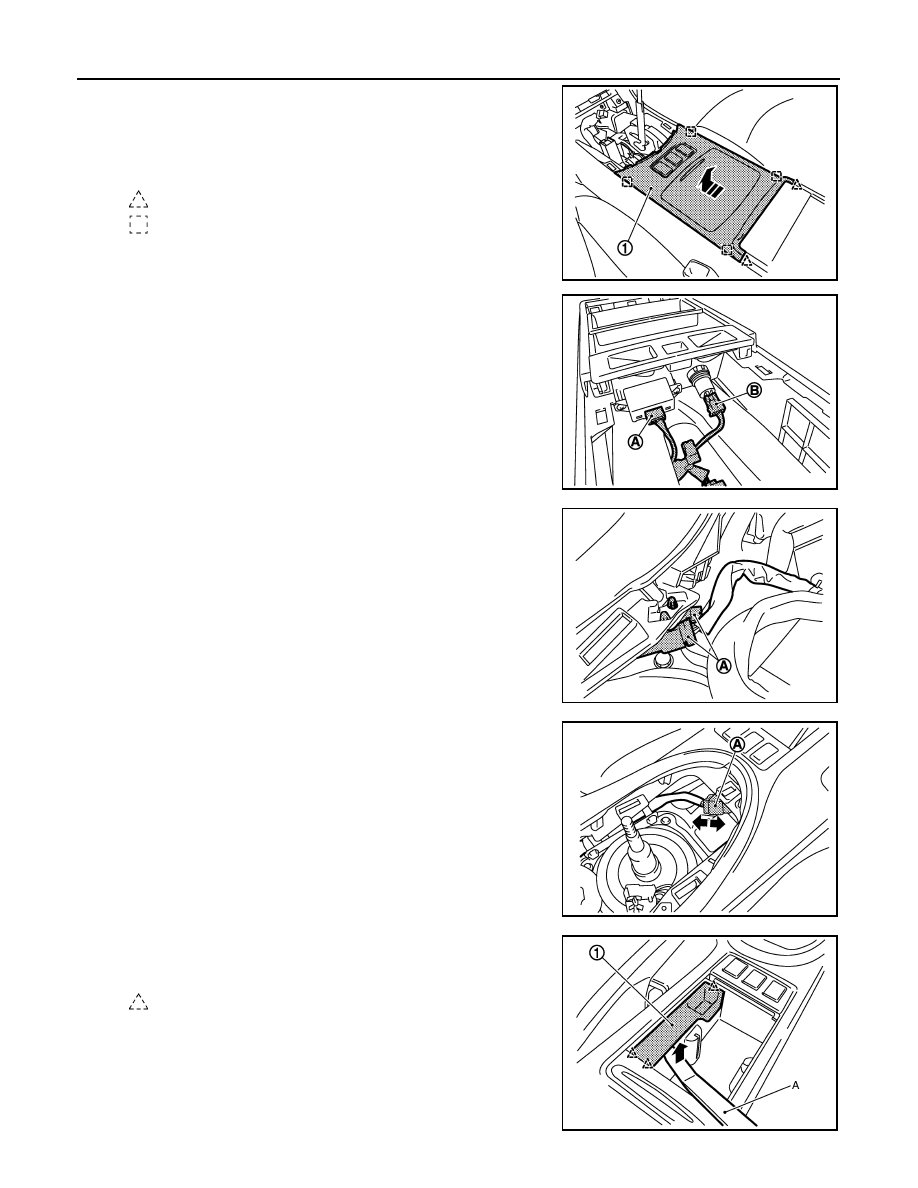

Remove rear upper console assembly (A/T models only).
• Slide forward, pull up rear upper console assembly (1), and

disconnect metal clips.

• Disconnect heated seat switch harness connectors.

 (with heated seat)

7.

Disconnect auxiliary input jacks connector (A) and power socket
harness connector (B) (A/T models only).

8.

Disconnect console sub harness connectors (A) (M/T models
only).

9.

Disconnect heated seat switch connector (A) (M/T models with
heated seat only).


10. Remove coin pocket fixing pawl using a remover tool (A), and

then remove coin pocket (1) (M/T models only).

: Pawl

: Metal clip

JMJIA0033GB

JMJIA0065ZZ

JMJIA0038GB

JMJIA0286ZZ

: Pawl

JMJIA0034GB

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to

loosen cable sufficiently (M/T models only).
Refer to

PB-8, "LEVER TYPE : Adjustment"

.

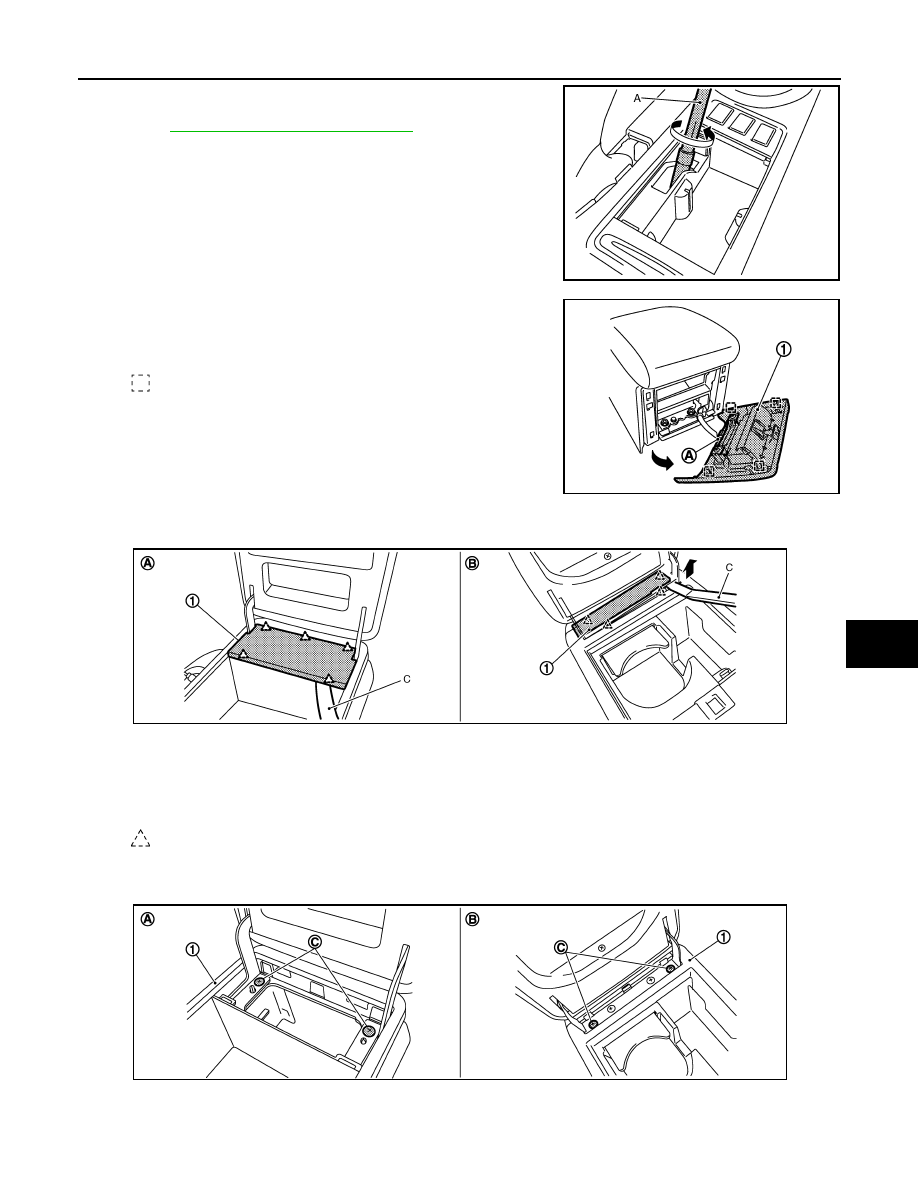

12. Remove console rear finisher.

• Pull back the console rear finisher (1).
• Disconnect inside key antenna connector (A).

13. Remove console mask.

• Open the console lid.
• Pull up console mask (1) by using a remover tool (C), and disengage pawls.

14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

JMJIA0035GB

: Metal clip

JMJIA0037GB

(A)

Console mask (A/T models)

(B)

Console mask (M/T models)

: Pawl

JMJIA0948ZZ

(A)

Console mounting screws (A/T models)

(B)

Console mounting screws (M/T models)

JMJIA0949ZZ

IP-16

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

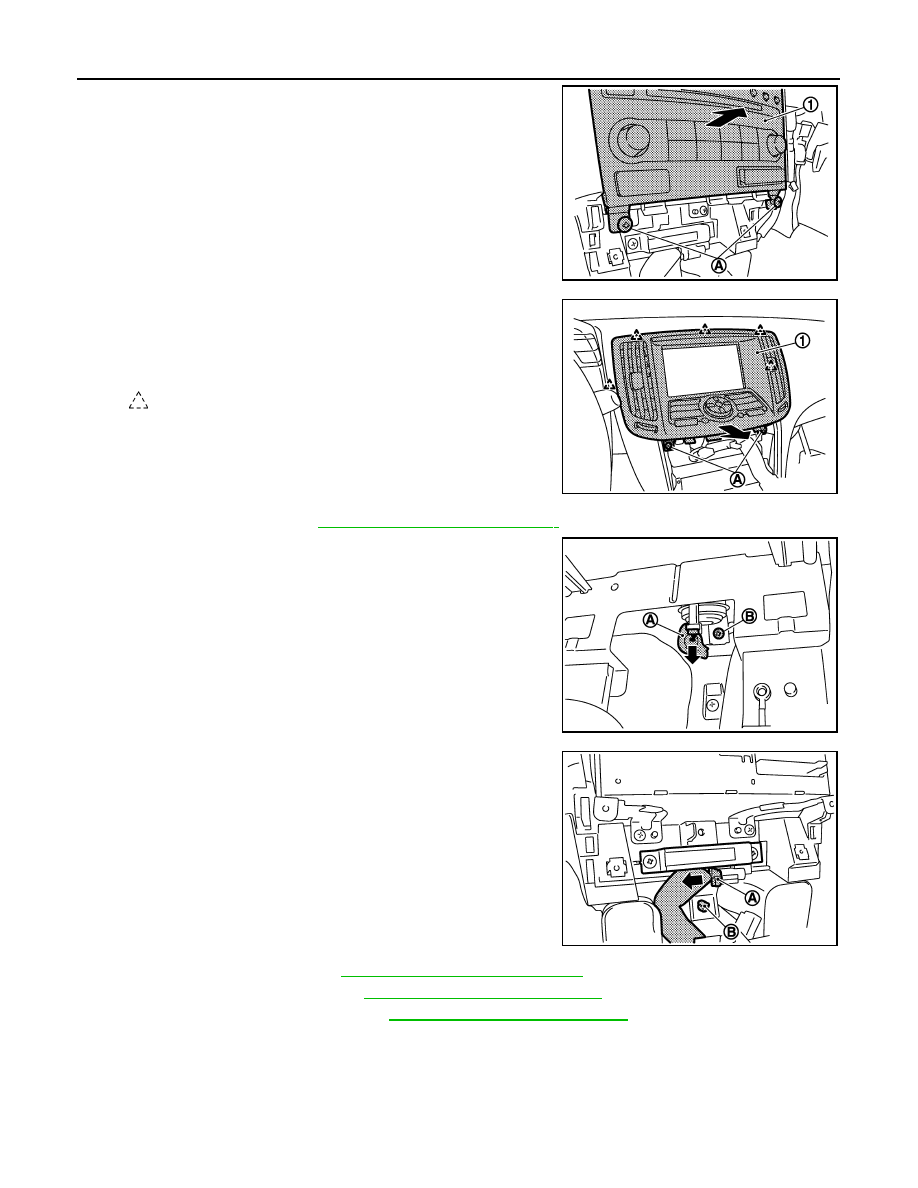

15. Remove cluster lid C.

• Remove cluster lid C mounting screws (A).
• Pull back cluster lid C (1).
• Disconnect harness connectors.

16. Remove cluster lid D.

• Remove cluster lid D mounting screw (A).
• Pull back cluster lid D (1).
• Disconnect harness connectors.

17. Remove display unit. Refer to

AV-110, "Removal and Installation"

.

18. Disconnect center speaker harness connector (A).

(with center speaker)

19. Remove screw (B).

20. Disconnect inside key antenna connector (A) and clip (B)

located under audio unit.

21. Remove AV control unit. Refer to

AV-343, "Removal and Installation"

.

22. Remove body side welt LH. Refer to

INT-14, "Removal and Installation"

.

23. Remove front pillar garnish LH. Refer to

INT-14, "Removal and Installation"

.

JMJIA0043GB

: Pawl

JMJIA0044GB

JMJIA0045GB

JMJIA0046GB
