Infiniti G37 Coupe. Manual - part 831





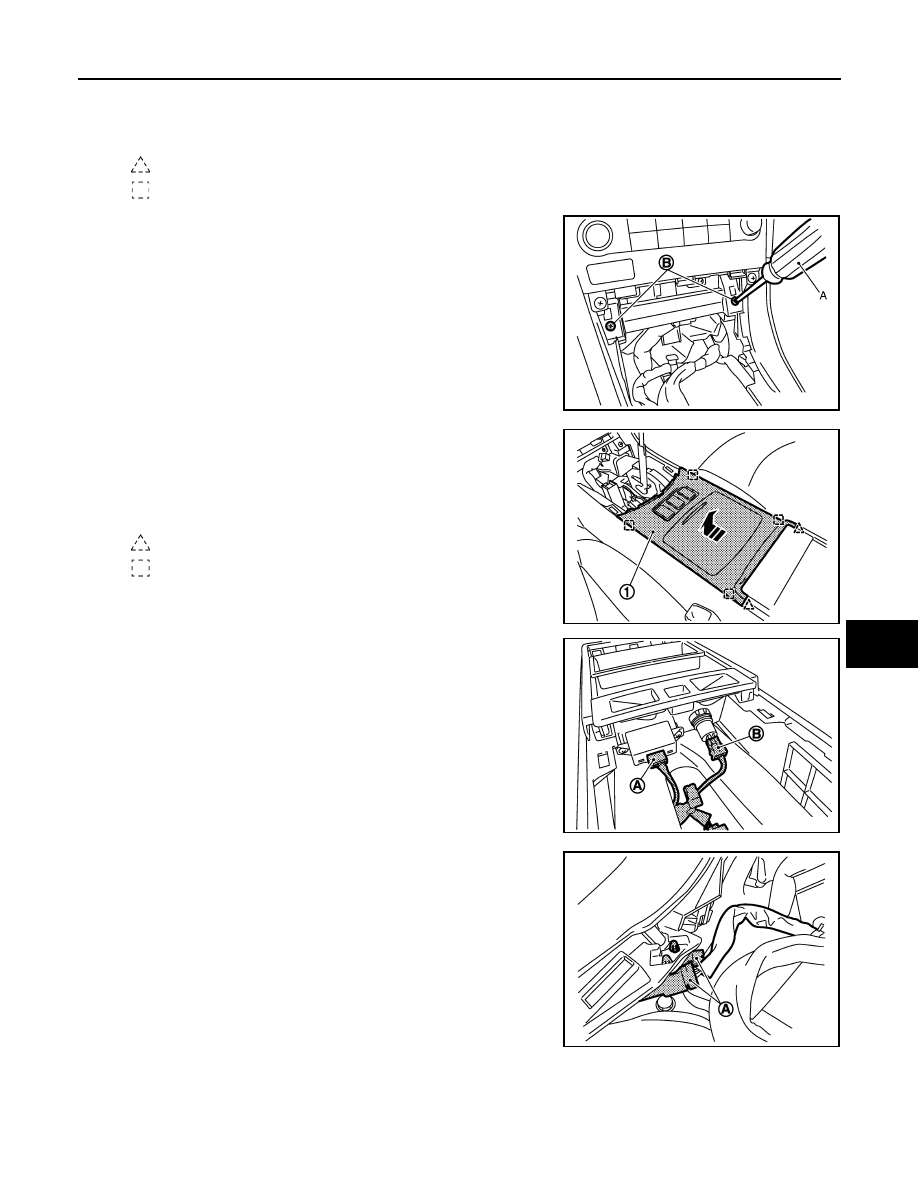

CENTER CONSOLE ASSEMBLY

IP-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Remove clips from rear of console finisher (1), and then remove pawl of front.
• Pull console finisher (1) upward to disengage from center console.
• Disconnect harness connectors.

5.

Remove screws (B) of center console front side with screw
driver (A).

6.

Remove rear upper console assembly (A/T models only).
• Slide to front, pull up rear upper console assembly (1), and

disconnect metal clips.

• Disconnect heated seat switch harness connectors.

 (with heated seat)

7.

Disconnect auxiliary input jacks connector (A) and power socket
harness connector (B) (A/T models only).

8.

Disconnect console sub harness connectors (A) (M/T models
only).

: Pawl

: Metal clip

JMJIA0032GB

: Pawl

: Metal clip

JMJIA0033GB

JMJIA0065ZZ

JMJIA0038GB

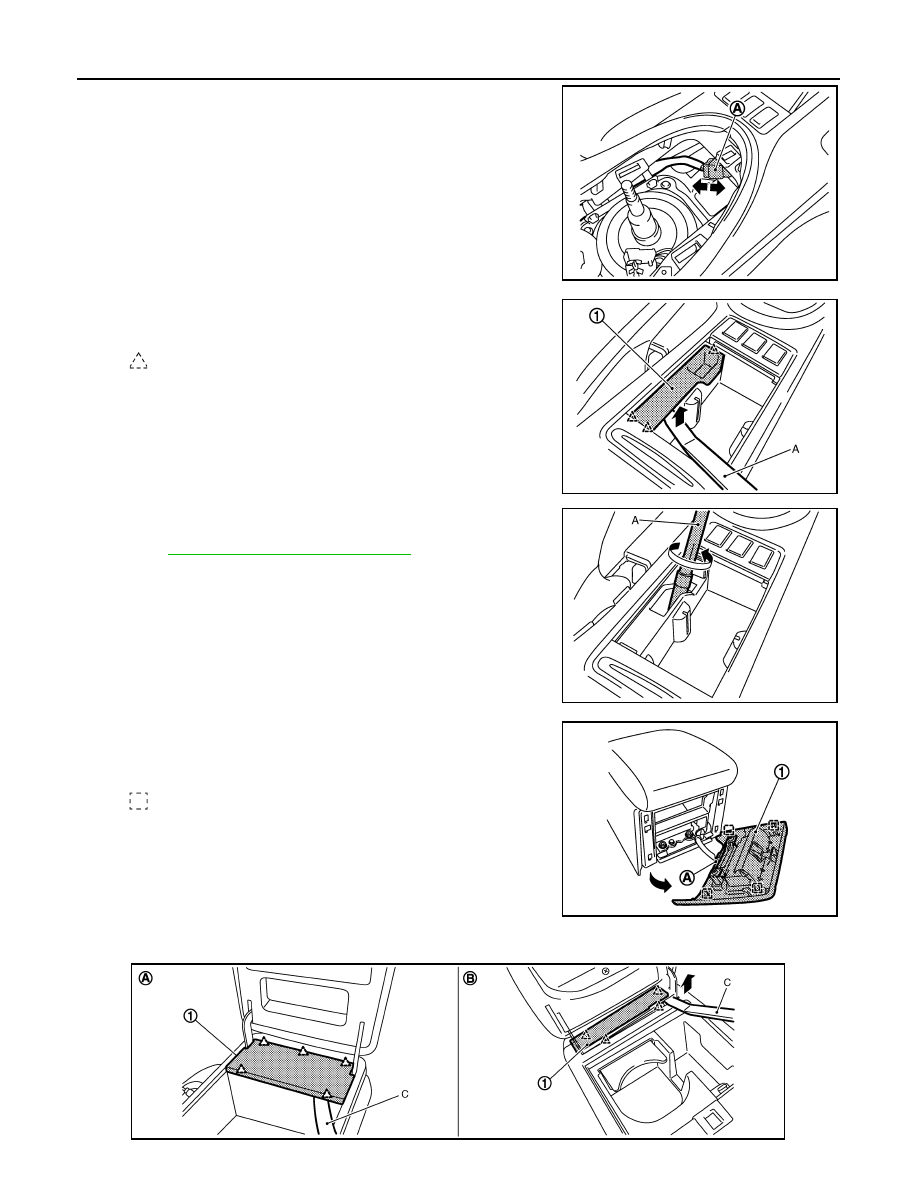

IP-26

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

9.

Disconnect heated seat switch connector (A) (M/T models with
heated seat only).

10. Remove coin pocket fixing pawl using a remover tool (A), and

then remove coin pocket (1) (M/T models only).

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to

loosen cable sufficiently (M/T models only).
Refer to

PB-8, "LEVER TYPE : Adjustment"

.

12. Remove console rear finisher.

• Pull back the console rear finisher (1).
• Disconnect inside key antenna connector (A).

13. Remove console mask.

JMJIA0286ZZ

: Pawl

JMJIA0034GB

JMJIA0035GB

: Metal clip

JMJIA0037GB

JMJIA0948ZZ

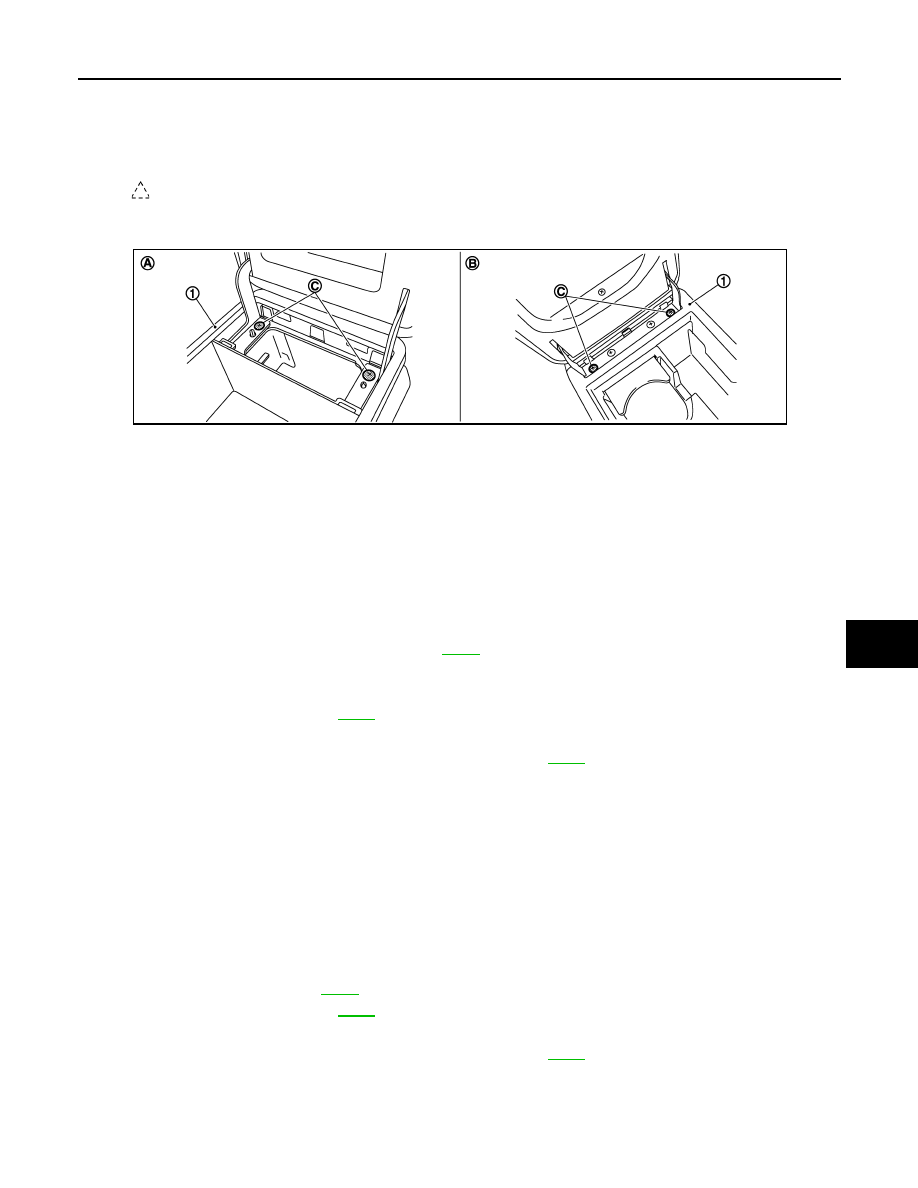

CENTER CONSOLE ASSEMBLY

IP-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Open the console lid.
• Pull up console mask (1) by using a remover tool (C), and disengage pawls.

14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001722824

DISASSEMBLY AND ASSEMBLY OF CENTER CONSOLE (A/T MODELS)

Disassembly

1.

Remove screws of console finisher assembly back side, and remove ashtray (front portion).

2.

Remove rear upper console assembly. Refer to

IP-12

.

3.

Remove screws and remove cup holder assembly.

4.

Remove screws and remove console front bracket.

5.

Remove console mask. Refer to

IP-12

.

6.

Remove console lid mounting screws and remove console lid.

7.

Remove metal clips and remove console rear finisher. Refer to

IP-12

.

8.

Remove console ashtray.

9.

Remove screw and remove console ashtray bracket.

10. Remove console pocket from center console assembly.
11. Remove auxiliary input jacks and socket knob, cigarette lighter case.

Assembly

Assemble in the reverse order of disassembly.

DISASSEMBLY AND ASSEMBLY OF CENTER CONSOLE (M/T MODELS)

Disassembly

1.

Remove screws of console finisher assembly back side, and remove ashtray (front portion).

2.

Remove coin pocket. Refer to

IP-12

.

3.

Remove console mask. Refer to

IP-12

.

4.

Remove console lid mounting screws and remove console lid.

5.

Remove metal clips and remove console rear finisher. Refer to

IP-12

.

6.

Remove console ashtray.

7.

Remove screw and remove console ashtray bracket.

8.

Remove screws and remove cup holder assembly.

(A)

Console mask (A/T models)

(B)

Console mask (M/T models)

: Pawl

(A)

Console mounting screws (A/T models)

(B)

Console mounting screws (M/T models)

JMJIA0949ZZ

IP-28

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

9.

Remove auxiliary input jacks and socket knob, cigarette lighter case.

10. Remove console sub harness.

Assembly

Assemble in the reverse order of disassembly.
