HEADLINING

INT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

9.

Disconnect antenna feeder connectors (A) of antenna amplifier
and sub-antenna feeder (1) after removing rear pillar finisher
(LH), and then remove antenna feeder securing clip and ground
cable fixing bolt (B).

10. With a removal tool, remove body side mounting plastic clip from rear end of headlining.

11. Pull map lamp assembly toward vehicle lower, and disengage

dual-lock fastener (A) and metal clips (B).

CAUTION:

Map lamp assembly is crimped from back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

12. Put front seat to front must and recline seat back to backward.
13. Remove headlining, turn and take out from right side door.

CAUTION:

• When removing, 2 workers are required. (1 for the front

and rear of headlining)

• Cover center console finisher upper surface with a shop

cloth to prevent it from being damaged.

• Do not bend headlining when removing.

14. Remove the following parts after removing headlining.

• Map lamp assembly (without LDW system). Refer to

INL-97, "Removal and Installation"

.

• Roof harness assembly.
• Antenna feeder assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install headlining assembly after inserting clips to clip holder of headlining rear end.
• Do not bend headlining when installing.

SUNROOF

: Clip

JMJIA0971ZZ

JMJIA0099GB

JMJIA0975ZZ

INT-24

< ON-VEHICLE REPAIR >

HEADLINING

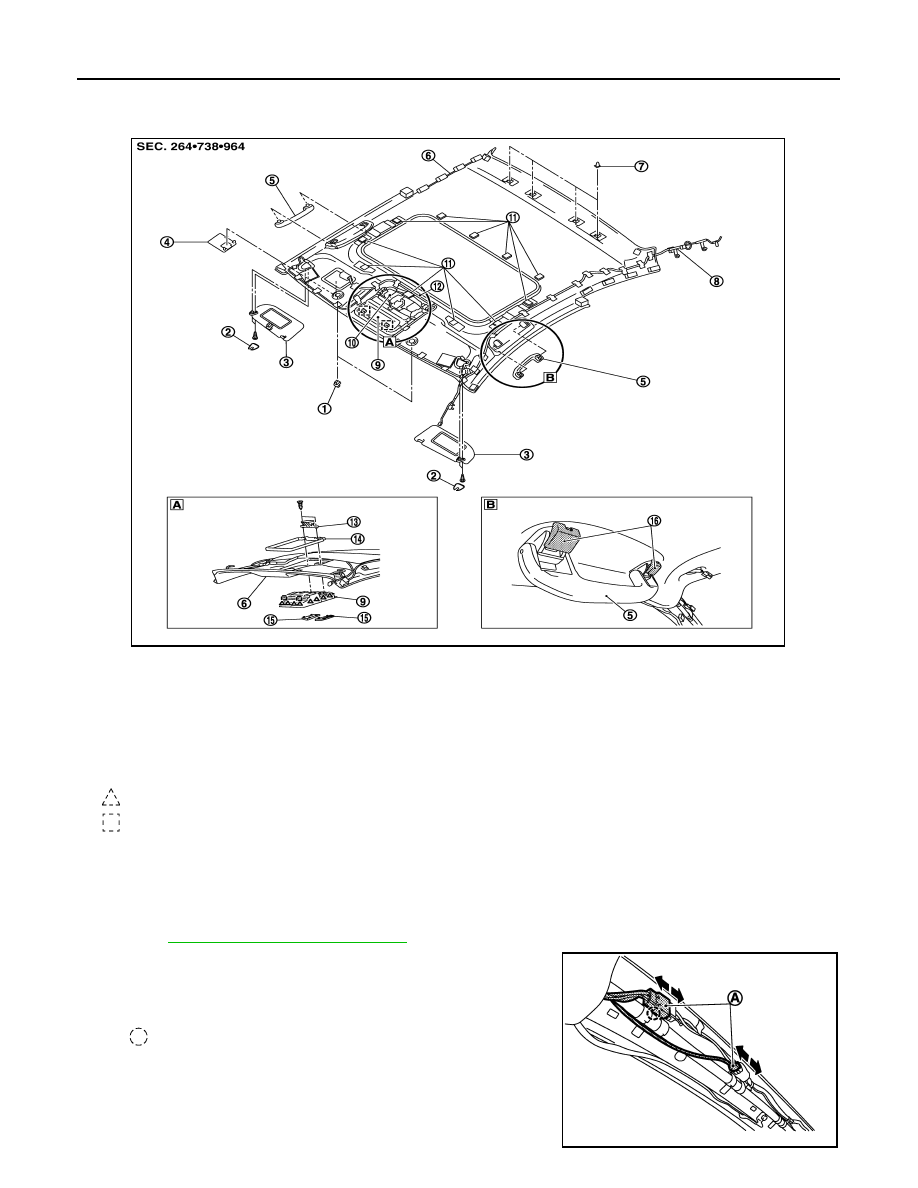

SUNROOF : Exploded View

INFOID:0000000001767475

SUNROOF : Removal and Installation

INFOID:0000000001767474

REMOVAL

1.

Remove front pillar garnish (LH/RH) and body side welt (LH/RH).
Refer to

INT-14, "Removal and Installation"

.

2.

Remove antenna feeder securing clips with a remover tool after
removing front pillar garnish (LH), then disconnect antenna
feeder connectors (A).

1.

Sun visor holder

2.

Sun visor cover

3.

Sun visor assembly

4.

Roof front finisher

5.

Assist grip

6.

Headlining assembly

7.

Rear hidden clip

8.

Antenna feeder

9.

Over head console

10. Map lamp assembly

11. Dual lock fastener

12. Roof harness

13. Roof bracket

14. Roof plate assembly

15. Map lamp lens

16. Assist grip clip

: Pawl

: Metal clip

JMJIA0970ZZ

: Clip

JMJIA0101GB

HEADLINING

INT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

3.

Remove front roof finisher mounting metal clips and pawls, and
then remove front roof finisher (1).

4.

Remove sun visor assembly (LH/RH).
• Remove sun visor cover.
• Remove sun visor assembly mounting screws.
• Disconnect vanity mirror lamp harness connectors.

5.

Rotate 45 degrees and remove sun visor holder (1) (LH/RH).

6.

Remove mounting plastic clips (A) using a screwdriver (B) of
front and rear assistance grips (1), and then remove assist grips.

7.

Remove rear seat cushion and seatback. Refer to

SE-160, "Removal and Installation"

.

8.

Remove front kicking plate inner (LH/RH), rear side finisher (LH/RH), rear pillar finisher (LH/RH).
Refer to

INT-14, "Removal and Installation"

.

9.

Disconnect antenna feeder connectors (A) of antenna amplifier
and sub-antenna feeder (1) after removing rear pillar finisher
(LH), and then remove antenna feeder securing clip and ground
cable fixing bolt (B).

10. With a removal tool, remove body side mounting plastic clip from rear end of headlining.

: Pawl

: Metal clip

JMJIA0097GB

JMJIA0098GB

JMJIA0096GB

: Clip

JMJIA0971ZZ

INT-26

< ON-VEHICLE REPAIR >

HEADLINING

11. Pull map lamp assembly toward vehicle lower, and disengage

dual-lock fastener (A) and metal clips (B).

CAUTION:

Map lamp assembly is crimped from back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

12. Put front seat to front must and recline seat back to backward.
13. Remove headlining, turn and take out from right side door.

CAUTION:

• When removing, 2 workers are required. (1 for the front

and rear of headlining)

• Cover center console finisher upper surface with a shop

cloth to prevent it from being damaged.

• Do not bend headlining when removing.

14. Remove the following parts after removing headlining.

• Map lamp assembly (without LDW system). Refer to

INL-97, "Removal and Installation"

.

• Roof harness assembly.
• Antenna feeder assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install headlining assembly after inserting clips to clip holder of headlining rear end.
• Do not bend headlining when installing.

JMJIA0099GB

JMJIA0972ZZ
