Infiniti G37 Coupe. Manual - part 822





FLOOR TRIM

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

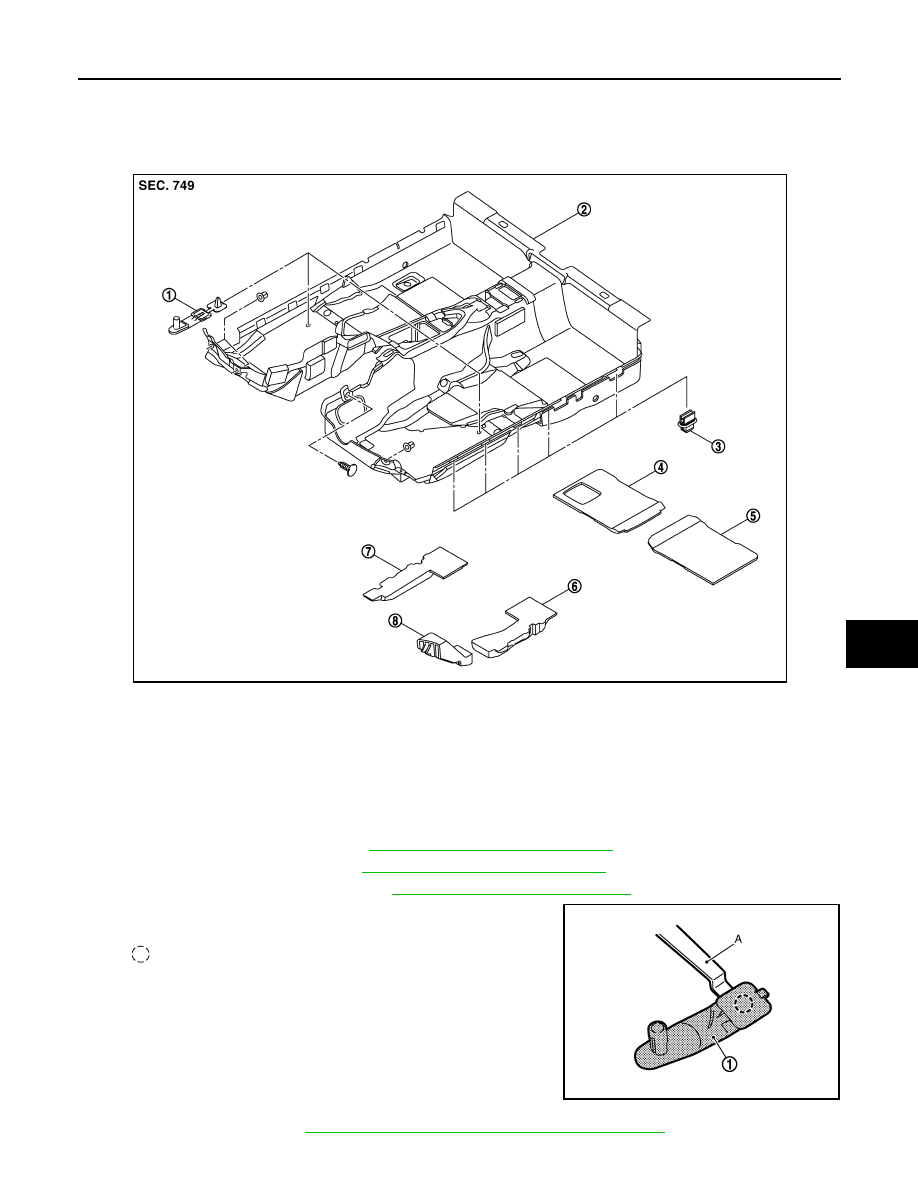

FLOOR TRIM

Exploded View

INFOID:0000000001722847

Removal and Installation

INFOID:0000000001722848

REMOVAL

1.

Remove front seat (LH/RH). Refer to

SE-152, "Removal and Installation"

.

2.

Remove rear seat cushion. Refer to

SE-160, "Removal and Installation"

.

3.

Remove accelerator pedal pad. Refer to

ACC-3, "Removal and Installation"

.

4.

Disengage clip of floor hook (1) with remover tool (A).

5.

Remove foot grille. Refer to

VTL-48, "FOOT GRILLE : Removal and Installation"

.

1.

Floor hook

2.

Floor trim

3.

Fixing clip

4.

Rear floor spacer (RH)

5.

Rear floor spacer (LH)

6.

Front floor spacer (LH)

7.

Front floor spacer (RH)

8.

Footrest

JMJIA0968ZZ

: Clip

JMJIA0092GB

INT-20

< ON-VEHICLE REPAIR >

FLOOR TRIM

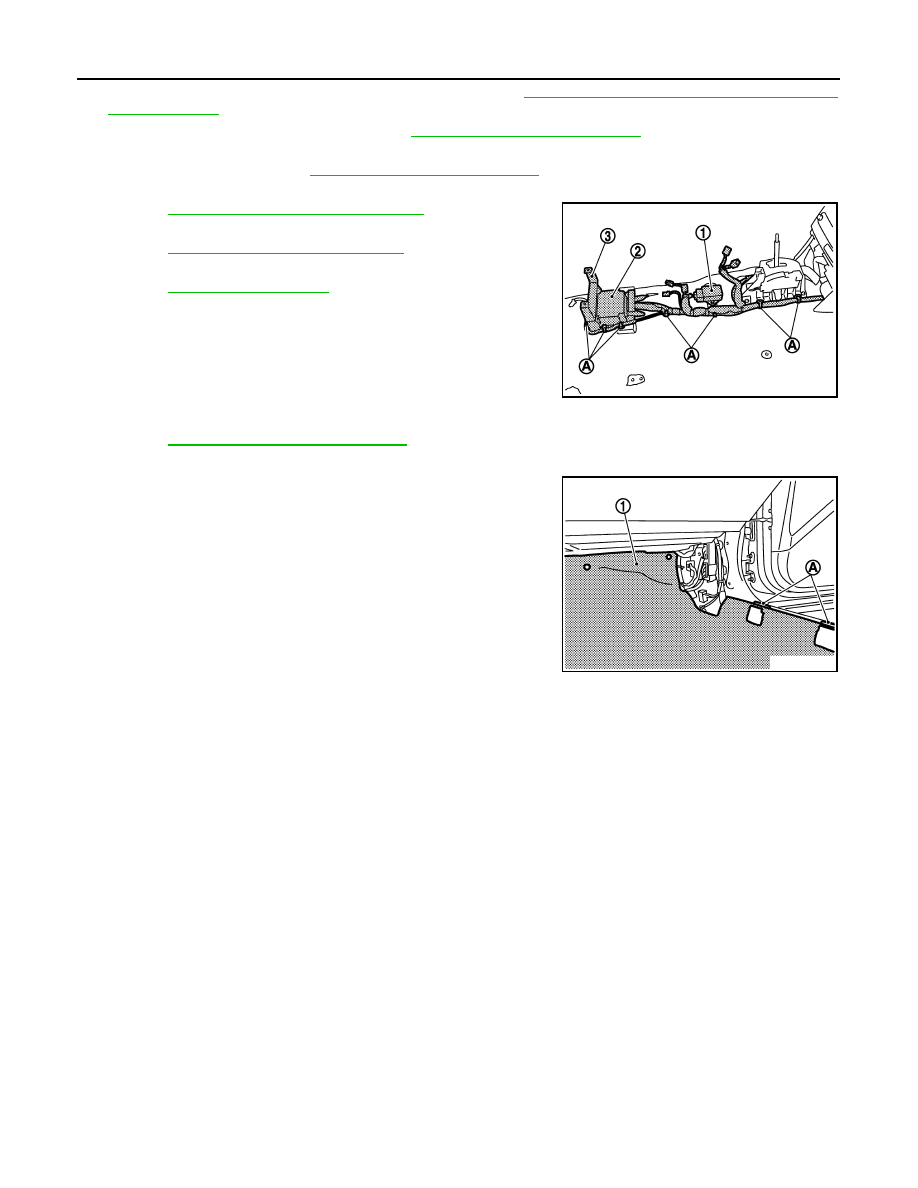

6.

Remove front seat belt floor anchor bolt (LH/RH). Refer to

SB-5, "SEAT BELT RETRACTOR : Removal

and Installation"

.

7.

Remove center console assembly. Refer to

IP-24, "Removal and Installation"

.

8.

Remove instrument lower cover, instrument driver panel, instrument assist lower panel and instrument
side panel (LH/RH). Refer to

IP-12, "Removal and Installation"

.

9.

Remove G-sensor (1).
Refer to

BRC-104, "Removal and Installation"

.

10. Remove diagnosis sensor unit (2).

Refer to

SR-16, "Removal and Installation"

.

11. Remove console rear bracket (3).

Refer to

IP-23, "Exploded View"

.

12. Remove floor harness mounting clamps (A).

13. Remove dash side finisher (LH/RH), front kicking plate inner (LH/RH) and body side welt (LH/RH).

Refer to

INT-14, "Removal and Installation"

.

14. Remove floor trim mounting clips and fixing nuts.

15. Remove floor trim from floor trim fixing clips (A) and remove floor

carpet (1).

INSTALLATION

Install in the reverse order of removal.

JMJIA0093GB

JMJIA0094GB

HEADLINING

INT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

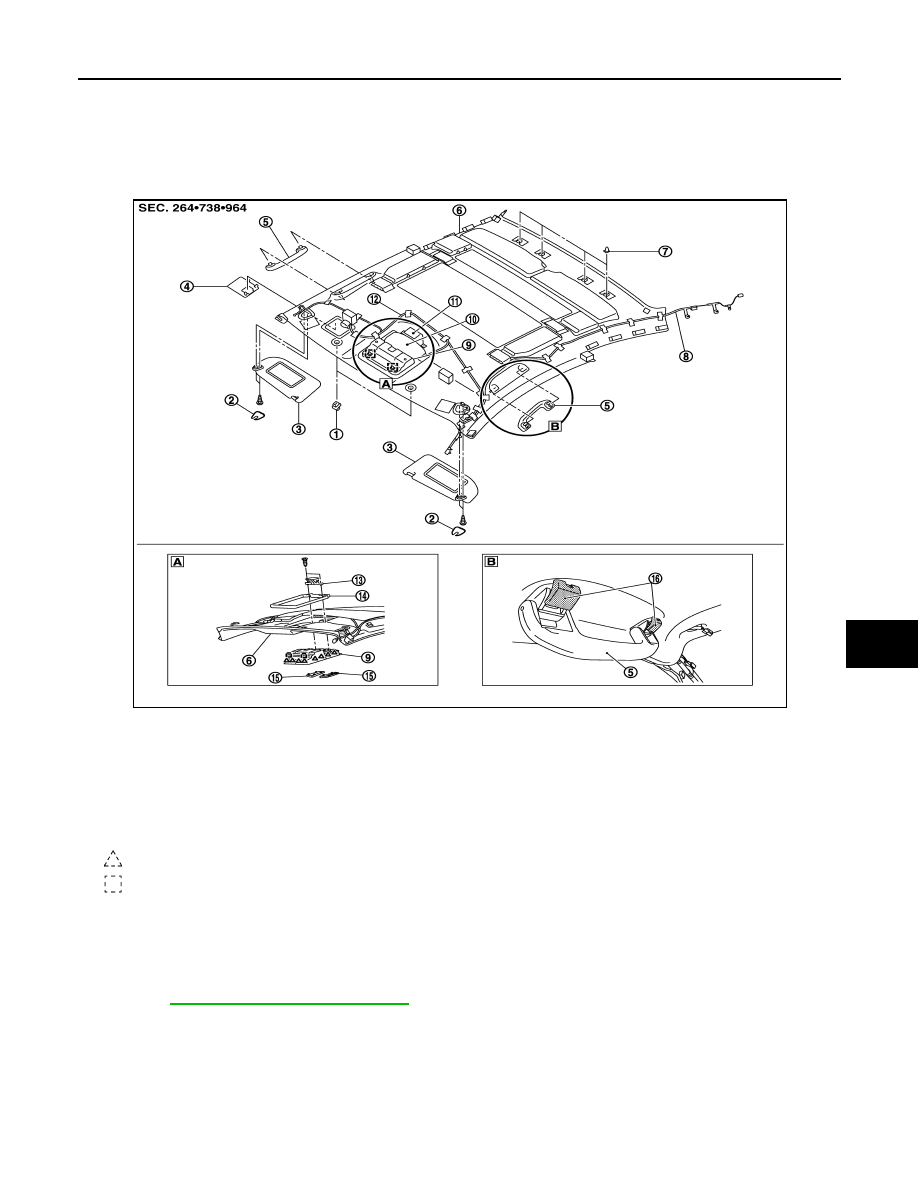

HEADLINING

NORMAL ROOF

NORMAL ROOF : Exploded View

INFOID:0000000001722849

NORMAL ROOF : Removal and Installation

INFOID:0000000001722850

REMOVAL

1.

Remove front pillar garnish (LH/RH) and body side welt (LH/RH).
Refer to

INT-14, "Removal and Installation"

.

1.

Sun visor holder

2.

Sun visor cover

3.

Sun visor assembly

4.

Roof front finisher

5.

Assist grip

6.

Headlining assembly

7.

Rear hidden clip

8.

Antenna feeder

9.

Over head console

10. Map lamp assembly

11. Dual lock fastener

12. Roof harness

13. Roof bracket

14. Roof plate assembly

15. Map lamp lens

16. Assist grip clip

: Pawl

: Metal clip

JMJIA0969ZZ

INT-22

< ON-VEHICLE REPAIR >

HEADLINING

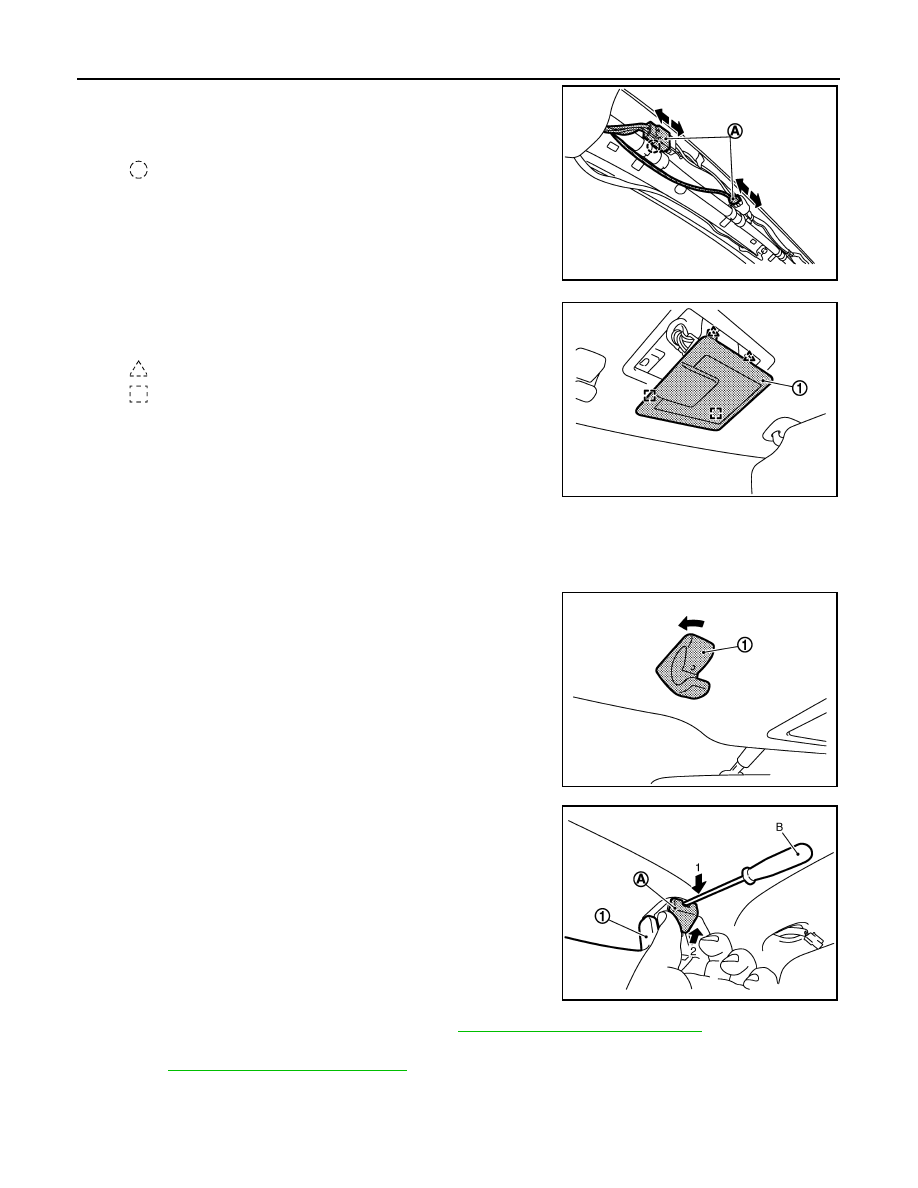

2.

Remove antenna feeder securing clips with a remover tool after
removing front pillar garnish (LH), then disconnect antenna
feeder connectors (A).

3.

Remove front roof finisher mounting metal clips and pawls, and
then remove front roof finisher (1).

4.

Remove sun visor assembly (LH/RH).
• Remove sun visor cover.
• Remove sun visor assembly mounting screws.
• Disconnect vanity mirror lamp harness connectors.

5.

Rotate 45 degrees and remove sun visor holder (1) (LH/RH).

6.

Remove mounting plastic clips (A) using a screwdriver (B) of
front and rear assistance grips (1), and then remove assist grips.

7.

Remove rear seat cushion and seatback. Refer to

SE-160, "Removal and Installation"

.

8.

Remove front kicking plate inner (LH/RH), rear side finisher (LH/RH), rear pillar finisher (LH/RH).
Refer to

INT-14, "Removal and Installation"

.

: Clip

JMJIA0101GB

: Pawl

: Metal clip

JMJIA0097GB

JMJIA0098GB

JMJIA0096GB
