CAMSHAFT

EM-99

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Prevent splashing by using a shop cloth to prevent engine oil from being splashed to engine and

vehicle. Especially, be careful no to apply engine oil to rubber parts of drive belt, engine mount-
ing insulator, etc. Wipe engine oil off immediately if it is splashed.

5.

Perform the following inspection if engine oil does not come out from intake valve timing control solenoid
valve oil hole of the cylinder head.
• Remove oil filter, and then clean it. Refer to

EM-48, "Exploded View"

 or/and

EM-83, "Exploded View"

.

• Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to

LU-2,

"Engine Lubrication System"

.

6.

Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT),
and then check each oil groove for clogging.
• Clean oil groove if necessary. Refer to

LU-2, "Engine Lubrication System"

.

7.

After inspection, install removed parts in the reverse order.

Inspection for Leakage

The following are procedures for checking fluid leakage, lubricant leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If any are less than the

required quantity, fill them to the specified level. Refer to

MA-10, "Fluids and Lubricants"

.

• Follow the procedure below to check for fuel leakage.
- Turn ignition switch to the “ON” position (with engine stopped). With fuel pressure applied to fuel piping,

check for fuel leakage at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate a malfunction. The
noise will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check that there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill them to

the specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

EM-100

< DISASSEMBLY AND ASSEMBLY >

CYLINDER HEAD

CYLINDER HEAD

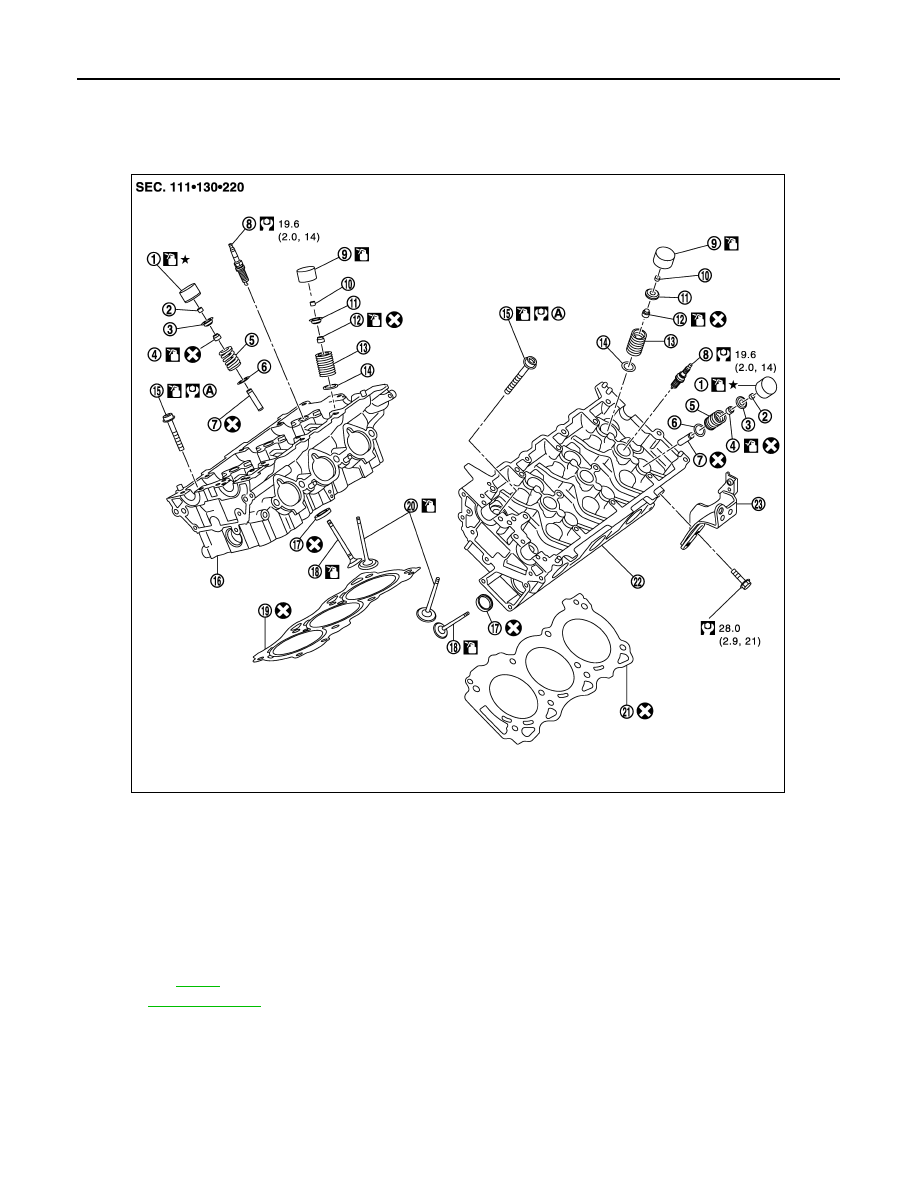

Exploded View

INFOID:0000000001547561

CAUTION:

As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder
assembly & cylinder head assembly. (Single part replacement is not possible.)
NOTE:
Cylinder head assembly cannot be replaced as a single part, because it is machined together with VVEL lad-
der assembly.

1.

Valve lifter (EXH)

2.

Valve collet (EXH)

3.

Valve spring retainer (EXH)

4.

Valve oil seal (EXH)

5.

Valve spring (EXH)

6.

Valve spring seat (EXH)

7.

Valve guide (EXH)

8.

Spark plug

9.

Valve lifter (INT)

10. Valve collet (INT)

11.

Valve spring retainer (INT)

12. Valve oil seal (INT)

13.  Valve spring (INT)

14. Valve spring seat (INT)

15. Cylinder head bolt

16. Cylinder head (bank 1)

17. Valve seat (EXH)

18. Valve (EXH)

19. Cylinder head gasket (bank 1)

20. Valve (INT)

21. Cylinder head gasket (bank 2)

22. Cylinder head (bank 2)

23. Engine rear lower slinger

A.

Refer to

EM-101

Refer to

GI-4, "Components"

 for symbol marks in the figure.

JPBIA1126GB

CYLINDER HEAD

EM-101

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Disassembly and Assembly

INFOID:0000000001547563

DISASSEMBLY

1.

Remove the following parts:
• Intake manifold collector: Refer to

EM-28, "Exploded View"

.

• Rocker cover: Refer to

EM-45, "Exploded View"

.

• Fuel tube and fuel injector assembly: Refer to

EM-36, "Exploded View"

.

• Intake manifold: Refer to

EM-31, "Exploded View"

.

• Exhaust manifold: Refer to

EM-33, "Exploded View"

.

• Water inlet and thermostat assembly: Refer to

CO-22, "Exploded View"

.

• Water outlet, water pipe and heater pipe: Refer to

CO-24, "Exploded View"

.

• Timing chain: Refer to

EM-48, "Exploded View"

.

• Rear timing chain case: Refer to

EM-78, "Exploded View"

.

• Camshaft (EXH) and VVEL ladder assembly: Refer to

EM-83, "Exploded View"

.

2.

Remove cylinder head.

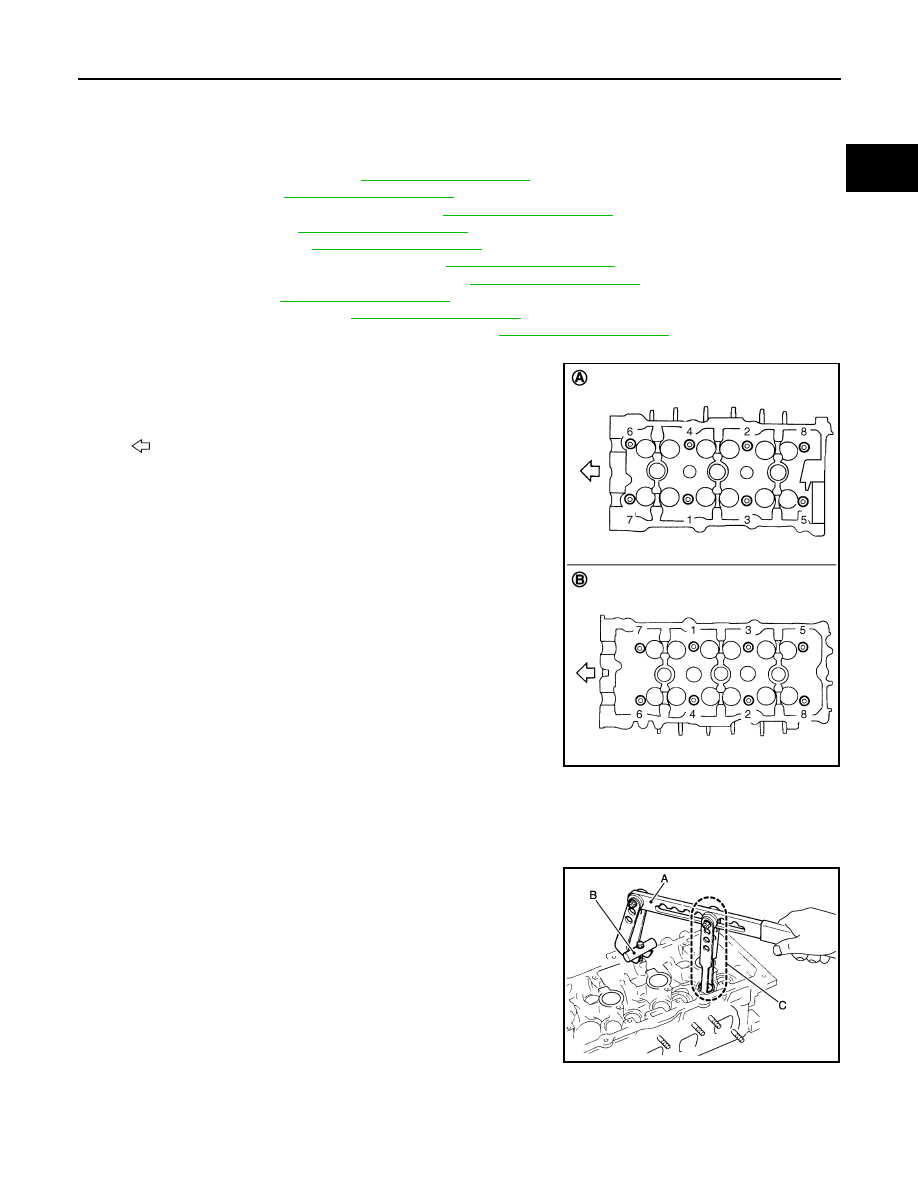

• Loosen mounting bolts in reverse order as shown in the figure.

• Use the cylinder head bolt wrench [commercial service tool:

—  (J24239-01)] and power tool.

3.

Remove cylinder head gaskets.

4.

Remove spark plug with spark plug wrench (commercial service tool).

5.

Remove valve lifter.
• Identify installation positions, and store them without mixing them up.

6.

Remove valve collet.
• Compress valve spring with the valve spring compressor [SST:

KV10116200 (J-26336-A)] (A), the attachment [SST:
KV10115900 (J26336-20)] (C) and the adapter [SST:
KV10109220 (

)] (B). Remove valve collet with a magnet

hand.

CAUTION:

When working, take care not to damage valve lifter holes.

7.

Remove valve spring retainer, valve spring and valve spring seat.

8.

Push valve stem to combustion chamber side, and remove valve.
• Identify installation positions, and store them without mixing them up.

A

:  Bank  1

B

:  Bank  2

: Engine front

JPBIA0172ZZ

JPBIA1365ZZ

EM-102

< DISASSEMBLY AND ASSEMBLY >

CYLINDER HEAD

9.

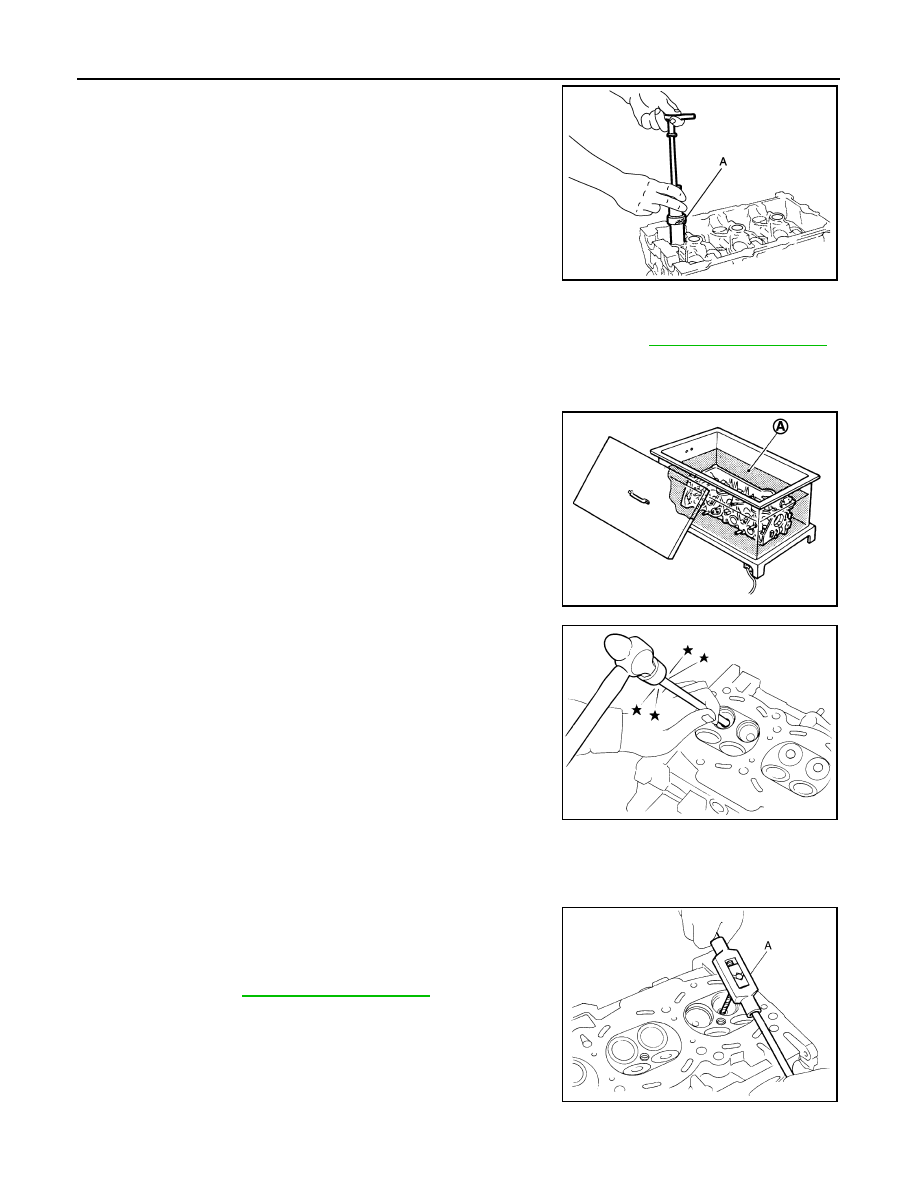

Remove valve oil seal using the valve oil seal puller [SST:
KV10107902 (J38959)] (A).
NOTE:
Since the valve oil seal (INT) cannot be replaced by the piece,
VVEL ladder assembly & cylinder head assembly replacement
is required.

10. Remove valve seat (EXH), if valve seat (EXH) must be replaced.

• Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat

recess in cylinder head. Set the machine depth stop to ensure this. Refer to

EM-141, "Cylinder Head"

.

CAUTION:

Prevent to scratch cylinder head by excessive boring.

11. Remove valve guide (EXH), if valve guide (EXH) must be replaced.

a.

To remove valve guide (EXH), heat cylinder head to 110 to
130

°

C (230 to 266

°

F) by soaking in heated oil (A).

b.

Drive out valve guide (EXH) with a press [under a 20 kN (2 ton,
2.2 US ton, 2.0 lmp ton) pressure] or a hammer and the valve
guide drift (commercial service tool).

WARNING:

Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.

ASSEMBLY

1.

If valve guide (EXH) is removed in step 11 (DISASSEMBLY), install it.
Replace with oversized [0.2 mm (0.008 in)] valve guide (EXH).

a.

Using the valve guide reamer (commercial service tool) (A),
ream cylinder head valve guide (EXH) hole.

JPBIA1366ZZ

JPBIA0184ZZ

SEM931C

Oversize (service) [0.2 mm (0.008 in)]:

: Refer to

EM-141, "Cylinder Head"

.

JPBIA0185ZZ
