TRUNK LID LOCK

TRUNK LID LOCK

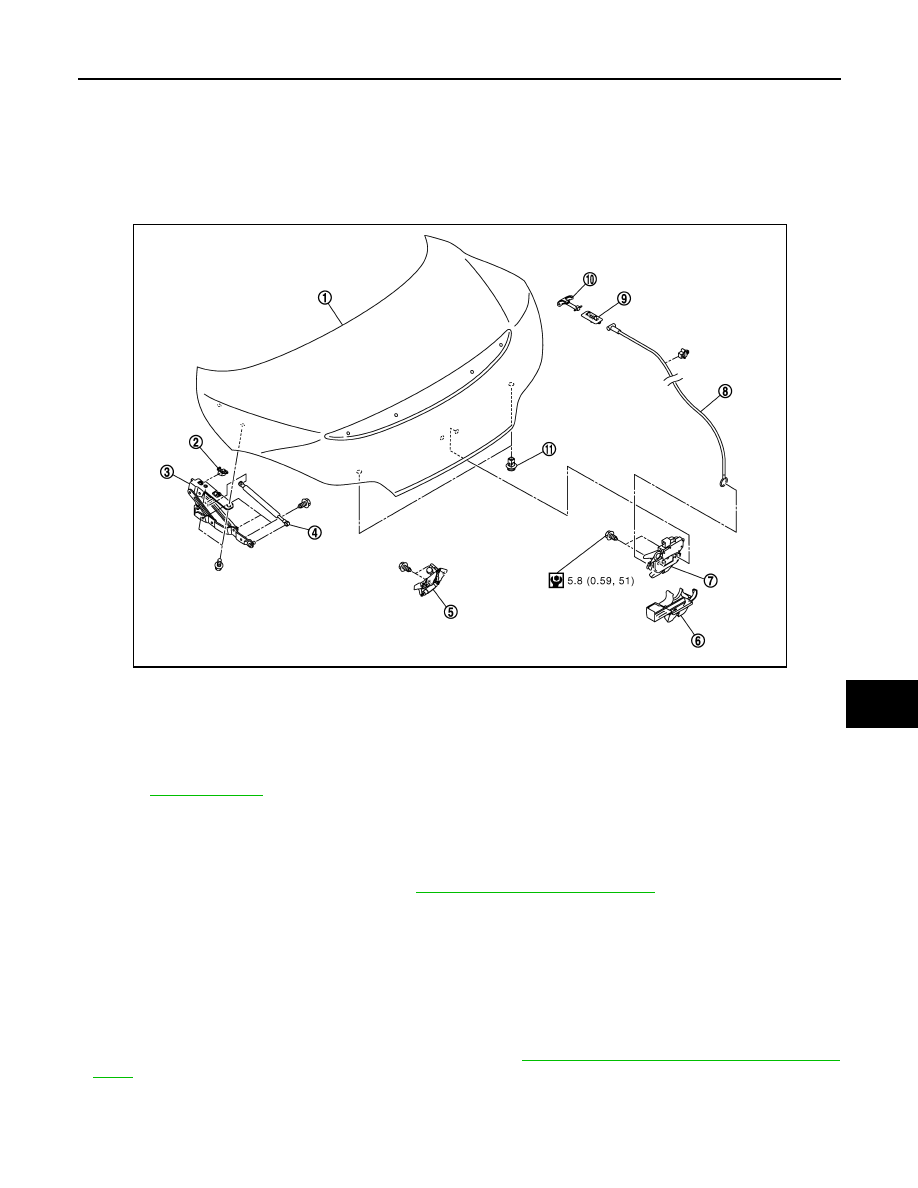

TRUNK LID LOCK : Exploded View

INFOID:0000000001831350

REMOVAL

TRUNK LID LOCK : Removal and Installation

INFOID:0000000001722634

REMOVAL

1.

Remove the trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

2.

Remove the trunk lid emergency opener lever.

3.

Disconnect the trunk lid opener cable.

4.

Disconnect the connector from trunk lid lock assembly.

5.

Remove the mounting bolts, and remove the trunk lid lock assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
• After installing, perform trunk lid fitting adjustment. Refer to

DLK-225, "TRUNK LID ASSEMBLY : Adjust-

ment"

.

• After installing, check the operation.

1.

Trunk lid assembly

2.

Trunk lid hinge stopper

3.

Trunk lid hinge

4.

Trunk lid stay

5.

Trunk lid striker

6.

Trunk lid lock cover

7.

Trunk lid lock assembly

8.

Trunk lid opener cable

9.

Trunk lid emergency opener lever
holder

10. Trunk lid emergency opener lever

11.

Bumper rubber

Refer to

GI-4, "Components"

 for the symbols in the figure.

JMKIA1218GB

DLK-238

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Removal and Installation

INFOID:0000000001683211

REMOVAL

1.

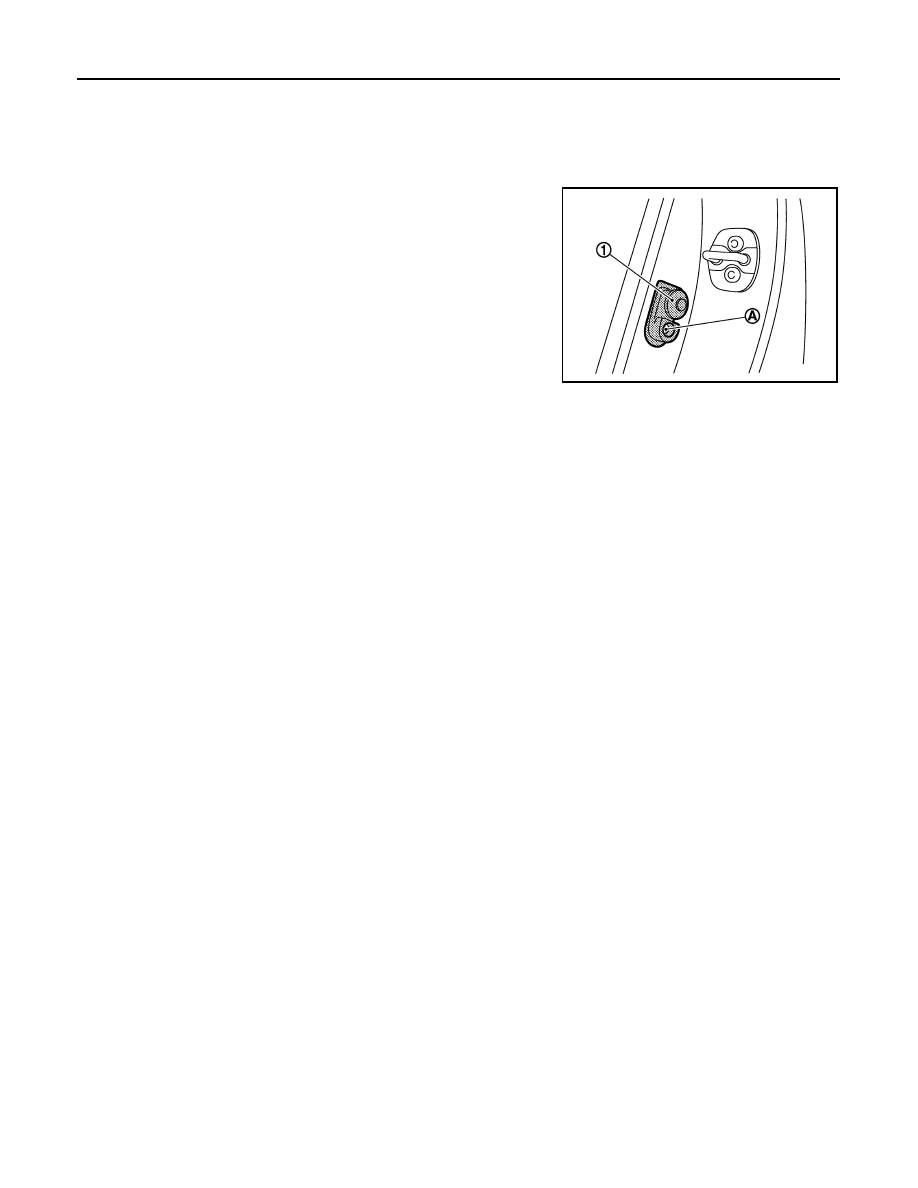

Remove the door switch mounting bolt (A), and then remove
door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA1129ZZ

INSIDE KEY ANTENNA

DLK-239

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000001683212

Refer to

IP-11, "Exploded View"

.

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000001683213

REMOVAL

1.

Remove the console finisher. Refer to

IP-12, "Removal and Installation"

.

2.

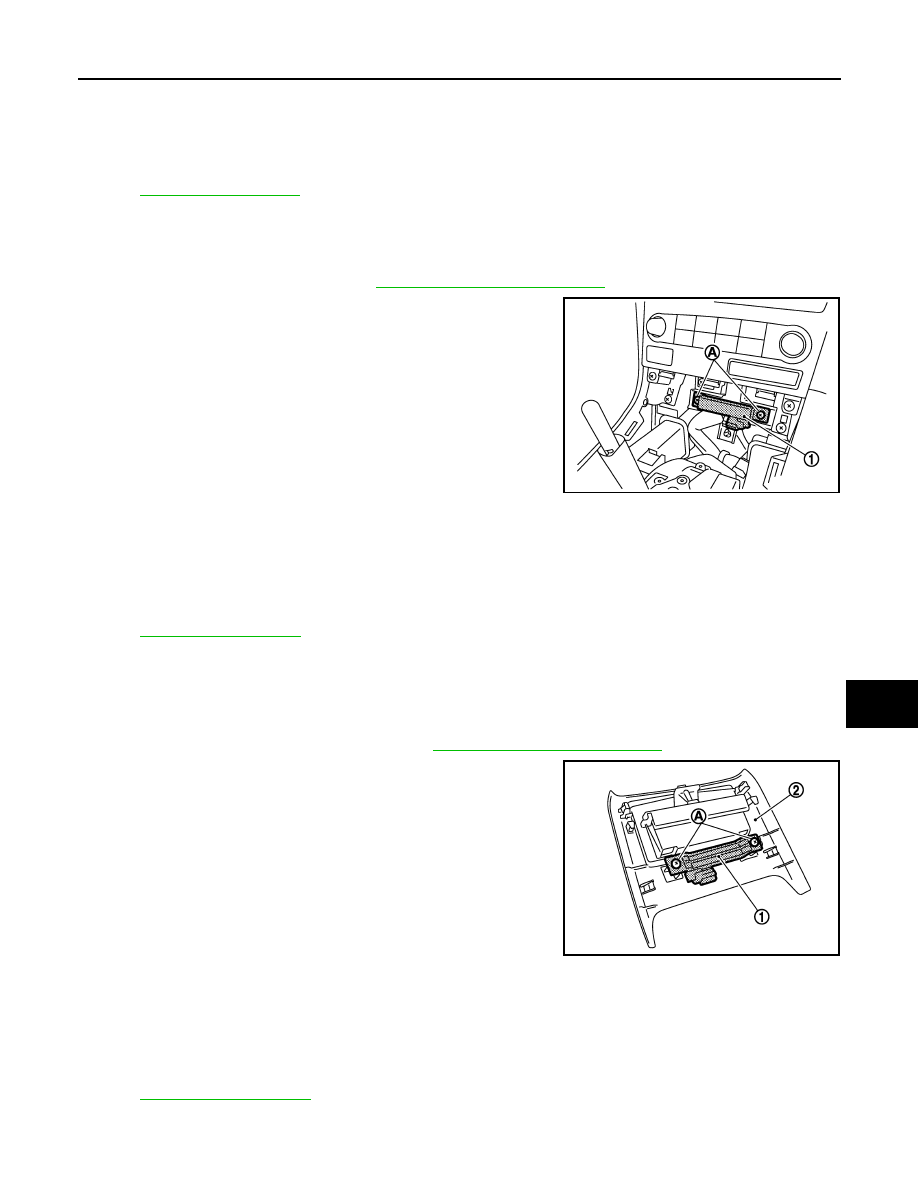

Remove the key slot mounting screw (A), and then remove
inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

CONSOLE : Exploded View

INFOID:0000000001683214

Refer to

IP-23, "Exploded View"

.

CONSOLE : Removal and Installation

INFOID:0000000001683215

REMOVAL

1.

Remove the console ashtray.

2.

Remove the console rear finisher (2). Refer to

IP-24, "Removal and Installation"

.

3.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1) from console rear fin-
isher (2).

INSTALLATION

Install in the reverse order of removal.

TRUNK ROOM

TRUNK ROOM : Exploded View

INFOID:0000000001683216

Refer to

INT-27, "Exploded View"

.

JMKIA0147ZZ

JMKIA0148ZZ

DLK-240

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

TRUNK ROOM : Removal and Installation

INFOID:0000000001683217

REMOVAL

1.

Remove trunk floor carpet and trunk front finisher. Refer to

INT-27, "Removal and Installation"

.

2.

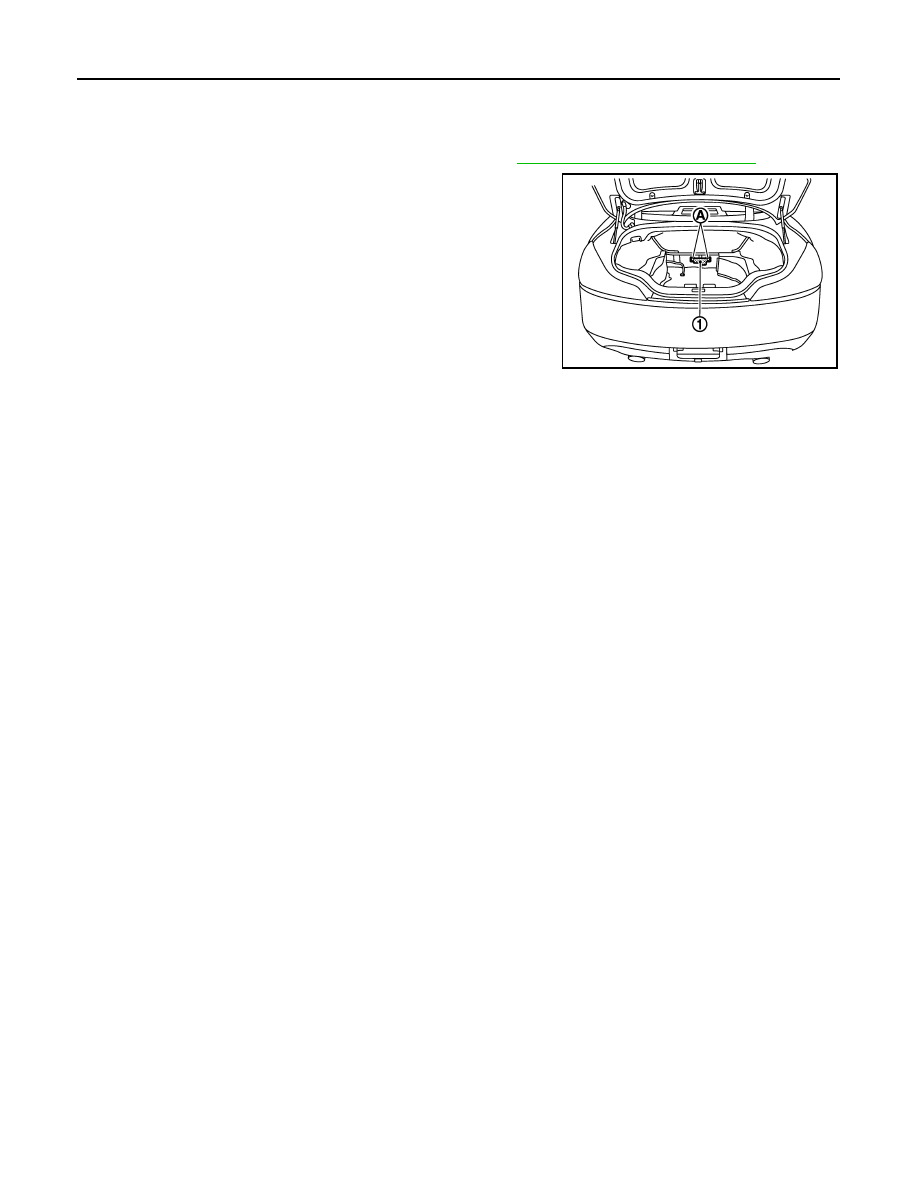

Remove the inside key antenna (trunk room) mounting clips (A),
and then remove inside key antenna (trunk room) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA1130ZZ
