TRUNK LID WEATHERSTRIP : Exploded View

INFOID:0000000001722615

TRUNK LID WEATHERSTRIP : Removal and Installation

INFOID:0000000001722616

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

After removal, do not pull strongly on the weather-strip.

INSTALLATION

1.

Align the weather-strip seam (upper) with mark of the body panel and weather-strip onto the vehicle.

2.

Align the weather-strip seem (lower) with center of the striker and weather-strip onto the vehicle.

3.

After installation, pull the weather-strip gently to ensure that there is no loose section.
NOTE:
Check that the weather-strip fits tightly at each corner and trunk rear plate.

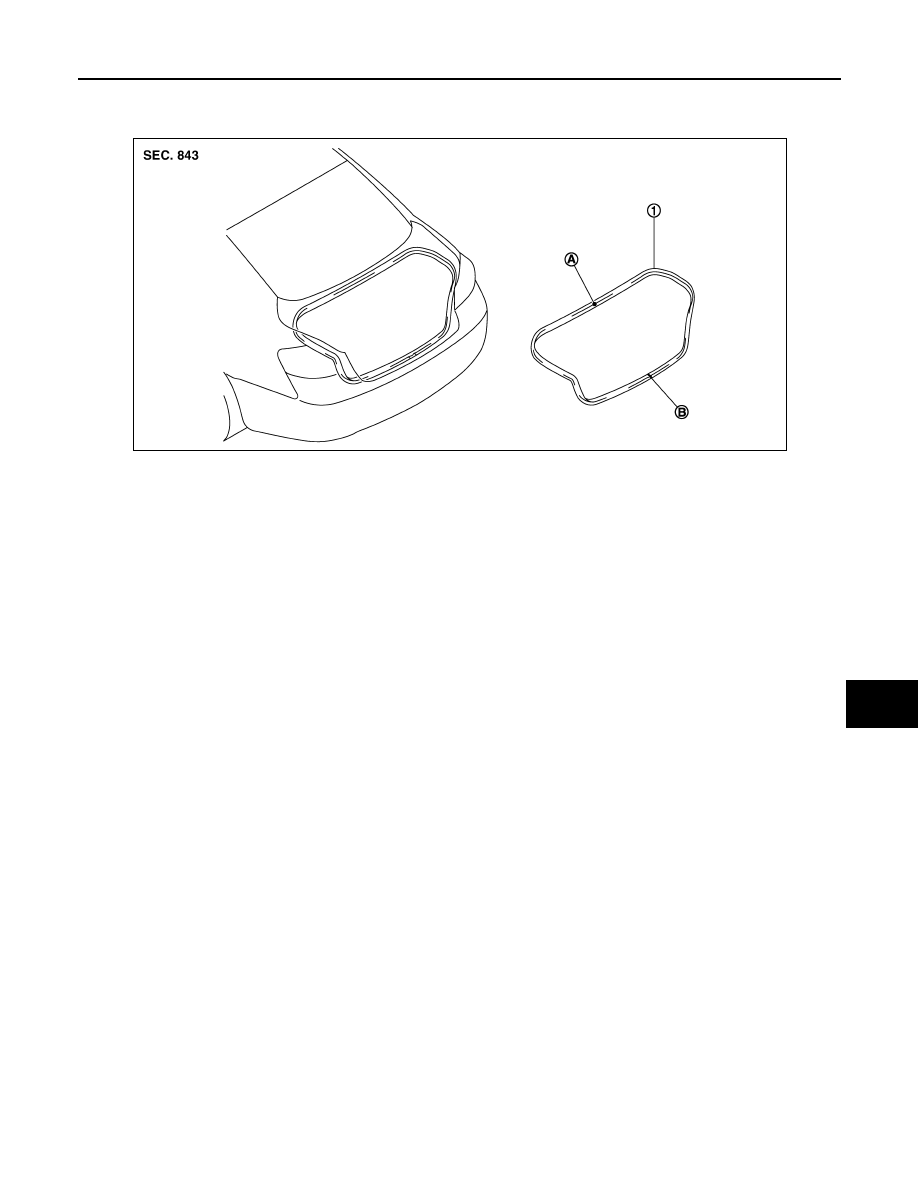

1.

Weather-strip

(A)

Seam (upper)

(B)

Seam (lower)

JMKIA0046ZZ

DLK-230

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK

DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000001722617

DOOR LOCK : Removal and Installation

INFOID:0000000001722618

REMOVAL

1.

Remove the door finisher. Refer to

INT-11, "Removal and Installation"

.

2.

Remove the door glass and door module assembly.
• Door glass: Refer to

GW-16, "Removal and Installation"

.

• Door module: Refer to

GW-19, "Removal and Installation"

.

3.

Remove the door side grommet, and loosen the door key cylinder assembly (driver side) and outside han-
dle escutcheon (passenger side) TORX bolt from grommet hole.

CAUTION:

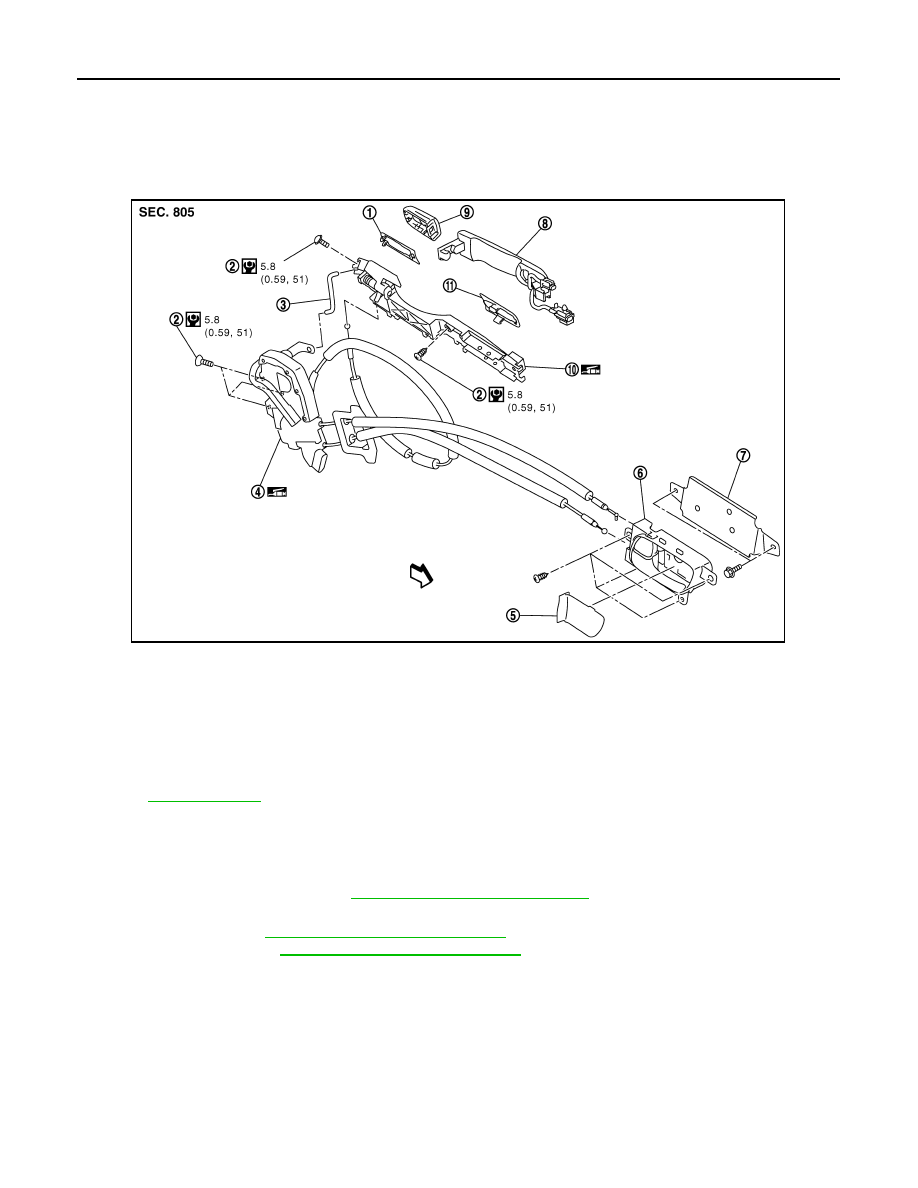

1.

Rear gasket

2.

TORX bolt

3.

Key cylinder rod (Driver side only)

4.

Door lock assembly

5.

Inside handle cap

6.

Inside handle

7.

Inside handle bracket

8.

Outside handle

9.

Door key cylinder assembly (Driver
side)
Outside handle escutcheon (Pas-
senger side)

10. Outside handle bracket

11.

Front gasket

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1220GB

DOOR LOCK

DLK-231

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

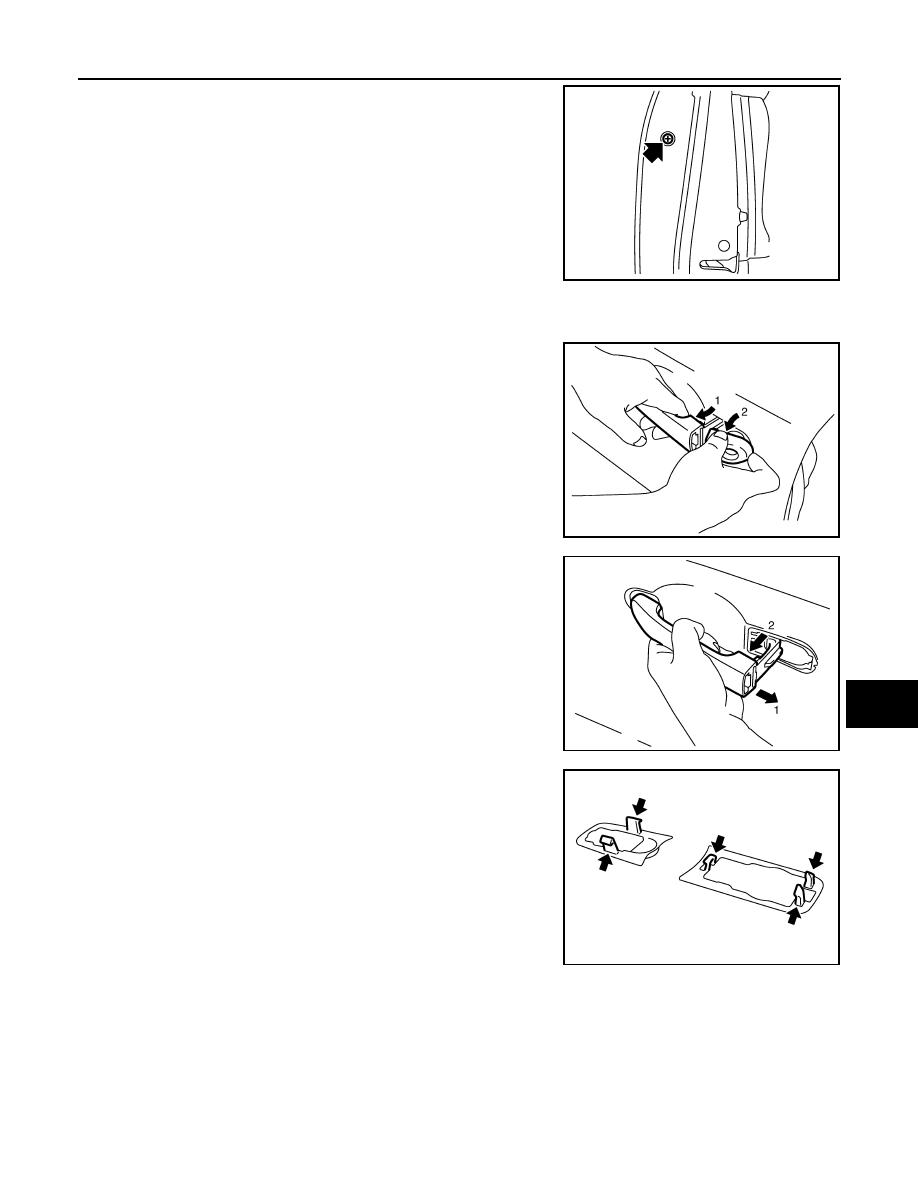

Do not forcibly remove the TORX bolt.

4.

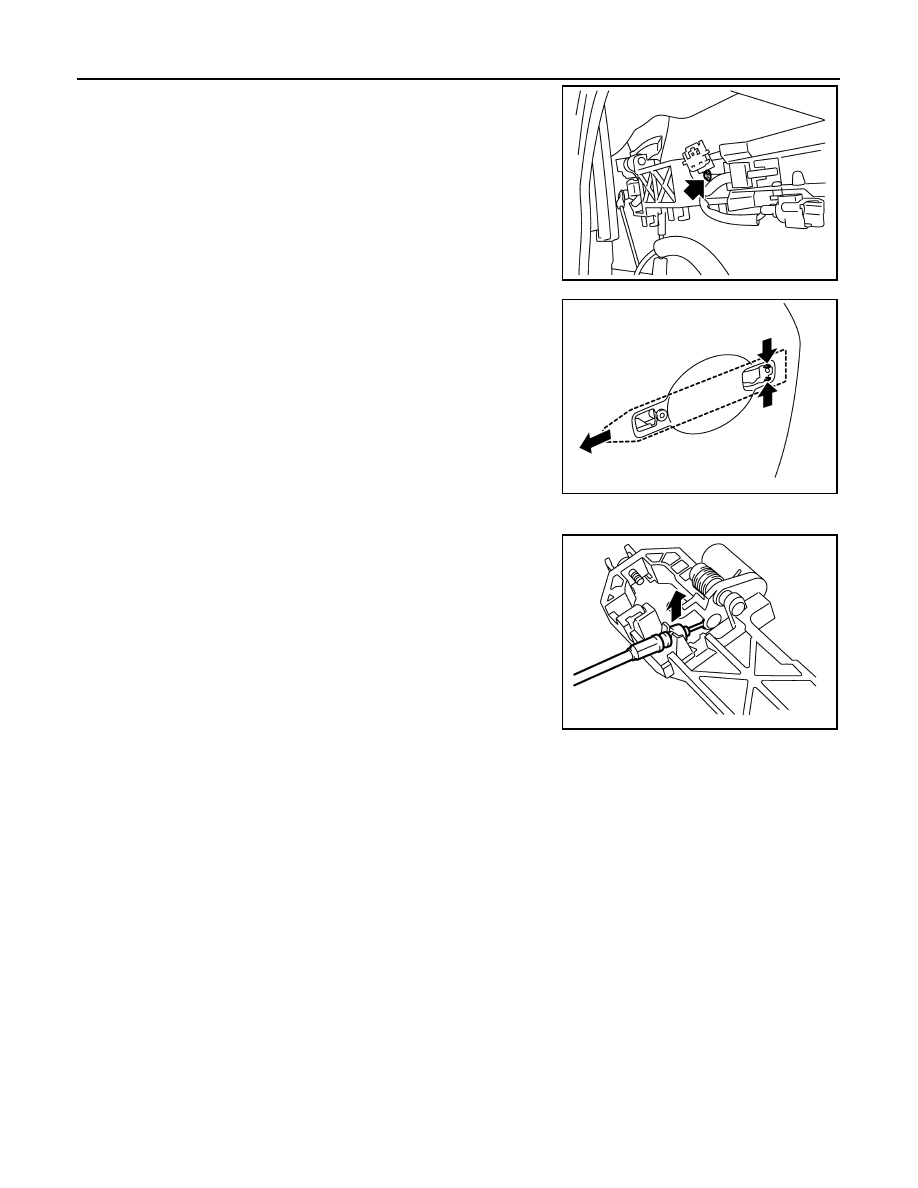

Disconnect the door antenna and door request switch connector and remove the harness clamp.

5.

Reach in to separate the key cylinder rod connection (on the handle).

6.

While pulling the outside handle, remove the door key cylinder
assembly.

7.

Slide toward rear of vehicle, and pull forward to remove the out-
side handle.

8.

Remove the front gasket and rear gasket.

9.

Remove the TORX bolts, and remove the door lock assembly.

JMKIA0020ZZ

PIIB5809E

JMKIA0967ZZ

PIIB5811E

DLK-232

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK

10. Remove the TORX bolt of the outside handle bracket.

11. While pulling the outside handle bracket, slide toward rear of

vehicle to remove the outside handle bracket.

12. Disconnect the door lock actuator connector and remove the door lock assembly.

13. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

To install each rod, rotate the rod holder until a click is felt.

INSIDE HANDLE

JMKIA0022ZZ

PIIB5814E
