TRUNK LID
DLK-225
< ON-VEHICLE REPAIR >
[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
Install in the reverse order of removal.
CAUTION:
• After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
• After installing, check operation.
• After installing, perform fitting adjustment. Refer to
DLK-225, "TRUNK LID ASSEMBLY : Adjust-
TRUNK LID ASSEMBLY : Adjustment
INFOID:0000000001722612
1.
Check the clearance and the evenness between the trunk lid and each part visually and by touching. (Fit-
ting standard dimension in the table below should be satisfied.)
2.
In case out of specification, adjust them according to the procedures shown below.
3.
Loosen the bumper rubber.
4.
Loosen the striker mounting bolts.
5.
Lift up the trunk lid approximately 100 – 150 mm (3.937 – 5.906 in) height then close it lightly and check
that it is engaged firmly with the trunk lid closed.
6.
Check the clearance and evenness.
7.
Finally tighten the trunk lid striker.
TRUNK LID STRIKER

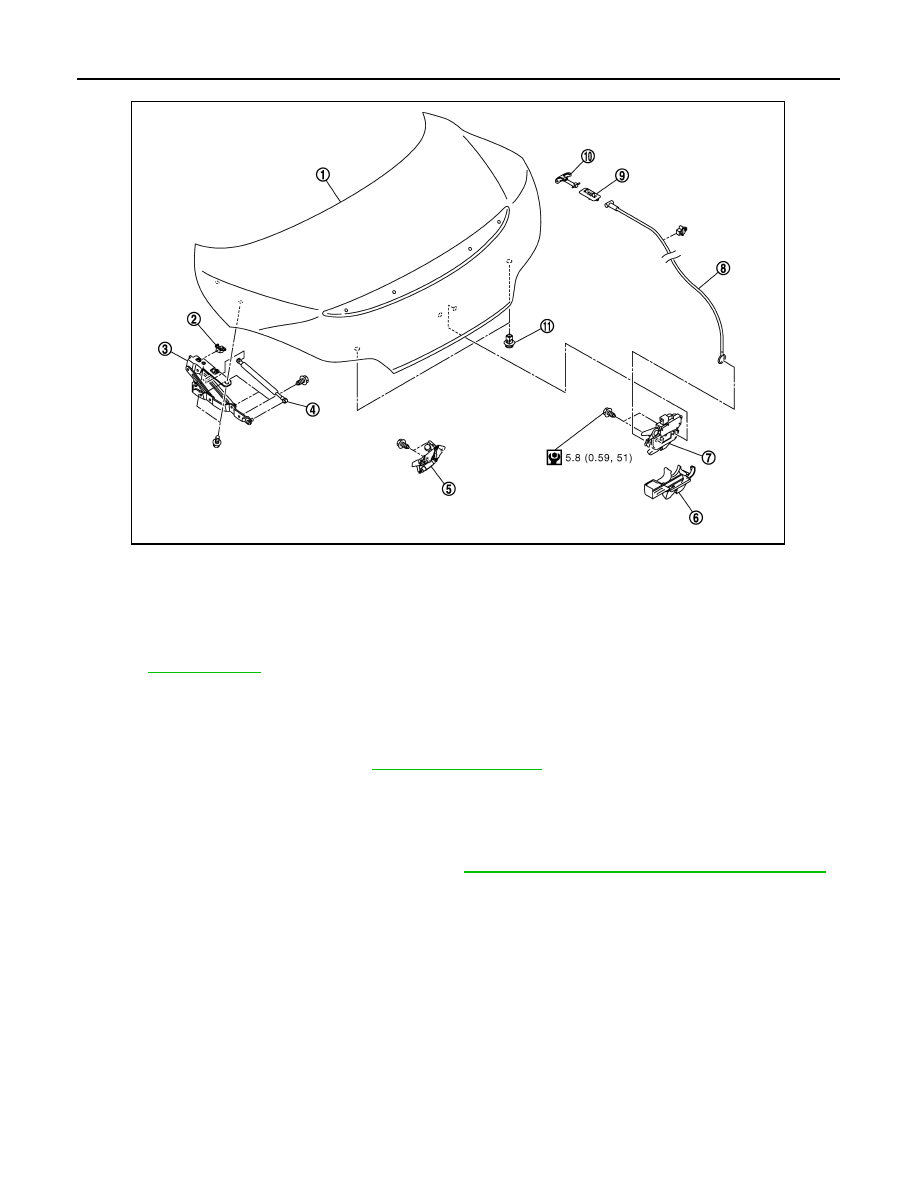

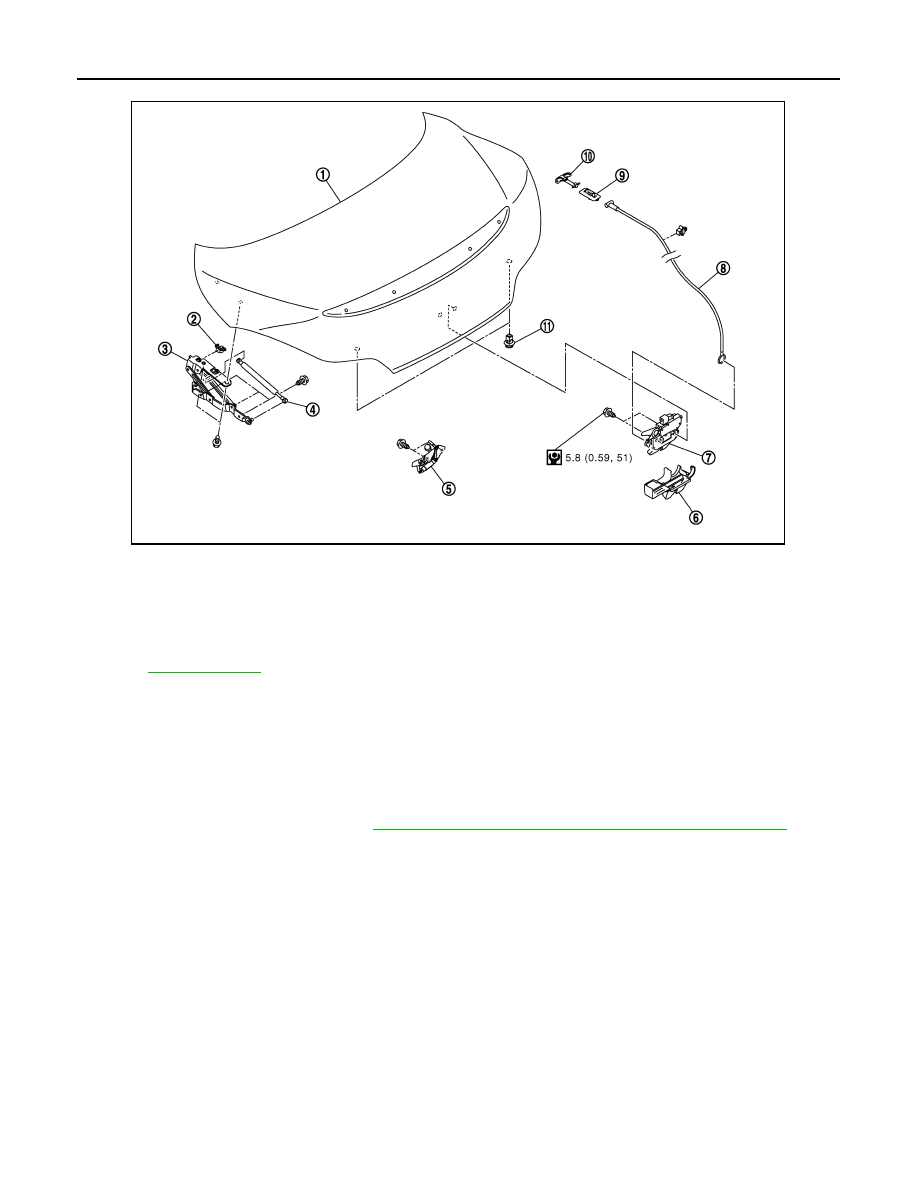

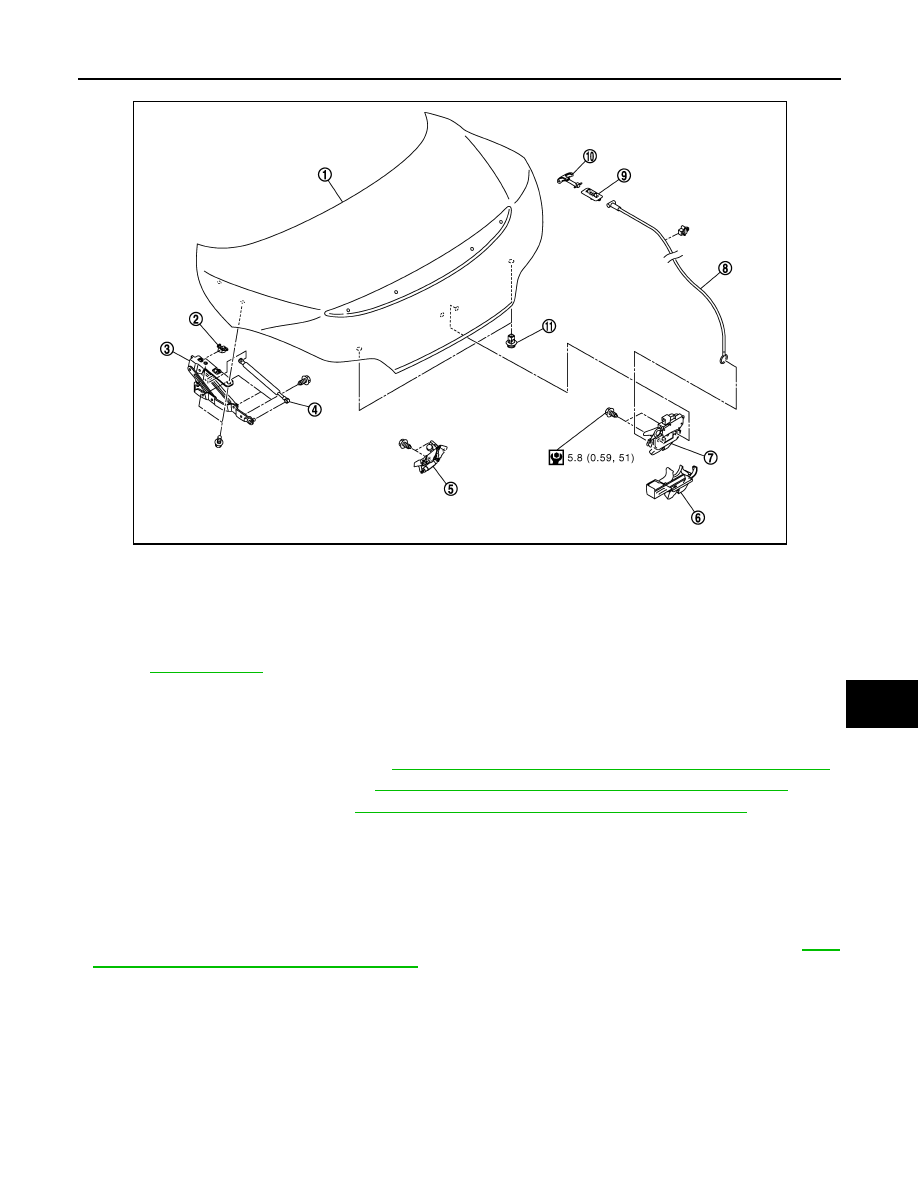

TRUNK LID STRIKER : Exploded View
INFOID:0000000001831344
REMOVAL
Portion
Standard
Right/left
Clearance (MAX)
Trunk lid –
Rear fender
A – A
D
Clearance
2.5 – 4.5 mm
(0.098 – 0.177 in)
1.5 mm (0.059 in)
E
Surface height
−
1.5 – 0.5 mm
(
−
0.059 – 0.020 in)
1.5 mm (0.059 in)
Trunk lid –
Rear combination lamp
B – B
F
Clearance
3.7 – 7.7 mm
(0.146 – 0.303 in)
3.0 mm (0.118 in)
G
Surface height
−
2.5 – 1.5 mm
(
−
0.098 – 0.059 in)
2.0 mm (0.079 in)
Trunk lid –
Rear bumper
C – C
H
Clearance
4.0 – 8.0 mm
(0.157 – 0.315 in)
—
