AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000001558959

REMOVAL

Refer to

IP-23, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001558960

REMOVAL

1.

Remove center console. (M/T models) Refer to

IP-23, "Exploded View"

.

Remove center console cup. (A/T models) Refer to

IP-23, "Exploded View"

.

2.

Remove auxiliary input jacks from center console. (M/T models)
Remove auxiliary input jacks from center console cup. (A/T models)

INSTALLATION

Install in the reverse order of removal.

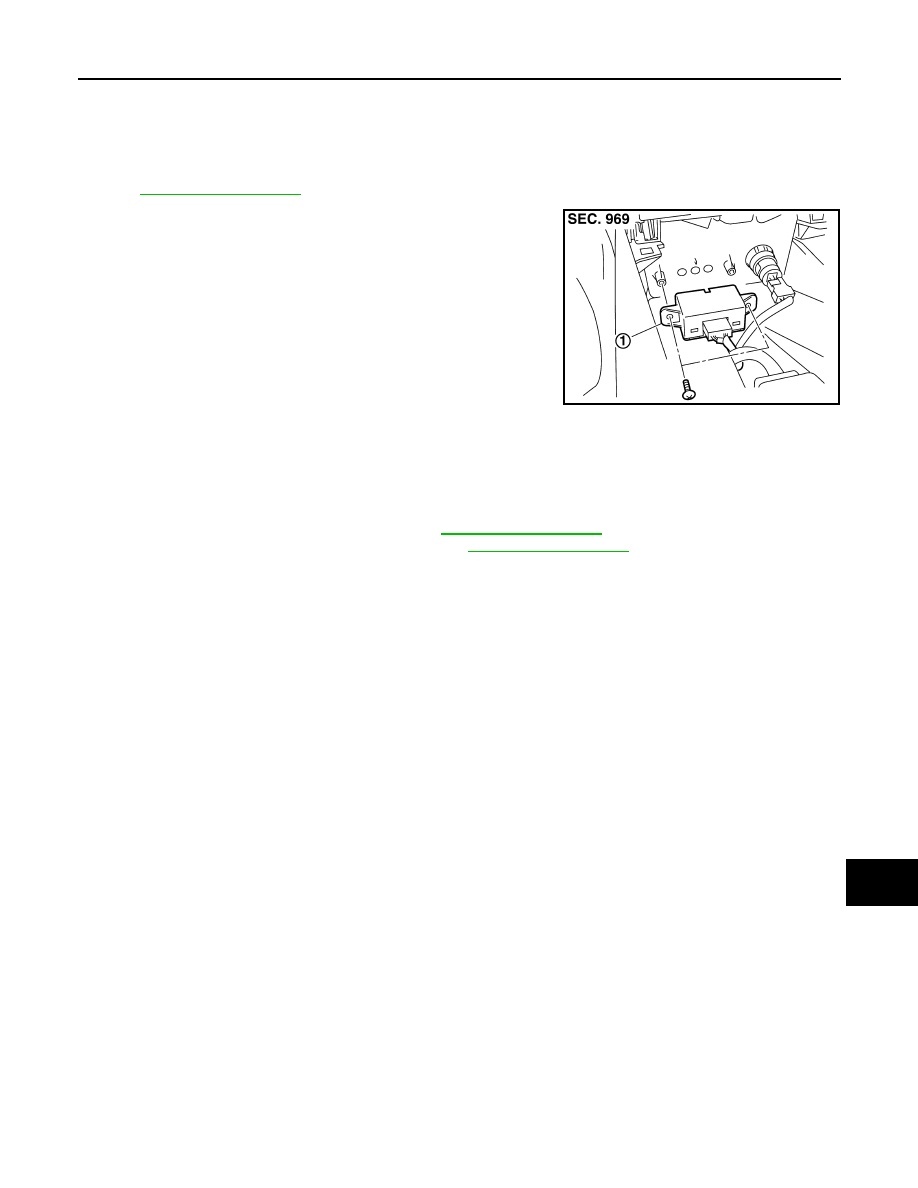

JSNIA0131ZZ

1.

Auxiliary input jacks

AV-626

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000001558961

REMOVAL

Refer to

INL-97, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001558962

REMOVAL

1.

Remove map lamp. Refer to

INL-97, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Install in the reverse order of removal.

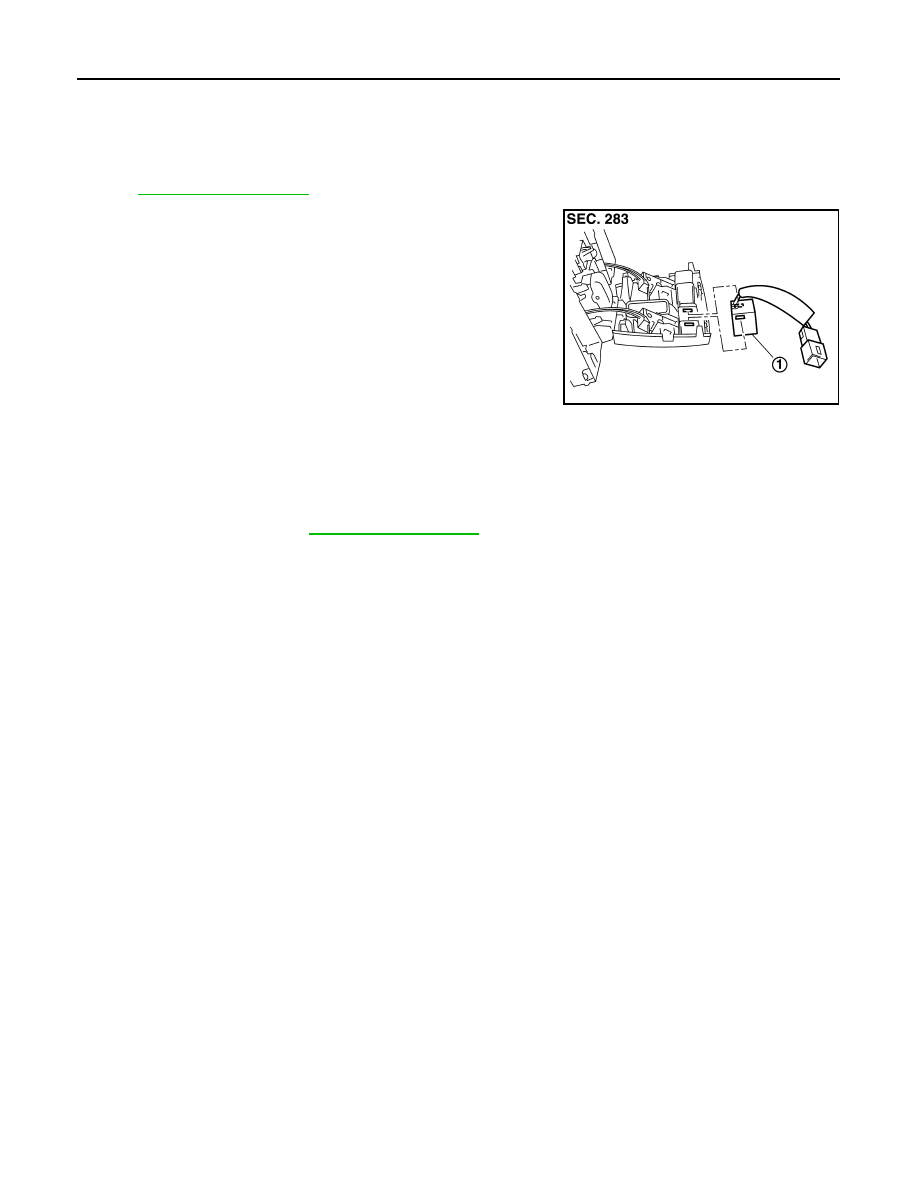

JSNIA0132ZZ

1.

Microphone

AV

GPS ANTENNA

AV-627

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Exploded View

INFOID:0000000001558963

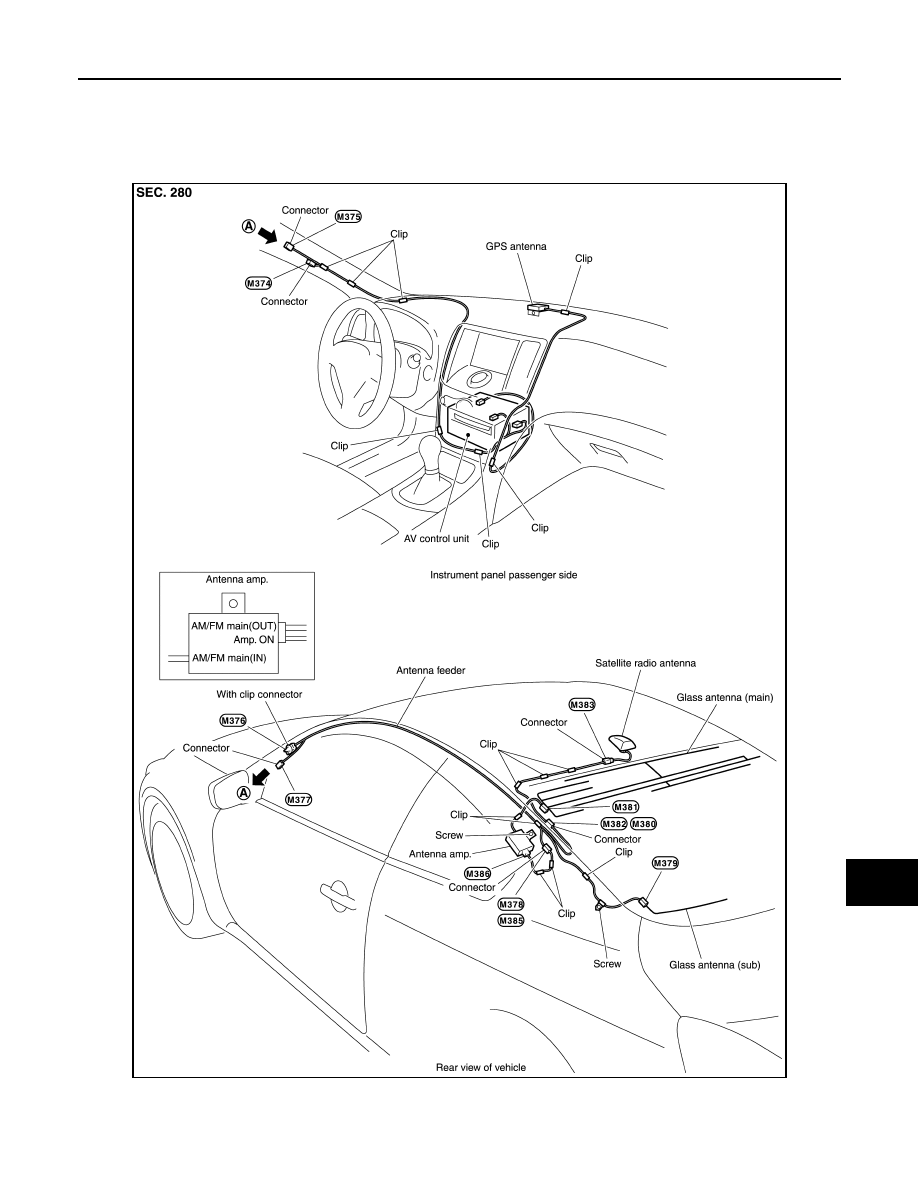

Harness Layout

INFOID:0000000001558964

JPNIA0488GB

AV-628

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

Removal and Installation

INFOID:0000000001558965

REMOVAL

1.

Remove instrument panel. Refer to

IP-11, "Exploded View"

.

2.

Remove GPS antenna (1) from instrument panel.

INSTALLATION

Install in the reverse order of removal.

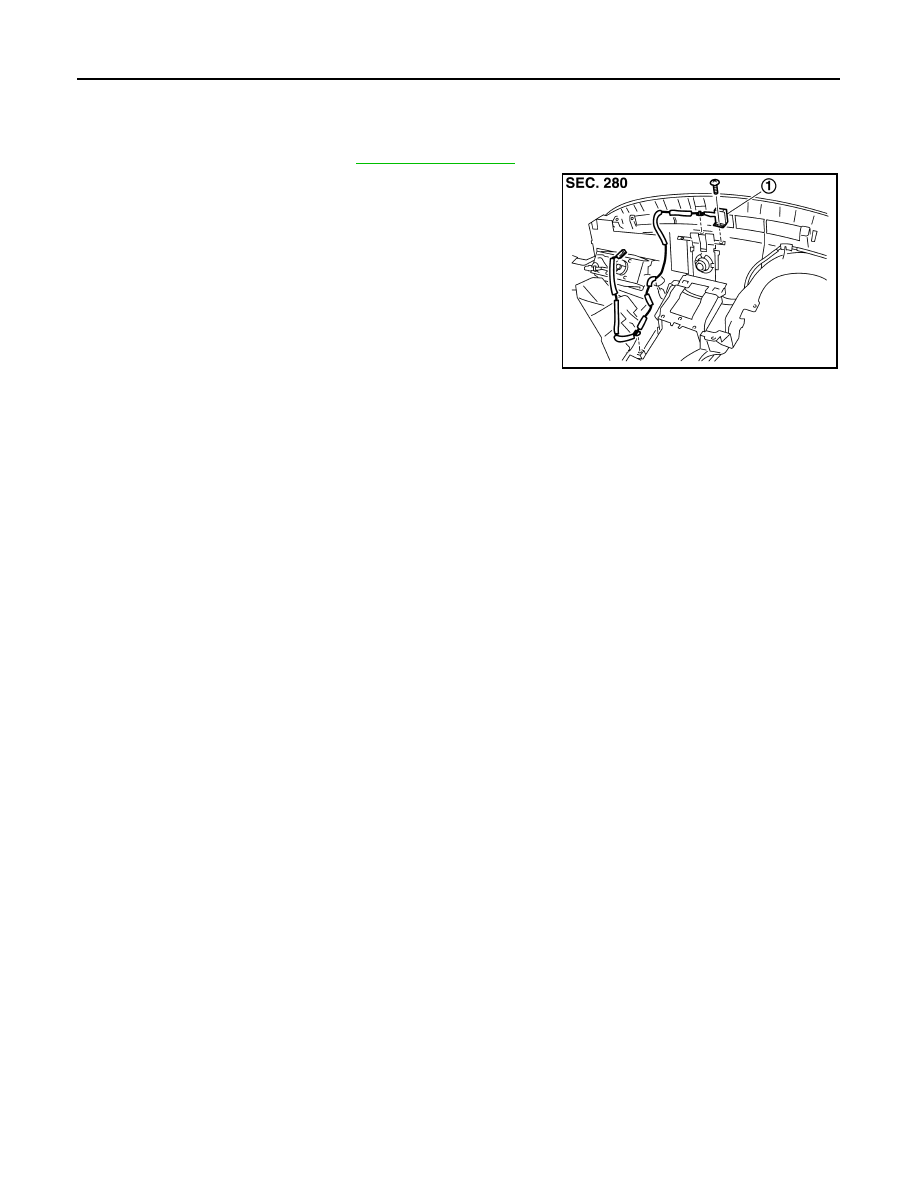

JSNIA0175ZZ
