CAMERA CONTROL UNIT

AV-629

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

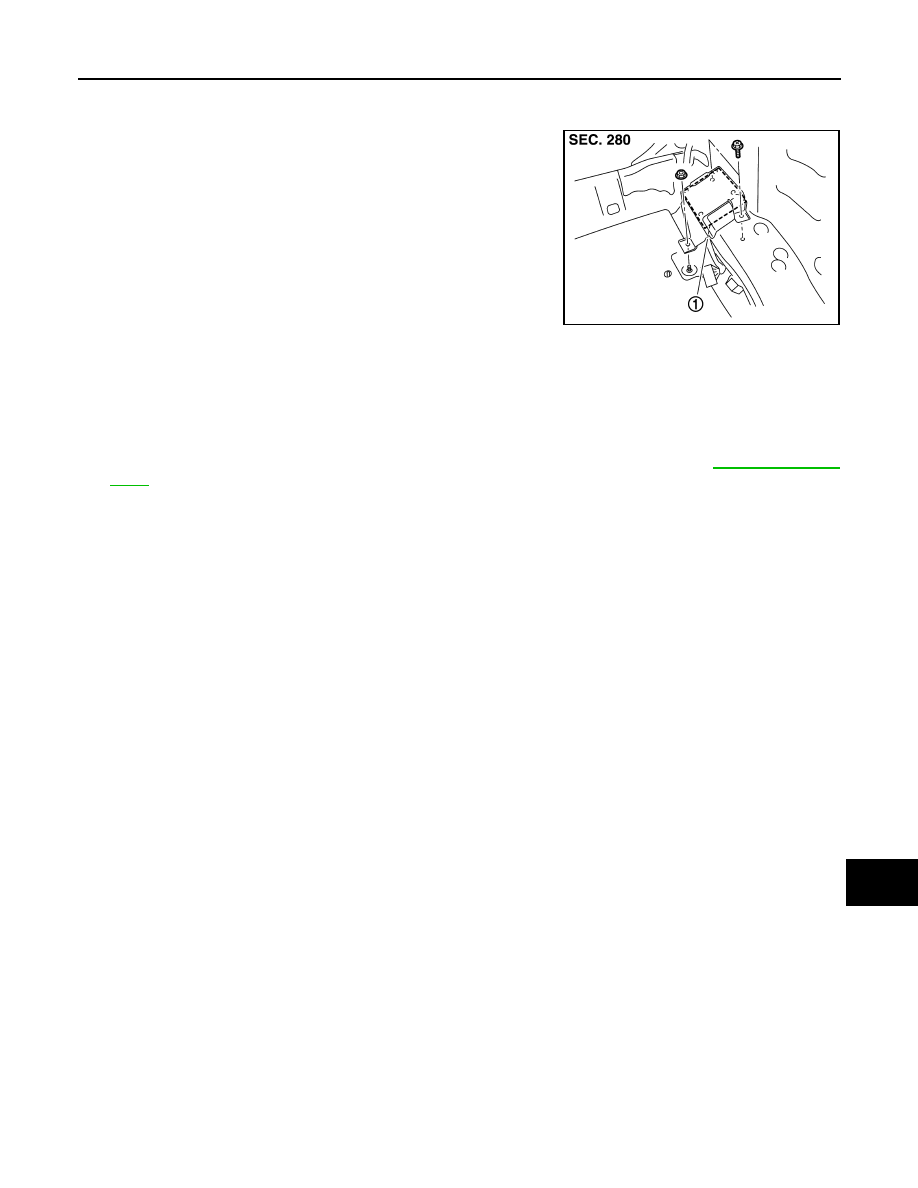

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000001558966

Removal and Installation

INFOID:0000000001558967

REMOVAL

1.

Remove rear wheel house finisher (RH), and then remove camera control unit. Refer to

INT-27, "Exploded

View"

.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000001558968

ADJUSTMENT

There may be a misalignment of possible route line center position of rear view monitor after removing camera
control unit. Therefore, correct neutral position with the following procedure.
1.

Steer the steering wheel to the leftmost and rightmost ends.

2.

Drive vehicle at 30 km/h (18.6 MPH) min. speed at least 100 m (328.1 ft).

JPNIA0489ZZ

1.

Camera control unit

AV-630

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

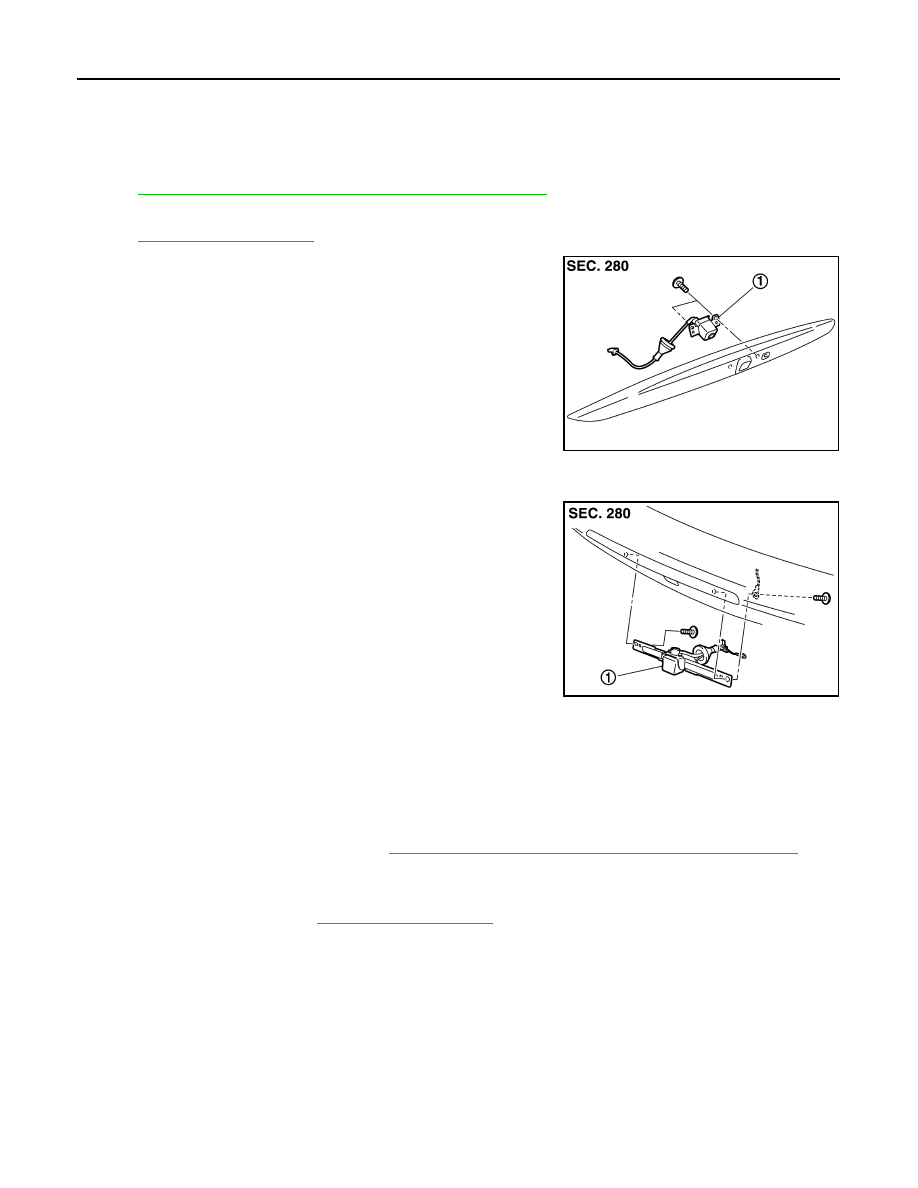

Exploded View

INFOID:0000000001558969

REMOVAL (WITHOUT REAR SPOILER)

Refer to

EXT-37, "TRUNK LID OUTER FINISHER : Exploded View"

.

REMOVAL (WITH REAR SPOILER)

Refer to

EXT-41, "Exploded View"

.

DISASSEMBLY (WITHOUT REAR SPOILER)

DISASSEMBLY (WITH REAR SPOILER)

Removal and Installation

INFOID:0000000001558970

REMOVAL

Without rear spoiler

1.

Remove trunk lid finisher outer. Refer to

EXT-37, "TRUNK LID OUTER FINISHER : Exploded View"

.

2.

Remove rear view camera from trunk lid finisher outer.

With rear spoiler

1.

Remove rear spoiler. Refer to

EXT-41, "Exploded View"

.

2.

Remove rear view camera from rear spoiler.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000001558971

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

JSNIA0134ZZ

1.

Rear view camera

JPNIA0490ZZ

1.

Rear view camera

AV

REAR VIEW CAMERA

AV-631

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

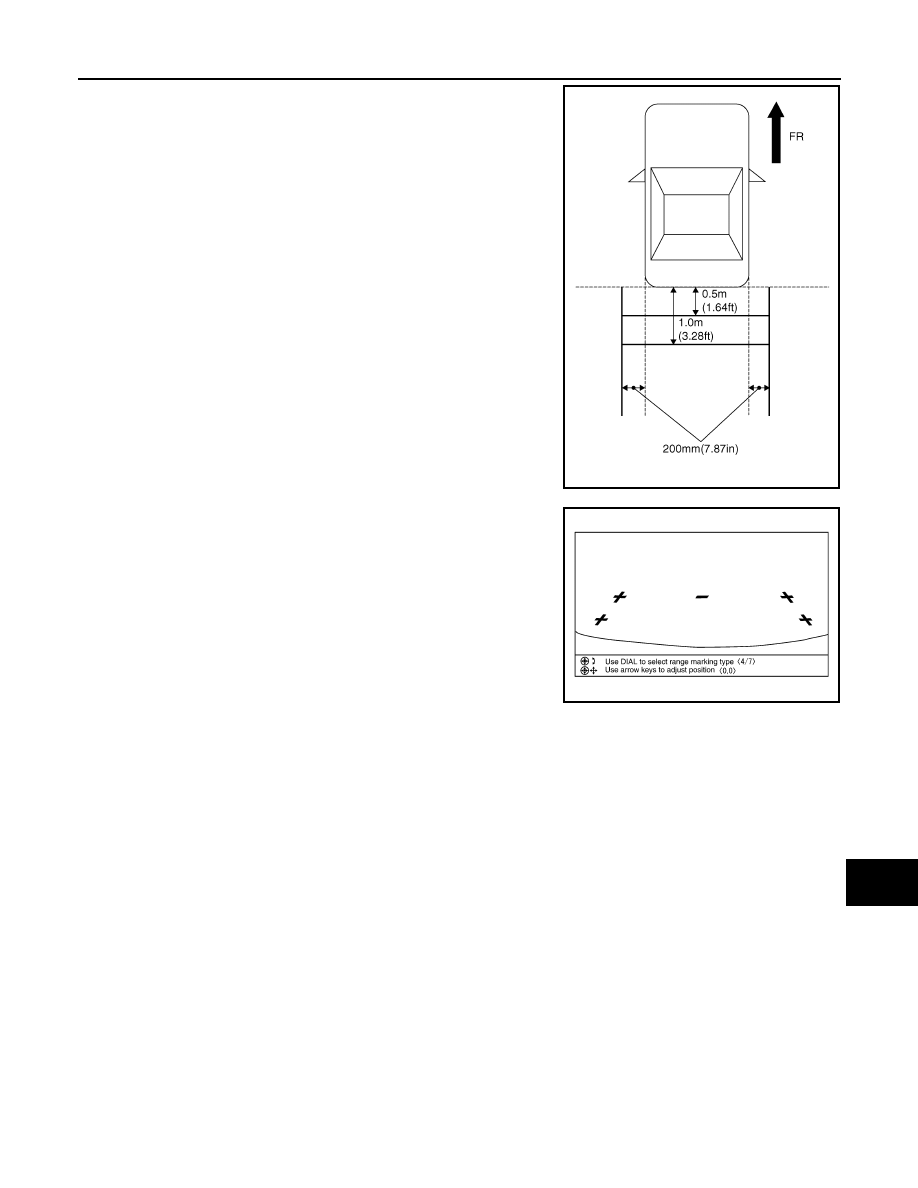

1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “”

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

20 – 20

Left/Right adjustment range

20 – 20

SKIB3689E

AV-632

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000001558972

REMOVAL

Refer to

SR-7, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001558973

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000001558974

Perform 4WAS front actuator adjustment. Refer to

STC-27, "4WAS FRONT ACTUATOR NEUTRAL POSI-

TION ADJUSTMENT : Description"

.

JSNIA0135ZZ

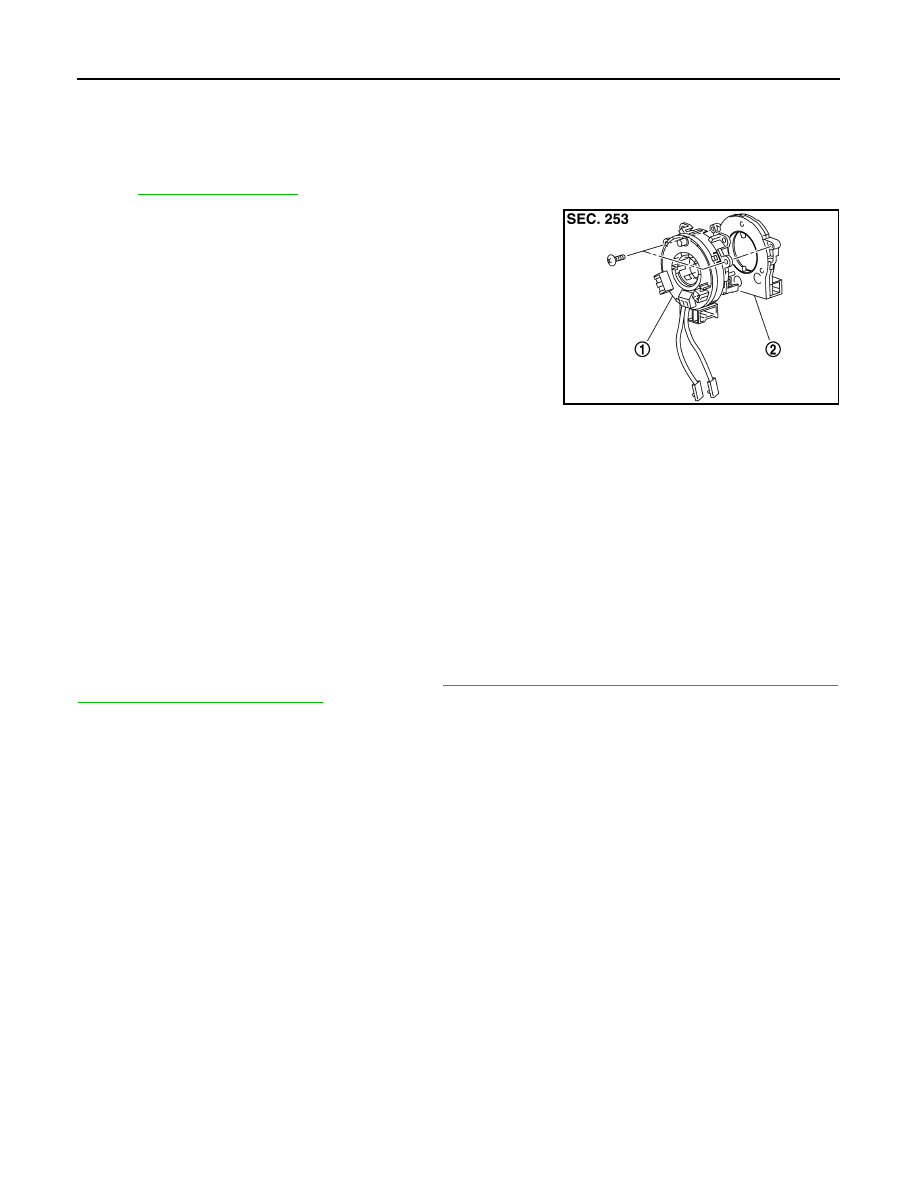

1.

Spiral cable

2.

Steering angle sensor
