Infiniti G37 Coupe. Manual - part 216

AV

WOOFER AMP.

AV-617

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

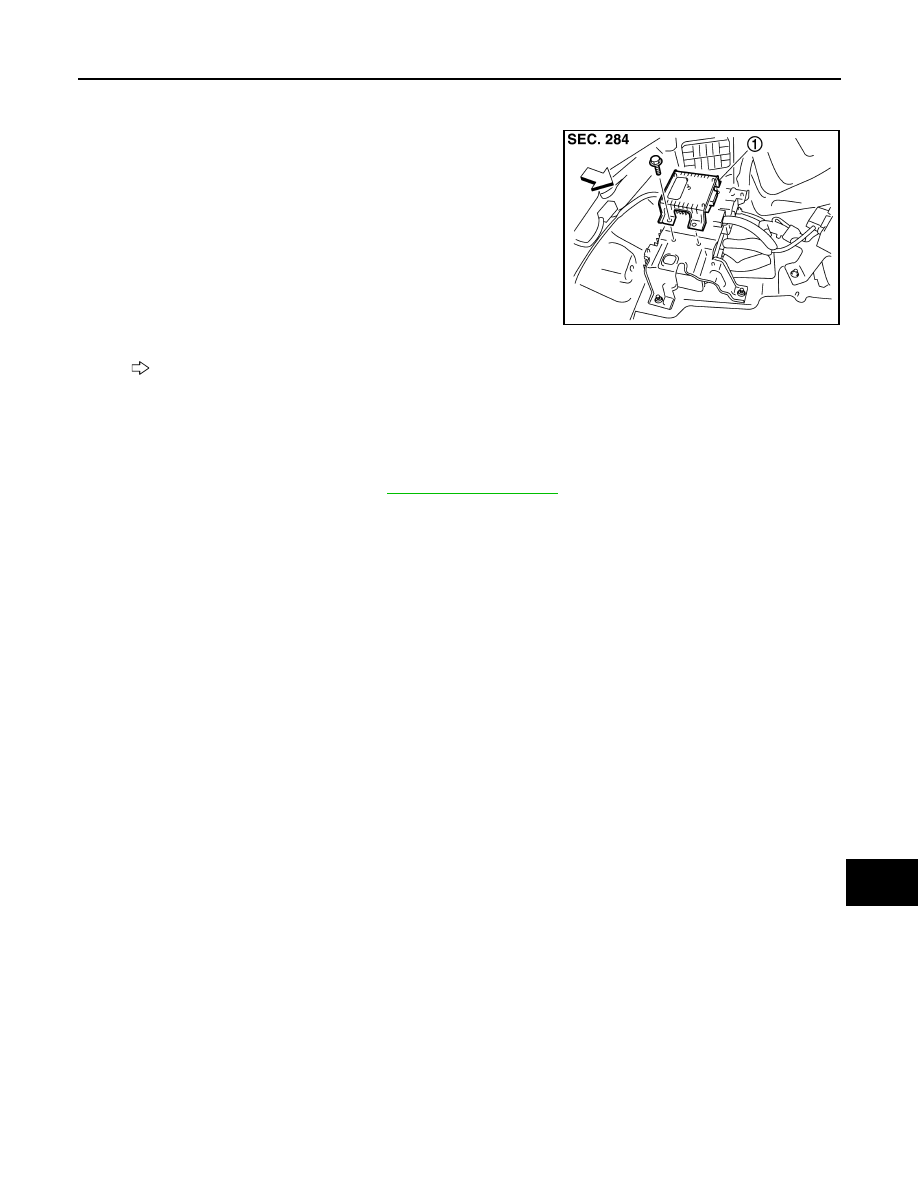

WOOFER AMP.

Exploded View

INFOID:0000000001678439

Removal and Installation

INFOID:0000000001678440

REMOVAL

1.

Remove trunk floor spacer LH. Refer to

INT-27, "Exploded View"

.

2.

Remove Woofer amp. from BOSE amp.

INSTALLATION

Install in the reverse order of removal.

JPNIA0469ZZ

:

Vehicle front

1.

Woofer amp.

AV-618

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

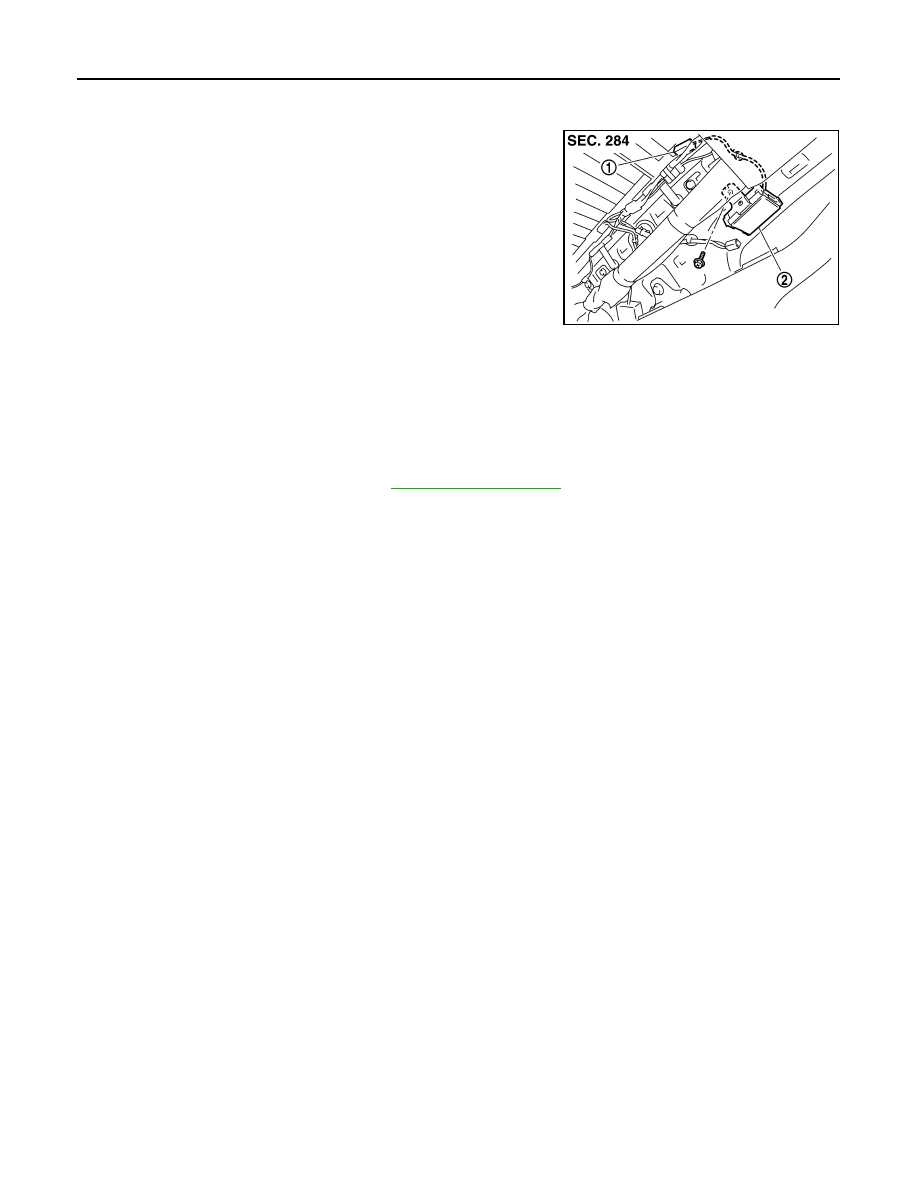

ANTENNA AMP.

ANTENNA AMP.

Exploded View

INFOID:0000000001558945

Removal and Installation

INFOID:0000000001558946

REMOVAL

1.

Remove back pillar garnish LH. Refer to

INT-14, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Install in the reverse order of removal.

JPNIA0486ZZ

1.

AM-FM main connector

2.

Antenna amp.

AV

SATELLITE RADIO ANTENNA

AV-619

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

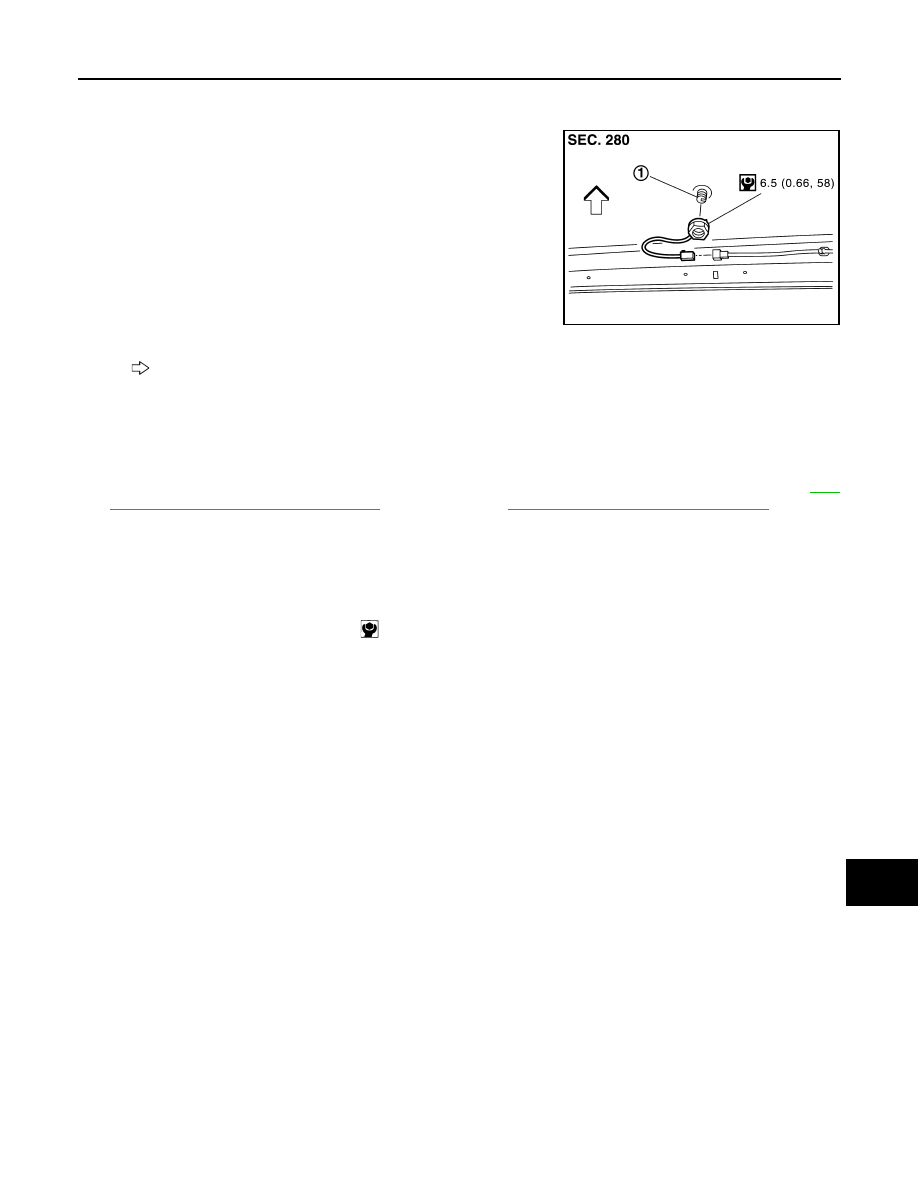

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000001558949

Removal and Installation

INFOID:0000000001558950

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

21, "NORMAL ROOF : Exploded View"

 [with normal roof]

INT-24, "SUNROOF : Exploded View"

 [with sun-

roof].

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

JPNIA0487ZZ

:

Vehicle front

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)

AV-620

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

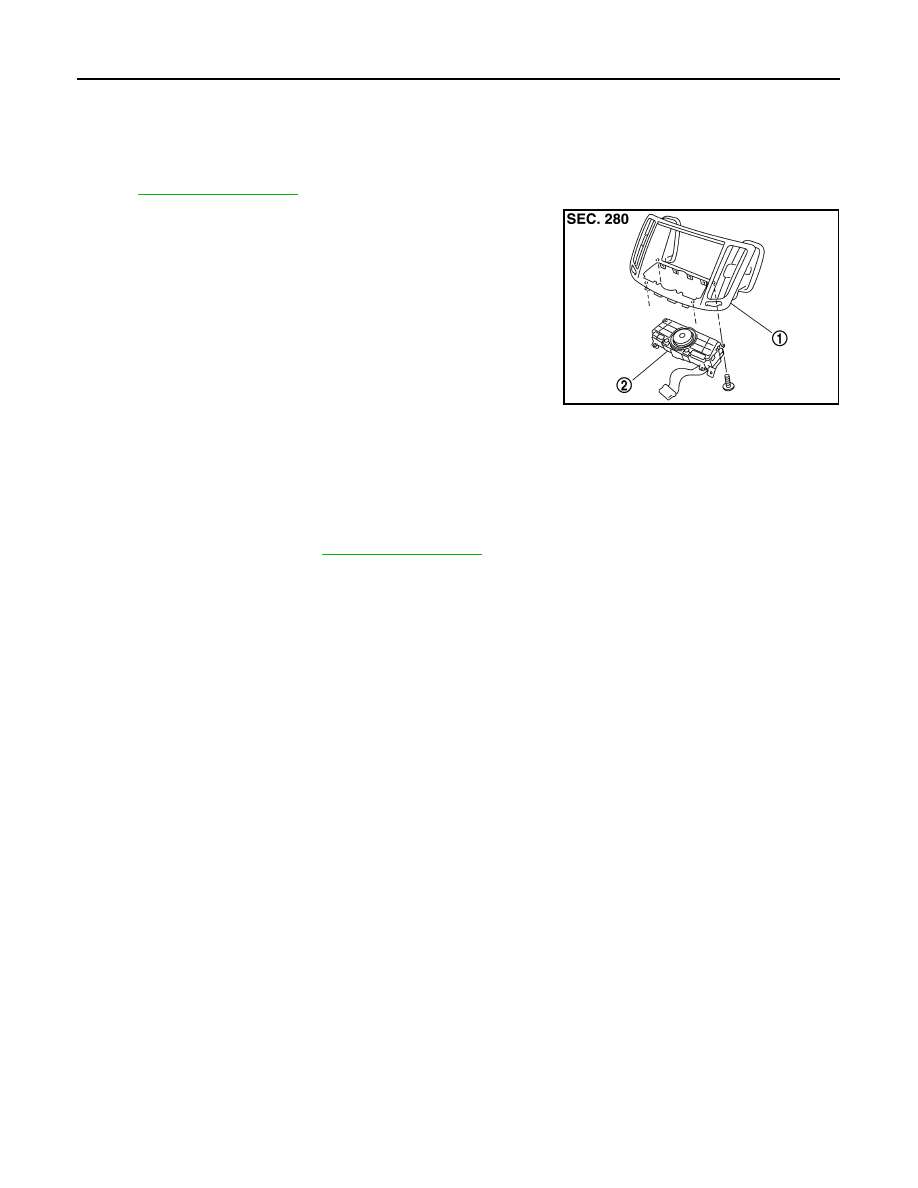

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000001558951

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001558952

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch from center ventilator.

INSTALLATION

Install in the reverse order of removal.

JSNIA0126ZZ

1.

Center ventilator grille

2.

Multifunction switch
