Infiniti G37 Coupe. Manual - part 215

AV

TWEETER

AV-613

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

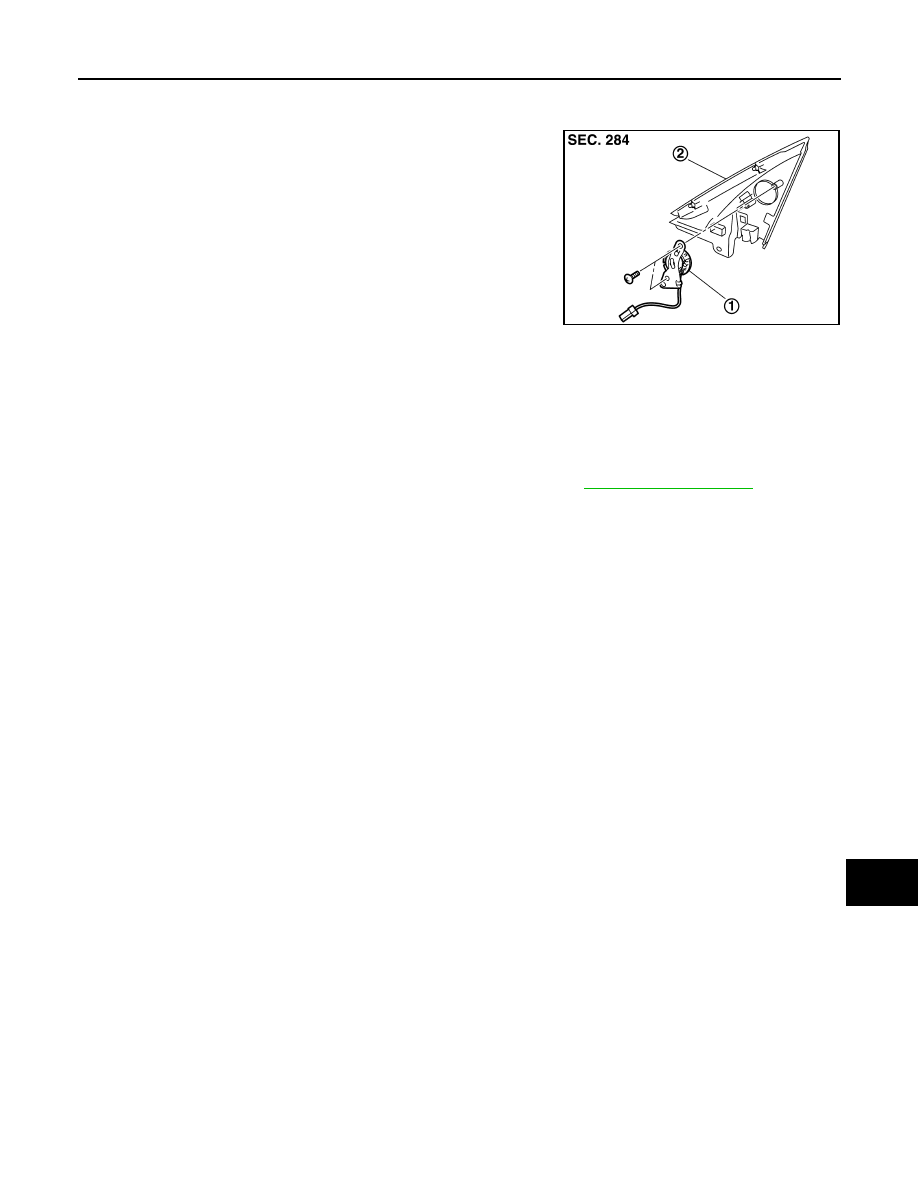

TWEETER

Exploded View

INFOID:0000000001558937

Removal and Installation

INFOID:0000000001558938

REMOVAL

1.

Remove door finisher, and then remove corner cover inner. Refer to

INT-11, "Exploded View"

.

2.

Remove tweeter from corner cover inner.

INSTALLATION

Install in the reverse order of removal.

JPNIA0483ZZ

1.

Tweeter

2.

Corner cover inner

AV-614

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

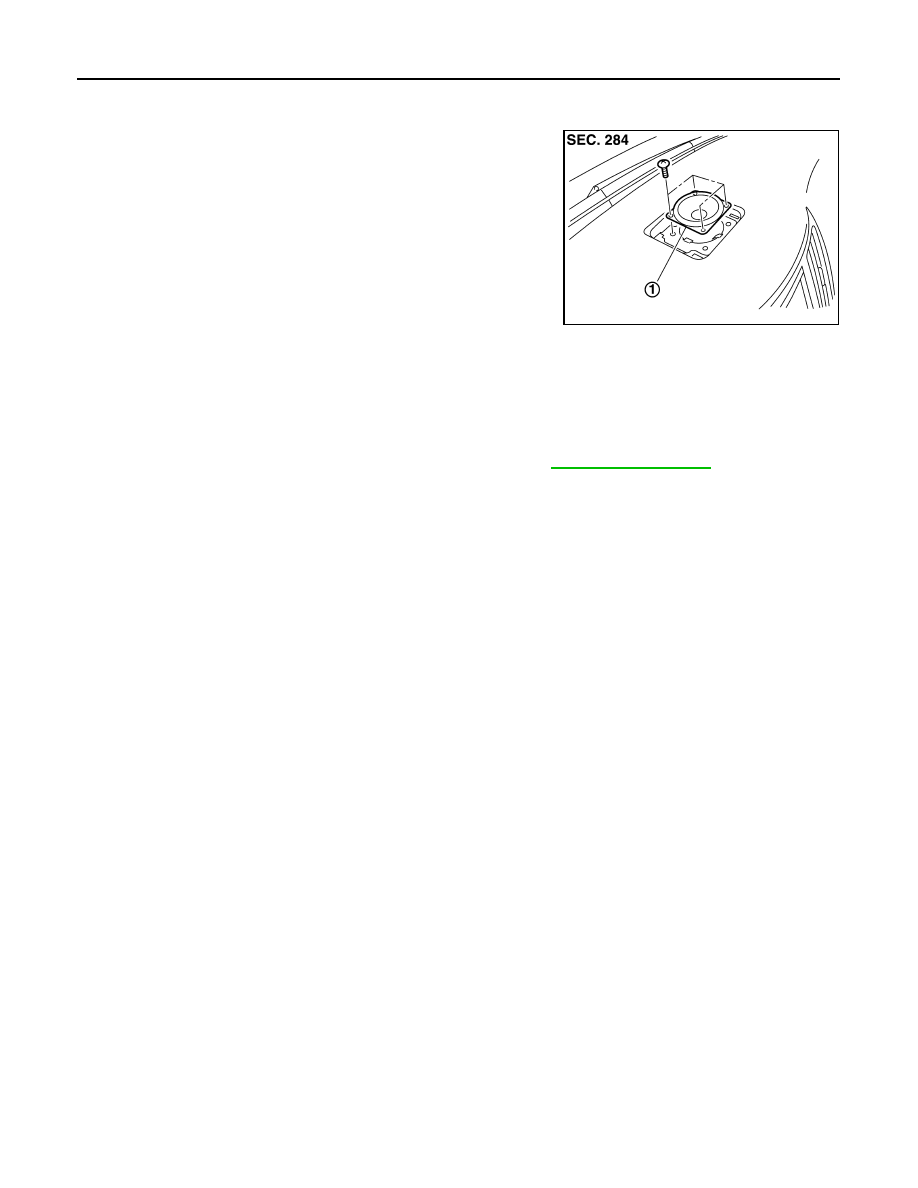

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000001558939

Removal and Installation

INFOID:0000000001558940

REMOVAL

1.

Remove upper grille, and then remove center speaker. Refer to

IP-11, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

JSNIA0120ZZ

1.

Center speaker

AV

REAR WOOFER

AV-615

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

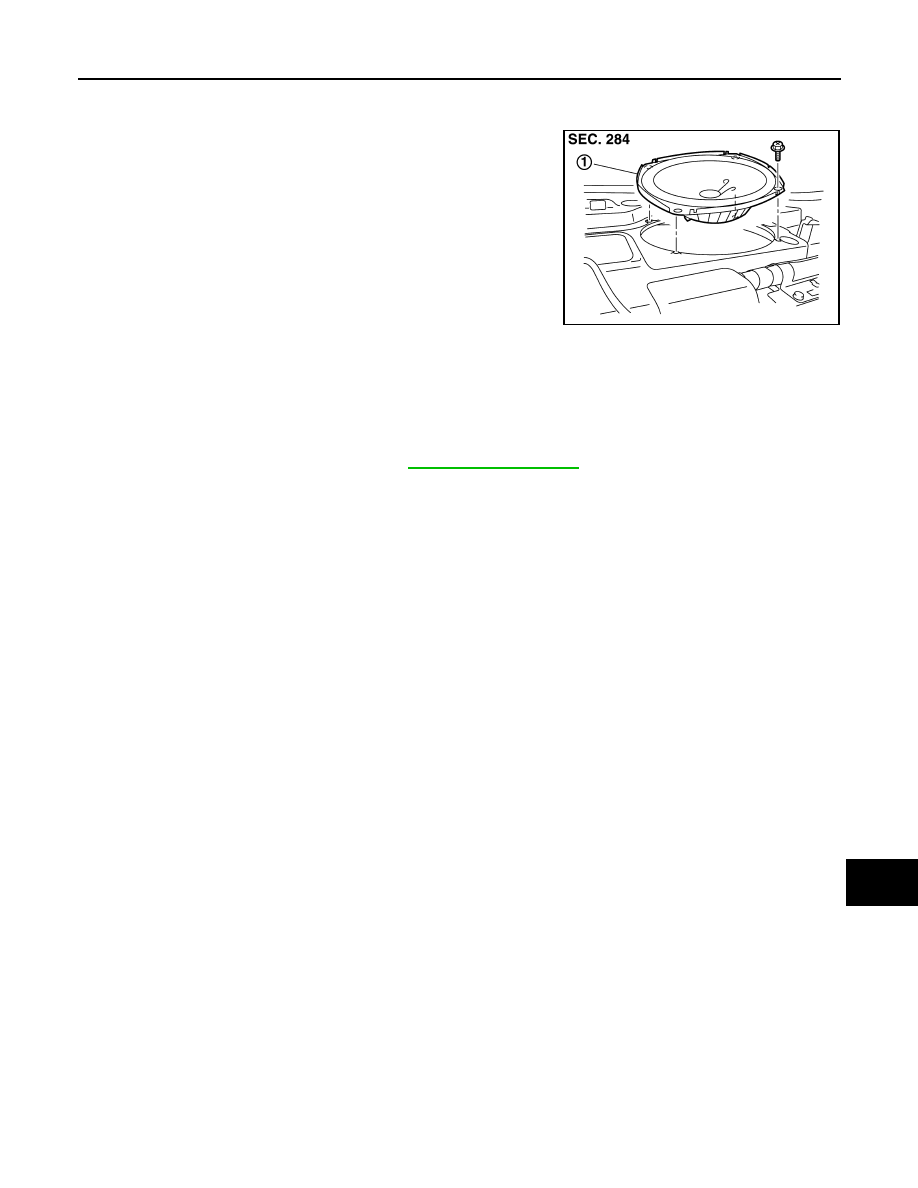

REAR WOOFER

Exploded View

INFOID:0000000001558941

Removal and Installation

INFOID:0000000001558942

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-17, "Exploded View"

.

2.

Remove rear woofer from rear parcel shelf.

INSTALLATION

Install in the reverse order of removal.

JPNIA0484ZZ

1.

 Rear woofer

AV-616

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

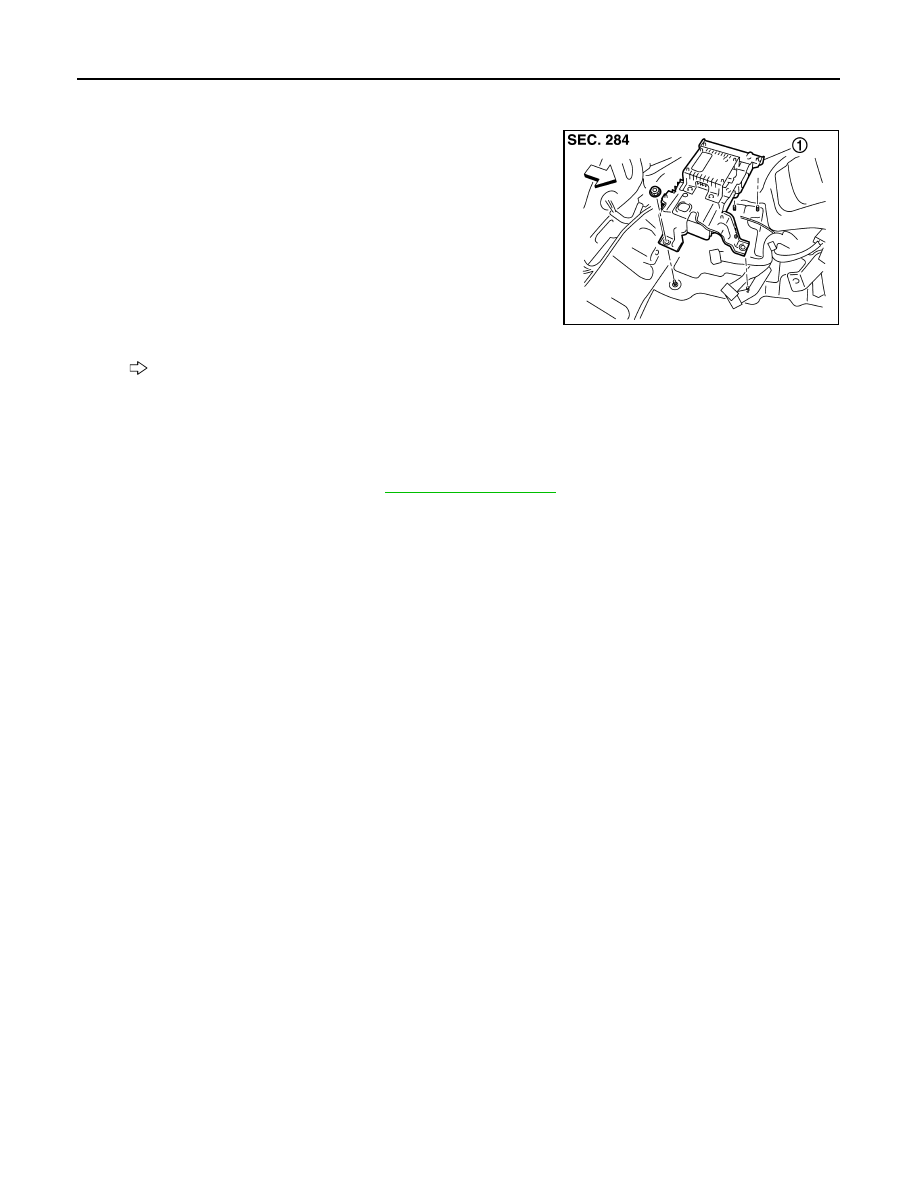

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000001558943

Removal and Installation

INFOID:0000000001558944

REMOVAL

1.

Remove trunk floor spacer LH. Refer to

INT-27, "Exploded View"

.

2.

Remove BOSE amp. from trunk room LH.

INSTALLATION

Install in the reverse order of removal.

JPNIA0485ZZ

:

Vehicle front

1.

BOSE amp.
