TRANSMISSION ASSEMBLY

TM-29

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY AND ASSEMBLY

TRANSMISSION ASSEMBLY

Exploded View

INFOID:0000000001732879

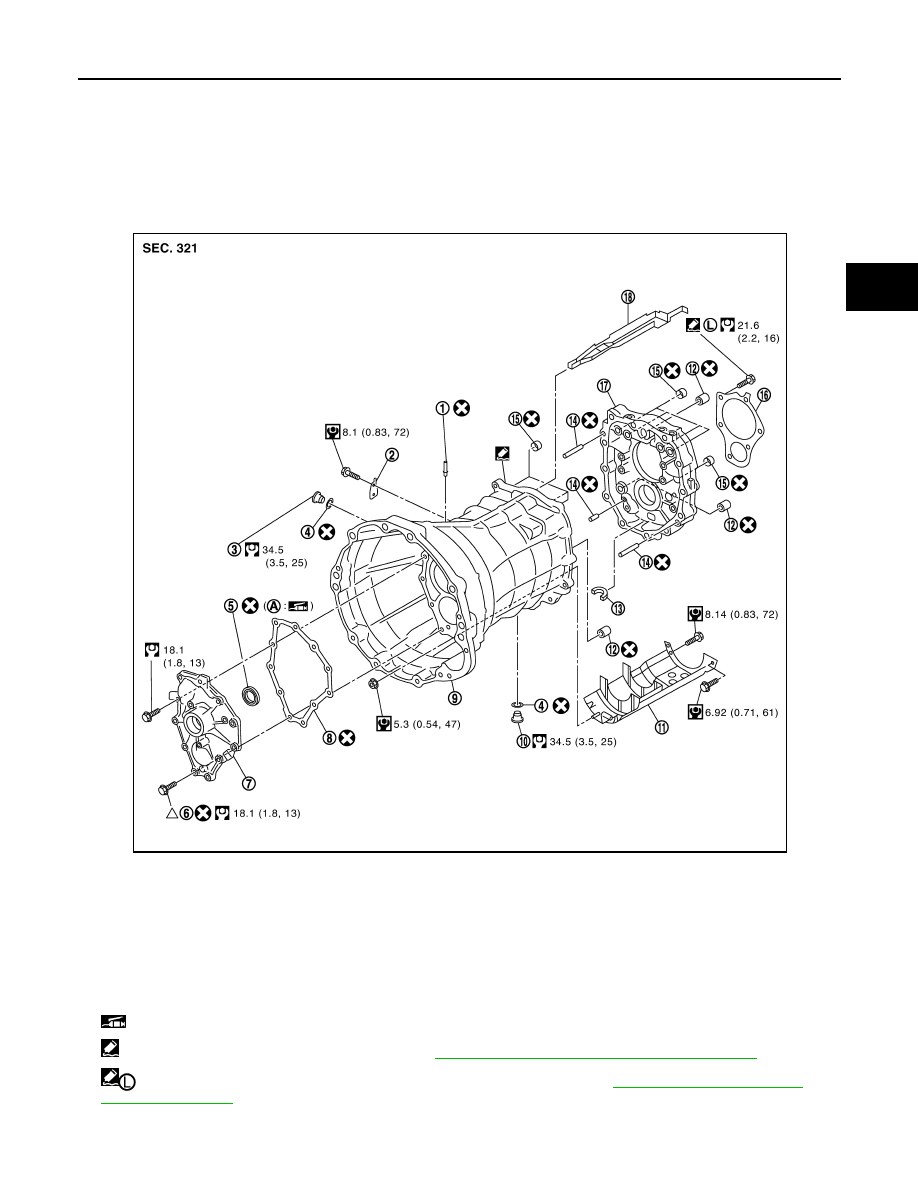

CASE AND EXTENSION

1.

Breather tube

2.

Bracket

3.

Filler plug

4.

Gasket

5.

Front cover oil seal

6.

Sealing bolt

7.

Front cover

8.

 Front cover gasket

9.

Transmission case

10. Drain plug

11.

Baffle plate

12. Sliding ball bearing

13. Magnet

14. Dowel pin

15. Bushing

16. Mainshaft bearing retainer

17. Adapter plate

18. Oil gutter

A.

Seal lip

: Apply multi-purpose grease.

: Apply Genuine Silicone RTV or an equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

: Apply Genuine Medium Strength Thread Locking Sealant or an equivalent. Refer to

GI-15, "Recommended Chemical

Products and Sealants"

.

PCIB1991E

TM-30

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

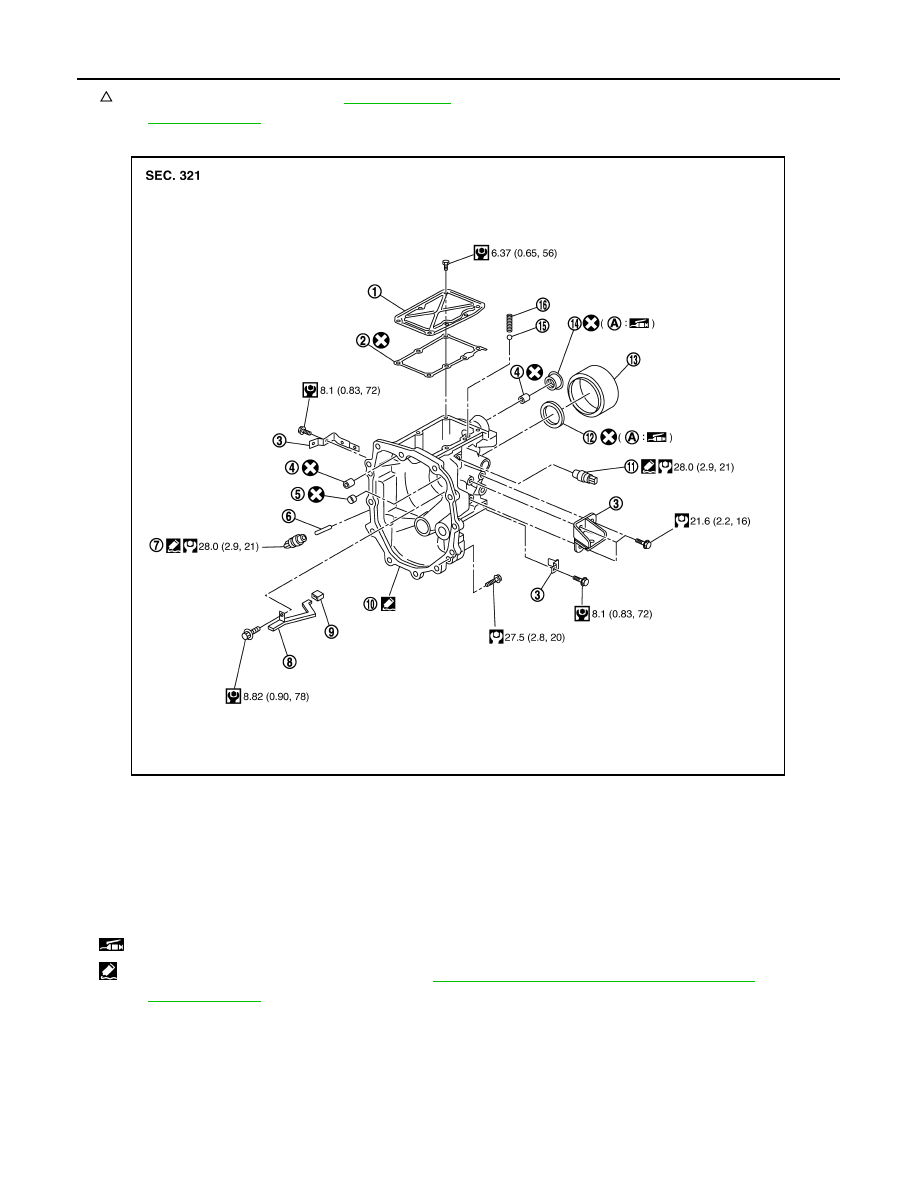

SHAFT AND GEAR

: For the bolt mounting positions, refer to

TM-43, "Assembly"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

1.

Rear extension upper cover

2.

Rear extension upper cover gasket

3.

Bracket

4.

Sliding ball bearing

5.

Bushing

6.

Plunger

7.

Park/Neutral position (PNP) switch

8.

Rear extension oil gutter

9.

Cap

10. Rear extension

11.

Back-up lamp switch

12. Rear oil seal

13. Rear extension dust cover

14. Striking rod oil seal

15. Check ball

16. Check select spring

A.

Seal lip

: Apply multi-purpose grease.

: Apply Genuine Silicone RTV or an equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0015GB

TRANSMISSION ASSEMBLY

TM-31

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

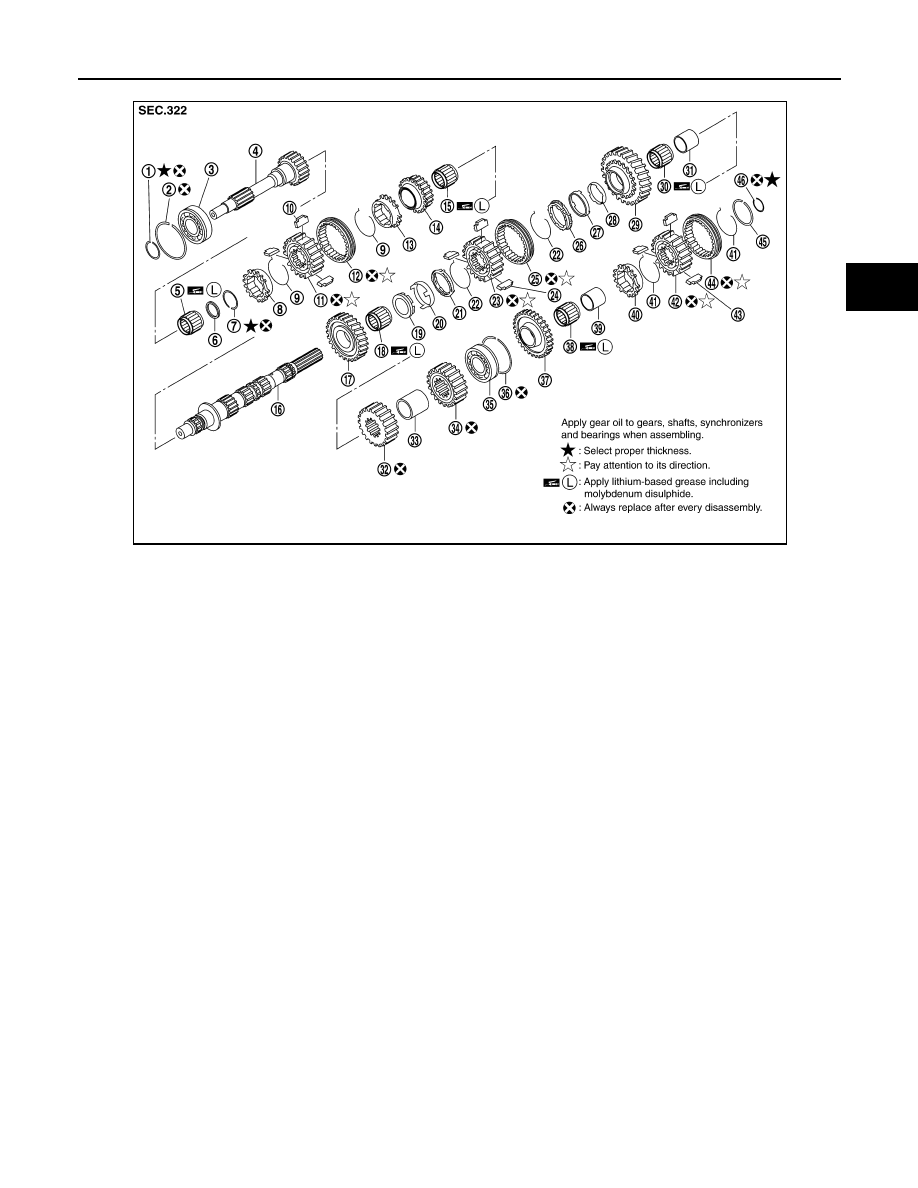

1.

Snap ring

2.

Snap ring

3.

Main drive gear bearing

4.

Main drive gear

5.

Main pilot bearing

6.

Pilot bearing spacer

7.

Snap ring

8.

5th baulk ring

9.

5th-6th spread spring

10. 5th-6th shifting insert

11.

5th-6th synchronizer hub

12. 5th-6th coupling sleeve

13. 6th baulk ring

14. 6th main gear

15. 6th needle bearing

16. Mainshaft

17. 2nd main gear

18. 2nd needle bearing

19. 2nd inner baulk ring

20. 2nd synchronizer cone

21. 2nd outer baulk ring

22. 1st-2nd spread spring

23. 1st-2nd synchronizer hub

24. 1st-2nd shifting insert

25. 1st-2nd coupling sleeve

26. 1st outer baulk ring

27. 1st synchronizer cone

28. 1st inner baulk ring

29. 1st main gear

30. 1st needle bearing

31. 1st gear bushing

32. 3rd main gear

33. 3rd-4th main spacer

34. 4th main gear

35. Mainshaft bearing

36. Snap ring

37. Reverse main gear

38. Reverse main needle bearing

39. Reverse main gear bushing

40. Reverse baulk ring

41. Reverse spread spring

42. Reverse synchronizer hub

43. Reverse shifting insert

44. Reverse coupling sleeve

45. Snap ring

46. Snap ring

PCIB1354E

TM-32

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

SHIFT FORK AND FORK ROD

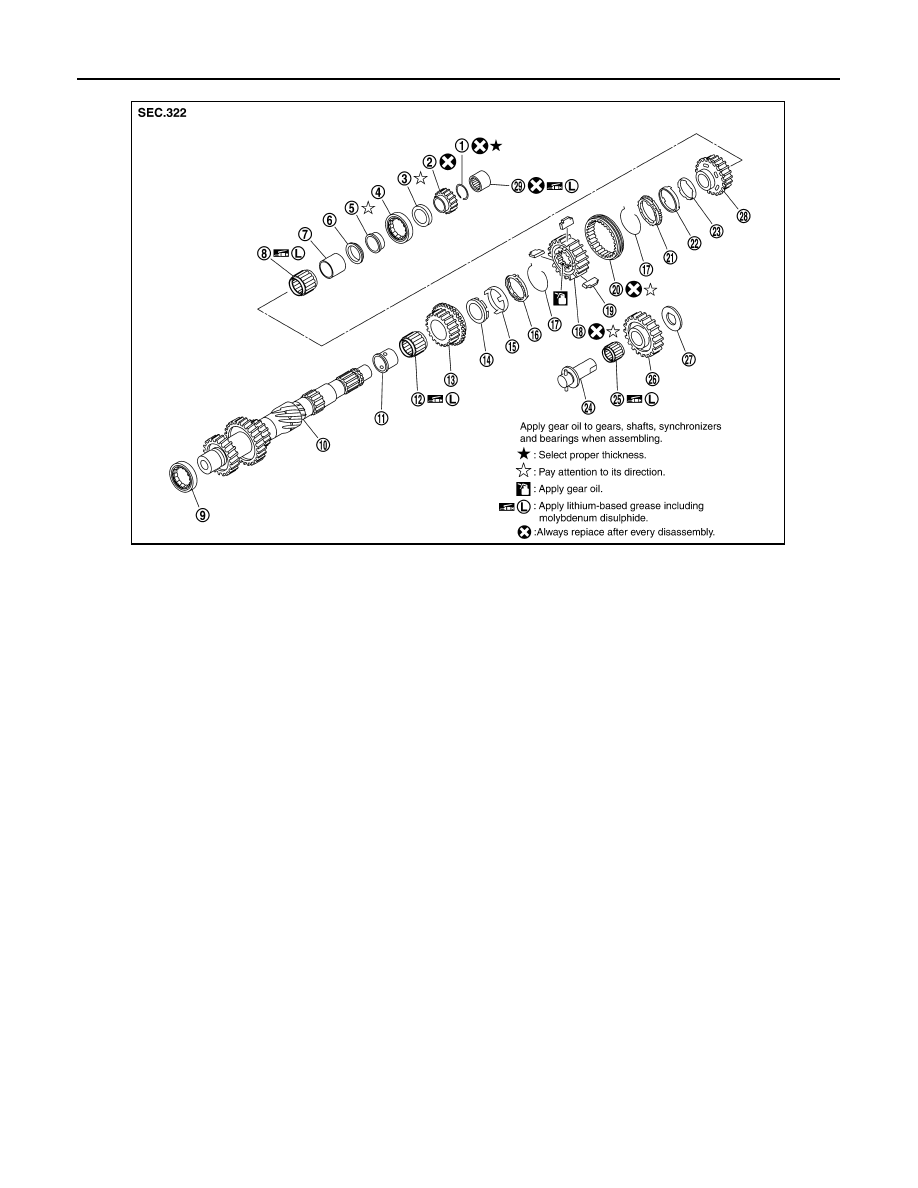

1.

Snap ring

2.

Reverse counter gear

3.

Counter rear bearing spacer

4.

Counter rear bearing

5.

Counter rear bearing inner race

6.

4th counter gear thrust washer

7.

4th gear bushing

8.

4th needle bearing

9.

Counter front bearing

10. Counter shaft

11.

3rd gear bushing

12. 3rd needle bearing

13. 3rd counter gear

14. 3rd inner baulk ring

15. 3rd synchronizer cone

16. 3rd outer baulk ring

17. 3rd-4th spread spring

18. 3rd-4th synchronizer hub

19. 3rd-4th shifting insert

20. 3rd-4th coupling sleeve

21. 4th outer baulk ring

22. 4th synchronizer cone

23. 4th inner baulk ring

24. Reverse idler shaft

25. Reverse idler needle bearing

26. Reverse idler gear

27. Reverse idler thrust washer

28. 4th counter gear

29. Counter end bearing

PCIB1355E
