SHIFT CONTROL

TM-21

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

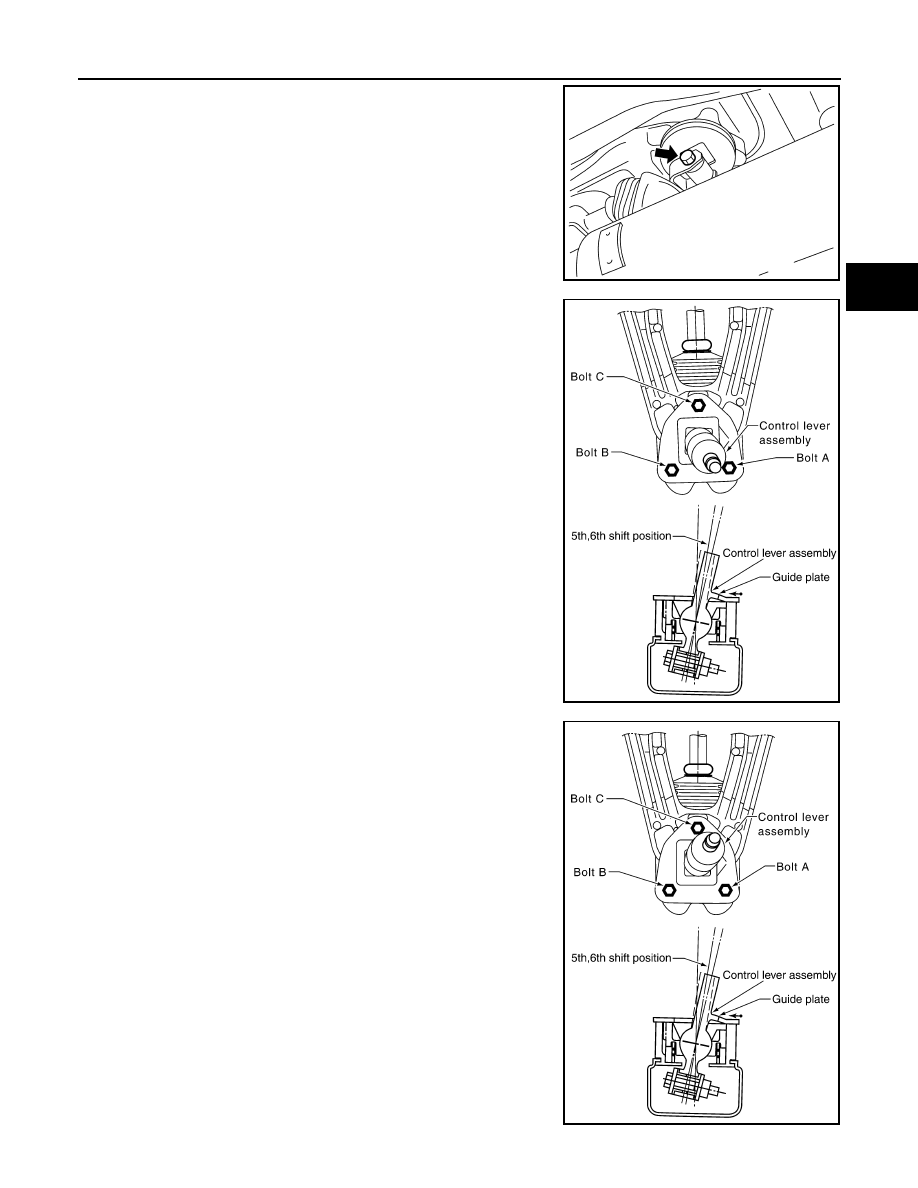

2.

Install control lever assembly to control rod and then tighten bolt
to the specified torque.

3.

Install boot to control lever housing.

CAUTION:

Fit the boot to the groove on the control lever housing.

4.

Install guide plate with the following procedure.

a.

After shifting control lever assembly into 6th gear, push it toward
reverse gear (to the right) until it comes to a stop.

b.

At the point where control lever assembly stops, bring guide
plate closer until guide plate stopper contacts control lever
assembly claw and then temporarily tighten mounting bolt A.

c.

After shifting control lever assembly into 5th gear, push it toward
reverse gear (to the right) until it comes to a stop.

d.

At the point where control lever assembly stops, bring guide
plate closer until guide plate stopper contacts control lever
assembly claw and then tighten mounting bolt C to the specified
torque.

e.

Tighten guide plate mounting bolts A and B to the specified
torque.

SCIA2561J

SCIA1665E

SCIA1666E

TM-22

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

SHIFT CONTROL

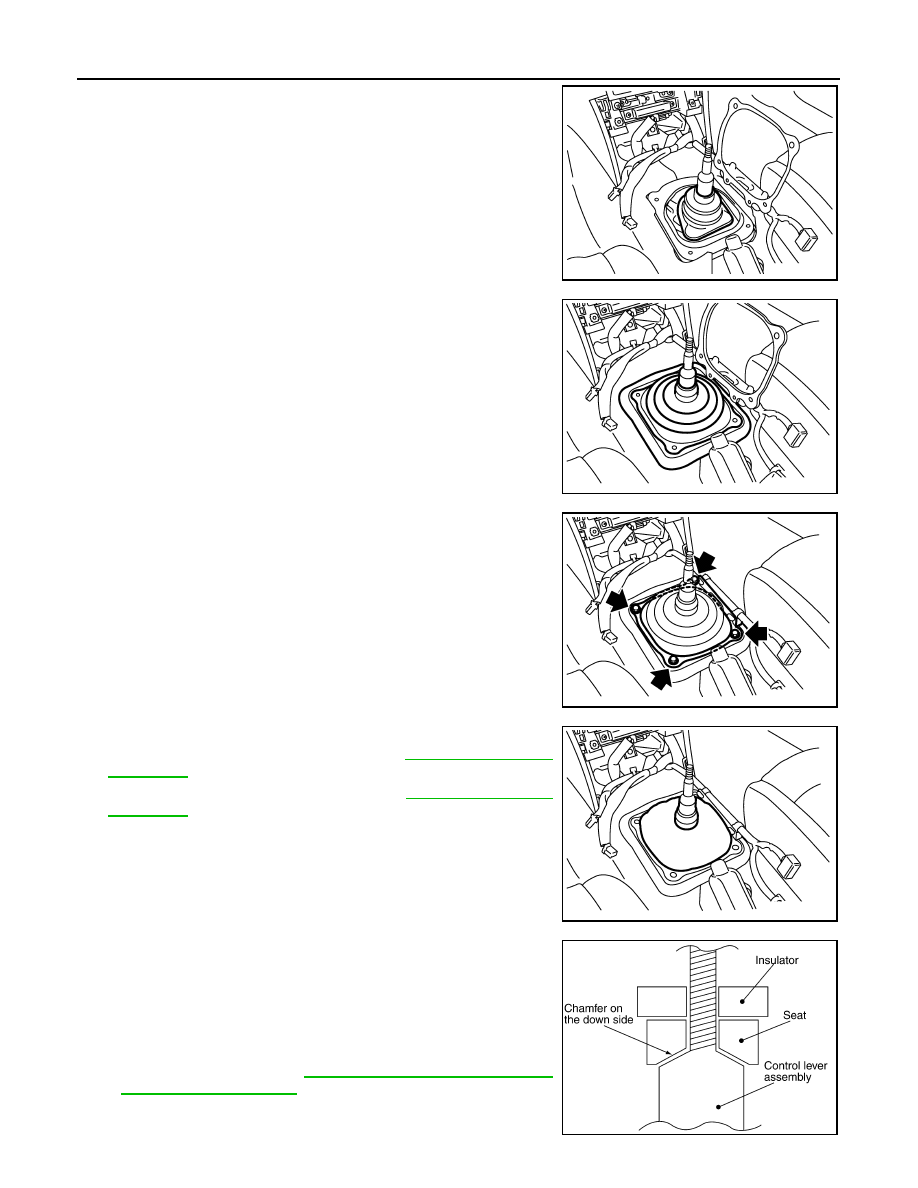

5.

Install control lever boot A.

CAUTION:

Fit the control lever boot A to the groove on the control
lever housing.

6.

Install hole insulator and control lever boot B.

7.

Install hole cover and then tighten hole cover mounting bolts to
the specified torque.

8.

Install felt.

9.

Install center console assembly. Refer to

IP-24, "Removal and

Installation"

.

10. Install console finisher assembly. Refer to

IP-24, "Removal and

Installation"

.

11. Install seat and insulator to control lever assembly.

CAUTION:

• Be careful with the orientation of seat.
• Never reuse insulator.

12. Apply thread locking sealant to control lever assembly threads

and then install shift knob.
• Use Genuine Medium Strength Thread Locking Sealant or

an equivalent. Refer to

GI-15, "Recommended Chemical

Products and Sealants"

.

CAUTION:

JPDIC0008ZZ

JPDIC0007ZZ

JPDIC0006ZZ

JPDIC0005ZZ

SCIA1771E

SHIFT CONTROL

TM-23

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Remove the remaining adhesive on control lever assembly and shift knob threads.

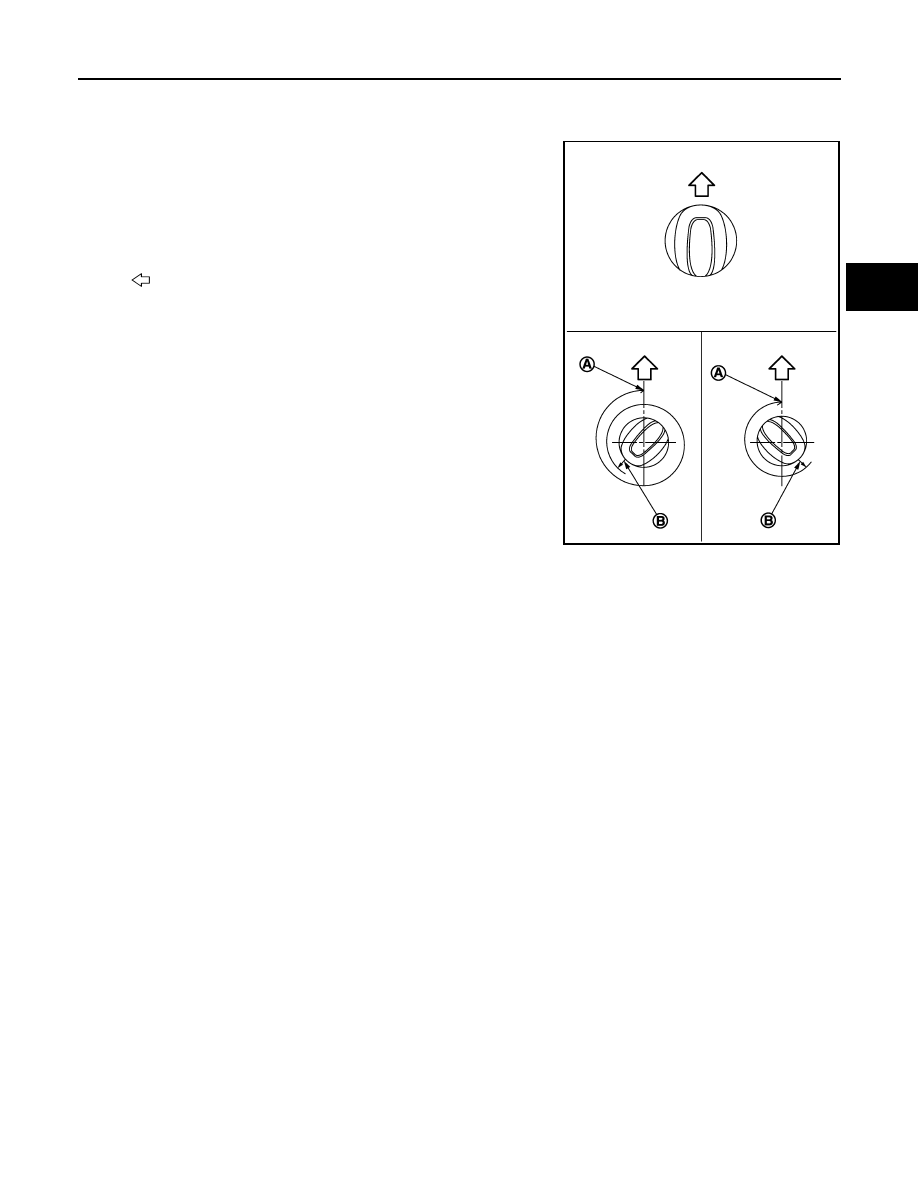

13. Put shift knob in the correct position as the following indicates.

a.

When tightening shift knob, if shift knob comes to the proper
position within 1/2 turn from the position at which resistance
begins to be felt, tighten it 1 more turn to set it in the proper posi-
tion.

b.

If it takes more than 1/2 turn from the position at which resis-
tance begins to be felt, tighten it to set it in the proper position.

CAUTION:

• Never adjust shift knob with loosing.
• After adjusting to the proper position, until 30 minutes

pass, never operate the shift intensely such as screwing
or turning shift knob to opposite direction since a locking
sealant because stiff.

Inspection

INFOID:0000000001732874

After installing, confirm the following items:
• When control lever assembly is shifted to each position, make sure there is no binding or disconnection in

each boot.

• When shifted to each position, make sure there is no noise, binding, and backlash. Especially when control

lever assembly is shifted to 5th, 6th without pressing downward, check for binding.

• When control lever assembly is shifted to 1st-2nd side and 5th-6th side, confirm control lever assembly

returns to neutral position smoothly.

• In any position other than reverse, confirm that control lever assembly can be pressed downward.
• With control lever assembly pressed downward, confirm that it can be shifted to reverse.
• When shifted from reverse to neutral position, confirm control lever assembly returns to neutral position

smoothly with spring power.

• Without control lever assembly pressed downward, confirm that it cannot be shifted to reverse.

A

: Proper position

B

: Start position on reaction force

: Vehicle front

JPDIC0010ZZ

TM-24

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

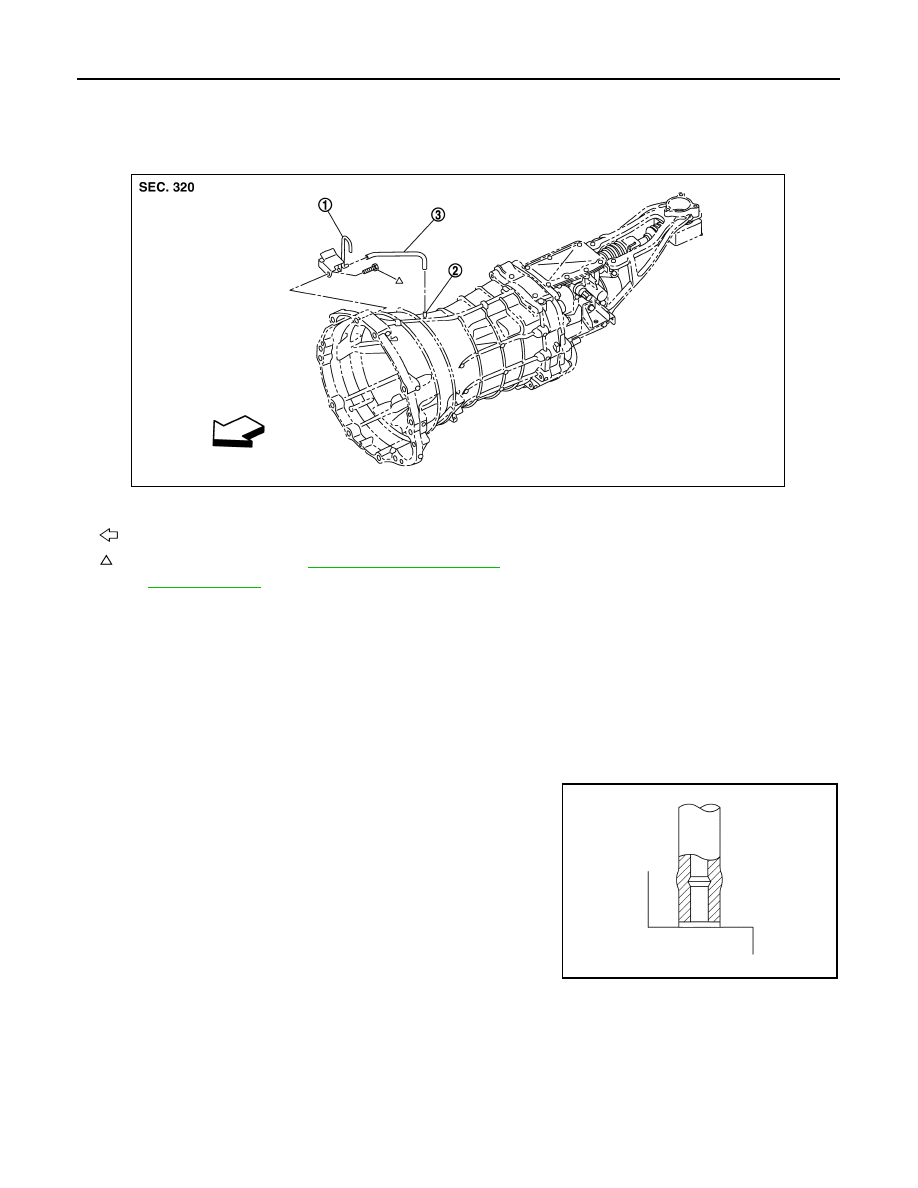

AIR BREATHER HOSE

AIR BREATHER HOSE

Exploded View

INFOID:0000000001732875

Removal and Installation

INFOID:0000000001732876

REMOVAL

Refer to the figure for removal procedure.

INSTALLATION

Refer to the figure for installation procedure.

CAUTION:

• Make sure there are no pinched or restricted areas on the air breather hose caused by bending or

winding when installing it.

• Be sure to insert air breather hose into breather tube until

hose end reaches the tube's base.

• Be sure to insert air breather hose into breather until hose

end reaches the breather's base.

1.

Air breather tube

2.

Breather tube

3.

Air breather hose

: Vehicle front

: For the tightening torque, refer to

TM-25, "Removal and Installation"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0334ZZ

SCIA2663J
