SPIRAL CABLE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-15, "Diagnosis Description"

.

SR-10

< ON-VEHICLE REPAIR >

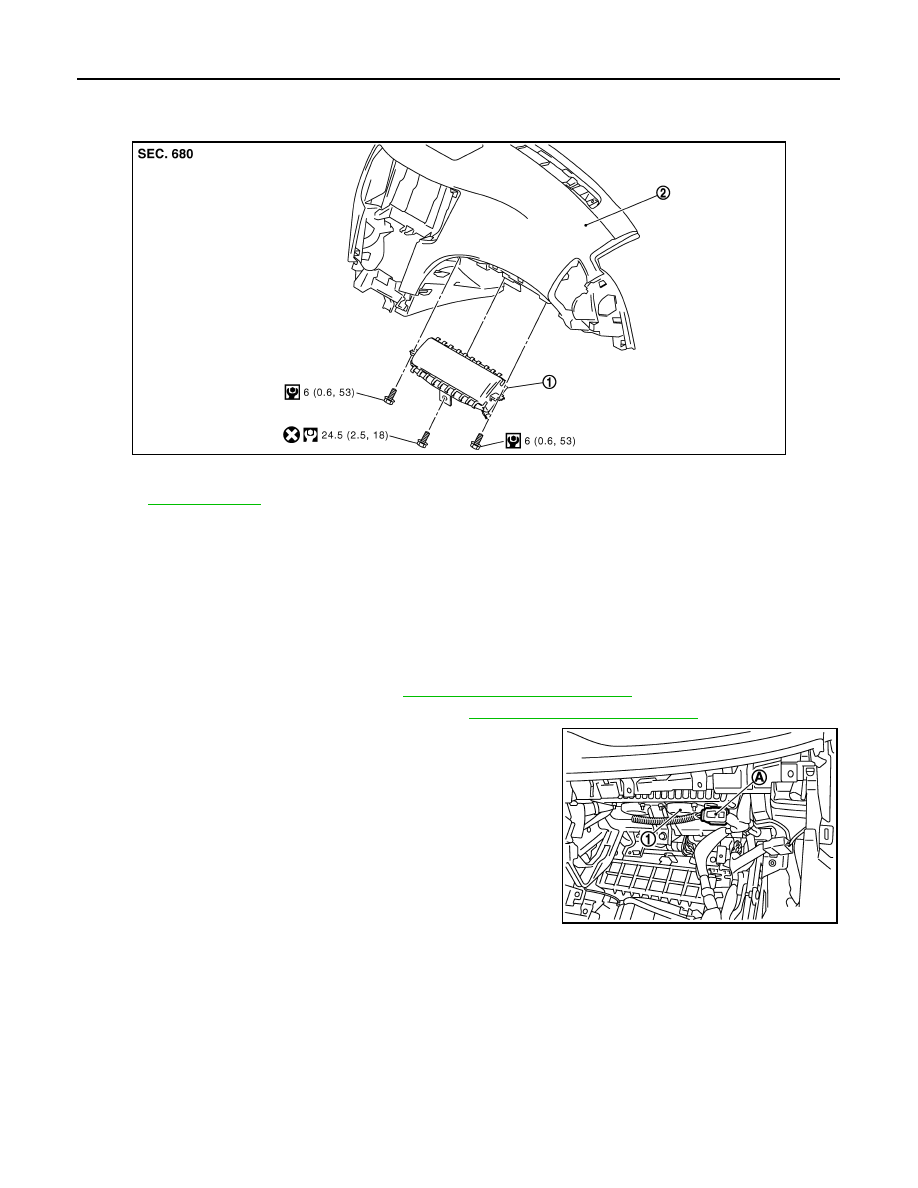

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000001694457

Removal and Installation

INFOID:0000000001694458

WARNING:

• Before servicing,  turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Always work from the side of air bag module. Do not work in front of it.
• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box assembly. Refer to

IP-12, "Removal and Installation"

.

2.

Remove the Instrument lower assist panel. Refer to

IP-12, "Removal and Installation"

.

3.

Disconnect passenger air bag module harness connector (A)
from passenger air bag module (1).

4.

Remove the passenger air bag module fixing bolt and screws.
NOTE:
The figure shows the installed front passenger air bag module. (Under view of the module installed without
glove box cover.)

JMHIA0134GB

1.

Passenger air bag modulel

2.

Instrument panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0014ZZ

FRONT PASSENGER AIR BAG MODULE

SR-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

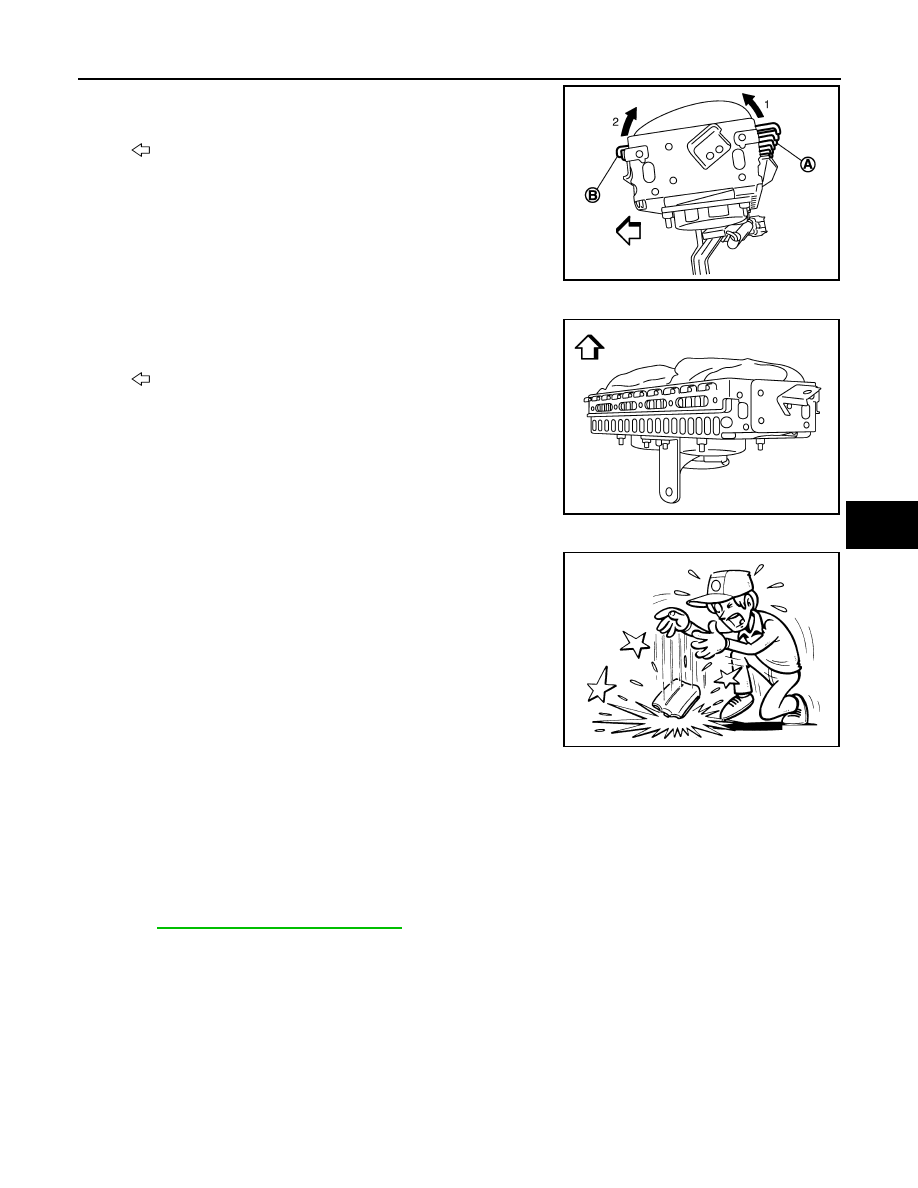

5.

Disconnect pawls (A)(B), and then remove passenger air bag
module.

CAUTION:

• Always place passenger air bag module with pad side facing

upward.

• Do not insert any foreign objects (screwdriver, etc.) into pas-

senger air bag module.

• Do not disassemble passenger air bag module.
• Do not use old fixing bolts after removal; replace with new

bolts.

• Do not expose the passenger air bag module to temperatures

exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the

passenger air bag module.

• Replace the passenger air bag module if it has been dropped

or sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not damage the harness while installing.
• In the case that a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis

function and delete the memory by CONSULT-III.

• In the case that a malfunction is still detected after the above operation, peform self-diagnosis to

repair malfunctions.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-15, "Diagnosis Description"

.

 : Vehicle front

JMHIA0016ZZ

 : Upward

JMHIA0017ZZ

JMHIA0009ZZ

SR-12

< ON-VEHICLE REPAIR >

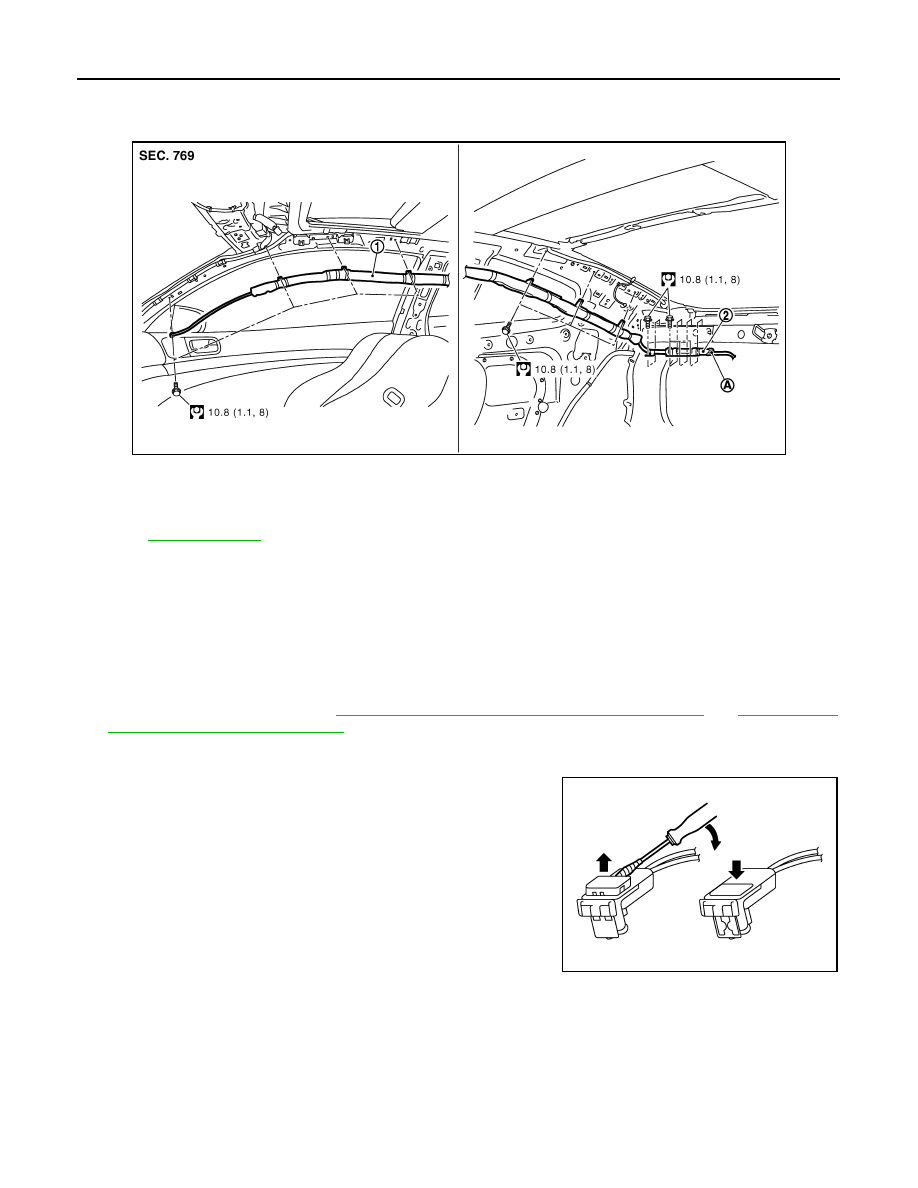

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000001694459

Removal and Installation

INFOID:0000000001694460

WARNING:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining. Refer to

INT-21, "NORMAL ROOF : Removal and Installation"

 and

INT-24, "SUN-

ROOF : Removal and Installation"

.

2.

Remove the side curtain air bag module harness connector.
NOTE:
• For installing/removing side curtain air bag module harness

connector, insert thin screwdriver wrapped in tape into notch,
lift lock and remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, check that the lock is pushed

securely into it.

3.

Remove fixing bolts, and then remove side curtain air bag module.

CAUTION:

• Do not insert any foreign objects (screwdriver, etc.) into side curtain air bag module.
• Do not disassemble side curtain air bag module.
• Do not expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the side curtain air bag module.

JMHIA0425GB

1.

Side curtain air bag

2.

Side curtain air bag inflator

A.

Side curtain air bag module harness
connector

Refer to

GI-4, "Components"

 for symbols in the figure.

PHIA0953J
