Infiniti G37 Coupe. Manual - part 1183





SR-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SR

A

B

SR

N

O

P

CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Service ......................................................................

2

Precaution for Battery Service  ..................................

2

Occupant Classification System ..............................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tools  ........................................

3

ON-VEHICLE REPAIR ..................................

4

DRIVER AIR BAG MODULE ...............................

4

Exploded View  ..........................................................

4

Removal and Installation ...........................................

4

SPIRAL CABLE  ..................................................

7

Exploded View  ..........................................................

7

Removal and Installation ...........................................

7

FRONT PASSENGER AIR BAG MODULE  .......

10

Exploded View .........................................................

10

Removal and Installation  .........................................

10

SIDE CURTAIN AIR BAG MODULE  ................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

CRASH ZONE SENSOR ...................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

SIDE AIR BAG (SATELLITE) SENSOR  ...........

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

DIAGNOSIS SENSOR UNIT  .............................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

FRONT SEAT BELT PRE-TENSIONER  ...........

18

Removal and Installation  .........................................

18

OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................

19

Removal and Installation  .........................................

19

SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001694781

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Service

INFOID:0000000001683237

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
elapsed.

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.

Precaution for Battery Service

INFOID:0000000002912446

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Occupant Classification System

INFOID:0000000001683238

• Replace occupant classification system control unit and passenger front seat cushion as an assembly.

Refer to

SE-152, "Removal and Installation"

.

PREPARATION

SR-3

< PREPARATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PREPARATION

PREPARATION

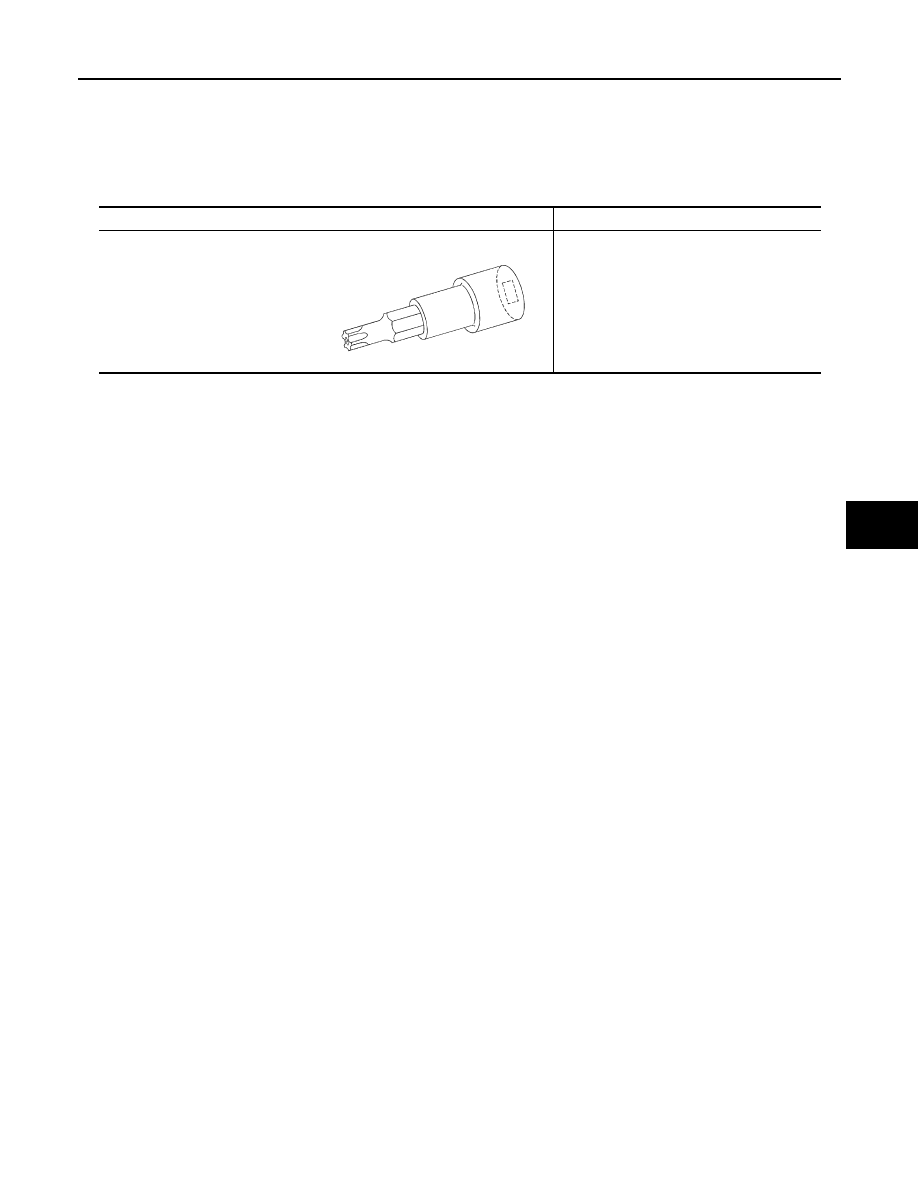

Commercial Service Tools

INFOID:0000000001694452

Tool name

Description

Tamper resistant TORX bit

Removal tool of driver air bag module and/or
Diagnosis sensor unit

S-NT757

SR-4

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

ON-VEHICLE REPAIR

DRIVER AIR BAG MODULE

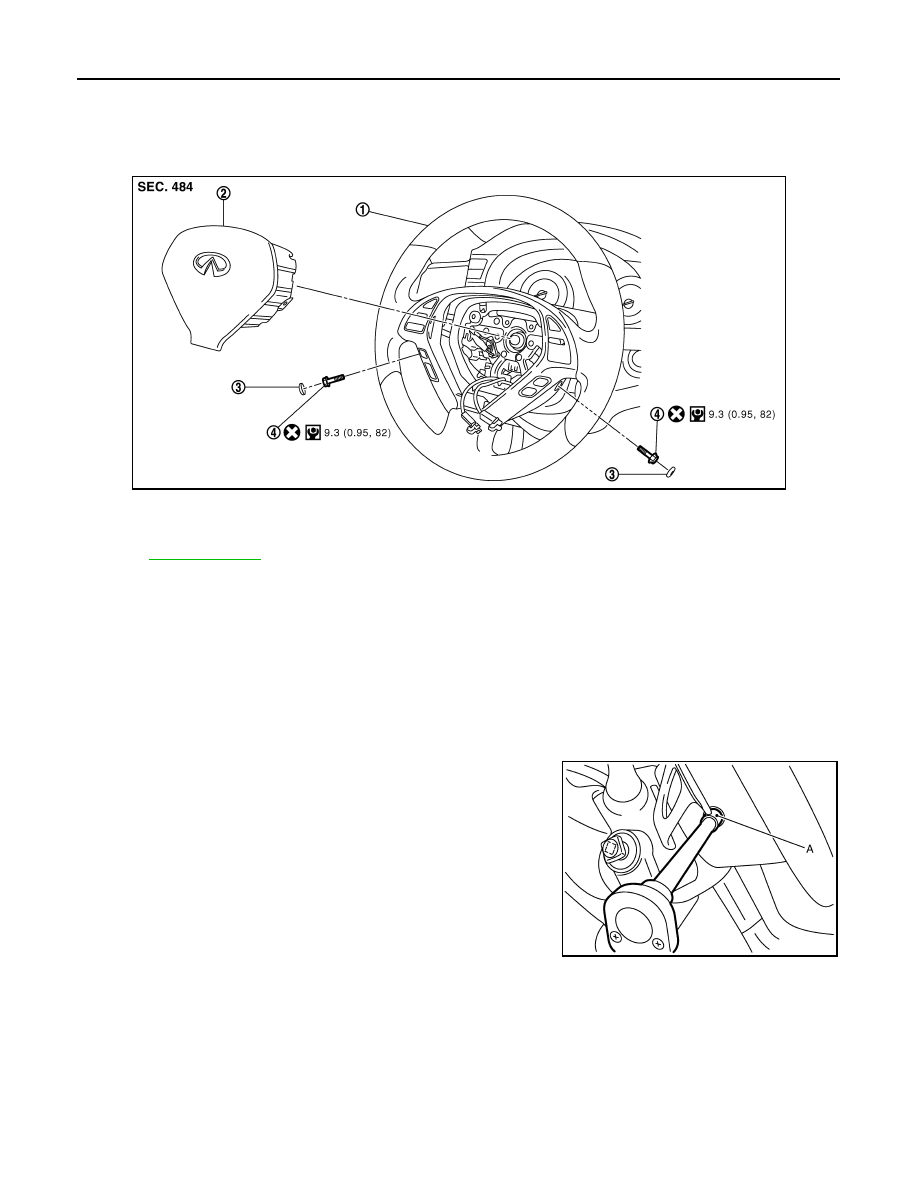

Exploded View

INFOID:0000000001694453

Removal and Installation

INFOID:0000000001694454

WARNING:

• Before servicing,  turn ignition switch OFF, disconnect both battery terminals and wait at

 least 3 minutes.

• Always work from the side of air bag module. Do not work in front of it.
• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the side lids (left / right).

2.

Using Tamper resistant TORX bit (A), remove the TORX bolt on
left/right.

3.

Pull out driver air bag module assembly.

JMHIA0368GB

1.

Steering wheel

2.

Driver air bag module

3.

Side lid (left/right)

4.

TORX bolt (left/right)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0006ZZ
