DRIVER AIR BAG MODULE

SR-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

4.

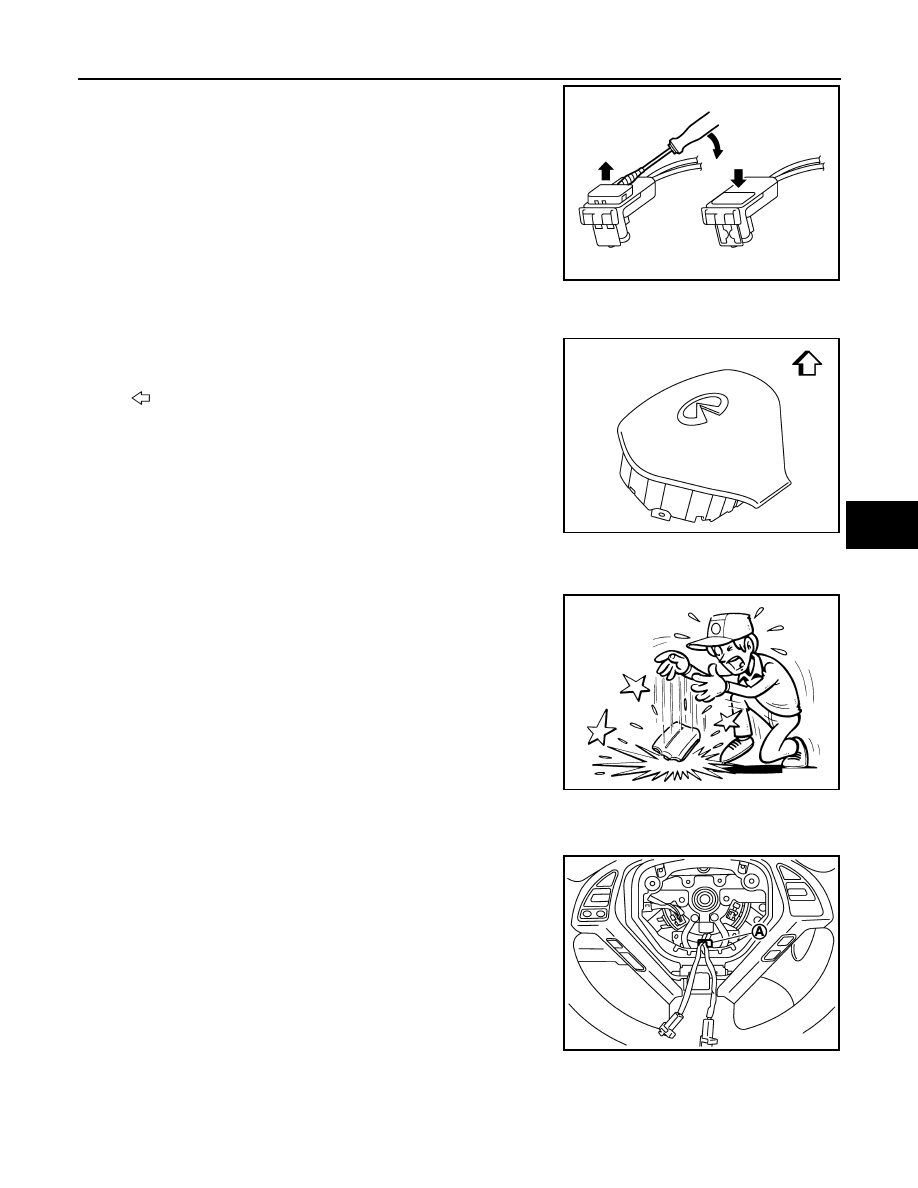

Disconnect driver air bag module harness connector.
NOTE:
• For installing/removing driver air bag module harness connec-

tor, insert thin screwdriver wrapped in tape into notch, lift lock
and remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, check that the lock is pushed

securely into it.

5.

Remove the driver air bag module.

CAUTION:

• Always place driver air bag module with pad side facing

upward.

• Do not insert any foreign objects (screwdriver, etc.) into driver

air bag module.

• Do not disassemble driver air bag module.
• Do not use old TORX bolts after removal; replace with new

bolts.

• Do not expose the driver air bag module to temperatures

exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the

driver air bag module.

• Replace the driver air bag module if it has been dropped or

sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Fix the driver air bag module harness to the harness fixing

hook (A).

• Do not damage the harness while installing.
• Tighten the TORX bolts after completely adjusting the centers

of fixing holes on the driver air bag module side and the steer-
ing wheel side. If the holes are misaligned, the bolt threads
are damaged and the module is not installed securely.

• In the case that a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis

function and delete the memory by CONSULT-III.

• In the case that a malfunction is still detected after the above operation, perform self-diagnosis to

repair malfunctions.

PHIA0953J

 : Upward

JMHIA0007ZZ

JMHIA0009ZZ

JMHIA0008ZZ

SR-6

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-15, "Diagnosis Description"

.

SPIRAL CABLE

SR-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

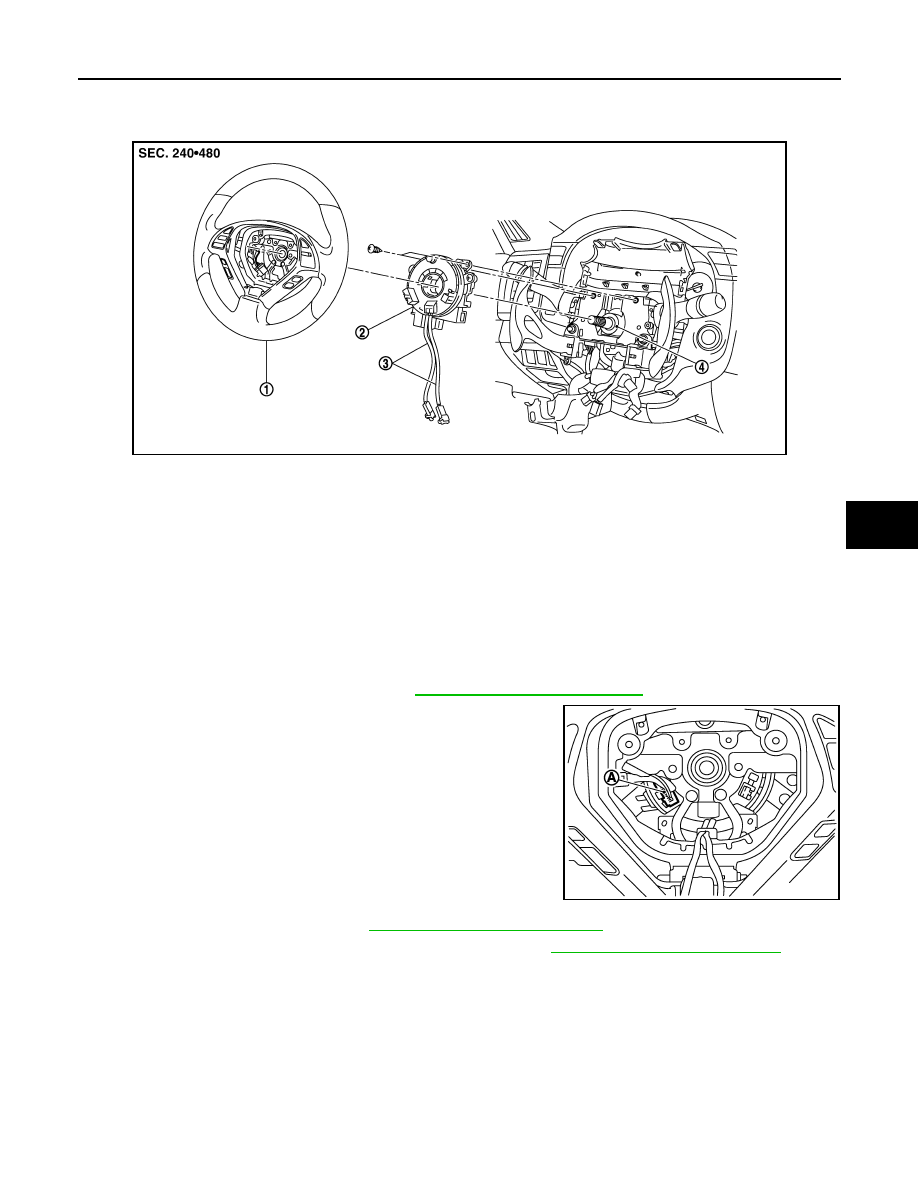

SPIRAL CABLE

Exploded View

INFOID:0000000001694455

Removal and Installation

INFOID:0000000001694456

WARNING:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-4, "Removal and Installation"

.

2.

Disconnect steering horn switch harness connector (A).

3.

Remove the steering wheel. Refer to

ST-15, "Removal and Installation"

.

4.

Remove the steering column cover (upper/lower/side). Refer to

IP-12, "Removal and Installation"

.

5.

Remove the spiral cable fixing screws.

6.

Pull out forward the spiral cable and steering angle sensor.

JMHIA0010ZZ

1.

Steering wheel

2.

Spiral cable

3.

Driver air bag module harness con-
nector

4.

Steering column assembly

JMHIA0011ZZ

SR-8

< ON-VEHICLE REPAIR >

SPIRAL CABLE

7.

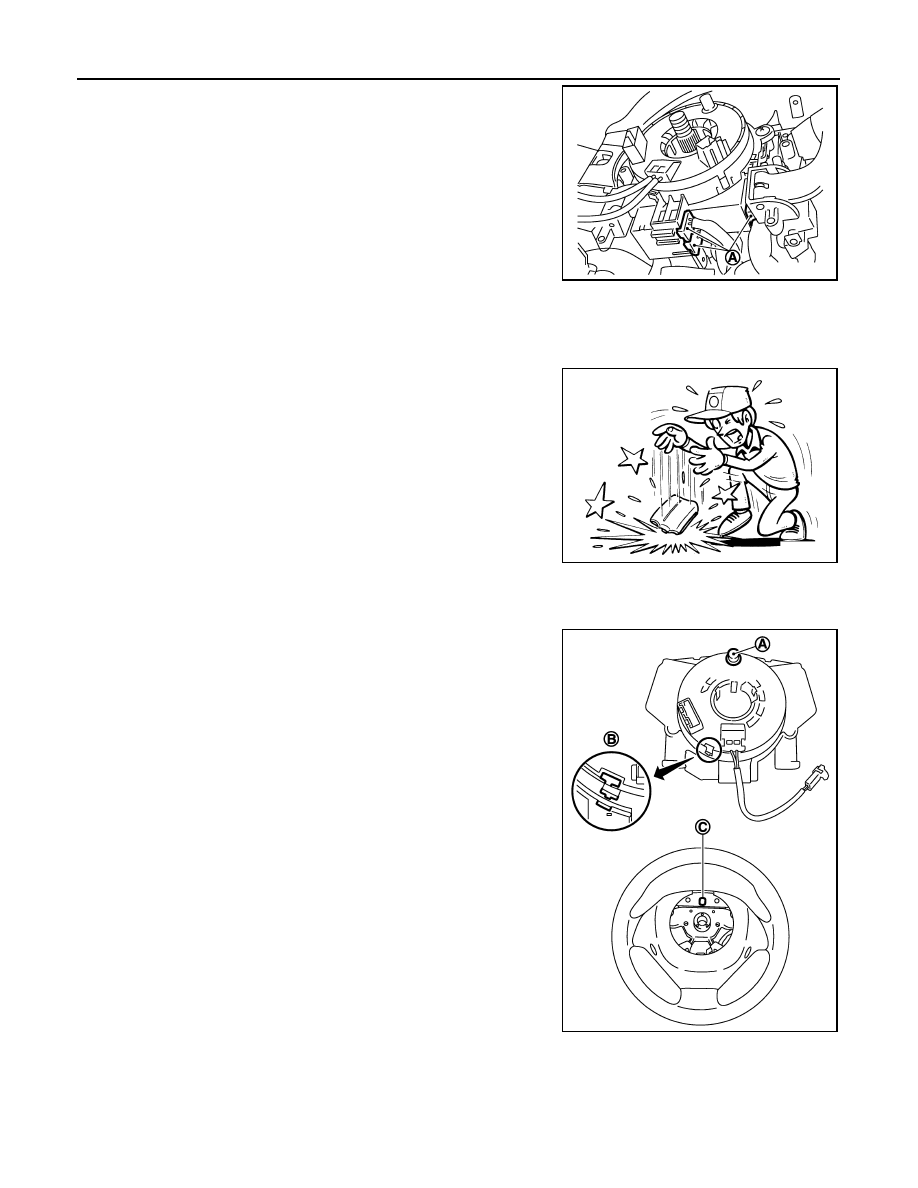

Disconnect spiral cable body side harness connectors (A).
NOTE:
Disconnect spiral cable body side harness connector after
removing the spiral cable.

CAUTION:

• Do not disassemble the spiral cable.
• Do not apply lubricant to the spiral cable.
• Do not allow oil, grease, detergent or water to come in contact with the spiral cable.
• Do not impact the spiral cable by dropping, etc. Replace the

spiral cable if it has been dropped or sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as follows.

• Turn carefully the spiral cable clockwise to the end position.

Then turn it counterclockwise (about  2 and a half turns) and
stop turning at the point (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Do not over turn the spiral cable or go beyond number of

turns required. (These will cause the cable to snap.)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• In the case that a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis

function and delete the memory by CONSULT-III.

• In the case that a malfunction is still detected after the above operation, perform self-diagnosis to

repair malfunctions.

JMHIA0012ZZ

JMHIA0009ZZ

JMHIA0013ZZ
