OUTSIDE KEY ANTENNA

DLK-221

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000000961295

Refer to

DLK-207, "FRONT DOOR LOCK : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000000961296

REMOVAL

Remove the front outside handle LH. Refer to

DLK-207, "FRONT DOOR LOCK : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000000961297

Refer to

DLK-207, "FRONT DOOR LOCK : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000000961298

REMOVAL

Remove the front outside handle RH. Refer to

DLK-207, "FRONT DOOR LOCK : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Exploded View

INFOID:0000000000961299

Refer to

EXT-13, "Exploded View"

.

REAR BUMPER : Removal and Installation

INFOID:0000000000961300

REMOVAL

1.

Remove the rear bumper. Refer to

EXT-14, "Removal and Installation"

.

2.

Remove the outside key antenna (rear bumper) mounting nuts
(A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0170ZZ

DLK-222

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000000961301

Refer to

DLK-199, "Exploded View"

.

Removal and Installation

INFOID:0000000000961302

REMOVAL

1.

Remove the hood seal assembly (side). Refer to

DLK-199, "Removal and Installation"

.

2.

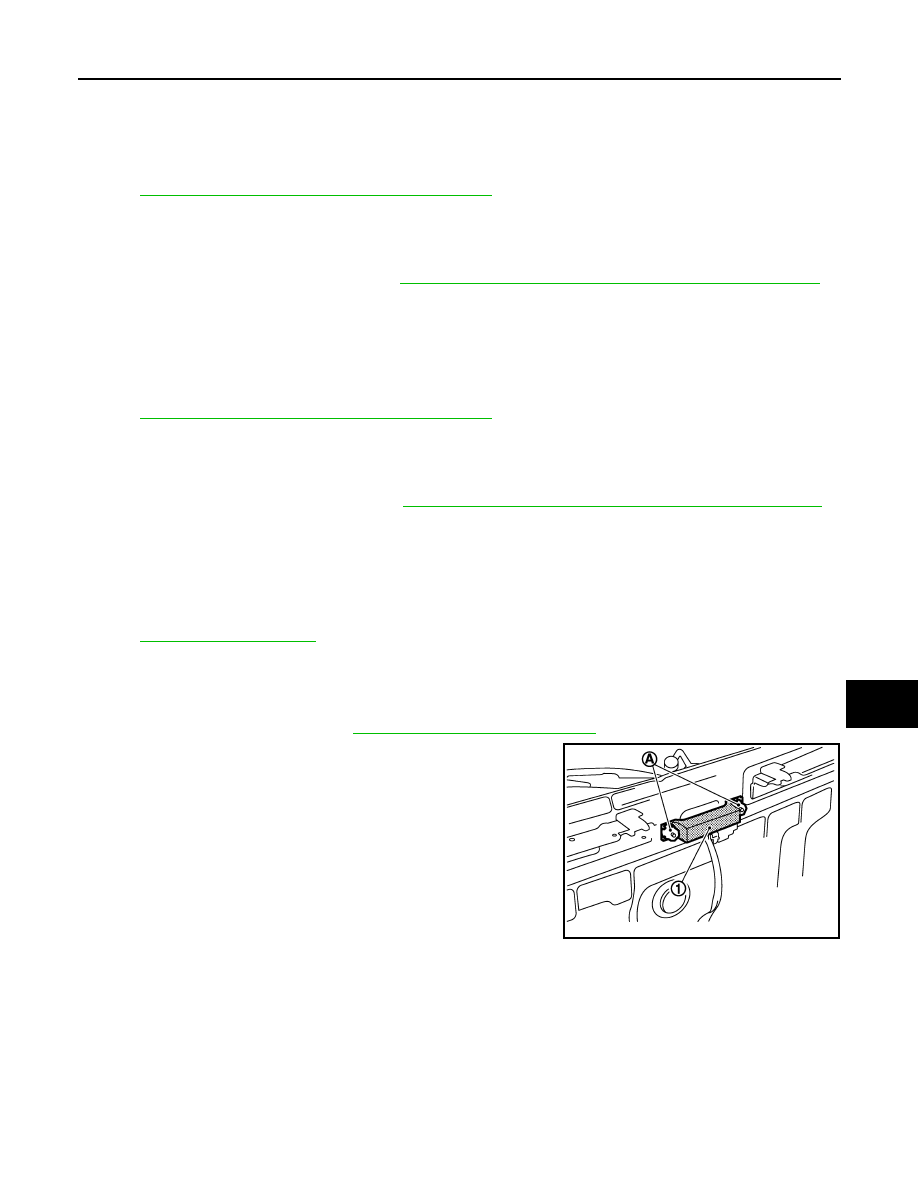

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0169ZZ

KEY SLOT

DLK-223

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY SLOT

Exploded View

INFOID:0000000000961303

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000000961304

REMOVAL

1.

Remove the instrument driver lower panel (2). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect key slot connector.

3.

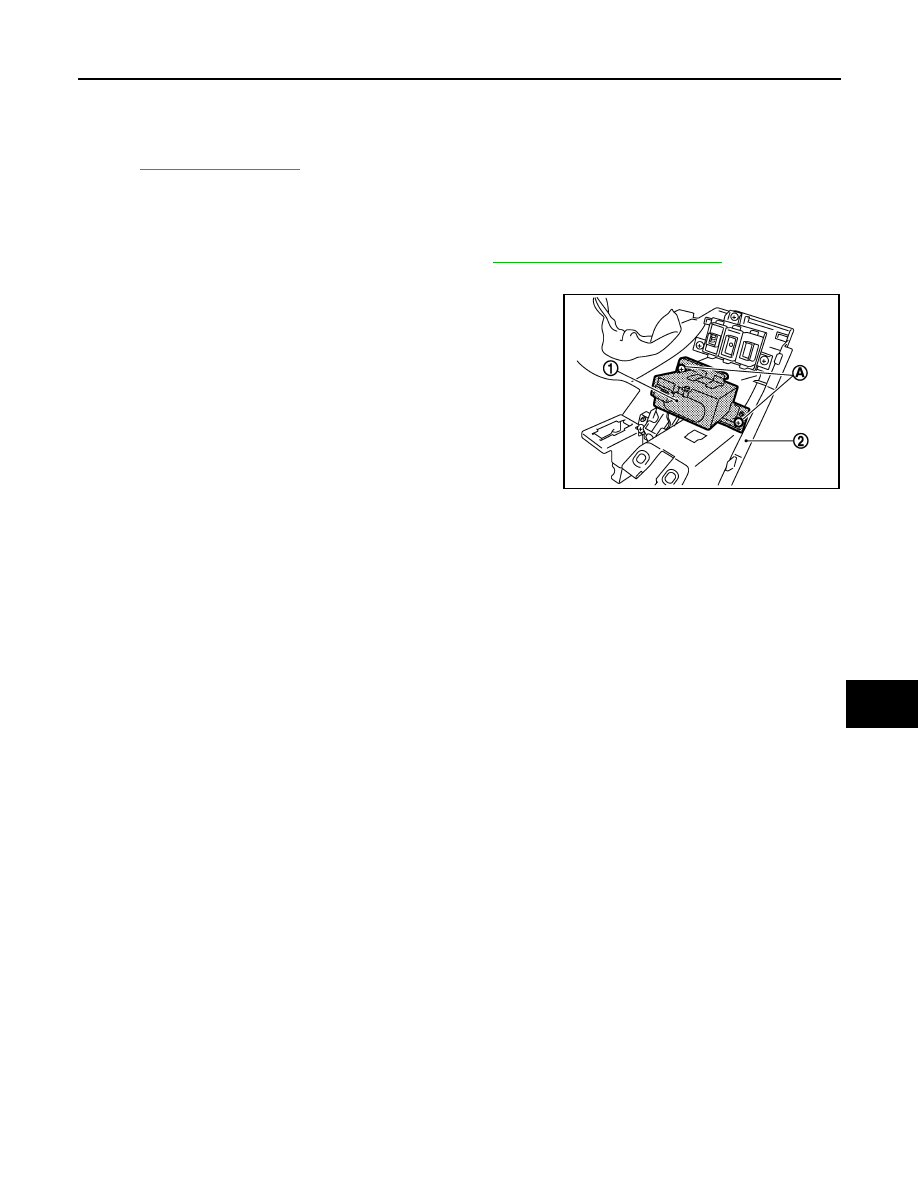

Remove the key slot mounting screw (A), and then remove key
slot (1) from instrument driver lower panel (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0146ZZ

DLK-224

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

TRUNK OPENER REQUEST SWITCH

TRUNK OPENER REQUEST SWITCH

Exploded View

INFOID:0000000000961305

Refer to

EXT-35, "Exploded View"

.

Removal and Installation

INFOID:0000000000961306

REMOVAL

1.

Remove the trunk lid finisher outer (1). Refer to

EXT-35, "Removal and Installation"

.

2.

Remove the inner bracket mounting screw (A), and then remove
inner bracket (2) from trunk lid finisher outer (1).

3.

Remove the trunk lid request switch mounting screw (B), and then remove trunk lid request switch (3)
from inner bracket (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0149ZZ
