Infiniti G35 (V35) Sedan. Manual - part 389





TRUNK LID

DLK-217

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID WEATHERSTRIP : Removal and Installation

INFOID:0000000000961287

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

After removal, do not pull strongly on the weather-strip.

INSTALLATION

1.

Align the weather-strip seam (upper) with mark of the body panel and weather-strip onto the vehicle.

2.

Align the weather-strip seem (lower) with center of the striker and weather-strip onto the vehicle.

3.

After installation, pull the weather-strip gently to ensure that there is no loose section.
NOTE:
Check that the weather-strip fits tightly at each corner and trunk rear plate.

1.

Weather-strip

A.

Seam (upper)

B.

Seam (lower)

JMKIA0046ZZ

DLK-218

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Removal and Installation

INFOID:0000000000961288

REMOVAL

1.

Remove the door switch mounting bolt (A), and then remove
door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0171ZZ

INSIDE KEY ANTENNA

DLK-219

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

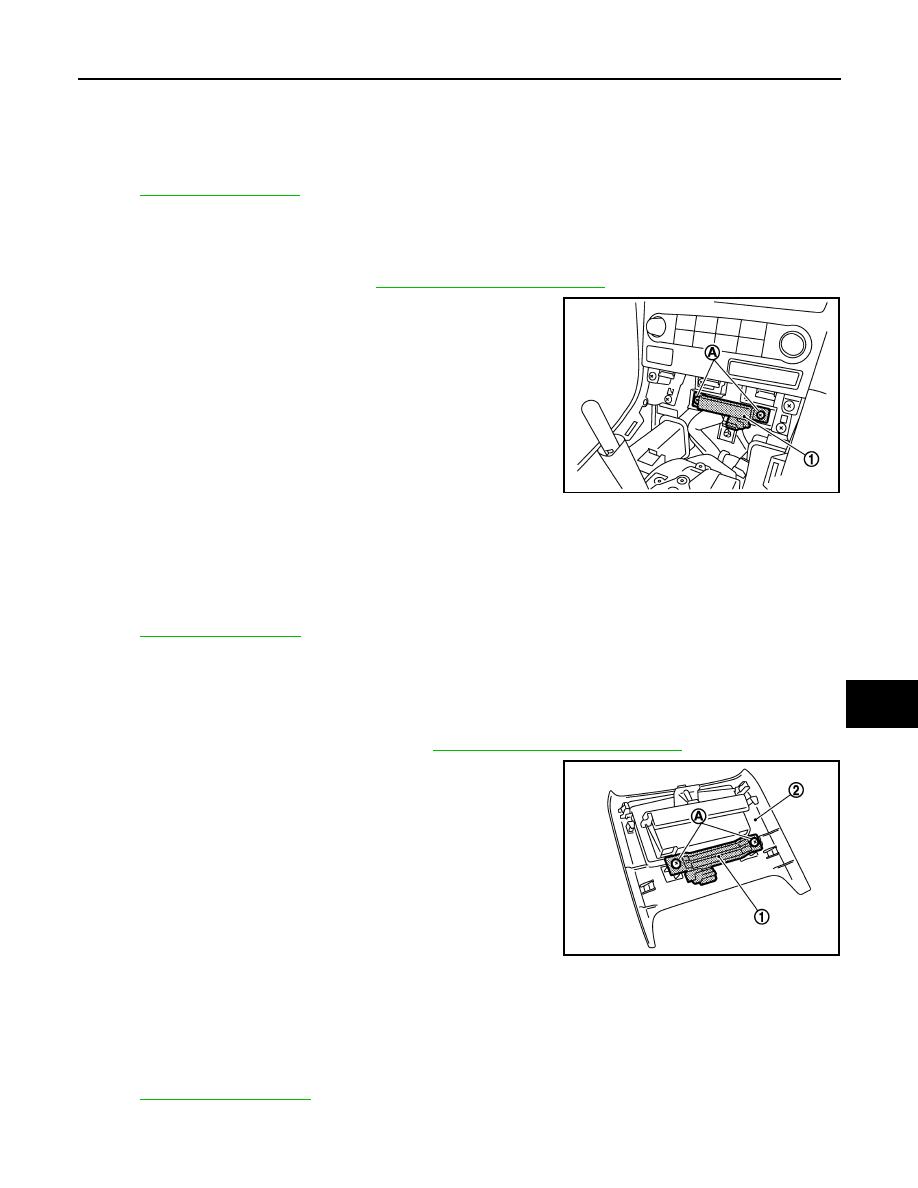

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000000961289

Refer to

IP-11, "Exploded View"

.

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000000961290

REMOVAL

1.

Remove the console finisher. Refer to

IP-12, "Removal and Installation"

.

2.

Remove the key slot mounting screw (A), and then remove
inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

CONSOLE : Exploded View

INFOID:0000000000961291

Refer to

IP-22, "Exploded View"

.

CONSOLE : Removal and Installation

INFOID:0000000000961292

REMOVAL

1.

Remove the console ashtray.

2.

Remove the console rear finisher (2). Refer to

IP-26, "Disassembly and Assembly"

.

3.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1) from console rear fin-
isher (2).

INSTALLATION

Install in the reverse order of removal.

TRUNK ROOM

TRUNK ROOM : Exploded View

INFOID:0000000000961293

Refer to

INT-26, "Exploded View"

.

TRUNK ROOM : Removal and Installation

INFOID:0000000000961294

JMKIA0147ZZ

JMKIA0148ZZ

DLK-220

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

REMOVAL

1.

Remove the trunk trim. Refer to

INT-27, "Removal and Installation"

.

2.

Remove the inside key antenna (trunk room) mounting nuts (A),
and then remove inside key antenna (trunk room) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0219ZZ
