Infiniti G35 (V35) Sedan. Manual - part 1427





VTL-46

< ON-VEHICLE REPAIR >

DUCTS AND GRILLES

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILATOR
DUCT : Removal and Installation

INFOID:0000000000959819

REMOVAL

1.

Remove instrument panel & pad. Refer to

IP-12, "Removal and Installation"

.

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster duct (front pillar gar-
nish) (left)

5.

Side defroster nozzle (left)

6.

Ventilator duct

7.

Front defroster grille (left)

8.

Instrument panel & pad

9.

Side ventilator grille (left)

10. Center ventilator grille (cluster lid D)

11. Side ventilator grille (right)

12. Front defroster grille (right)

JSIIA0018ZZ

DUCTS AND GRILLES

VTL-47

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

2.

Remove mounting screw (A).

3.

Remove clips (B), and then remove defroster nozzle (1), side defroster nozzle (2) and ventilator duct (3).

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER DUCTS

SIDE DEFROSTER DUCTS : Exploded View

INFOID:0000000000959820

JSIIA0043ZZ

JSIIA0018ZZ

VTL-48

< ON-VEHICLE REPAIR >

DUCTS AND GRILLES

SIDE DEFROSTER DUCTS : Removal and Installation

INFOID:0000000000959821

REMOVAL

Remove front pillar garnishes Refer to

INT-13, "Removal and Installation"

.

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR GRILLE

REAR VENTILATOR GRILLE : Exploded View

INFOID:0000000000959822

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000000959823

REMOVAL

Remove console lid assembly. Refer to

IP-26, "Disassembly and Assembly"

.

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR DUCT 2

REAR VENTILATOR DUCT 2 : Exploded View

INFOID:0000000000959824

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster duct (front pillar gar-
nish) (left)

5.

Side defroster nozzle (left)

6.

Ventilator duct

7.

Front defroster grille (left)

8.

Instrument panel & pad

9.

Side ventilator grille (left)

10. Center ventilator grille (cluster lid D)

11. Side ventilator grille (right)

12. Front defroster grille (right)

1.

Rear floor duct 1 (without rear venti-
lator)

2.

Rear floor duct 2 (left)

3.

Rear floor duct 2 (right)

4.

Rear floor duct 1& rear ventilator
duct 1

5.

Rear ventilator duct 2

6.

Console mask

7.

Rear ventilator grille (Console lid as-
sembly)

A.

With rear ventilator

JSIIA0019ZZ

DUCTS AND GRILLES

VTL-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

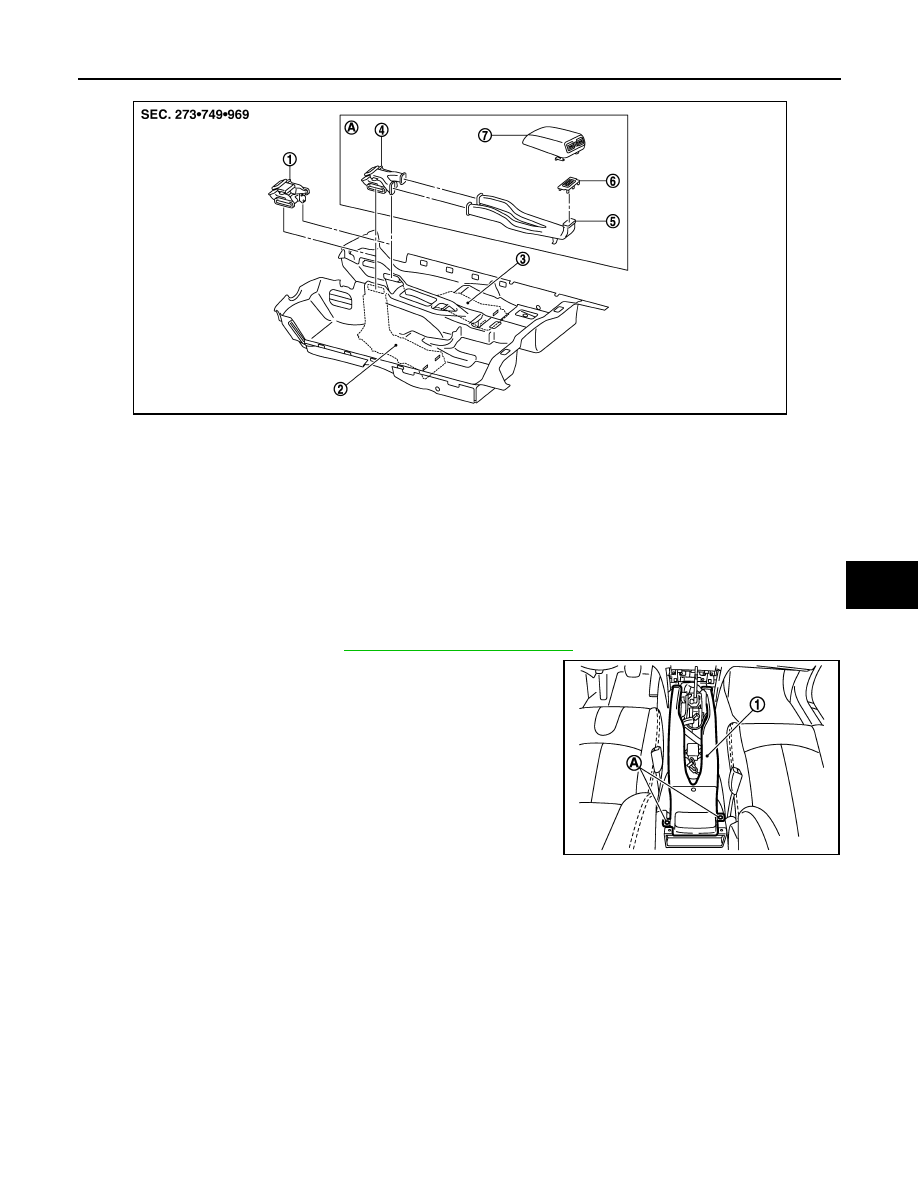

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000000959825

REMOVAL

1.

Remove center console. Refer to

IP-12, "Removal and Installation"

.

2.

Remove mounting screws (A), and then remove rear ventilator
duct 2 (1).

INSTALLATION

Installation is basically the reverse order of removal.

FOOT GRILLES

FOOT GRILLES : Exploded View

INFOID:0000000000959826

1.

Rear floor duct 1 (without rear venti-
lator)

2.

Rear floor duct 2 (left)

3.

Rear floor duct 2 (right)

4.

Rear floor duct 1& rear ventilator
duct 1

5.

Rear ventilator duct 2

6.

Console mask

7.

Rear ventilator grille (Console lid as-
sembly)

A.

With rear ventilator

JSIIA0019ZZ

JSIIA0085ZZ
