MODE DOOR MOTOR

MODE DOOR MOTOR

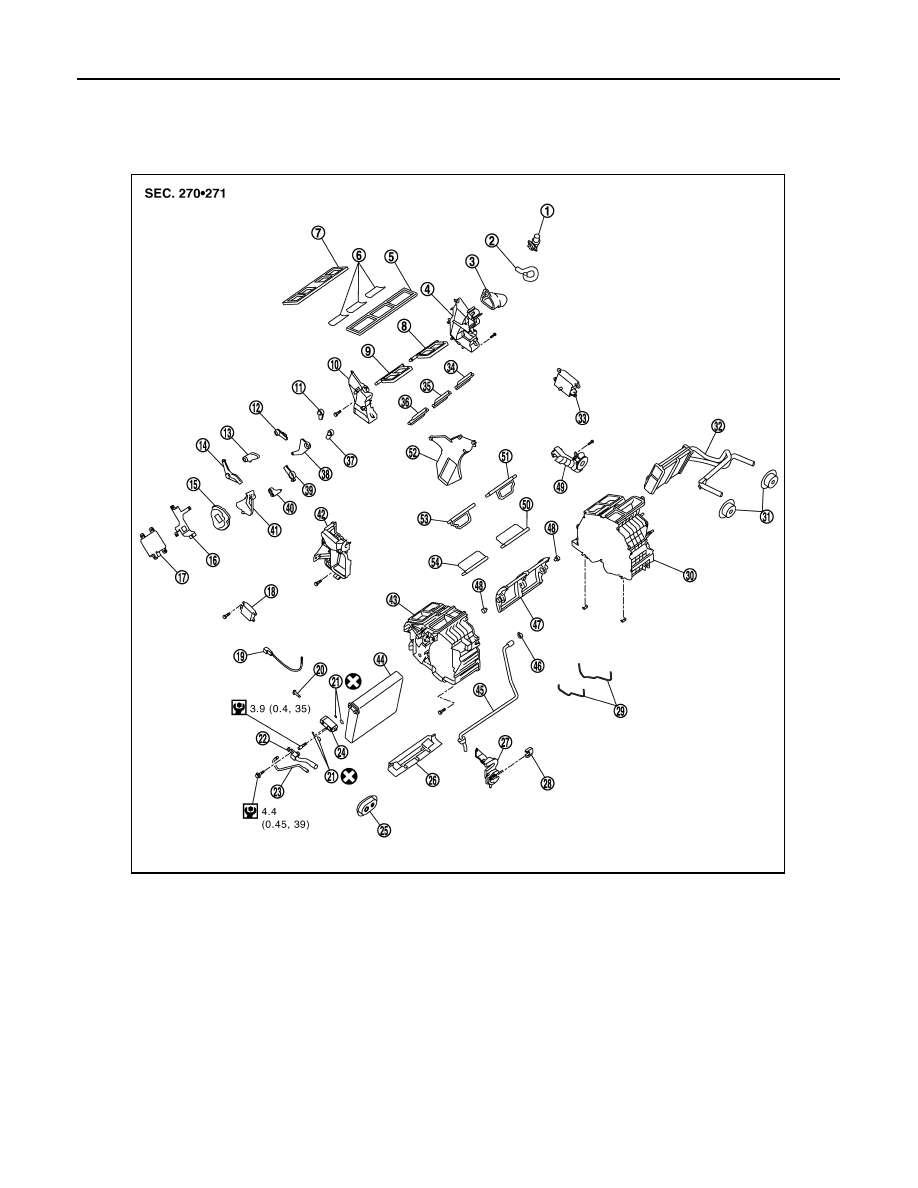

Exploded View

INFOID:0000000000959808

1.

Aspirator

2.

Aspirator hose

3.

Front heater duct

4.

Foot duct (left)

5.

Defroster seal

6.

Packing

7.

Ventilator seal

8.

Ventilator door (left)

9.

Ventilator door (right)

10. Foot duct (right)

11.

Defroster door lever

12.

Foot door lever

13. Ventilator door lever

14.

Ventilator door link

15.

Main link

16. Mode door motor bracket

17.

Mode door motor

18.

Air mix door motor (passenger side)

19. Intake sensor

20.

Intake sensor bracket

21.

O-ring

22. Low-pressure pipe 1

23.

High-pressure pipe 2

24.

Expansion valve

25. Cooler pipe grommet

26.

Insulator

27.

Evaporator cover adapter

28. Heater pipe bracket

29.

Case packing

30.

Heater & cooling unit case (left)

31. Heater pipe grommet

32.

Heater core

33.

Air mix door motor (driver side)

*

34. Foot door (left)

35.

Rear ventilator door

36.

Foot door (right)

JSIIA0016GB

MODE DOOR MOTOR

VTL-39

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000000959809

REMOVAL

1.

Remove blower unit. Refer to

VTL-30, "Removal and Installation"

.

2.

Remove mounting screws (A), and then remove mode door
motor (1).

3.

Disconnect mode door motor connector (B).

INSTALLATION

installation is basically the reverse order of removal.

37.

Max. cool door lever

38.

Foot door link

39. Defroster door link

40.

Max. cool door link

41.

Main link sub

42. Evaporator cover

43.

Heater & cooling unit case (right)

44.

Evaporator

45. Drain hose

46.

Clamp

47.

Air mix door (Slide door)

48. Air mix door adapter

49.

Heater pipe cover

50.

Max. cool door (left)

51. Defroster door (left)

52.

Center case

53.

Defroster door (right)

54. Max. cool door (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSIIA0103ZZ

VTL-40

< ON-VEHICLE REPAIR >

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

Exploded View

INFOID:0000000000959810

1.

Aspirator

2.

Aspirator hose

3.

Front heater duct

4.

Foot duct (left)

5.

Defroster seal

6.

Packing

7.

Ventilator seal

8.

Ventilator door (left)

9.

Ventilator door (right)

10. Foot duct (right)

11.

Defroster door lever

12.

Foot door lever

13. Ventilator door lever

14.

Ventilator door link

15.

Main link

16. Mode door motor bracket

17.

Mode door motor

18.

Air mix door motor (passenger side)

19. Intake sensor

20.

Intake sensor bracket

21.

O-ring

22. Low-pressure pipe 1

23.

High-pressure pipe 2

24.

Expansion valve

25. Cooler pipe grommet

26.

Insulator

27.

Evaporator cover adapter

28. Heater pipe bracket

29.

Case packing

30.

Heater & cooling unit case (left)

31. Heater pipe grommet

32.

Heater core

33.

Air mix door motor (driver side)

*

34. Foot door (left)

35.

Rear ventilator door

36.

Foot door (right)

JSIIA0016GB

AIR MIX DOOR MOTOR

VTL-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000000959811

REMOVAL

Driver Side (With left and right ventilation temperature separately system)

1.

Set the temperature (driver side) at 18

°

C (60

°

F), and then disconnect the battery from the negative termi-

nal.

2.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

3.

Remove accelerator pedal bracket and lever assembly. Refer to

ACC-3, "Removal and Installation"

.

4.

Remove automatic drive positioner control unit. Refer to

ADP-218, "Removal and Installation"

.

5.

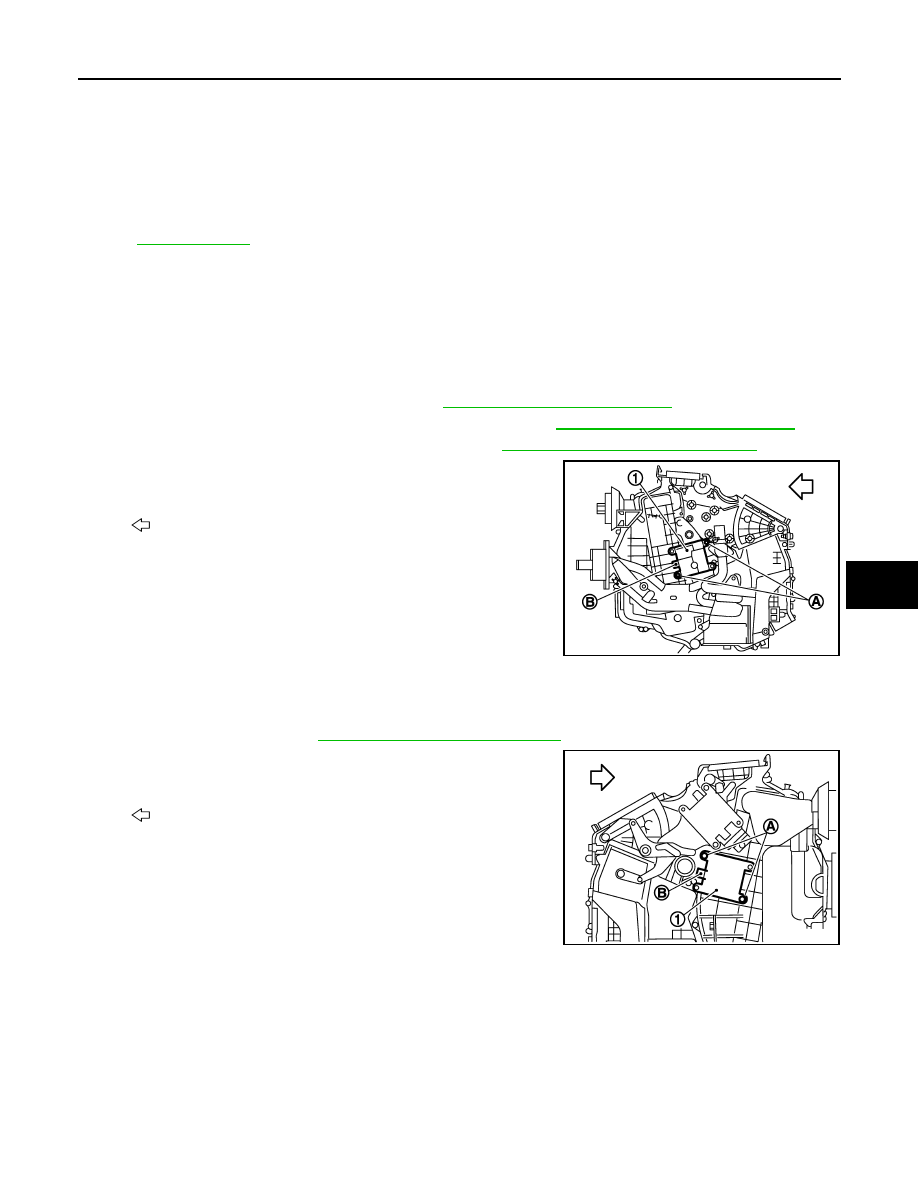

Remove mounting screws (A), and then remove air mix door
motor (1).

6.

Disconnect air mix door motor connector (B).

Passenger Side

1.

Set the temperature (passenger side) at 18

°

C (60

°

F), and then disconnect the battery from the negative

terminal.

2.

Remove blower unit. Refer to

VTL-30, "Removal and Installation"

.

3.

Remove mounting screws (A), and then remove air mix door
motor (1).

4.

Disconnect air mix door motor connector (B).

INSTALLATION

Installation is basically the reverse order of removal.

37.

Max. cool door lever

38.

Foot door link

39. Defroster door link

40.

Max. cool door link

41.

Main link sub

42. Evaporator cover

43.

Heater & cooling unit case (right)

44.

Evaporator

45. Drain hose

46.

Clamp

47.

Air mix door (Slide door)

48. Air mix door adapter

49.

Heater pipe cover

50.

Max. cool door (left)

51. Defroster door (left)

52.

Center case

53.

Defroster door (right)

54. Max. cool door (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

:

Vehicle front

JSIIA0104ZZ

:

Vehicle front

JSIIA0105ZZ
