< ON-VEHICLE REPAIR >

BLOWER UNIT

BLOWER UNIT

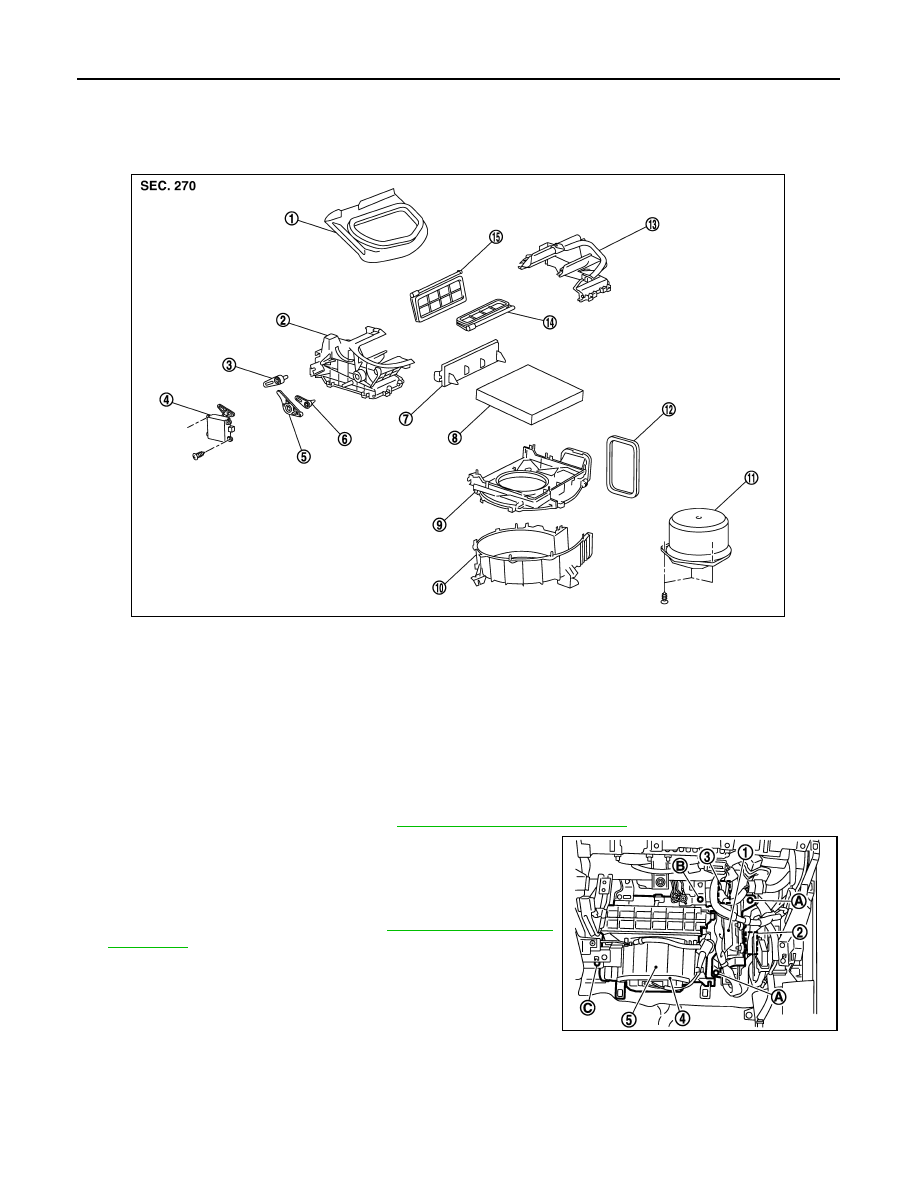

Exploded View

INFOID:0000000000959800

Removal and Installation

INFOID:0000000000959801

REMOVAL

1.

Remove instrument lower panel. Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect ECM (1) connectors.

3.

Disconnect AWD control unit (2) connector (AWD).

4.

Remove mounting nuts (A), and then remove ECM with bracket
attached.

5.

Remove power steering C/U. Refer to

STC-24, "Removal and

Installation"

.

6.

Disconnect intake door motor (3) connector and blower fan
motor (4) connector.

7.

Remove mounting bolt (B) and screw (C), from blower unit (5).

8.

Remove blower unit.

CAUTION:

Move blower unit rightward, and remove locating pin (1 part) and joint. Then remove blower unit
downward.

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

JSIIA0035ZZ

BLOWER UNIT

VTL-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

CAUTION:

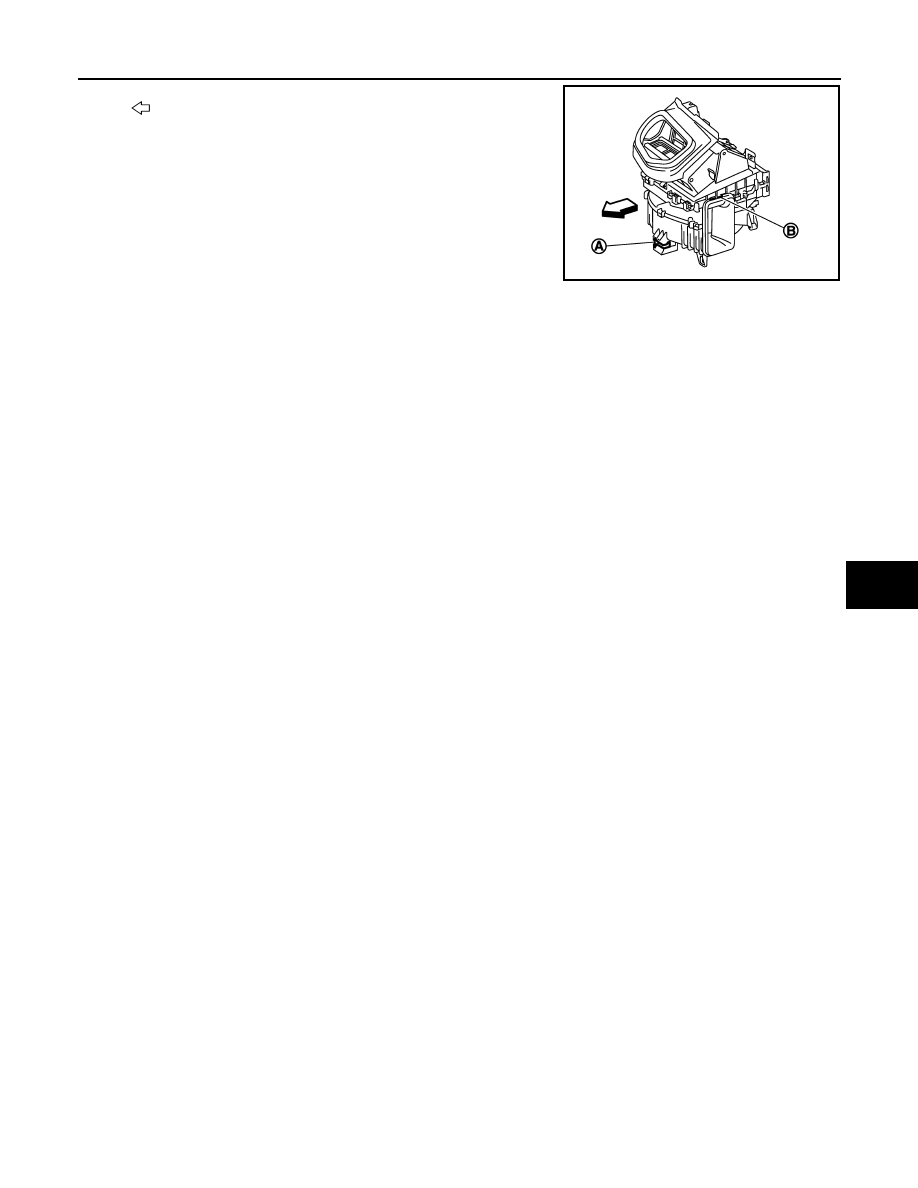

Make sure locating pin (A) and joint (B) are securely inserted.

:

Vehicle front

JSIIA0008ZZ

VTL-32

< ON-VEHICLE REPAIR >

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000000959802

Removal and Installation

INFOID:0000000000959803

REMOVAL

1.

Remove instrument lower cover. Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect blower motor connector (A).

3.

Remove mounting screws (B), and then remove blower motor
assembly (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

JSIIA0033ZZ

INTAKE DOOR MOTOR

VTL-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000000959804

Removal and Installation

INFOID:0000000000959805

REMOVAL

1.

Remove ECM and power steering control unit with bracket attached. Refer to

VTL-30, "Removal and

Installation"

.

2.

Remove mounting screws (A), and then remove intake door
motor (1) from blower unit.

3.

Disconnect intake door motor connector (B).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

:

Vehicle front

JSIIA0108ZZ
