< ON-VEHICLE REPAIR >

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000000959794

Removal and Installation

INFOID:0000000000959795

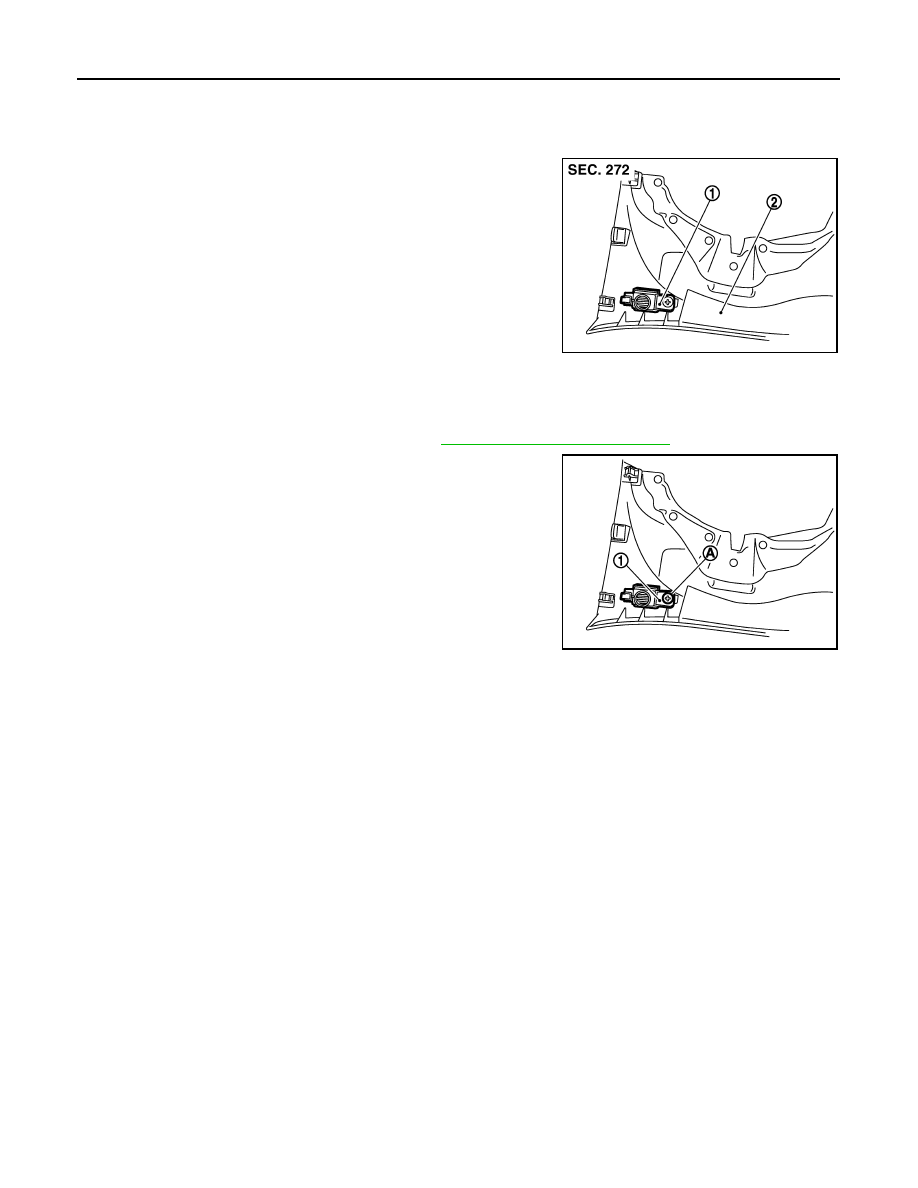

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove mounting screw (A), and then remove in-vehicle sensor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

In-vehicle sensor

2.

instrument driver lower panel

JSIIA0126ZZ

JSIIA0032ZZ

SUNLOAD SENSOR

VTL-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SUNLOAD SENSOR

Exploded View

INFOID:0000000000959796

Removal and Installation

INFOID:0000000000959797

REMOVAL

1.

Remove front defroster grille (left). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

JSIIA0218ZZ

JSIIA0050ZZ

VTL-28

< ON-VEHICLE REPAIR >

INTAKE SENSOR

INTAKE SENSOR

Exploded View

INFOID:0000000000959798

1.

Aspirator

2.

Aspirator hose

3.

Front heater duct

4.

Foot duct (left)

5.

Defroster seal

6.

Packing

7.

Ventilator seal

8.

Ventilator door (left)

9.

Ventilator door (right)

10. Foot duct (right)

11.

Defroster door lever

12.

Foot door lever

13. Ventilator door lever

14.

Ventilator door link

15.

Main link

16. Mode door motor bracket

17.

Mode door motor

18.

Air mix door motor (passenger side)

19. Intake sensor

20.

Intake sensor bracket

21.

O-ring

22. Low-pressure pipe 1

23.

High-pressure pipe 2

24.

Expansion valve

25. Cooler pipe grommet

26.

Insulator

27.

Evaporator cover adapter

28. Heater pipe bracket

29.

Case packing

30.

Heater & cooling unit case (left)

31. Heater pipe grommet

32.

Heater core

33.

Air mix door motor (driver side)

*

34. Foot door (left)

35.

Rear ventilator door

36.

Foot door (right)

JSIIA0016GB

INTAKE SENSOR

VTL-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000000959799

REMOVAL

1.

Remove low-pressure pipe 1 and high-pressure pipe 2. Refer to

HA-51, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with suitable material
such as vinyl tape to avoid the entry of air.

2.

Slide evaporator (1) to passenger side, and then remove intake
sensor (2).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with new ones, and then apply

compressor oil to it when installing it.

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

37.

Max. cool door lever

38.

Foot door link

39. Defroster door link

40.

Max. cool door link

41.

Main link sub

42. Evaporator cover

43.

Heater & cooling unit case (right)

44.

Evaporator

45. Drain hose

46.

Clamp

47.

Air mix door (Slide door)

48. Air mix door adapter

49.

Heater pipe cover

50.

Max. cool door (left)

51. Defroster door (left)

52.

Center case

53.

Defroster door (right)

54. Max. cool door (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSIIA0052ZZ
