TM-344

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH
HUB

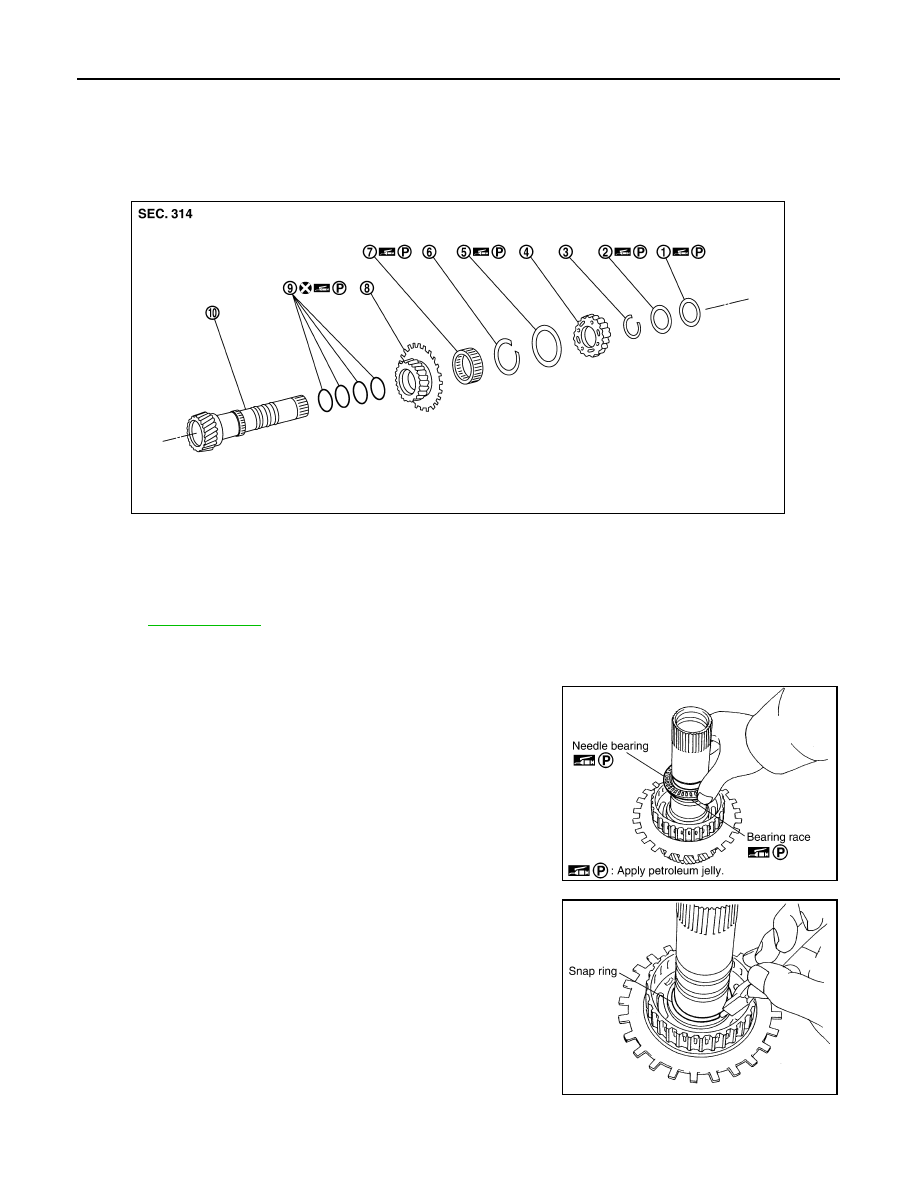

Exploded View

INFOID:0000000000957203

Disassembly

INFOID:0000000000957204

1.

Remove needle bearing and bearing race from high and low
reverse clutch hub.

2.

Using pair of snap ring pliers, remove snap ring from mid sun
gear assembly.

CAUTION:

Do not expand snap ring excessively.

1.

Needle bearing

2.

Bearing race

3.

Snap ring

4.

High and low reverse clutch hub

5.

Needle bearing

6.

Snap ring

7.

1st one-way clutch

8.

Rear sun gear

9.

Seal ring

10. Mid sun gear

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA8369E

SCIA2854E

SCIA2855E

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

TM-345

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

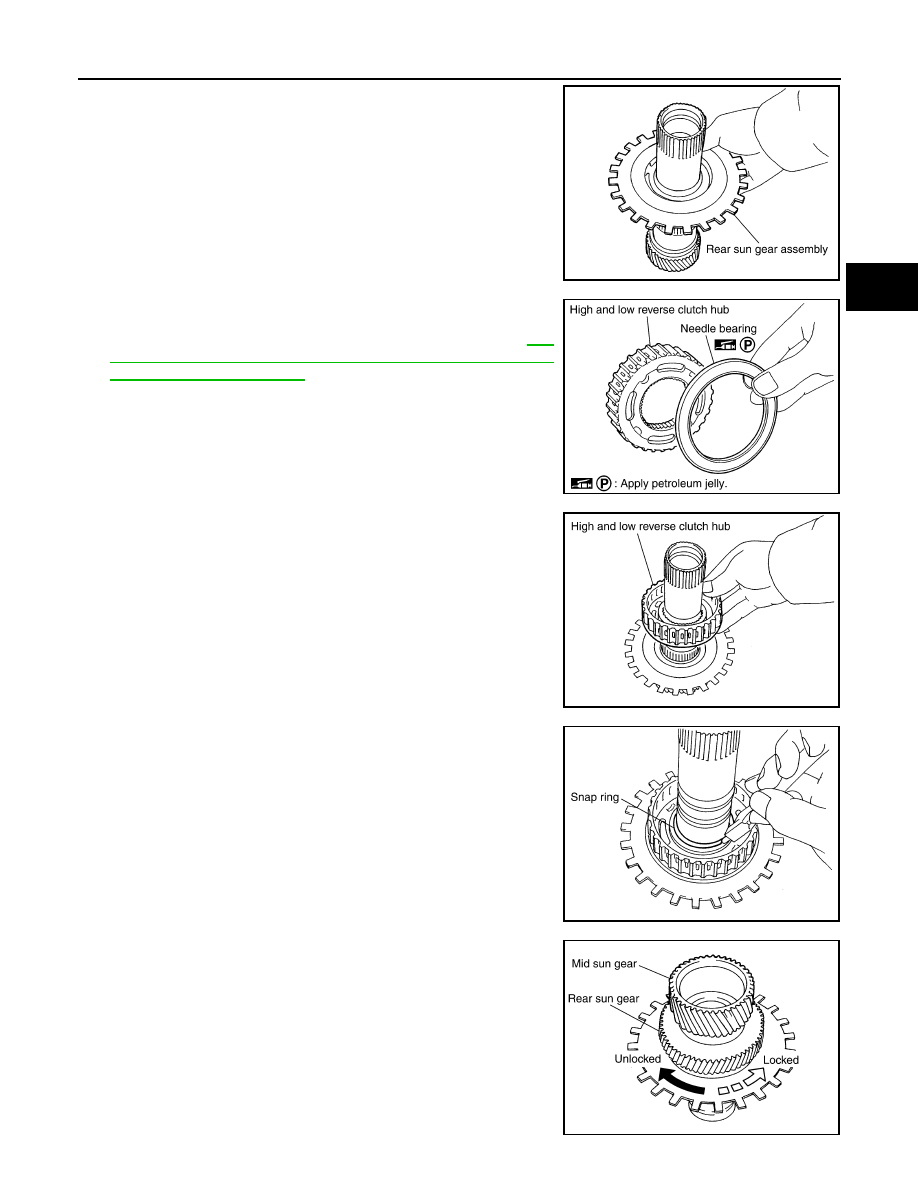

3.

Remove high and low reverse clutch hub from mid sun gear
assembly.

4.

Remove needle bearing from high and low reverse clutch hub.

5.

Remove rear sun gear assembly from mid sun gear assembly.

6.

Using a flat-bladed screwdriver, remove snap ring from rear sun
gear.

7.

Remove 1st one-way clutch from rear sun gear.

SCIA2856E

SCIA2857E

SCIA7018E

SCIA2859E

SCIA4633E

TM-346

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

8.

Remove seal rings from mid sun gear.

Assembly

INFOID:0000000000957205

1.

Install seal rings to mid sun gear.

2.

Install 1st one-way clutch to rear sun gear.

3.

Using a flat-bladed screwdriver, install snap ring to rear sun
gear.

SCIA2861E

SCIA2861E

SCIA4633E

SCIA2859E

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

TM-347

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Install rear sun gear assembly to mid sun gear assembly.

5.

Install needle bearing to high and low reverse clutch hub.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

6.

Install high and low reverse clutch hub to mid sun gear assem-
bly.

7.

Using pair of snap ring pliers, install snap ring to mid sun gear
assembly.

CAUTION:

Do not expand snap ring excessively.

8.

Check operation of 1st one-way clutch.

a.

Hold mid sun gear and turn rear sun gear.

b.

Check 1st one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in the figure, check installation direction of
1st one-way clutch.

SCIA7018E

SCIA2857E

SCIA2856E

SCIA2855E

SCIA3132E
