Infiniti G35 (V35) Sedan. Manual - part 1412





TM-340

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

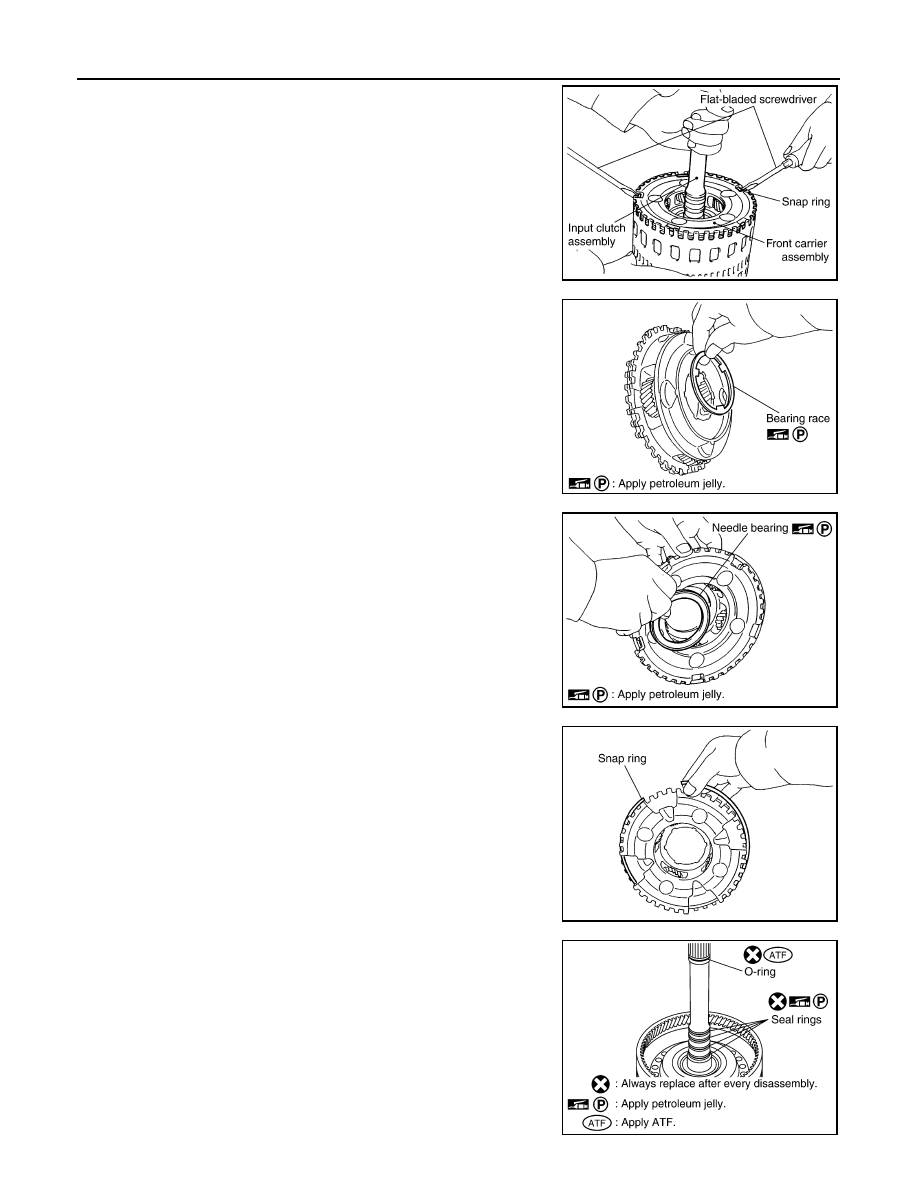

1.

Compress snap ring using 2 flat-bladed screwdrivers.

2.

Remove front carrier assembly and input clutch assembly from
rear internal gear.

3.

Remove front carrier assembly from input clutch assembly.

4.

Remove bearing race from front carrier assembly.

5.

Remove needle bearing from front carrier assembly.

6.

Remove snap ring from front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

7.

Remove O-ring and seal rings from input clutch assembly.

SCIA5339E

SCIA2847E

SCIA5233E

SCIA5476E

SCIA5235E

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-341

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

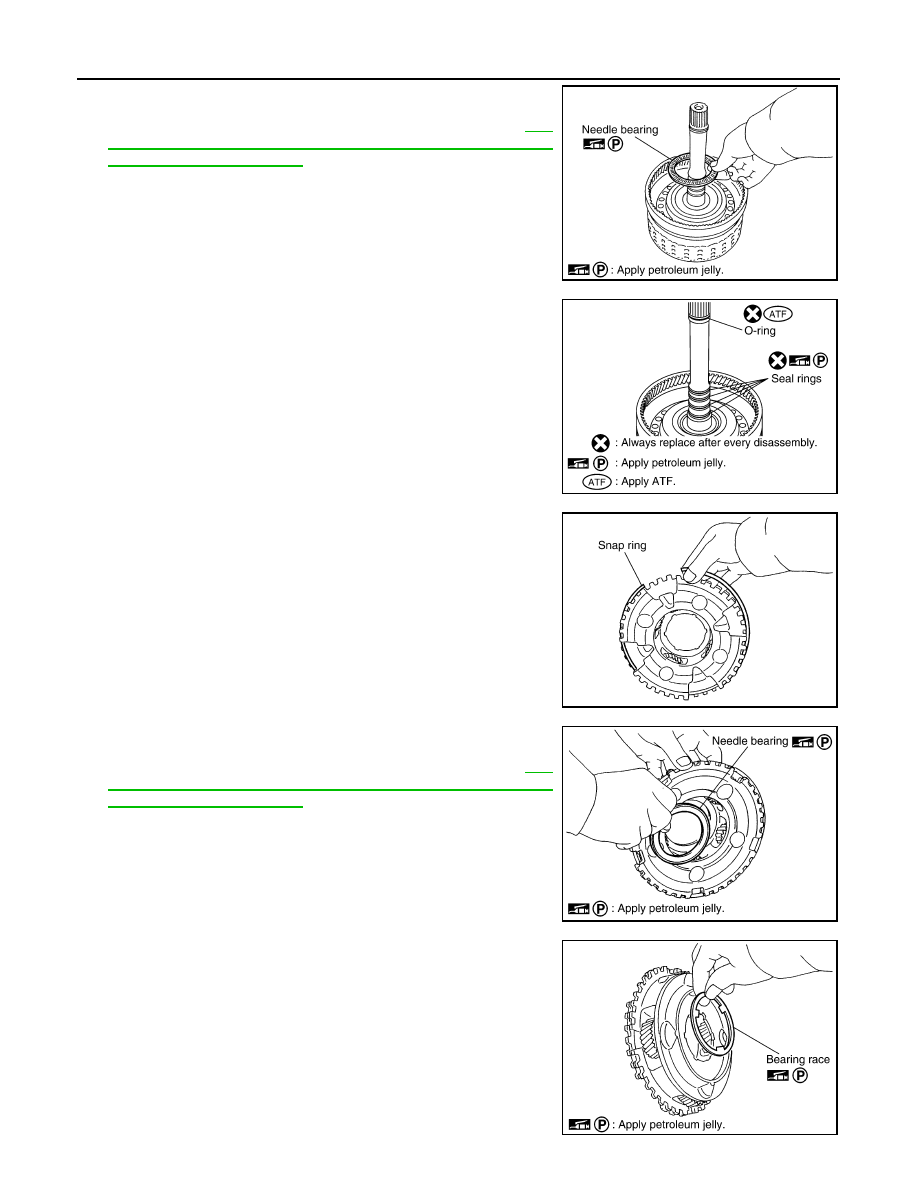

8.

Remove needle bearing from input clutch assembly.

9.

Using a flat-bladed screwdriver, remove snap ring from input
clutch drum.

10. Remove drive plates, driven plates and retaining plate from input

clutch drum.

Assembly

INFOID:0000000000957201

1.

Install drive plates, driven plates and retaining plate in input
clutch drum.

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap ring in input clutch
drum.

SCIA2853E

SCIA2864E

1

:  Snap  ring

2

: Retaining plate

3

: Drive plate

4

: Driven plate

Drive plate /
Driven plate

: 7/7

SCIA7133E

SCIA2864E

TM-342

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

3.

Install needle bearing in input clutch assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

4.

Install O-ring and seal rings in input clutch assembly.

5.

Install snap ring to front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

6.

Install needle bearing in front carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

7.

Install bearing race in front carrier assembly.

8.

Install front carrier assembly to input clutch assembly.

SCIA2853E

SCIA5235E

SCIA5476E

SCIA5233E

SCIA2847E

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-343

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9.

Compress snap ring using 2 flat-bladed screwdrivers.

10. Install front carrier assembly and input clutch assembly to rear

internal gear.

Inspection

INFOID:0000000000957202

• Front Carrier Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

• Input Clutch Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Drum

Check for deformation, fatigue or damage or burns.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Drive Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Front Carrier

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front carrier assembly.

• Rear Internal Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the rear internal gear.

SCIA5339E
