Infiniti G35 (V35) Sedan. Manual - part 1410

TM-332

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

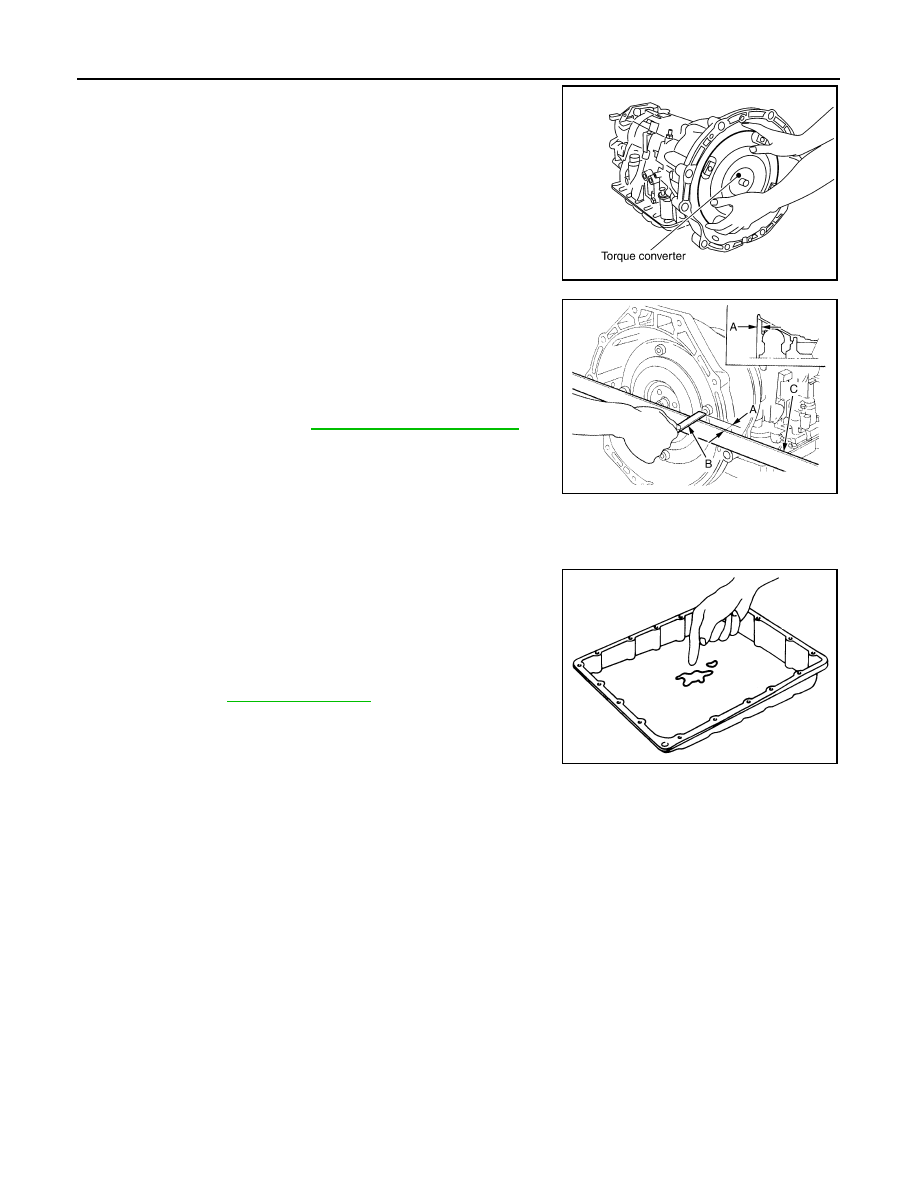

80. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

81. Measure distance (A) to make sure that torque converter is in

proper position.

Inspection

INFOID:0000000000957191

INSPECTION AFTER REMOVAL

• Check foreign materials in oil pan to help determine causes of mal-

function. If the ATF is very dark, smells burned, or contains foreign
particles, the frictional material (clutches, band) may need replace-
ment. A tacky film that will not wipe clean indicates varnish build
up. Varnish can cause valves, servo, and clutches to stick and can
inhibit pump pressure.

- If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-220, "Cleaning"

.

SCIA5010E

B

:  Scale

C

: Straightedge

Distance (A)

: Refer to

TM-354, "Torque Converter"

.

JPDIA0042ZZ

SCIA5199E

TRANSMISSION ASSEMBLY

TM-333

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

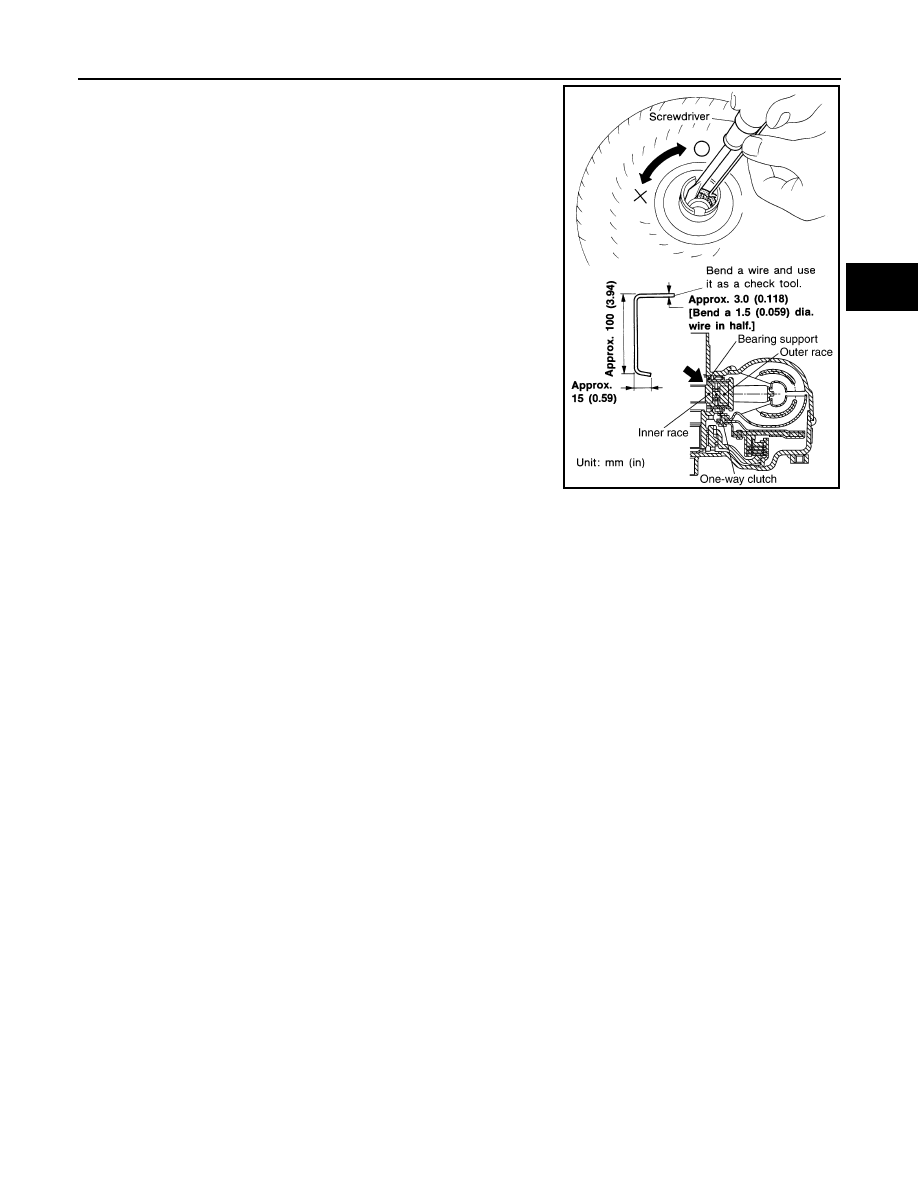

• Check torque converter one-way clutch using a check tool as

shown at figure.

1.

Insert a check tool into the groove of bearing support built into
one-way clutch outer race.

2.

When fixing bearing support with a check tool, rotate one-way
clutch spline using a screwdriver.

3.

Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.

SCIA3171E

TM-334

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

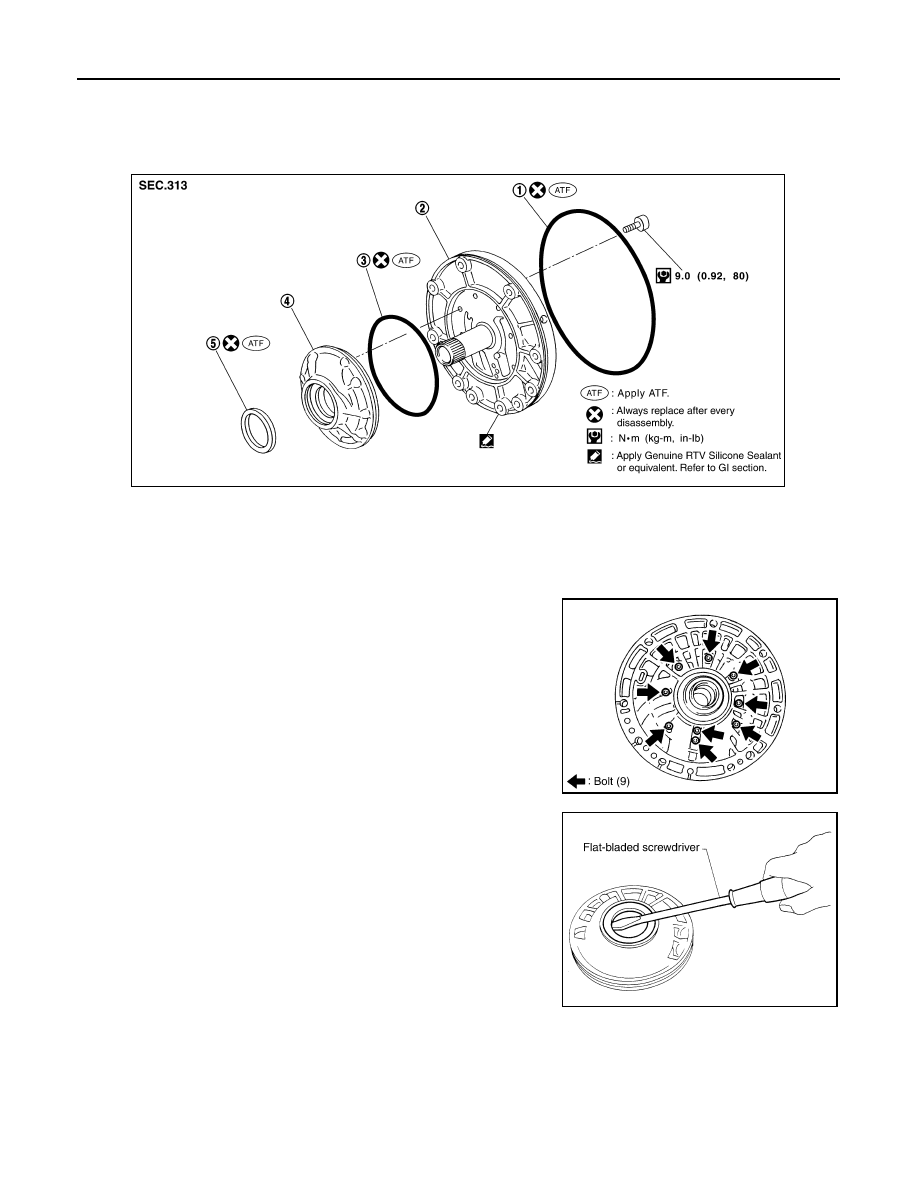

OIL PUMP

OIL PUMP

Exploded View

INFOID:0000000000957192

Disassembly

INFOID:0000000000957193

1.

Remove oil pump housing from oil pump cover.

2.

Remove oil pump housing oil seal using a flat-bladed screw-
driver.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E

OIL PUMP

TM-335

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

Remove O-ring from oil pump housing.

4.

Remove O-ring from oil pump cover.

Assembly

INFOID:0000000000957194

1.

Install O-ring to oil pump cover.

2.

Install O-ring to oil pump housing.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E
