TM-264

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

REVOLUTION SENSOR

17. Remove rear extension assembly (With needle bearing) from

transmission case.

18. Disconnect revolution sensor connector (A).

CAUTION:

Be careful not to damage connector

19. Disengage terminal clip (

).

20. Remove revolution sensor (1) from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

INSTALLATION

1.

Install revolution sensor (1) in transmission case. Tighten a nec-
essary bolt for revolution sensor with specified torque.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

SCIA3431E

JPDIA0011ZZ

: Bolt

JPDIA0041ZZ

: Bolt

JPDIA0041ZZ

REVOLUTION SENSOR

TM-265

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

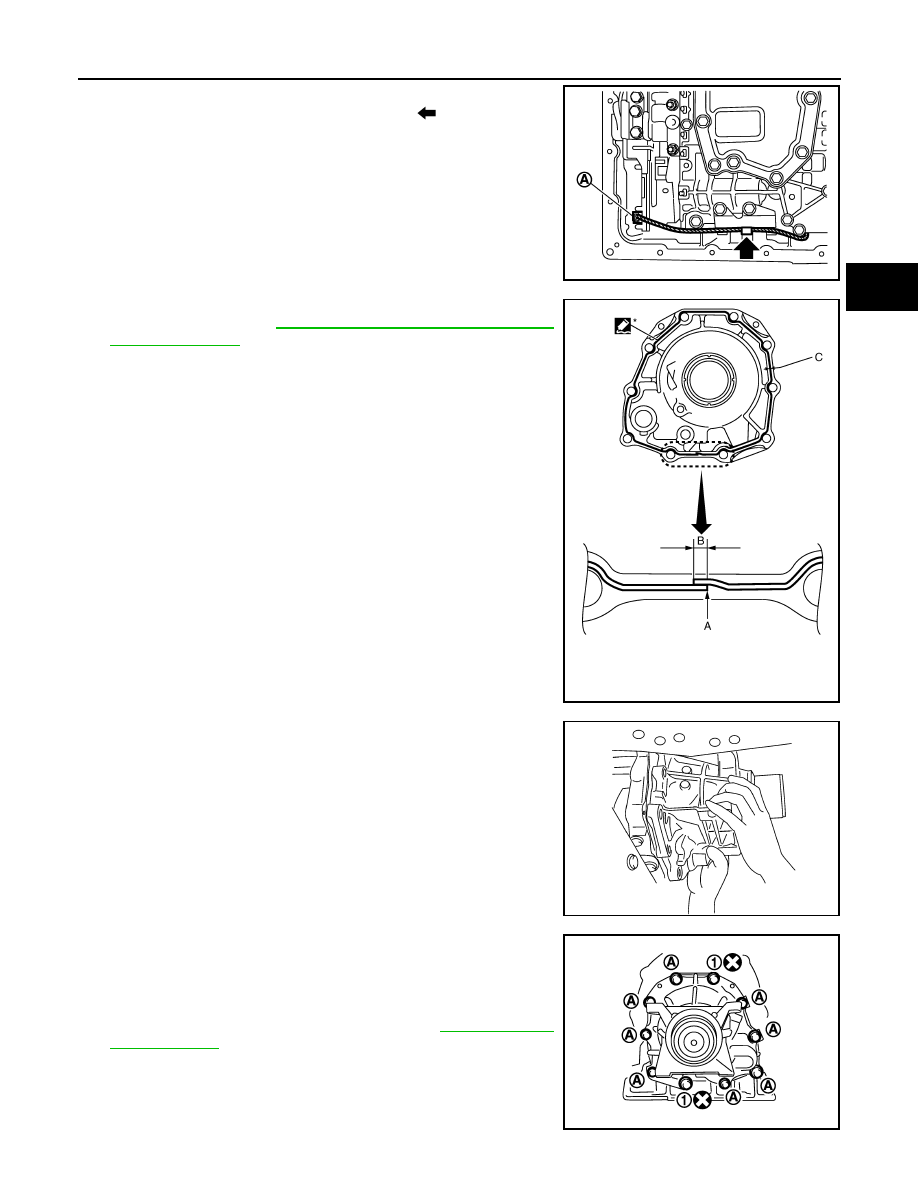

2.

Connect revolution sensor connector (A).

3.

Engage revolution sensor harness with clip (

).

4.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.) to rear extension assembly as shown in the

figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from transmission case and rear extension assembly
mounting surfaces.

5.

Install rear extension assembly (with needle bearing) to trans-
mission case.

CAUTION:

Insert the tip of parking rod between the parking pole and
the parking actuator support when assembling the rear
extension assembly.

6.

Tighten rear extension assembly bolts to the specified torque.

7.

Install rear engine mounting member. Refer to

TM-275, "2WD :

Exploded View"

.

8.

Install oil pan gasket to oil pan.

CAUTION:

• Do not reuse oil pan gasket.
• Install it in the direction to align hole positions.

JPDIA0011ZZ

A

: Start and finish point shall be in the
center of two bolts.

B

: 3 – 5 mm (0.12 – 0.20 in)

Sealant
width (C)

: 1.0 –2.0 mm (0.04 – 0.08 in)

Sealant
height (C)

: 0.4 – 1.0 mm (0.016 – 0.04 in)

JPDIA0036ZZ

SCIA3431E

1

: Self-searing bolt

A

:  Bolt

JPDIA0026ZZ

TM-266

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

REVOLUTION SENSOR

• Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

9.

Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-
sion case.

CAUTION:

• Install it so that drain plug (3) comes to the position as

shown in the figure.

• Be careful not to pinch harnesses.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan mounting surface.

10. Tighten oil pan mounting bolts to the specified torque in numeri-

cal order shown in the figure after temporarily tightening them.
Tighten necessary oil pan mounting bolts with specified torque.

CAUTION:

Do not reuse oil pan mounting bolts.

11. Install drain plug to oil pan. Tighten a necessary drain plug with

specified torque.

CAUTION:

Do not reuse drain plug gasket.

12. Install bracket (2) to transmission assembly.

13. Install heated oxygen sensor 2 harness (B) to clips (1).
14. Connect heated oxygen sensor 2 harness connector (A).

15. Install exhaust mounting bracket. Refer to

EX-5, "Exploded

View"

.

16. Install control rod. Refer to

TM-236, "2WD : Exploded View"

.

17. Install rear propeller shaft. Refer to

DLN-93, "Exploded View"

.

18. Install exhaust front tube and center muffler. Refer to

EX-5, "Exploded View"

.

19. Pour ATF into A/T assembly. Refer to

TM-218, "Changing"

.

20. Connect the battery cable to the negative terminal.

2WD : Inspection

INFOID:0000000000957169

INSPECTION AFTER REMOVAL

Check foreign materials in oil pan to help determine causes of mal-
function. If the ATF is very dark, smells burned, or contains foreign
particles, the frictional material (clutches, band) may need replace-
ment. A tacky film that will not wipe clean indicates varnish build up.
Varnish can cause valves, servo, and clutches to stick and can
inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-220, "Cleaning"

.

INSPECTION AFTER INSTALLATION

After completing installation, check the following item.

: Vehicle front

: Oil pan mounting bolt

SCIA8117E

: Vehicle front

: Vehicle front

: Bolt

JPDIA0021ZZ

SCIA8269E

SCIA5199E

REVOLUTION SENSOR

TM-267

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• A/T fluid leakage and A/T fluid level. Refer to

TM-217, "Inspection"

.

• A/T position. Refer to

TM-230, "2WD : Inspection and Adjustment"

.
