Infiniti G35 (V35) Sedan. Manual - part 13





ADP-46

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

SIDE SUPPORT SYSTEM : Component Description

INFOID:0000000000960617

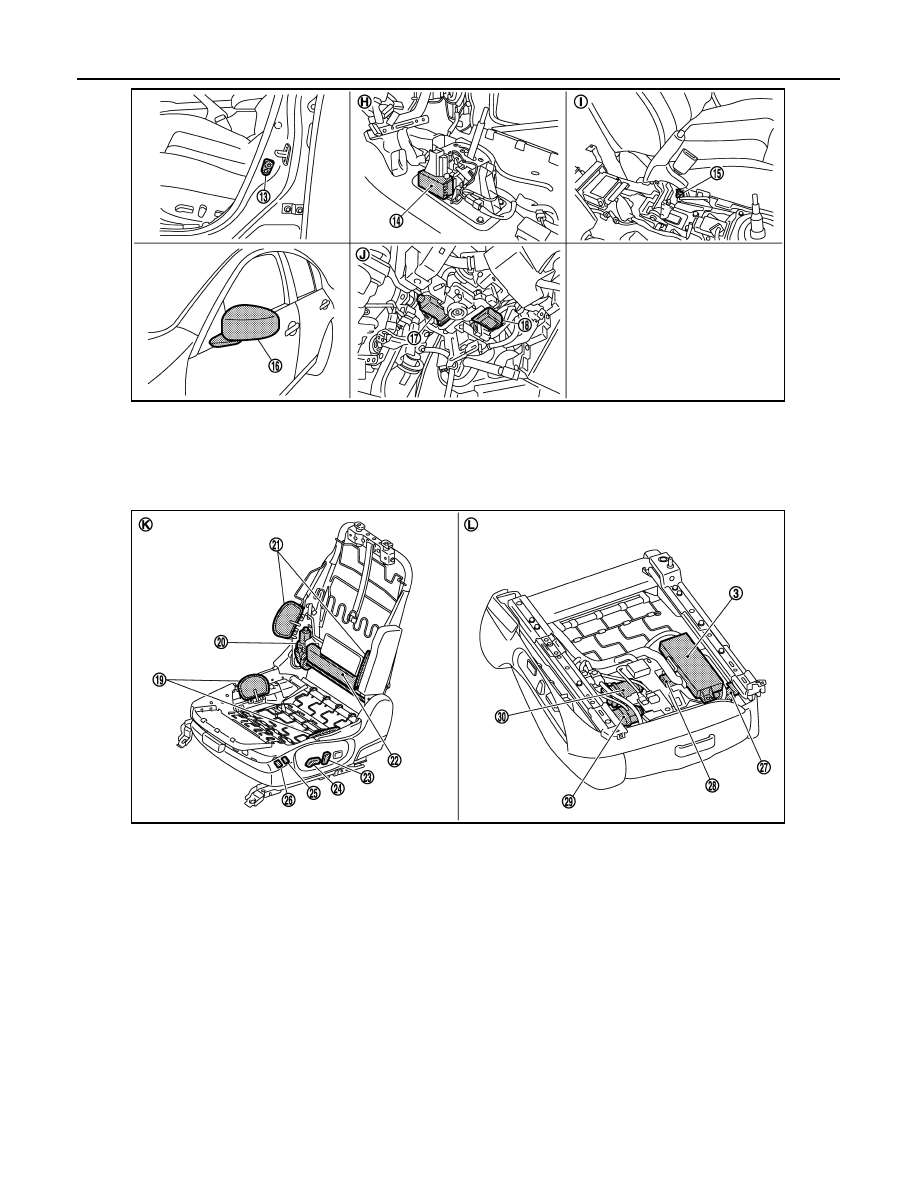

CONTROL UNITS

13. Front door switch (driver side) B16

14. AT device (detention switch) M137

15. Parking brake switch B14

16. Door mirror (driver side) D3

17. Telescopic motor M49

18. Tilt motor M49

H.

View with center console assembly
removed

I.

View with center console assembly
removed

J.

View with instrument driver lower
panel removed

19. Side support (seat cushion)

(Side support unit B420)

20. Reclining motor B454

21. Side support (seatback)

(Side support unit B420)

22. Side support unit B420

23. Reclining switch

(Power seat switch B459)

24. Sliding, lifting switch

(Power seat switch B459)

25. Side support switch (seat back side)

B419

26. Side support switch (cushion side)

B419

27. Sliding sensor B453

28. Lifting motor (front) B455

29. Sliding motor B461

30.  Lifting motor (rear) B456

K.

View with seat cushion pad and seat-
back pad removed

L.

Backside of the seat cushion

JMJIA0162GB

JMJIA0164GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-47

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Item

Function

Side support unit

Built in pump, pump relay and solenoid, operates when pressing ON/OFF on side
support switch.

Side support switch

With a built-in cushion side and seat back side, controls the power supplied to pump
and to each solenoid.

ADP-48

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

Diagnosis Description

INFOID:0000000000960618

The auto drive positioner system can be checked and diagnosed for component operation with CONSULT-III.

DIAGNOSTIC MODE

CONSULT-III Function

INFOID:0000000000960619

SELF-DIAGNOSIS RESULTS

Refer to

ADP-156, "DTC Index"

.

DATA MONITOR

Diagnostic mode

[AUTO DRIVE POS.]

Description

WORK SUPPORT

Changes the setting of each function.

SELF-DIAG RESULTS

Performs self-diagnosis for the auto drive positioner system and displays the results.

DATA MONITOR

Displays input signals transmitted from various switches and sensors to driver seat con-
trol unit in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ACTIVE TEST

Drive each output device.

ECU PART NUMBER

Displays part numbers of driver seat control unit parts.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

SET SW

“ON/OFF”

×

×

ON/OFF status judged from the setting switch signal.

MEMORY SW 1

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 1 sig-
nal.

MEMORY SW 2

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 2 sig-
nal.

SLIDE SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (forward) sig-
nal.

SLIDE SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (backward)
signal.

RECLN SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (forward)
signal.

RECLN SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (backward)
signal.

LIFT FR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (up) sig-
nal.

LIFT FR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (down)
signal.

LIFT RR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (up) sig-
nal.

LIFT RR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (down)
signal.

MIR CON SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (up) signal.

MIR CON SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (down) signal.

MIR CON SW–RH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (passenger side) signal.

MIR CON SW–LH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (driver side) signal.

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

ADP-49

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

*1

:Only for AT models.

*2

:Only for MT models.

ACTIVE TEST

CAUTION:

When driving vehicle, do not perform active test.

MIR CHNG SW–R

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to right) signal.

MIR CHNG SW–L

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to left) signal.

TILT SW-UP

“ON/OFF”

×

×

ON/OFF status judged from the tilt switch (up) signal.

TILT SW-DOWN

“ON/OFF”

×

×

ON/OFF status judged from the tilt switch (down) signal.

TELESCO SW-FR

“ON/OFF”

×

×

ON/OFF status judged from the telescoping switch (for-
ward) signal.

TELESCO SW-RR

“ON/OFF”

×

×

ON/OFF status judged from the telescoping switch (back-
ward) signal.

DETENT SW

*1

“ON/OFF”

×

×

The selector lever position “OFF (P position) / ON (other
than P position)” judged from the detention switch signal.

PARK BRAKE SW

*2

“ON/OFF”

×

×

The parking brake condition “ON (applied) / OFF (release)”
judged from the parking brake switch signal.

STARTER SW

“ON/OFF”

×

×

Ignition key switch ON (START, ON) /OFF (ACC, OFF) sta-
tus judged from the ignition switch signal.

SLIDE PULSE

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.

RECLN PULSE

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.

LIFT FR PULSE

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.

LIFT RR PULSE

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.

MIR/SEN RH U–D

“V”

×

Voltage input from door mirror sensor (passenger side) up/
down is displayed.

MIR/SEN RH R–L

“V”

×

Voltage input from door mirror sensor (passenger side) left/
right is displayed.

MIR/SEN LH U–D

“V”

×

Voltage input from door mirror sensor (driver side) up/down
is displayed.

MIR/SEN LH R–L

“V”

×

Voltage input from door mirror sensor (driver side) left/right
is displayed.

TILT SEN

“V”

×

Voltage input from tilt sensor is displayed.

TELESCO SEN

“V”

×

Voltage input from telescopic sensor is displayed.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

Test item

Description

SEAT SLIDE

Activates/deactivates the sliding motor.

SEAT RECLINING

Activates/deactivates the reclining motor.

SEAT LIFTER FR

Activates/deactivates the lifting motor (front).

SEAT LIFTER RR

Activates/deactivates the lifting motor (rear).

TILT MOTOR

Activates/deactivates the tilt motor.
